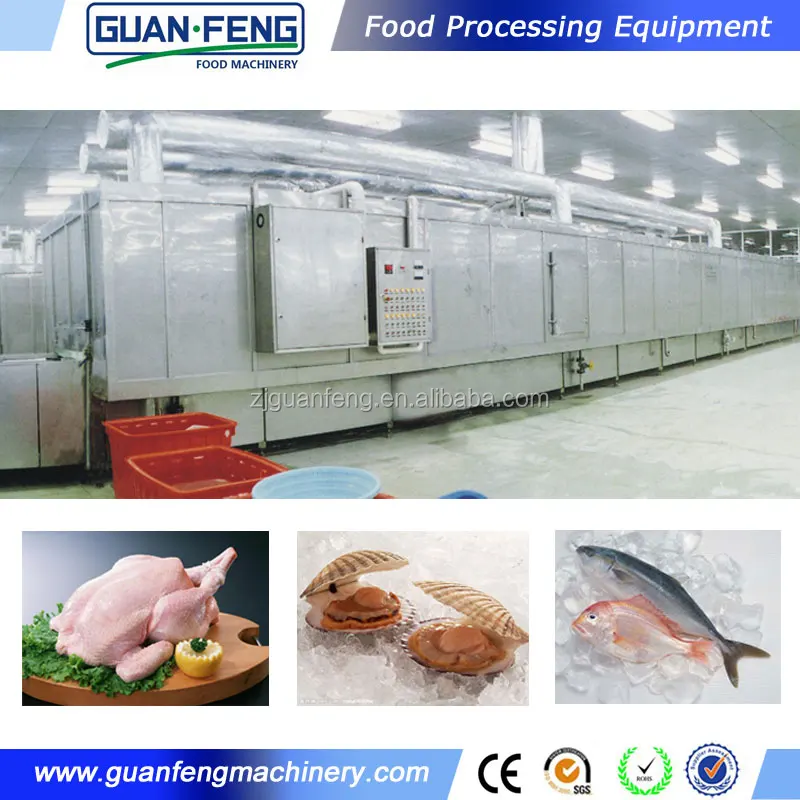

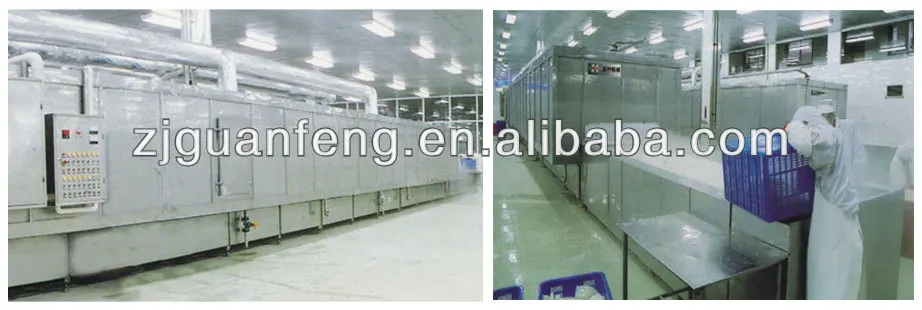

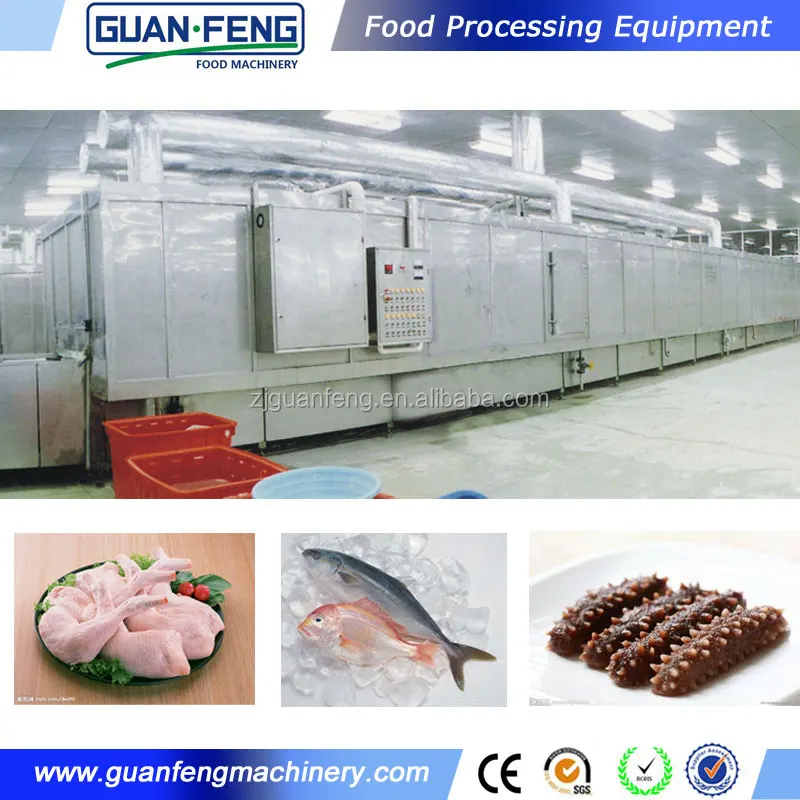

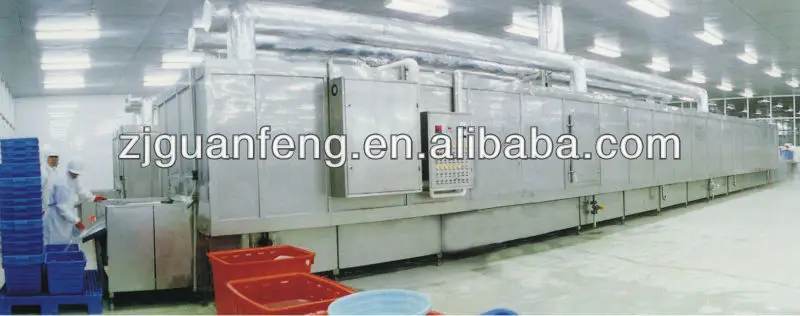

Professional Tunnel Quick Freezing Fluidized IQF Freezers Freezing Frozen Food Machine
- Category: >>>
- Supplier: Zhejiang Guanfeng Food Machinery Co. Ltd.
Share on (62326372884):
Product Overview
Description
Click to HOME >> Product Categories >>
GSD-100 | GSD-300 | GSD-500 | GSD-1000 | |
Capacity(kg/h) | 100 | 300 | 500 | 1000 |
Dimension(m) | 8.5X2.3X2.48 | 12x2.8x2.48 | 14.7x3.3x2.48 | 20.7x3.8x2.48 |
Length of freezing room(m) | 6 | 9.5 | 12.2 | 18.2 |
Inlet material temperature | +15℃ | |||
Outlet material temperature | -18℃ | |||
Freezing temperature | ≤-33℃ | |||
Freezing time(min) | 6-60min(variable frequency regulation) | |||
refrigerant | R22/R404A/R717 | |||
Cold consumption(kw) | 22 | 55 | 95 | 165 |
Installation power(kw) | 6.8 | 10.5 | 19.8 | 31 |
Product overview and applications: Mainly freezing the prepared food(such as bun,dumpling,fish ball and etc.),aquatic products and especially varieties unsuitable for fluidized freezing.The optional range for freezing time is within 12~100minutes. The conveying belt of the GSD model net belt type channel quick-freezing machine adopts stainless steel wire net belt or plastic steel net belt. According to different varieties, the products to be frozen can be put in the tray or directly on the conveying belt, and be rapidly frozen by the wind blowing from the top to the bottom or by the side wind. Main features of tunnel freezer: The combination design of multidirectional air flow ensures high quality individual quick freezing products. The conveying belt and fan adopt frequency conversion speed adjustment to meet the demands of processing various frozen products. The wide net belt or double plate belt is adopted to effectively reduce the outline dimensions of the equipment. The evaporator adopts coil pipe, aluminum sheet or copper pipe aluminum sheet structure. Other parts are all made of stainless steel and food level plastics, which comply with the food hygienic standards. The high-efficiency cleaning device is provided to clean the residues on the conveying belt. All designs take the facility and easy operation for cleaning and ensure hygienic safety of foods.
| ||||
1.Are you A factory or A trading company?
A: We are factory manufacturing food processing machines and we provide OEM and after-sale service.
2.Where is your factory? How can I visit your factory?
A: Our factory is located on Shaoxing, it is near to Shanghai and Hangzhou. We are warmly welcome
you visit our factory.
3.Can you send me the video to show the machine works?
A: Certainly, we have made video of our machines and processing lines.
4.How can I pay my order?
A: We accept T/T and L/C payment.
5.Do you have a CE certificate?
A: For every model of machine, it has a CE certificates, and we also get ISO9001 and SGS certificates.
6.What is your advantages?
A: As a professional food processing machinery supplier, we can provide integrated solution for food
processing industry. We have got more than 50 patents.
