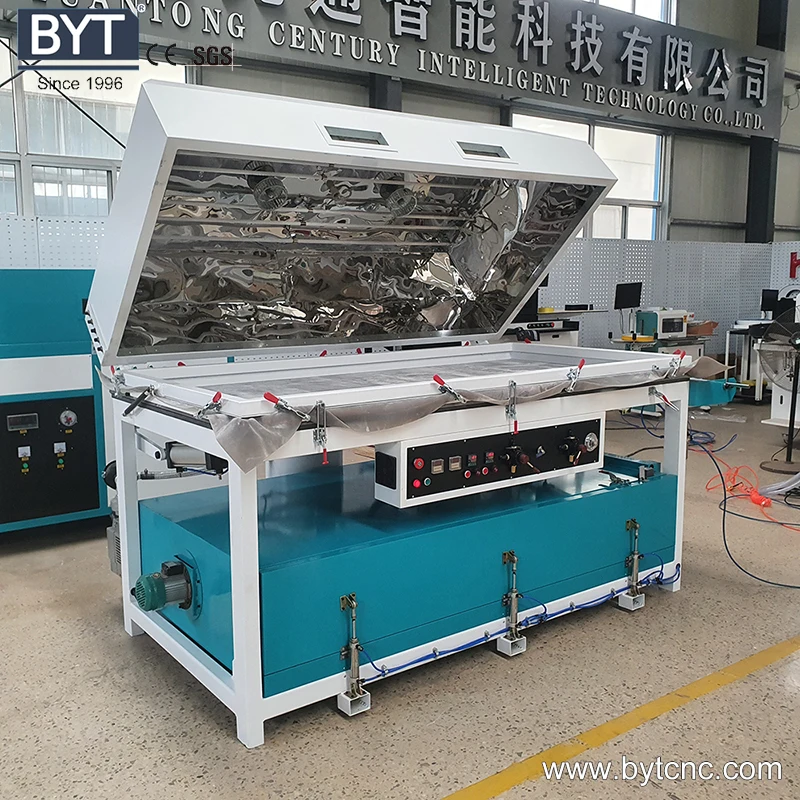

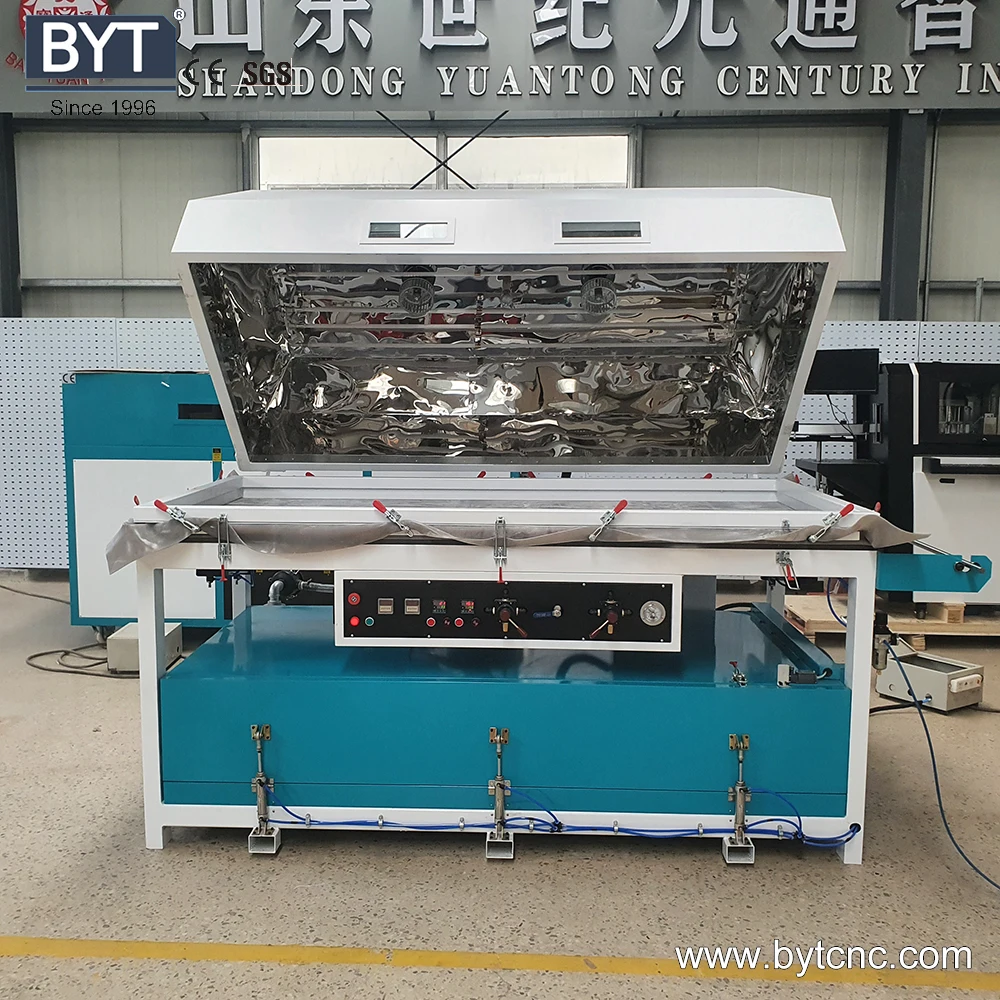

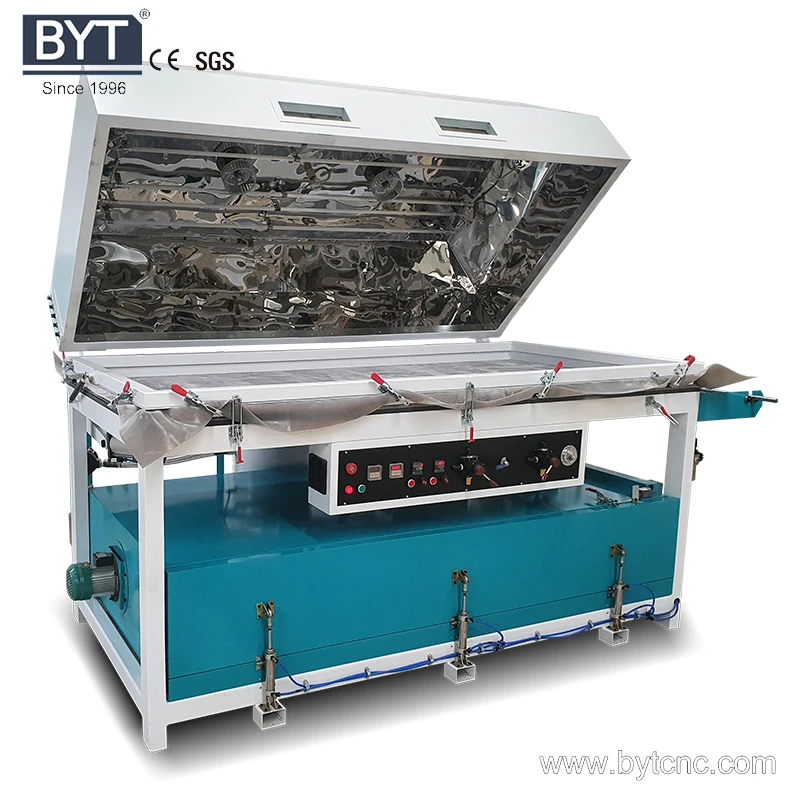

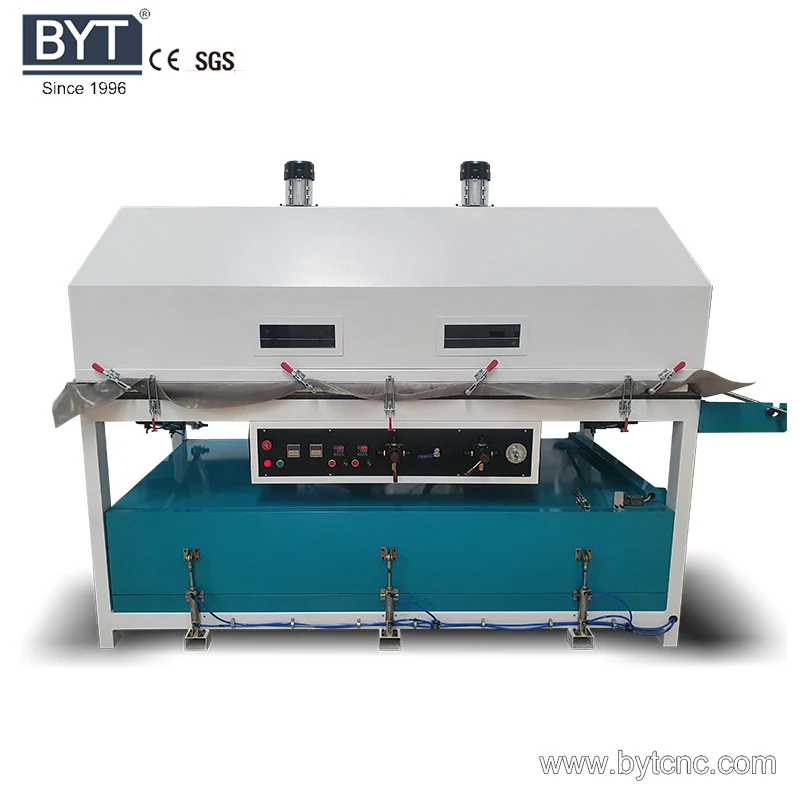

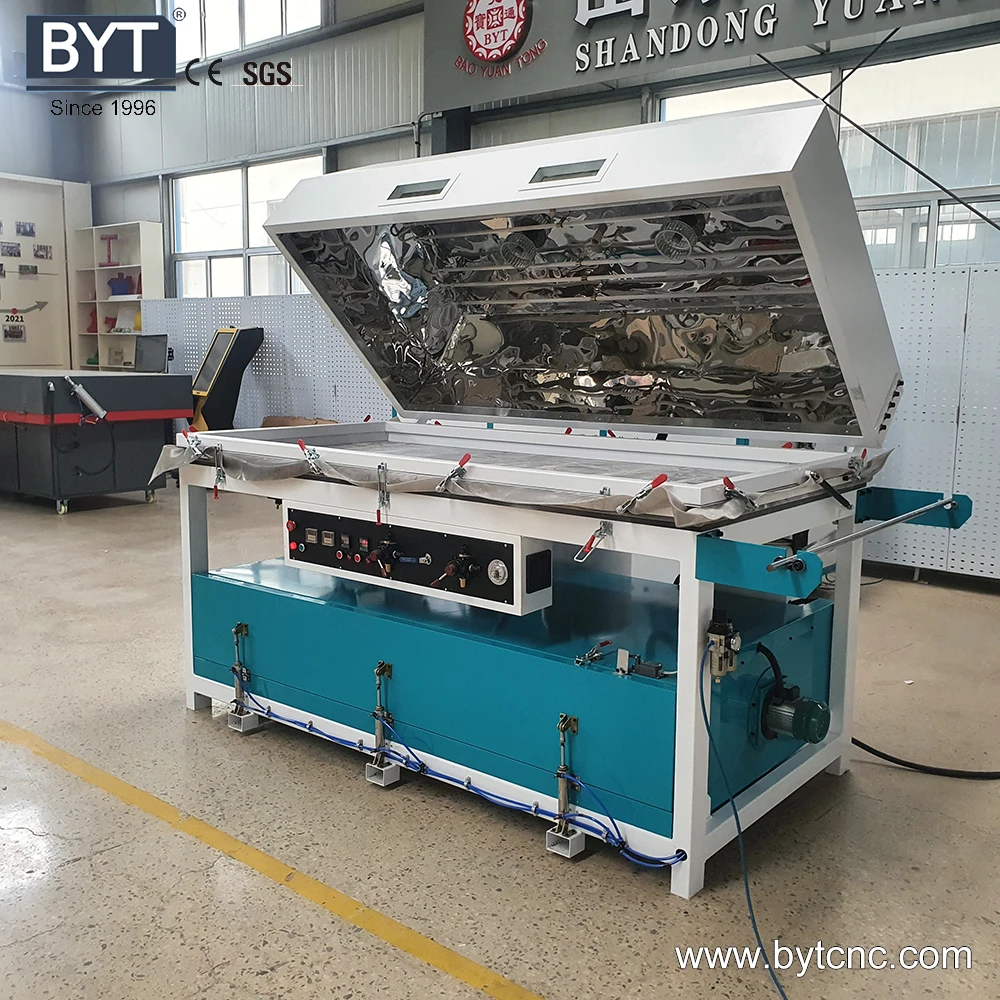

Corian вакуумная Термоформовочная Машина/Силиконовая Вакуумная пресс машина
- Category: Plastic Product Making Machinery >>>
- Supplier: Shandong Yuantong Century Intelligent Technology Co. Ltd.
Share on (62326399676):
Product Overview
Description
Products Description
SILICONE MEMBRANE VACUUM FORMING MACHINE FEATURES:
1.Temperature control with PID regulation,two-side preheating oven.
2.Heating plate from anodized aluminum.
3.Pneumatic actuator for upper heating plate,high performance.
4.Stainless steel heaters,life of up to 15000 hours.
5.Imported silicone membrane with 700% elasticity,working temperature between-40℃ to 240℃,long life service.
6.Oil vacuum pump with capacity 60m3/h.
7.Work table from 18mm HPL board fire-resisted laminate plate with grooves,ensure the good performance.
1.Temperature control with PID regulation,two-side preheating oven.
2.Heating plate from anodized aluminum.
3.Pneumatic actuator for upper heating plate,high performance.
4.Stainless steel heaters,life of up to 15000 hours.
5.Imported silicone membrane with 700% elasticity,working temperature between-40℃ to 240℃,long life service.
6.Oil vacuum pump with capacity 60m3/h.
7.Work table from 18mm HPL board fire-resisted laminate plate with grooves,ensure the good performance.
BSF-2513A Silicone membrane vacuum press machine parameter | ||
Model | BSF-2513A | |
Forming area(mm) | 2240*1020 | |
Heating area(mm) | 2000*1000 | |
Power(kw) | 20 | |
Material thickness(mm) | 0-20 | |
Voltage | 380V 50/60Hz | |
Vacuum pump output | 60m3/h | |
Machine size(mm) | 2550*1670*1150 | |
Weight(kg) | 750kg | |
APPLICATION:
1.2D and 3D vacuum forming of thermoplastic and acrylic materials,production of worktops,sinks,shells,bar
counters,bathrooms,windows sills and elements of the interrior.
2.Woodworking-veneering and laminating process of flat and curved surfaces,coating of simple profiles of leather,PVC film etc,also
for 2D curved parts.
MAINLY FUNCTION :
1.Preheating oven+ Vacuum press 2.Thermoforming
3.Veneer flat and curved surfaces
4.Laminating of simple profiles
5.Wood bending
1.2D and 3D vacuum forming of thermoplastic and acrylic materials,production of worktops,sinks,shells,bar
counters,bathrooms,windows sills and elements of the interrior.
2.Woodworking-veneering and laminating process of flat and curved surfaces,coating of simple profiles of leather,PVC film etc,also
for 2D curved parts.
MAINLY FUNCTION :
1.Preheating oven+ Vacuum press 2.Thermoforming
3.Veneer flat and curved surfaces
4.Laminating of simple profiles
5.Wood bending
Product Advantage

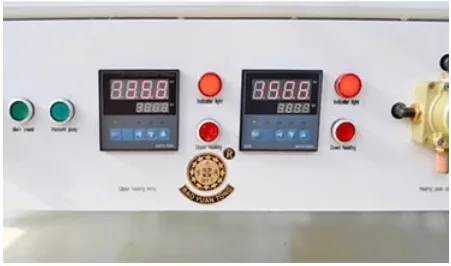

PID temperature control,double-sided contact heating,fast heating,energy saving and environmental proteciton.
HIGH QUALITY HEATING PLATE
The heating plate adopt aluminum board,which has good flatness and smoothness.The heating plate is pneumatically opened to be
efficient and fast,reducing labor intensity.

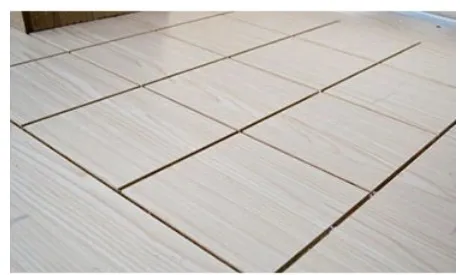

18mm HPL refractory plate is used on the work surface to ensure good flatness.The work surface is grooved and the pressure is
evenly distributed at each corner of the workpiece.

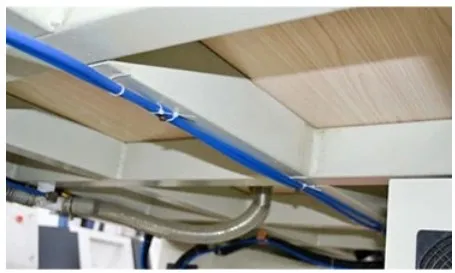

The bottom of the platform is supported by a high density frame and the structure is stable.
The imported high resistance silicone plate has a long service life,the elongation rate can reach 700% and the working temperature
is -40℃ to 240℃.
GOOD SEALING
Simple and reliable mechanical opening and closing device to ensure good sealing.

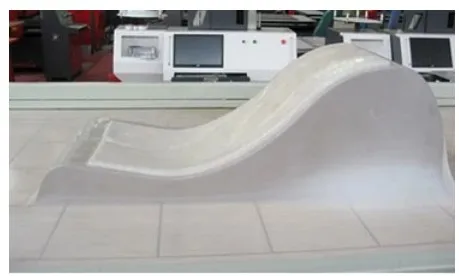

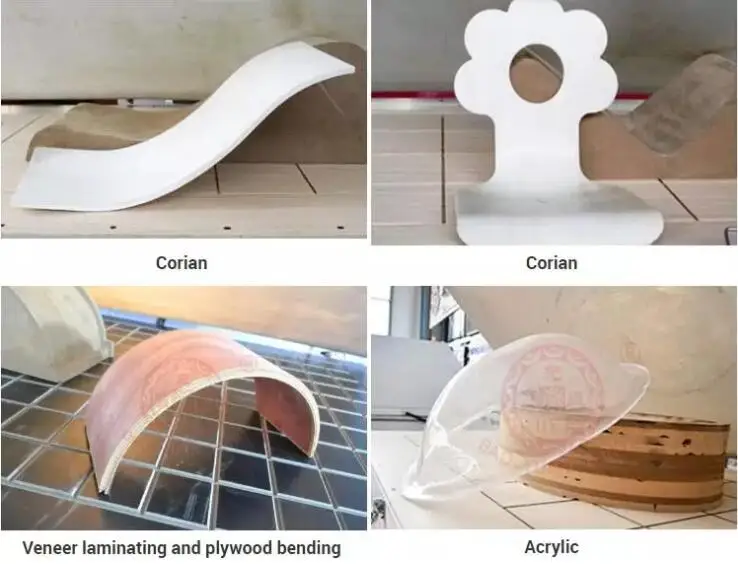

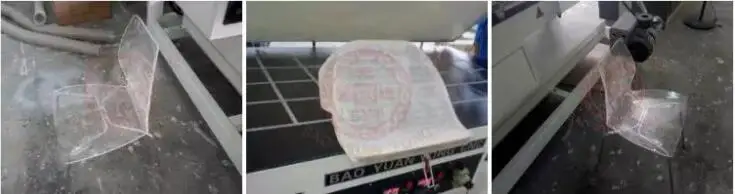

Samples
Sample by customer

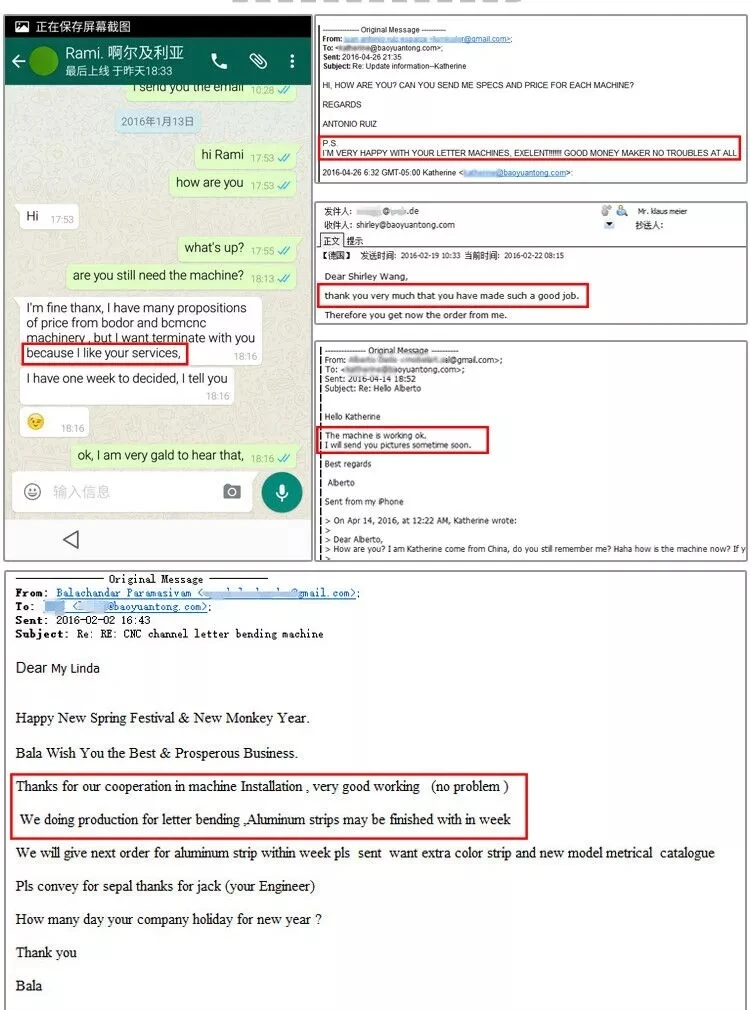

Customer Feedback

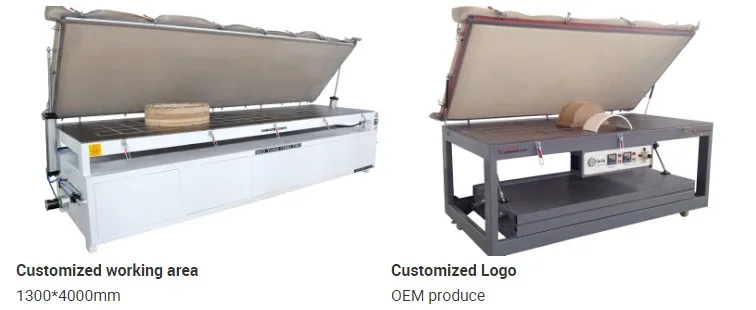

Customized products
Related products
Membrance vacuum press
BSF-2513B
Mainly function :1.Preheating oven+
Vacuum press +
Single press 2.Thermoforming
3.Veneer flat and curved surfaces
4.Laminating of simple profiles
5.Wood bending
Vacuum press +
Single press 2.Thermoforming
3.Veneer flat and curved surfaces
4.Laminating of simple profiles
5.Wood bending
Mainly function:1.Preheating oven+ Vacuum press +
PVC laminating 2.Thermoforming 3.Veneer flat and curved surfaces 4.Laminating of simple profiles 5.Wood bending
PVC laminating 2.Thermoforming 3.Veneer flat and curved surfaces 4.Laminating of simple profiles 5.Wood bending
PVC film laminating machine
BFM-2600
Mainly function : PVC laminating

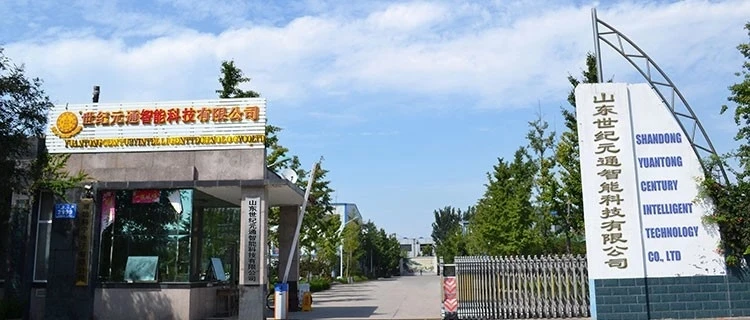

Our Company
Shandong Yuantong Century Intelligent Technology Co.,Ltd build in 1996 and owns registered trademark BYT ,mainly produce signage and woodworking equipment, There is CNC router, vacuum forming machine, channel letter bending machine,laser machine and Metal etching machine ect.
My factory through SGS certification and the the product get the CE, export to more than 152 countries.Adhering to " quality first ,customer first" business philosophy" ,looking forward to your message , begin our cooperation .
My factory through SGS certification and the the product get the CE, export to more than 152 countries.Adhering to " quality first ,customer first" business philosophy" ,looking forward to your message , begin our cooperation .

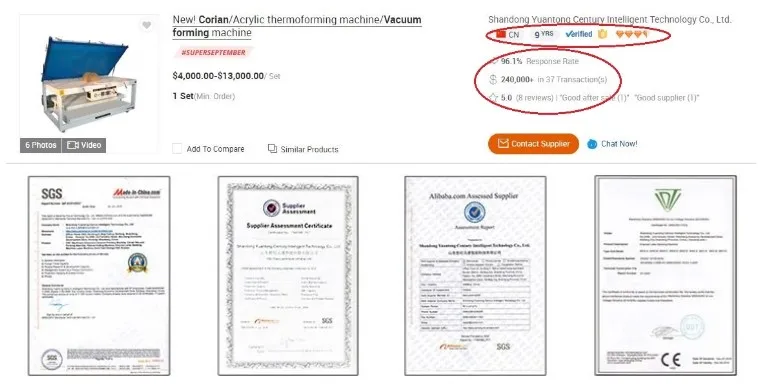

Factory SGS certification
