Product Overview
Description
Product Description

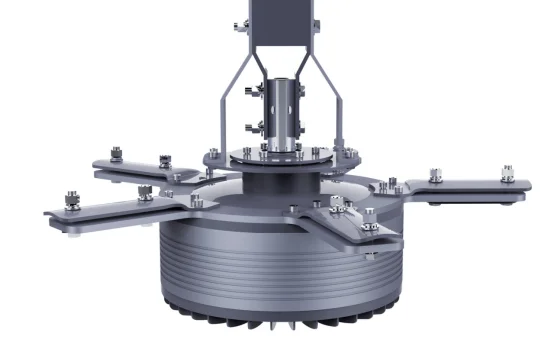

Permanent magnet motor for big fan
The new self-developed external rotor motor with large torque and permanent magnet synchronization replaces the traditional
motor+gearbox reducer, achieving a high degree of integration and improving reliability and transmission efficiency.
At the same time, the permanent magnet synchronous external rotor motor is adopted, with its own IMU configuration, to achieve the
ESC active control strategy+coordinated regenerative braking strategy, driven by the motor directly; Any torque recovery or
auxili-ary braking within the peak torque can be satisfied.
Aluminium alloy material is adopted in many parts to realize the lightweight design.
motor+gearbox reducer, achieving a high degree of integration and improving reliability and transmission efficiency.
At the same time, the permanent magnet synchronous external rotor motor is adopted, with its own IMU configuration, to achieve the
ESC active control strategy+coordinated regenerative braking strategy, driven by the motor directly; Any torque recovery or
auxili-ary braking within the peak torque can be satisfied.
Aluminium alloy material is adopted in many parts to realize the lightweight design.
Product Paramenters
Model | HDSM-7.3 | HDSM-5 | HDSM-3 |
Weight | 45KG | 25kg | 18kg |
Voltage | 115V/215V | 115v/215v | 115v/215v |
Power | 1.1KW | 0.75kw | 0.37kw |
Air volume | 13000m³/min | 10000m³/min | 4000m³/min |
Rotating speed | 50rpm | 80rpm | 120rpm |
Noise | 38db | 38db | 38db |
Matching fan | diameter 7.3m & 6.3m | diameter 5m & 4m | diameter 3m |
Our Advantages
1) Energy saving.
2) Maintenande free, no need to change seals , add oils.
3)Without noise, only 38db, can also be used in the office , the mall, hall besides the workshop and warehouse.
4) Small size and light weight.
5) 5 years warranty.
6) 20 years service life .
7) Voltage of the motor can be 115V/215V. The Use power can be 200-240V,50/60hz, single phase; 200-240v,50/60hz, three phases or 360-480v,50/60hz,three phases.

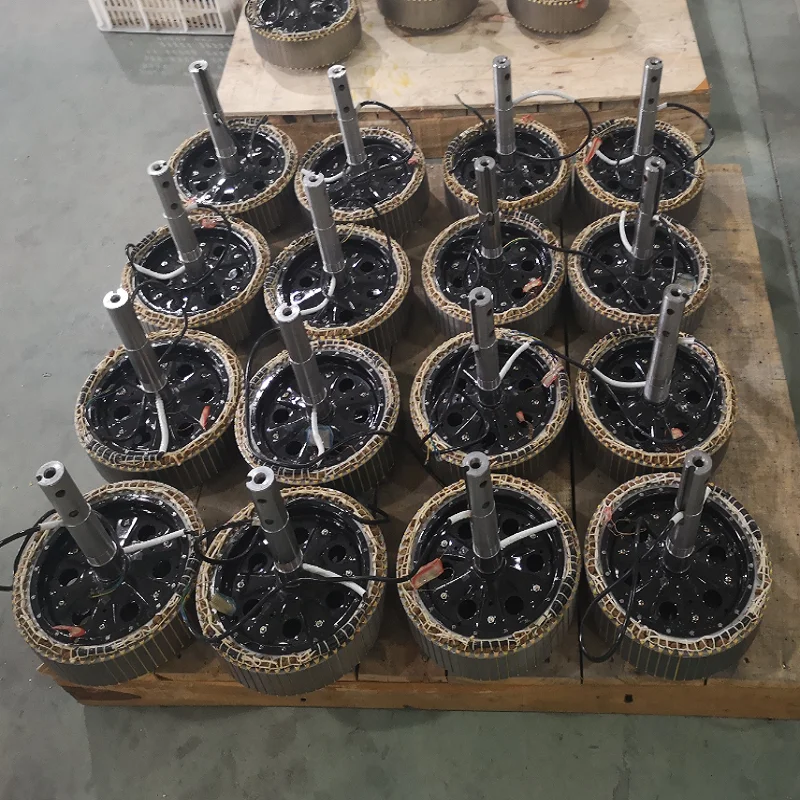

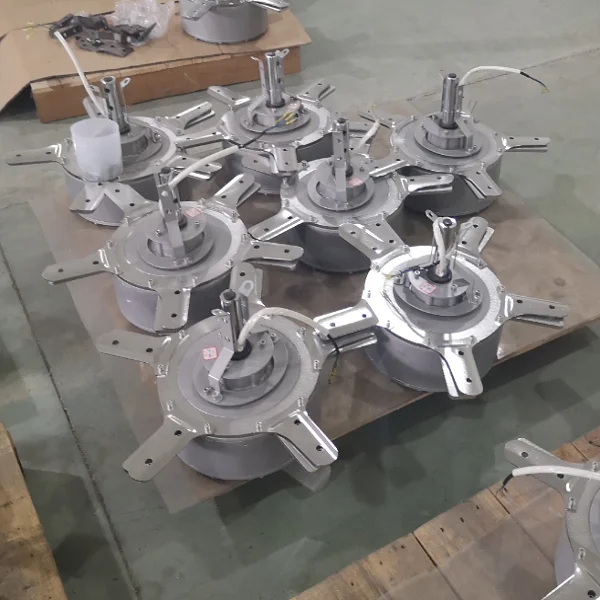

Details Images
Product packaging
Model | HDSM-7.3 |
Net weight | 45kgs |
Gross weight | 60kgs |
Packing material | Plywood case |
Packing size | 80*80*45cm |

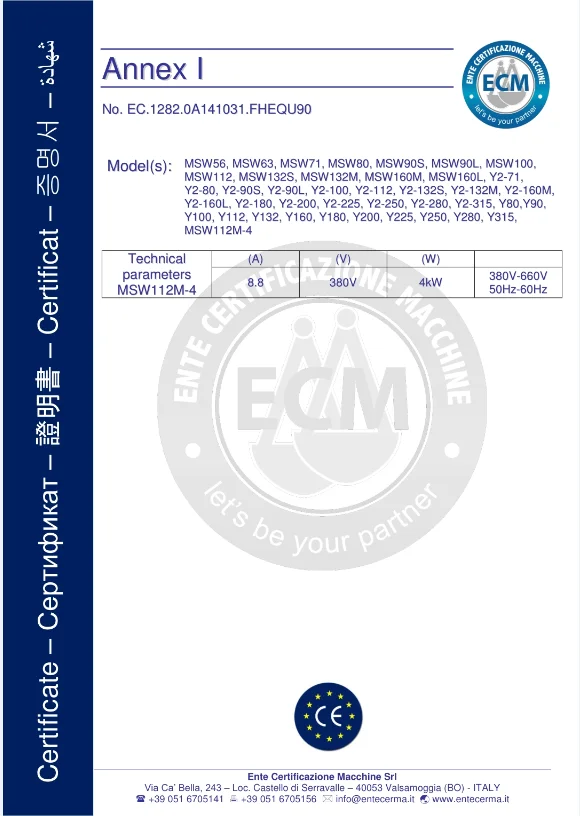

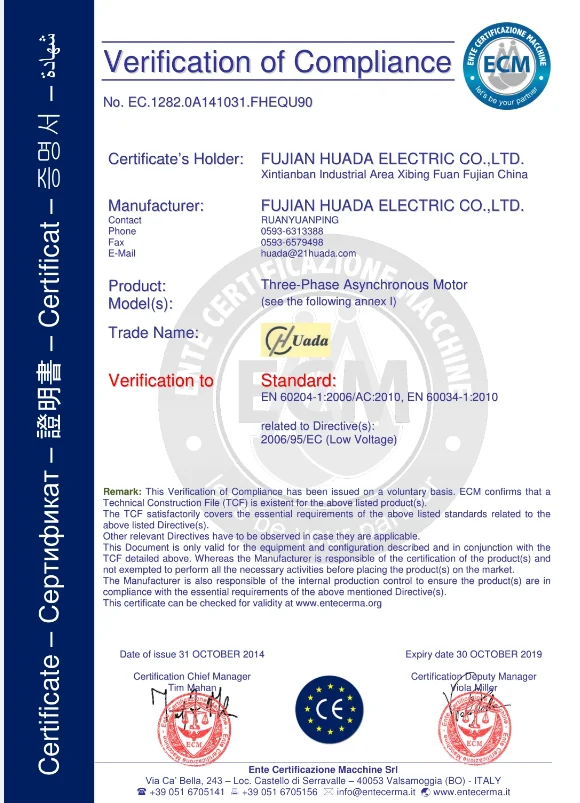

Certifications

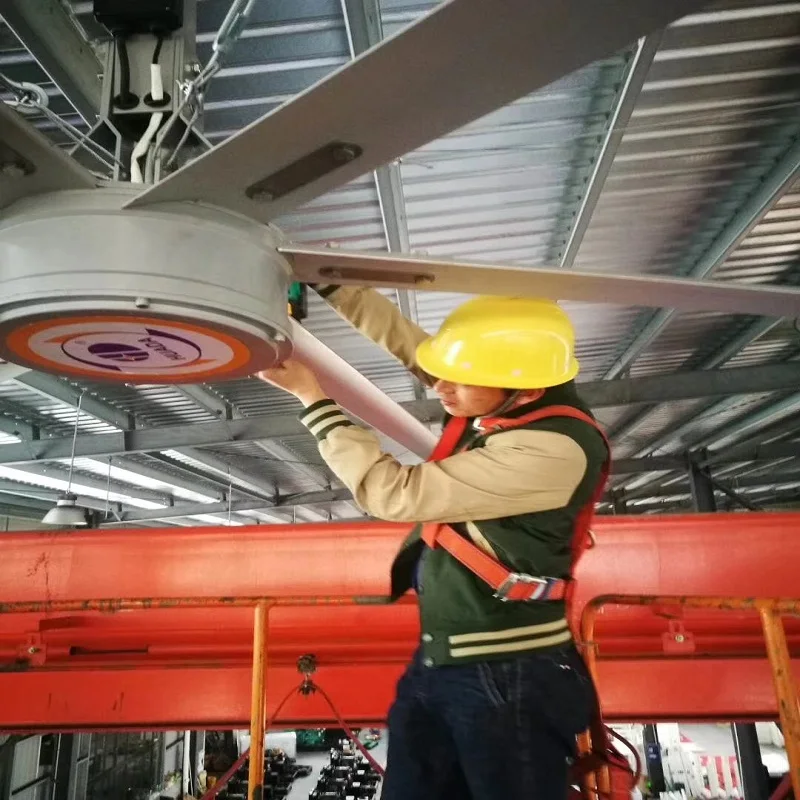

Application
Company Profile

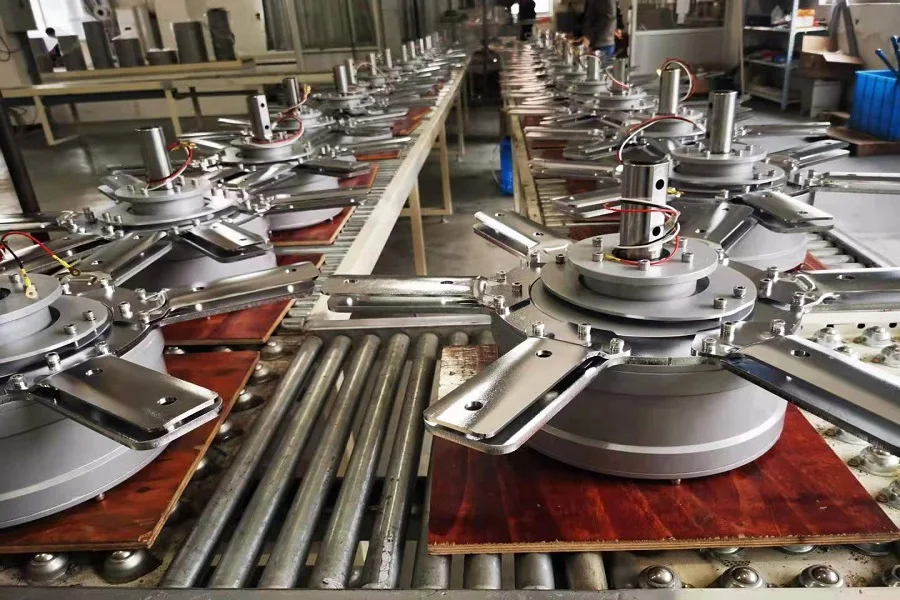

Our factory
For more than ten years, the company focuses on the research, development and production of the high-temperature motor,high-temperature fan and permanent magnet variable frequency ceiling fan, Strict control of production technology, to create quality.
The company has passed the standard acceptance of safety standardization; ISO9001:2008 quality management system certification,ISO14001:2015 environmental quality system certification. It has obtained the national production license for industrial products and the pollution discharge certificate of Fujian province. Products through CCSAus certificate, CCC certification, European CE certificate, fire safety certificate, best-selling national and overseas markets.
The company has owned 16 utility model patents and appearance patents. It was awarded"2017 China agricultural machinery industry annual parts quality award".
The company has passed the standard acceptance of safety standardization; ISO9001:2008 quality management system certification,ISO14001:2015 environmental quality system certification. It has obtained the national production license for industrial products and the pollution discharge certificate of Fujian province. Products through CCSAus certificate, CCC certification, European CE certificate, fire safety certificate, best-selling national and overseas markets.
The company has owned 16 utility model patents and appearance patents. It was awarded"2017 China agricultural machinery industry annual parts quality award".
