Стальная катушка для резки в длину с шаговым кольцом

Product Overview

Description





1.Equipment Summary

The equipment is the special equipment for processing transformer core. Configuration of two shears, one v-notching, and one punching which can be adapt to the shearing of yoke, side leg, center leg and various piece type.



3.

2.Equipment schematic diagram

3.Main technical performance

3.1  processing range

Length       400~3200mm

Width       60~650mm

Thickness     0.23~0.35mm

3.2   Process precision

Tolerance of length:±0.15mm

Shearing angle:±0.025º

Shearing burr:≤0.02mm

3.3   Applicable roll specification requirements

Tolerance of width  ≤±0.1mm

Burr      ≤0.03mm

Tolerance of  S   ≤0.2mm/2m

3.3    Productivity

 Feeding speed:0~200m/min

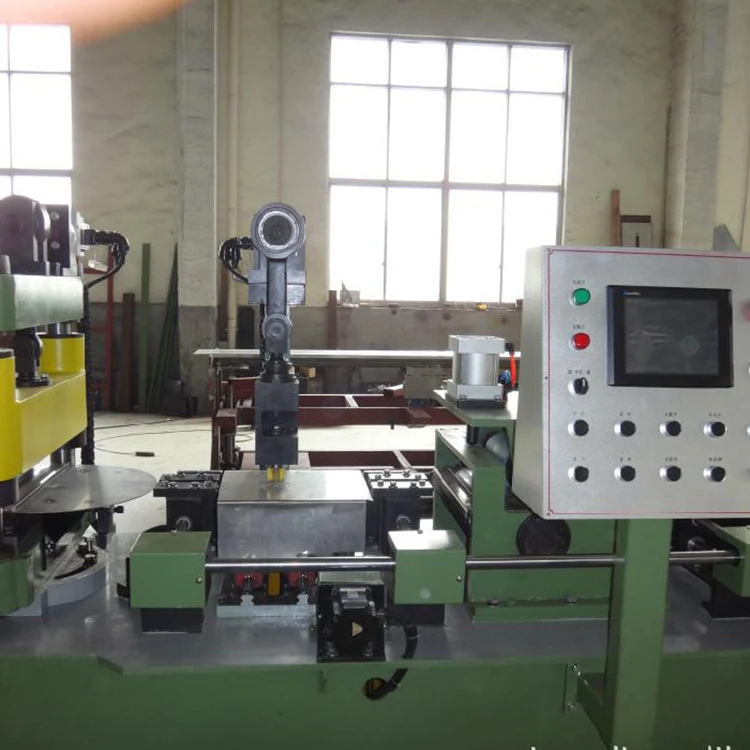

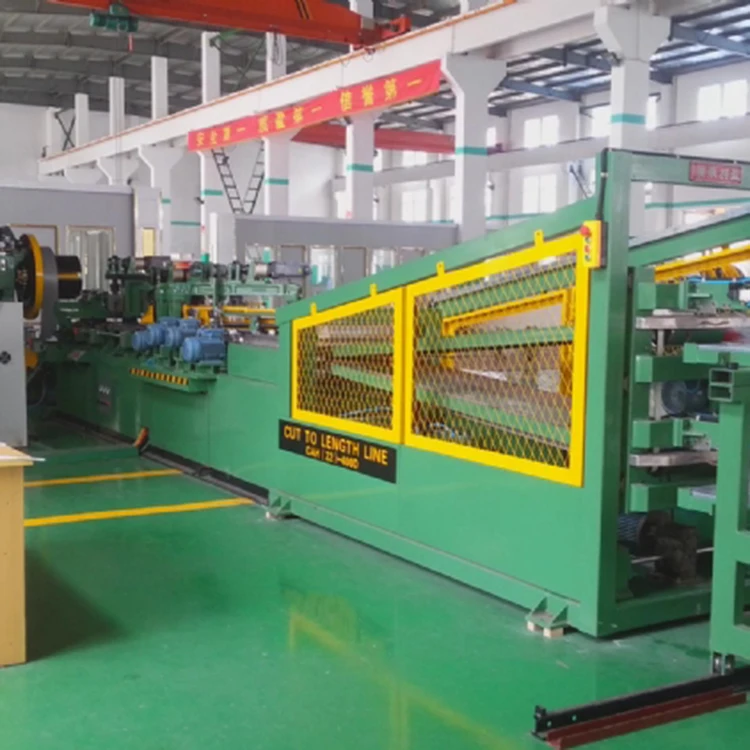

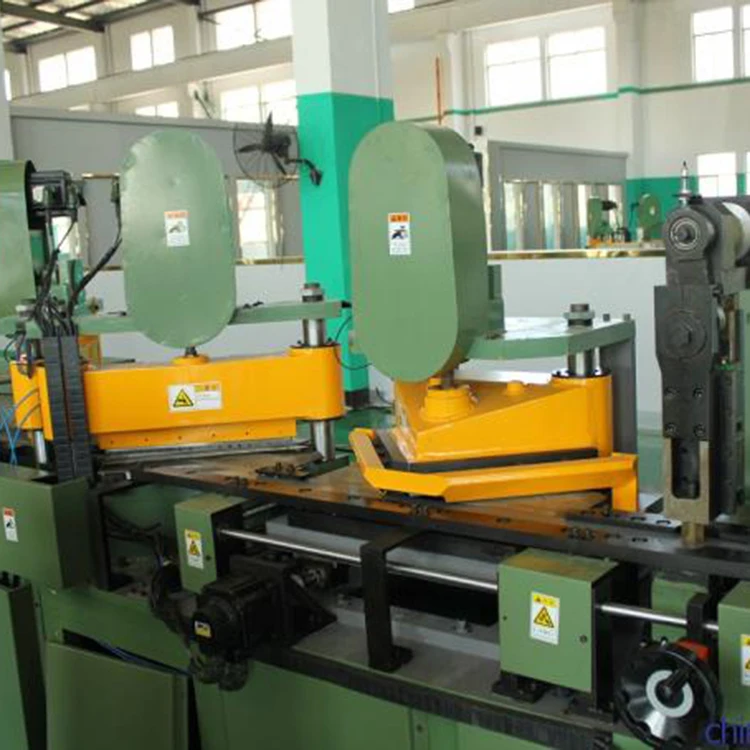

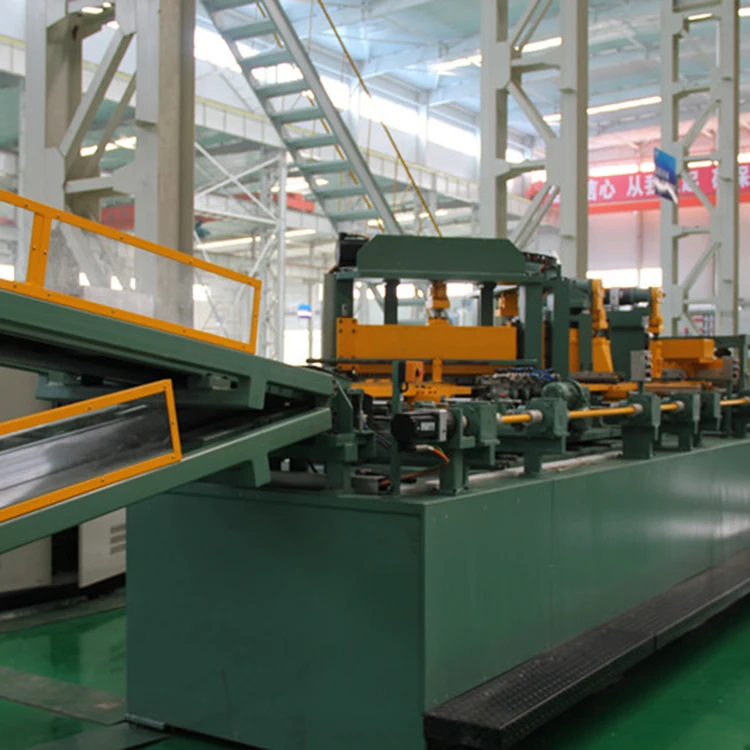

5.Detailed photos
