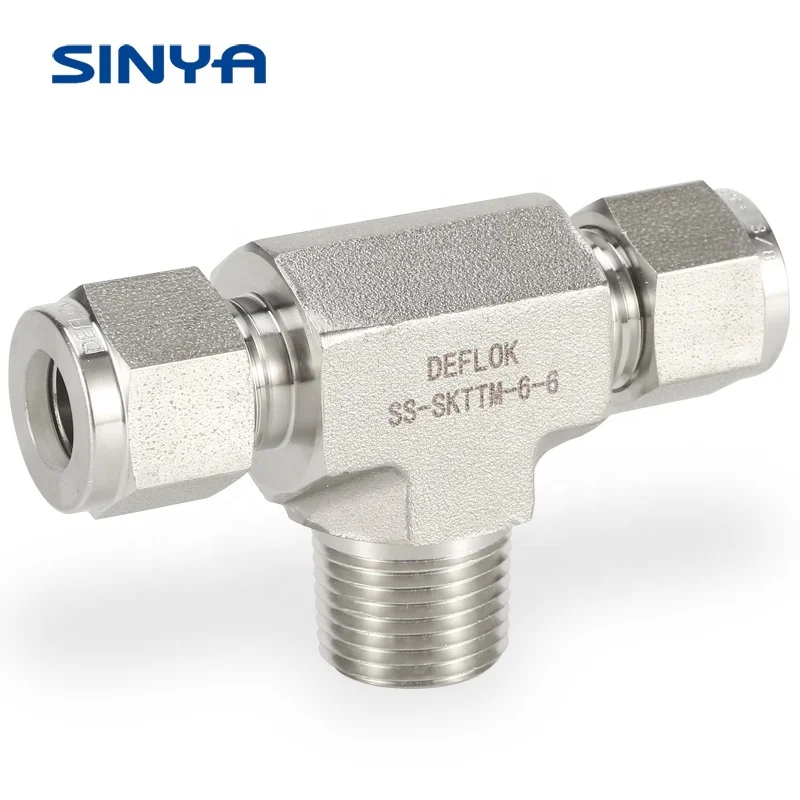

  • Union Male Branch Tee Double Ferrule Fitting Stainless Steel Pipe Compression Fittings Tubing Connections Thread Male Branch Tee

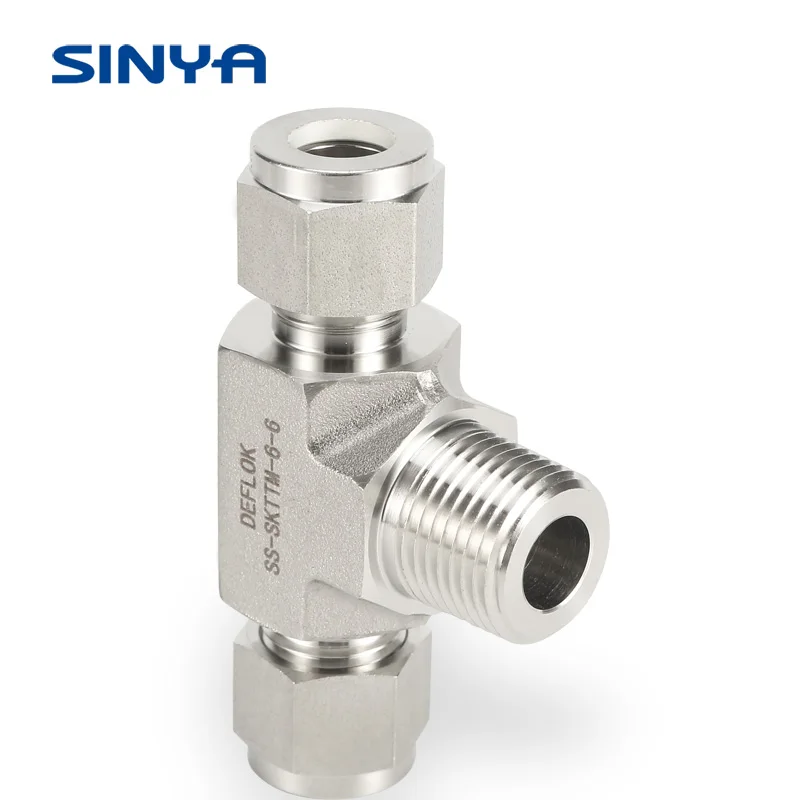

Union Male Branch Tee Double Ferrule Fitting Stainless Steel Pipe Compression Fittings Tubing Connections Thread Male Branch Tee
Union Male Branch Tee Double Ferrule Fitting Stainless Steel Pipe Compression Fittings Tubing Connections Thread Male Branch Tee
Union Male Branch Tee Double Ferrule Fitting Stainless Steel Pipe Compression Fittings Tubing Connections Thread Male Branch Tee
Union Male Branch Tee Double Ferrule Fitting Stainless Steel Pipe Compression Fittings Tubing Connections Thread Male Branch Tee
Union Male Branch Tee Double Ferrule Fitting Stainless Steel Pipe Compression Fittings Tubing Connections Thread Male Branch Tee
Union Male Branch Tee Double Ferrule Fitting Stainless Steel Pipe Compression Fittings Tubing Connections Thread Male Branch Tee
Union Male Branch Tee Double Ferrule Fitting Stainless Steel Pipe Compression Fittings Tubing Connections Thread Male Branch Tee

Union Male Branch Tee Double Ferrule Fitting Stainless Steel Pipe Compression Fittings Tubing Connections Thread Male Branch Tee

Share on (62326699293):


Price:$3.00 - $20.00

Quantity:


Product Overview

Description







Product Description




1.Available in size: 1/16" to 1", and 2mm to 25mm.
2.Working temperature:-325℉~800℉ (-198℃~426℃).
3.Material grades: SS 304, SS 316, Brass, Special Alloys.
4.Thread:NPT, BSP, BSPT, UNF, ISO, SAE etc.
5.Zero leakage even under tough working conditions.
6.High quality silver plated threads on nuts to ensure no galling on the body threads.
7.Simple to operate and save time and cost because of the usage of elastic seal.
8.Available in wide variety of configurations.
9.It can be reused.

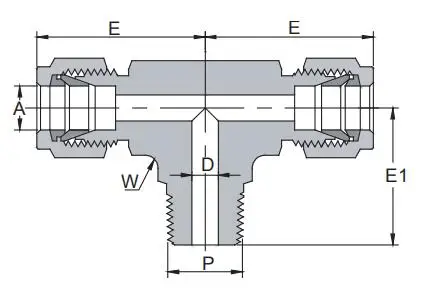

-SKTTM Male Branch Tee（in）

Order information
A
P
D
W
E
E1
in
mm
NPT
mm
in
mm
mm
mm
-SKTTM-2-2
1/8
3.17
1/8
2.28
7/16
11.11
23.62
17.78
-SKTTM-2-4
1/8
3.17
1/4
2.28
5/8
15.9
24.64
23.37
-SKTTM-3-2
3/16
4.76
1/8
3.04
7/16
11.11
24.38
17.78
-SKTTM-4-2
1/4
6.35
1/8
4.82
1/2
12.7
26.9
18.8
-SKTTM-4-4
1/4
6.35
1/4
4.82
5/8
15.87
26.9
23.37
-SKTTM-5-2
5/16
7.93
1/8
4.82
5/8
15.87
29.71
20.83
-SKTTM-6-4
3/8
9.52
1/4
7.11
5/8
15.87
30.48
25.4
-SKTTM-6-6
3/8
9.52
3/8
7.11
13/16
20.63
33.27
28.19
-SKTTM-8-6
1/2
12.7
3/8
9.65
13/16
20.63
36.07
28.19
-SKTTM-8-8
1/2
12.7
1/2
10.41
15/16
23.81
36.07
33.02
-SKTTM-10-8
5/8
15.87
1/2
11.94
15/16
23.81
38.86
35.8
-SKTTM-12-12
3/4
19.05
3/4
15.75
11/8
28.6
39.88
36.83


-SKTTM Male Branch Tee（mm）

Order information
A
P
D
W
E
E1
mm
NPT
mm
in
mm
mm
mm
-SKTTM-6mm-2
6
1/8
4.8
1/2
12.70
27.0
18.8
-SKTTM-6mm-4
6
1/4
4.8
5/8
15.87
27.0
23.4
-SKTTM-8mm-2
8
1/8
4.8
5/8
15.87
29.9
20.8
-SKTTM-8mm-4
8
1/4
6.4
5/8
15.87
29.9
25.4
-SKTTM-10mm-4
10
1/4
7.1
11/16
17.46
33.5
28.2
-SKTTM-12mm-4
12
1/4
7.1
13/16
20.63
36.0
28.2
-SKTTM-12mm-6
12
3/8
9.5
13/16
20.63
36.0
28.2
-SKTTM-12mm-8
12
1/2
9.5
15/16
23.81
36.0
33.0
-SKTTM-16mm-8
16
1/2
11.9
15/16
23.81
38.8
35.8


Our Services




Sinya tries to get the satisfaction of all users by providing Premium Quality products and services in the field of Instrumentation tube fitting & valves ,and also providing an appropriate combination of price, quality, satisfying services and fast delivery.
Its products are provided based on three fundamental factors: 1) Quality 2) Variety 3) Reliability
1.Custom design, CAD drawing
2.P&ID
3.Component selection
4.Bill of material
5.Professional services such as bending and welding
6.Testing to guarantee the system
7.Professional packaging and delivery

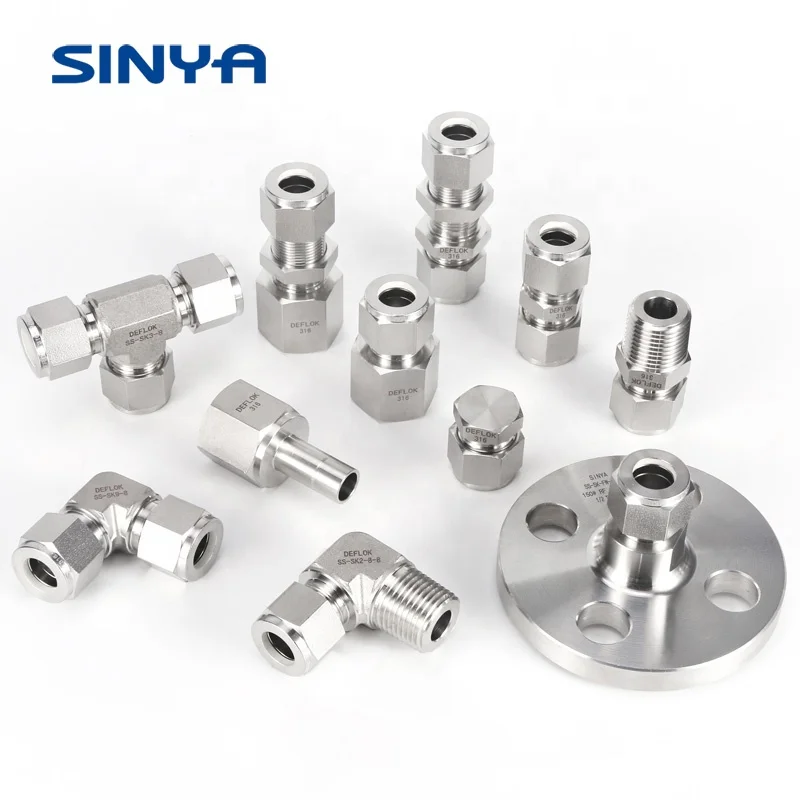

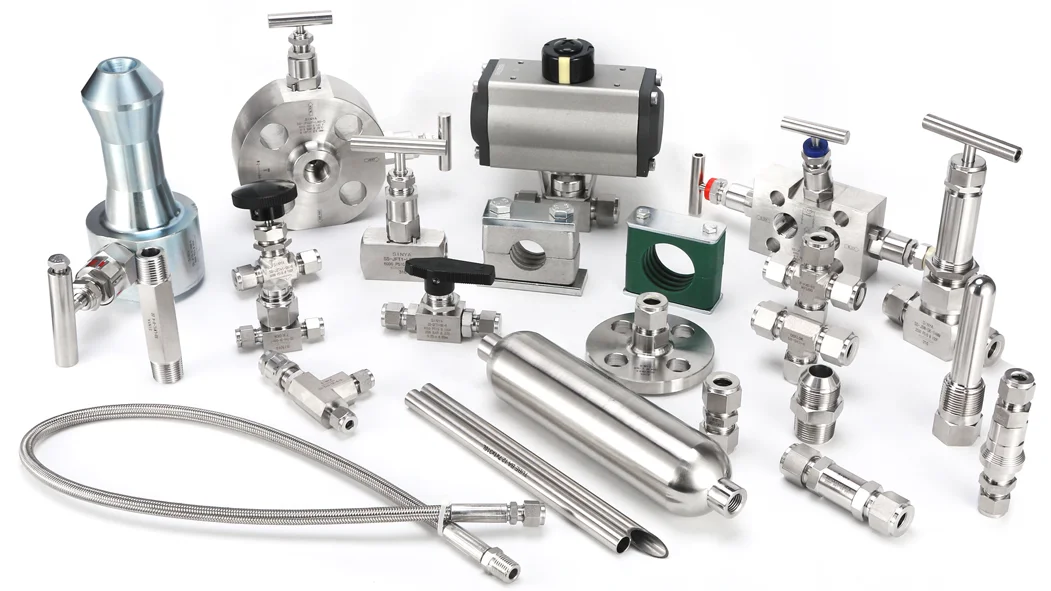

Products Display




Contact us to get more information :
tube fittings
check valves
manifolds valves
T-type fliters
thermowells
pipe fittings
relief valves
distribution manifolds
in-line filters
syphons
needle valves
bleed & purge valves
instrumentation tubing
sample cylinders
ball valves
gauge valves
air headers
pots and vessels


Packing & Delivery




Mode of packing: Export standard package or as your detail request.
Delivery time: 2 weeks  after receipt of payment
Mode of shipment: By Express like DHL,Fedex,TNT Ups.


Our Company




1.Established in 1995.
2.We are professional manufacturer of Instrumentation Tube Fittings, Pipe Fittings, Needle valves, Ball Valves, Check Valves, Manifold Valves, DIN 2353 Fittings, Sampling systems, Water Heater Accessories.
3.Products are available in the variety of different materials, such as Stainless steel 316/316L, Duplex, Super Duplex, Hastelloy, Monel, Inconel, Incoloy, Titanium, Zirconium.
4.We located in Zhenjiang City, near shanghai port with convenient transportation access worldwide.
5.Our products are widely used in industries of Chemical, Petrochemical, Power Generation, Oil, Gas, Shipbuilding.
6.Always available to discuss your requirements and ensure full customer satisfaction.
7.We have Japanese Mazak CNC machine, 3D measure equipment, Raw Material chemical composition inspection equipment, High pressure test equipment, etc.
8.We have obtained ISO9001 certificate, CE Certificate
9 Our products are exported to Middle east, North America, South America, South East Asia, Europe and other countries..
10.We also welcome OEM and ODM orders. Please feel free to contact and visit us.
