Premium Rubber Industrial Hose 5/16 ID8mm 20bar 15bar 60 degree dry ice washing machine Hose for spray dry ice particles
- Category: >>>
- Supplier: Hengshui Yousisheng Rubber And Plastic Products Trade Co. Ltd.
Share on (62326733211):
Product Overview
Description
Product Description
DRY ICE HOSE
Conveying dry ice for spraying Hose
cleaning deburring Rubber hose
Low temperature resistance -60℃
super wear-resistant Hose
anti-static Hose
softness at low temperature Hose
| Standard | HG/ t3037-2008 |
| Application | Conveying dry ice for spraying, cleaning and deburring. Resistance to low temperature 60 ℃, ultraabrasion resistant, antistatic, low temperature flexibility
|
| Working Temperature | -60°C (min) ~ +90°C (max) |
| Size | From ID5/16'' to ID 2'' |
| Working pressure | W.P. 10 / 20 bar |
| Safety factor | 4 times |
| Appearance | Smooth, black. 1-1/4" above the cloth |

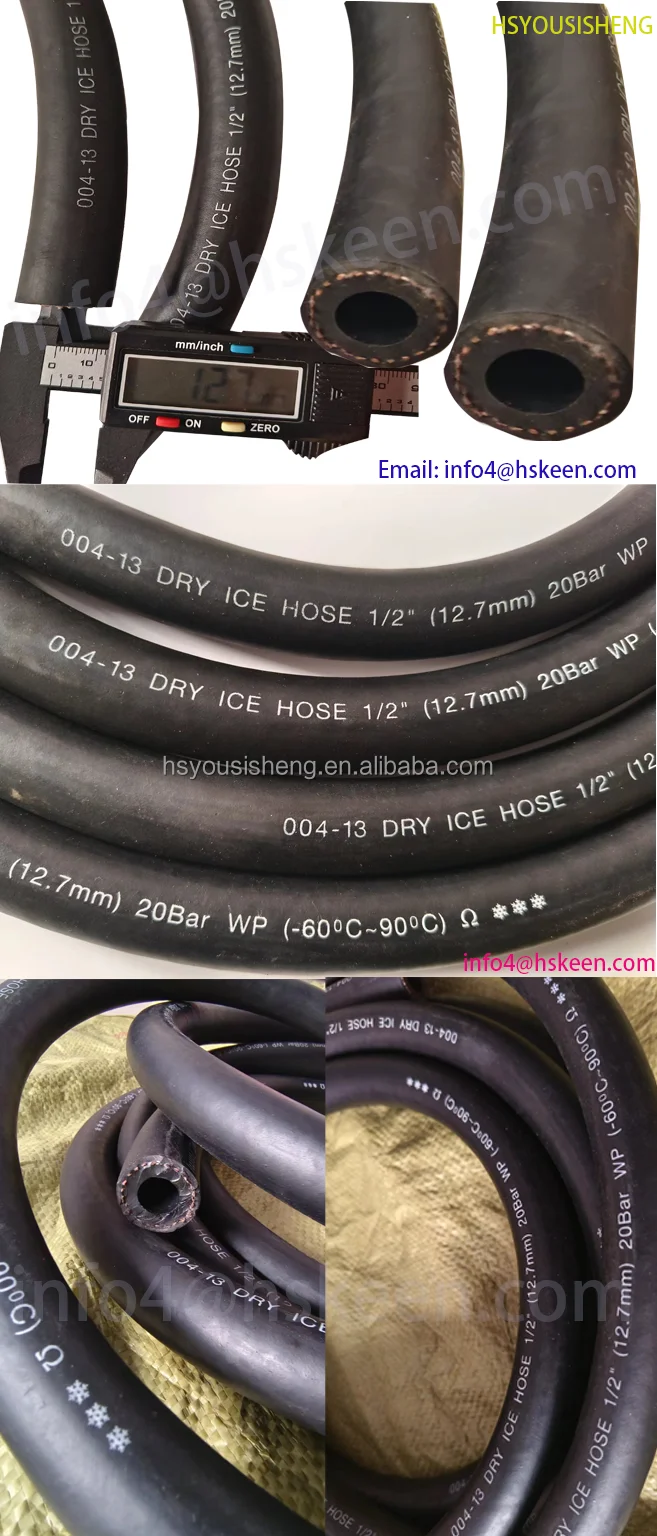

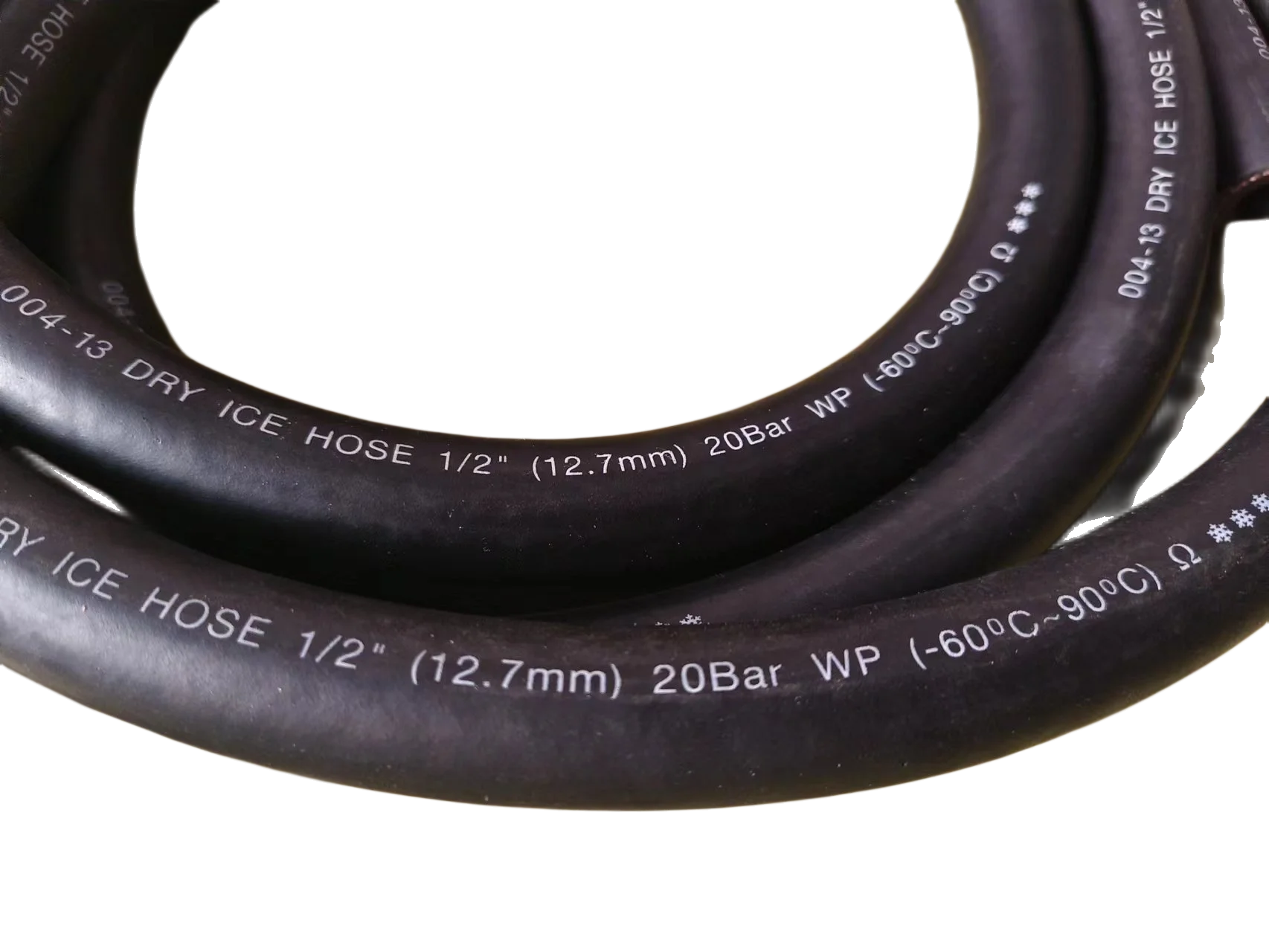

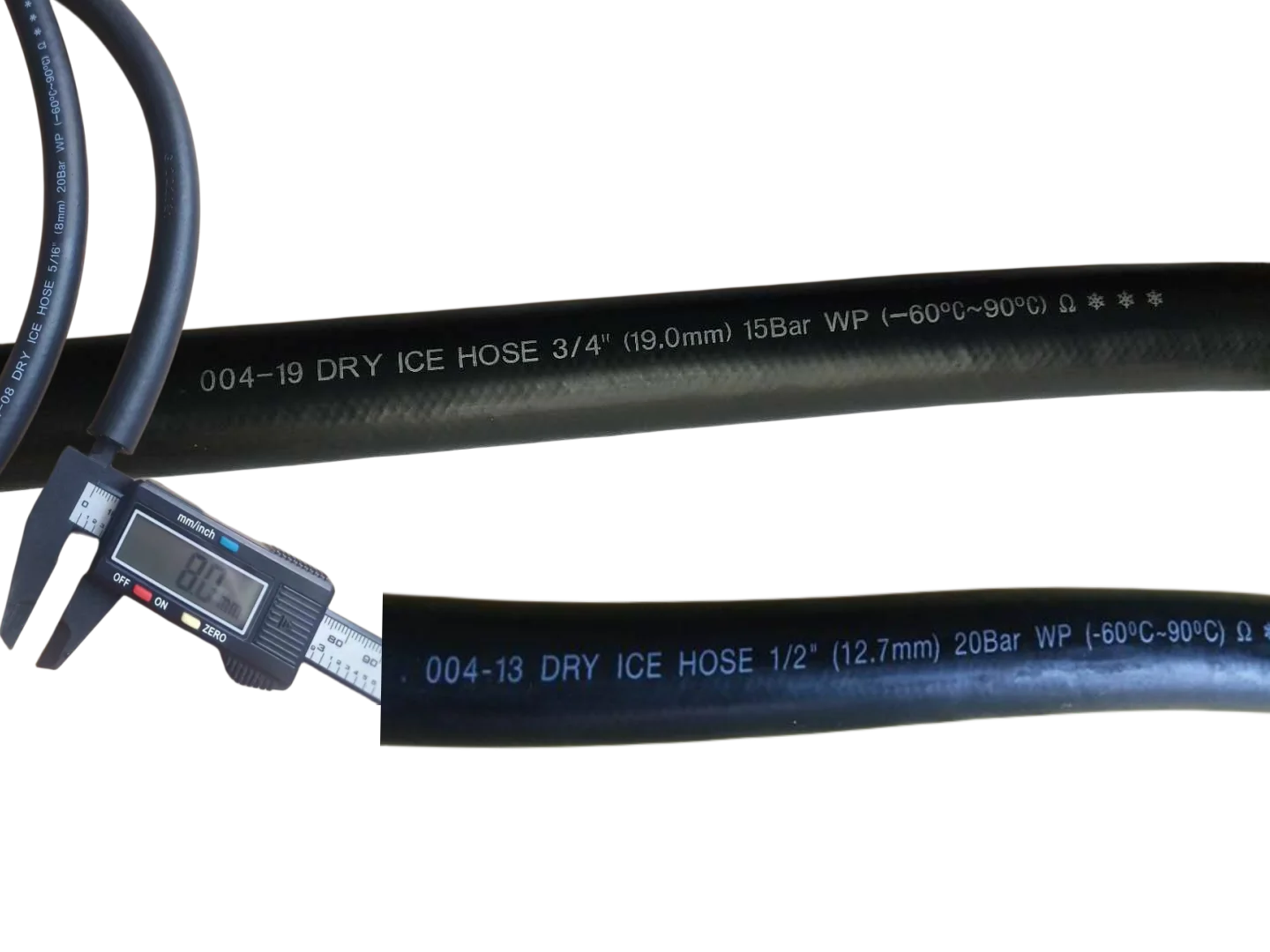

| Hose Identification | 004-13 DRY ICE HOSE 1/2 "(12.7 mm) 20 bar WP Ω (60 ℃ ~ 90 ℃) |
Application:
Conveying dry ice for spraying, cleaning and deburring. Resistance to low temperature 60 ℃, ultraabrasion resistant, antistatic, low temperature flexibility.
The cryogenic nitrogen dioxide crystal dry ice granule was sprayed by high - speed jet cleaning without any chemical cleaning agent.
Feature:
The product will not be damaged, clean and environment-friendly, pollution-free, safe and reliable.

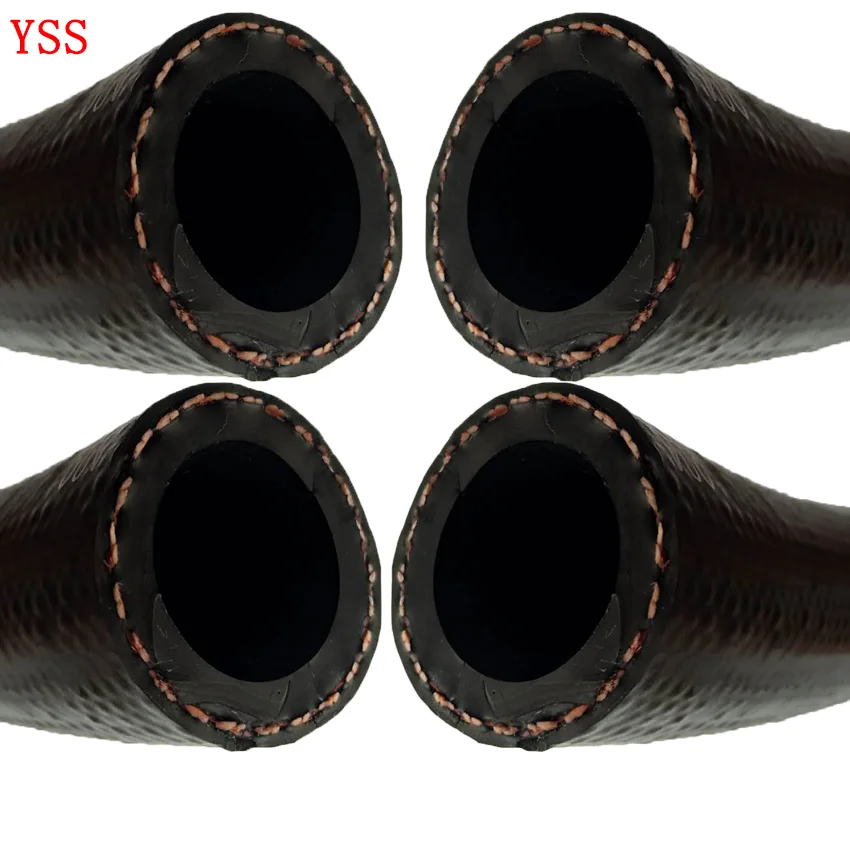

Structure:
1. Inner rubber layer: black, smooth, wear-resistant, anti-static special synthetic rubber.
2. Reinforcement: High strength polyester fiber thread.
3. Protective coating: Super low temperature resistance, wear resistance, anti-aging and anti-static special synthetic rubber.
Appearance: Smooth, black. 1-1/4" above the cloth.
Size:
product number | specifications | I.D (mm) | O.D (mm) | W.P (bar) | B.P (bar) | Bend Radius (mm) | Weight (kg/m) | Length m/p iece |
8 | 5/16 | 8 | 15 | 20 | 80 | 70 | 0.25 | 100 |
10 | 3/8" | 9.5 | 20.0 | 20 | 80 | 70 | 0.27 | 100 |
13 | 1/2" | 12.7 | 25.0 | 20 | 80 | 100 | 0.40 | 100 |
16 | 5/8" | 15.9 | 28.0 | 15 | 60 | 120 | 0.46 | 60 |
19 | 3/4" | 19.0 | 31.0 | 15 | 60 | 150 | 0.52 | 60 |
19 | 3/4" | 19.0 | 33.0 | 20 | 80 | 150 | 0.63 | 60 |
25 | 1" | 25.4 | 38.0 | 15 | 60 | 200 | 0.69 | 60 |
25 | 1" | 25.4 | 40.0 | 25 | 100 | 200 | 0.83 | 60 |
50 | 2" | 50.8 | 68.0 | 20 | 80 | 400 | 1.80 | 40 |
