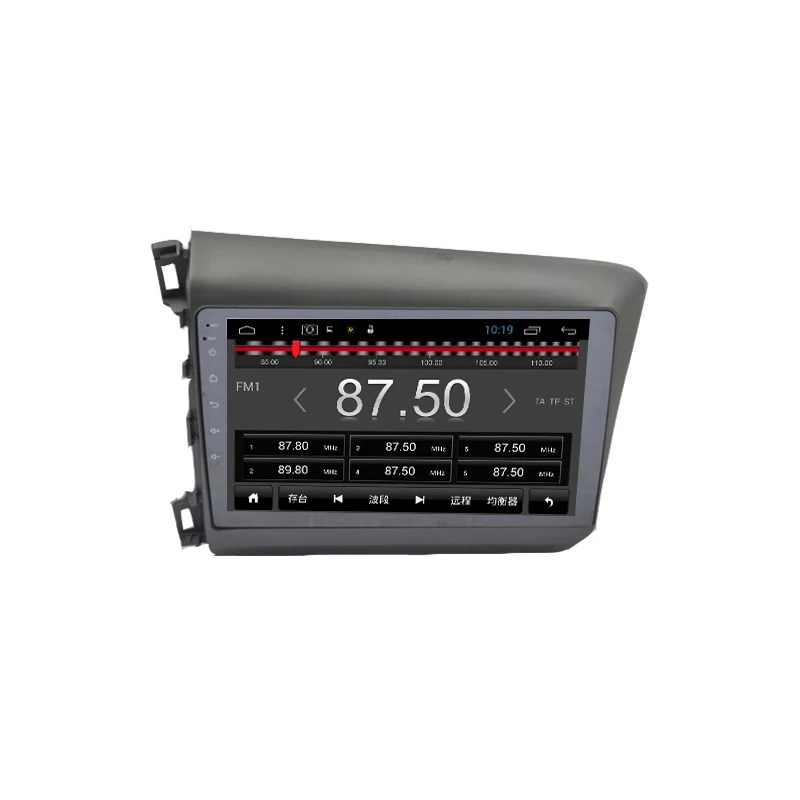

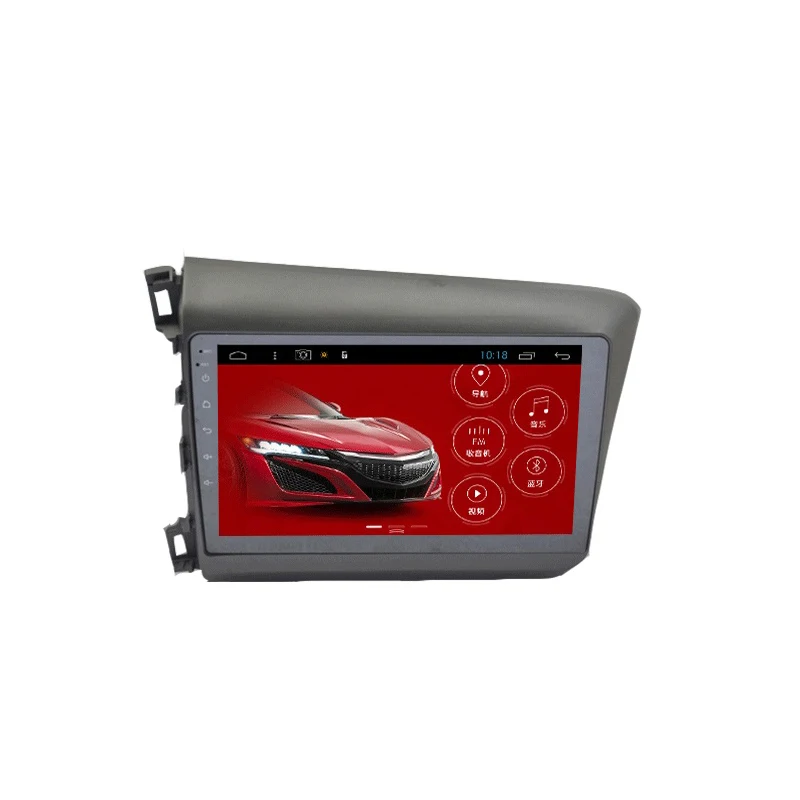

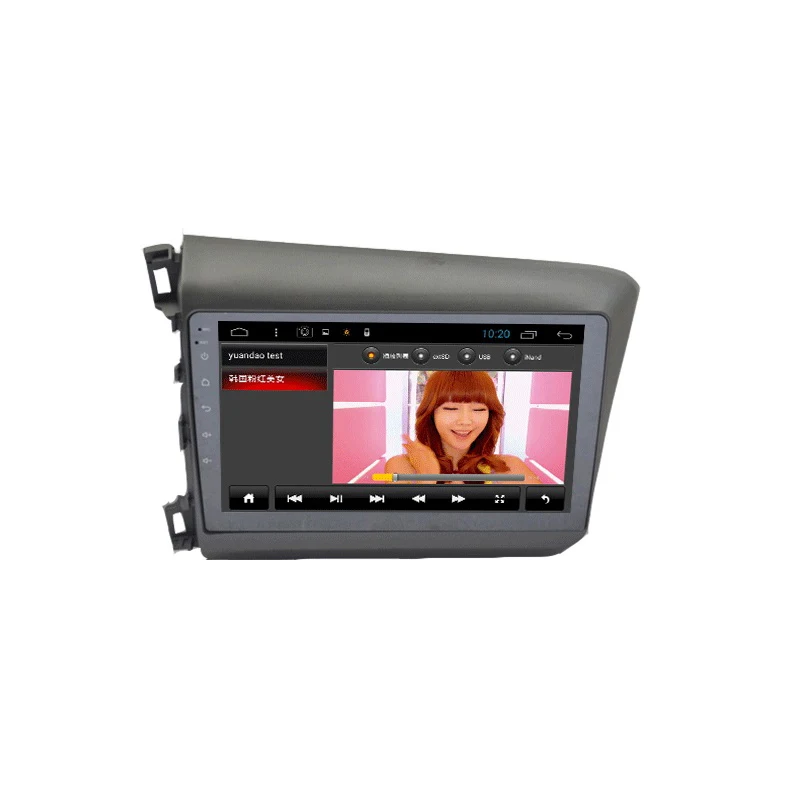

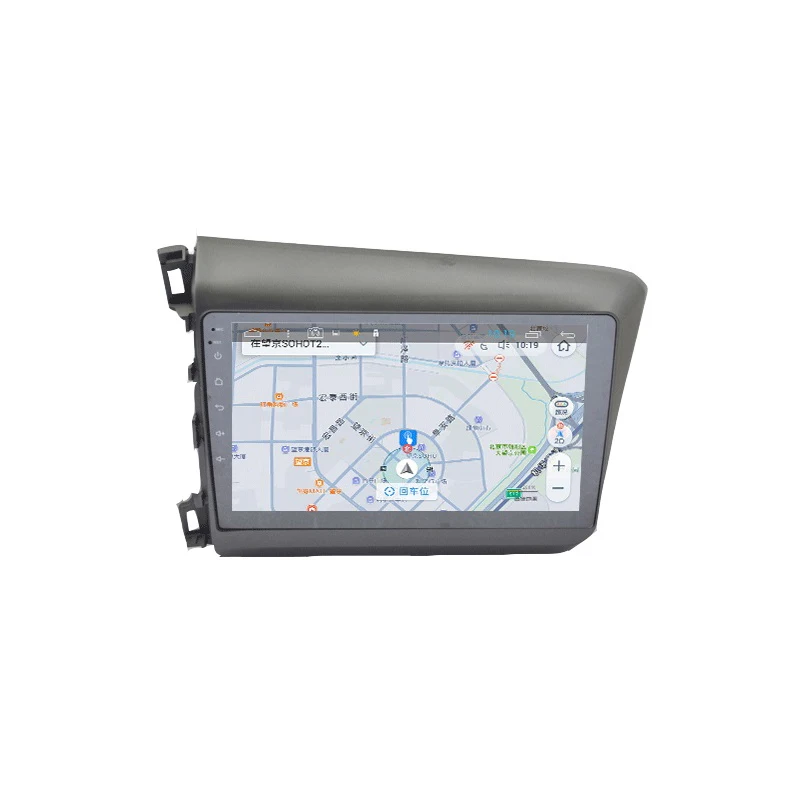

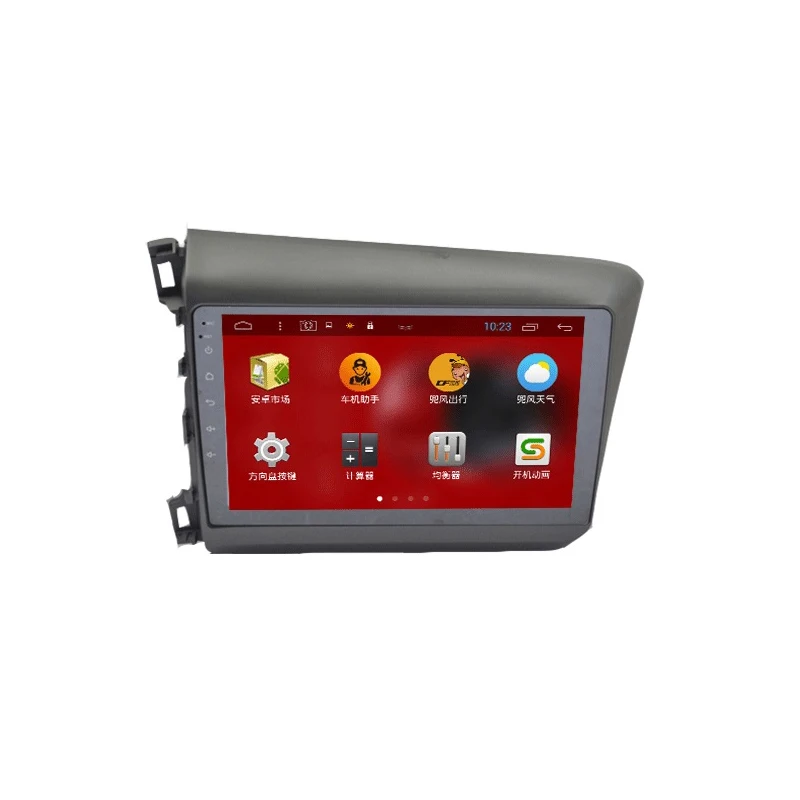

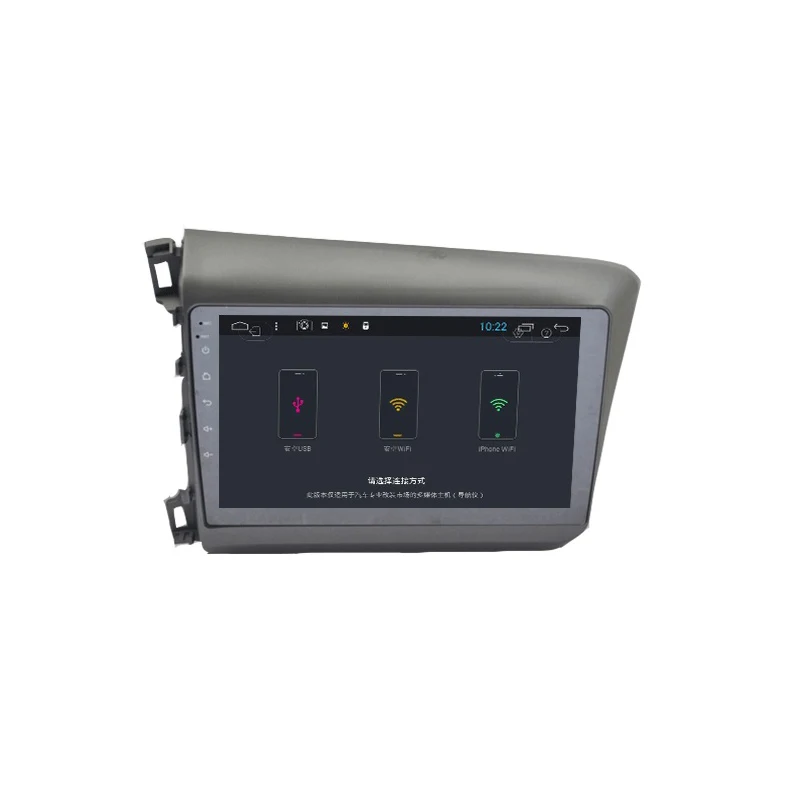

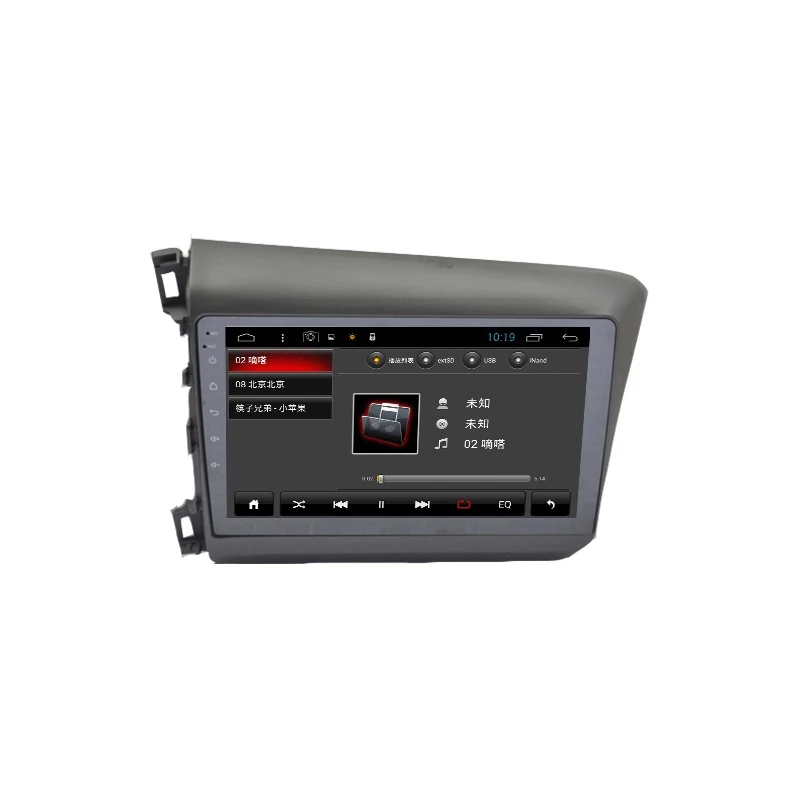

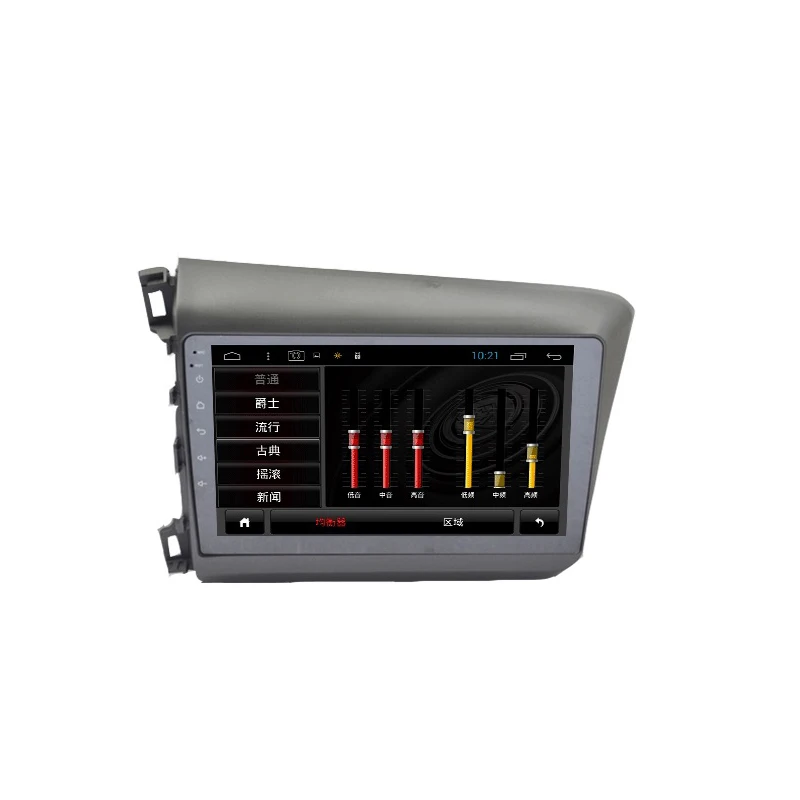

Factory 9 Inch 1G 16G Android 10 For Honda Civic 2012 2013 2014 2015 Car Radio Multimedia Video Player Navigation GPS 2 din dvd

Processor and memory

Processor

AC8227L Quad-Core ARM A7 4*1.3GHz

OS

Android 10Go

DDR

DDR3 1GB

EMMC Flash

16G

Main frequency

1.2G

Memory current

<6mA

Hardware part

Screen resolution

1024x600

Full touch screen

MIPI 9’’ wide screen

Touch screen Capacitance

2.5D

MCU

IAP15F2K61S2

Radio chip

MT6625

GPS navigation  chip

MT6625

WIFI

MT6625

BT chip

MT6625 BT4.0

Power amplifier chip

ST TDA7388 or ATC7315

DVD

USB DVD

TFT Driver IC

AC8227L

Working Voltage

10.5V~16V

USB

USB1;USB2;(not support front-USB)

USB device

Up to 2TB hard-disk

Language

Multilanguage supported

Audio video

Audio format

MP3, WMA, ACC, RM,FALC ect

Audio input

Two;AUX-L;AUX-R

Audio output

FL;FR;RL;RR and Subwoofer

1080P HD video format

asf/avi/mp4/mov/ts/vob/wmv/tp/mkv/mpg/rmav/wav, etc.

Video decode

HD1920*1080

Video input

Two;Camera and Aux

Video output

Video 1

Support picture types

MBP, JPG, PNG, GIF, ICO, TIF, TGGA, PCX, etc.

Maximum output power

4X45W

Voltage

13.8V

S/N

>100dB

Distortion

<0.3%@ 25W

Radio

FM frequency

87.5 - 108.0Mhz/Japan76.0-108 .0 MHZ/Russian65.0-108MHZ

Stop sensitivity

20dBuV

Practical sensitivity

8dB

AM frequency

522Khz - 1710Khz

GPS Parameter

Map Type

Android Map

Map

Navitel,Sygic,Igo,Google map,Waze

WIFI Parameter

Voltage

Vcc_3.3V

Protocol

IEEE802.11B/g/n compatible WLAN

Frequency

2.4-2.484GHz

Modulation

OFDM/DBPSK/DQPSK/CCK

RF Power

15dBM

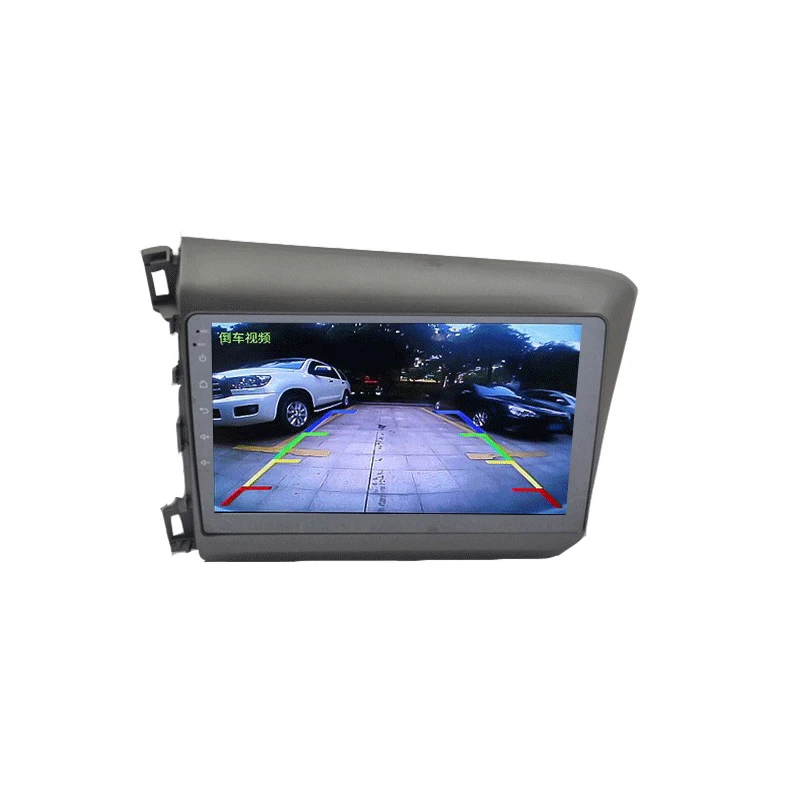

AHD Camera

Support

Sturcture

Super slim

Audio

Normal
