Grinding machines price wheel polishing machine sharper grinding machine grinding machines for processing corn
- Category: Surface Grinding Machines >>>
- Supplier: Anhui Leimo Mold Manufacturing Co. Ltd.
Share on (62326821936):
Product Overview
Description
Product Description

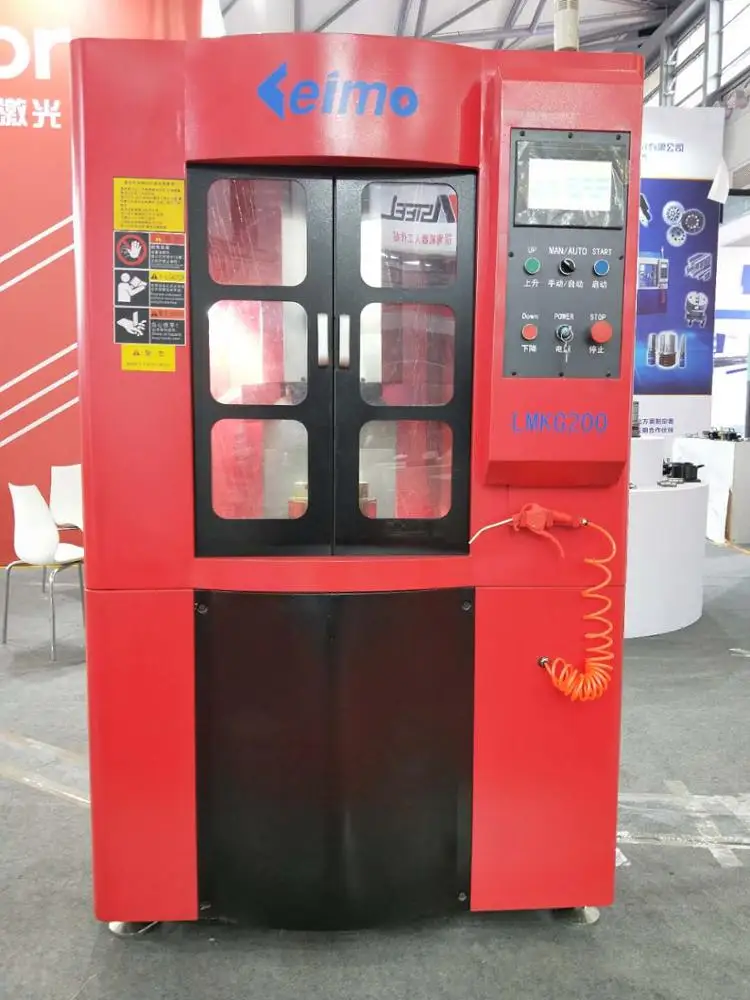

Automatic Grinding Machine LMKG200 Main Function Configuration and Parameter |
| Model | LMKG200 Type Automatic |
| Grinding precision | 0.005 |
| Grinding procedure | Rough, Middle mill, Precision, Polish |
| Grinding wheel type | CBN 135 |
| Grinding range | 2-260mm |
| Folder range | 2-180mm |
| Spindle stroke | 300mm |
| Grinding stroke | 130mm |
| Bevel edge grinding | YES |
| Grinding Mode | Automatic |
| Lubrication Mode | Automatic |
| Blade Mode | Automatic |
| Laser Detection System | YES |
| Pulse System | YES |
| Spindle Frequency Conversion System | YES |
| Control System | Mitsubishi Controller |
| Control Interface | 7-Inch Touch Screen |
| step motor | Mitsubishi servo motor 0.75KW |
| Grinding Spindle Motor | 3.7kw 380v 3 Phrase Electricity |
| Spindle speed | 0-4800rpm |
| Worktable Motor | 0.1KW |
| Cooling Motor | 0.2kw.380v 3 Phrase Electricity 50 l/m |
| Power Requirements | 3kVA (400V / 50Hz) |
| Three-Phrase Five-wire | |
| Machine Tool Structure | Full vertical Castings, Full Cover Waterproof, Dust Proof, Safety Closure Structure |
| Machine Tool Configuration | Taiwannese Ball Rod, Guide Rail |
| Main Axis Configuration | Japanese Bearings |

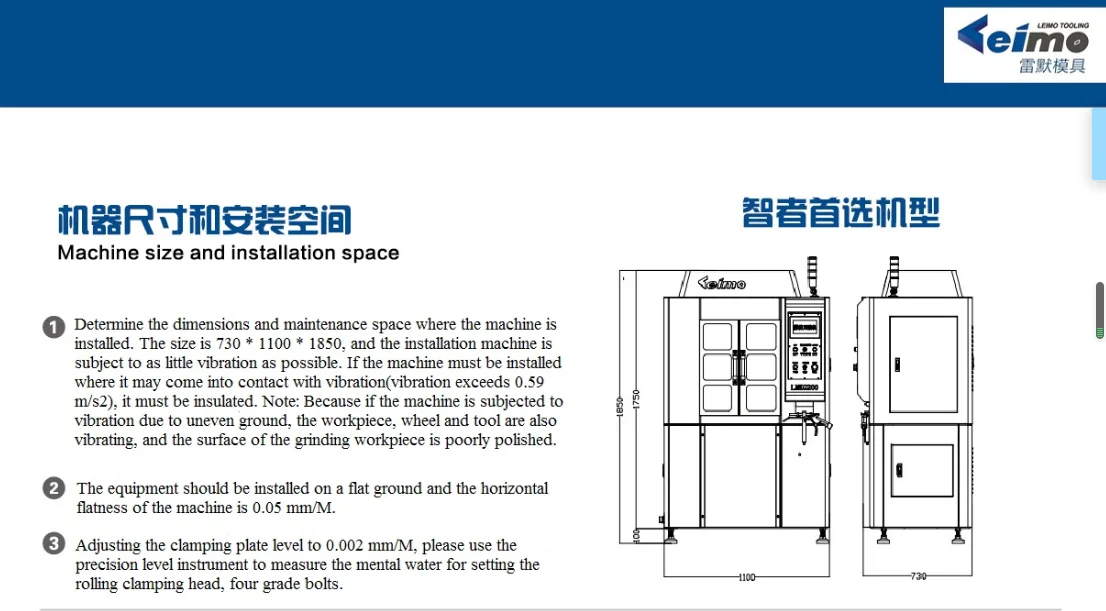

| Shape Size | 730*1100*1850 (mm ) (Packing Size:760*1150*2100) |
| Machine Tool Weight | 650kg |
