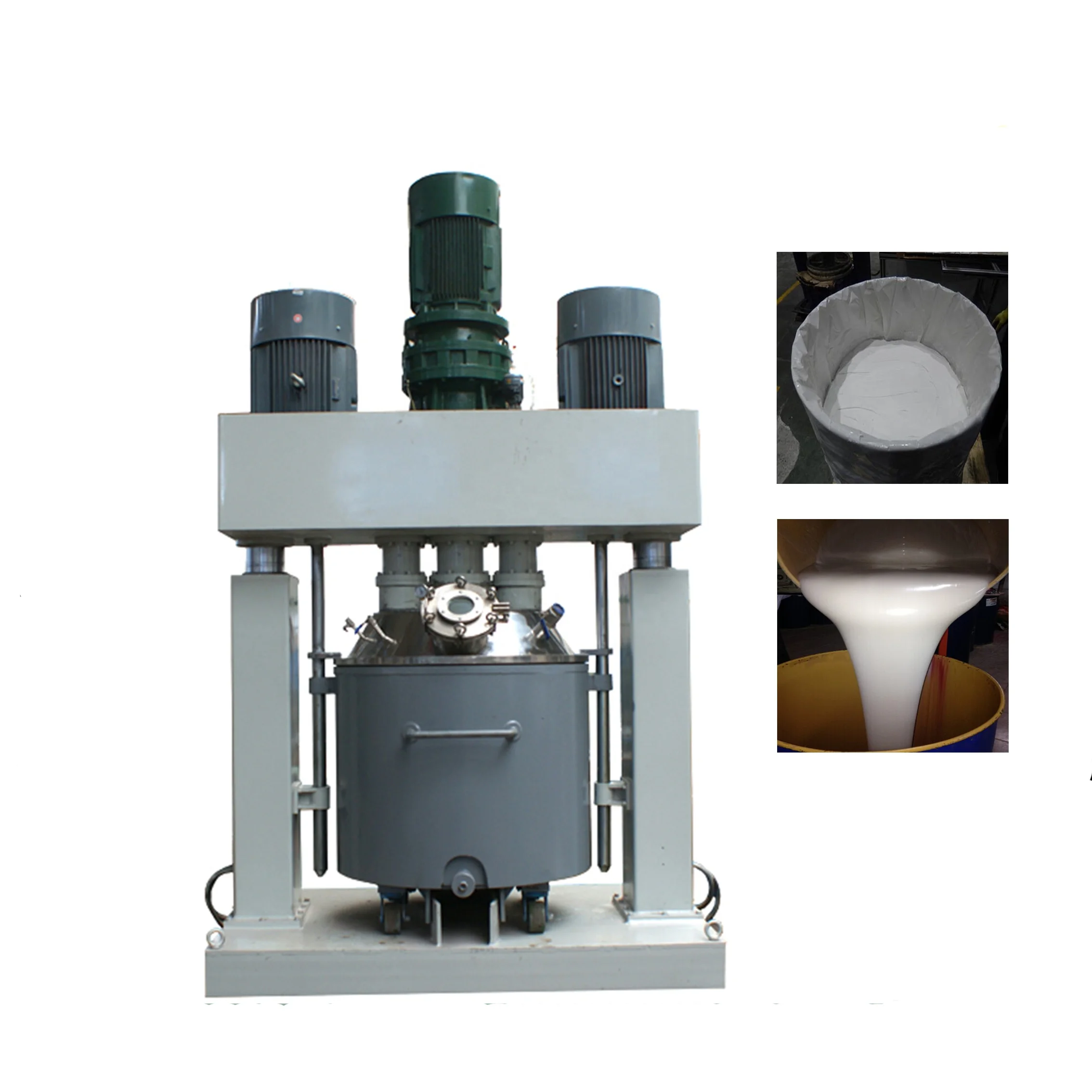

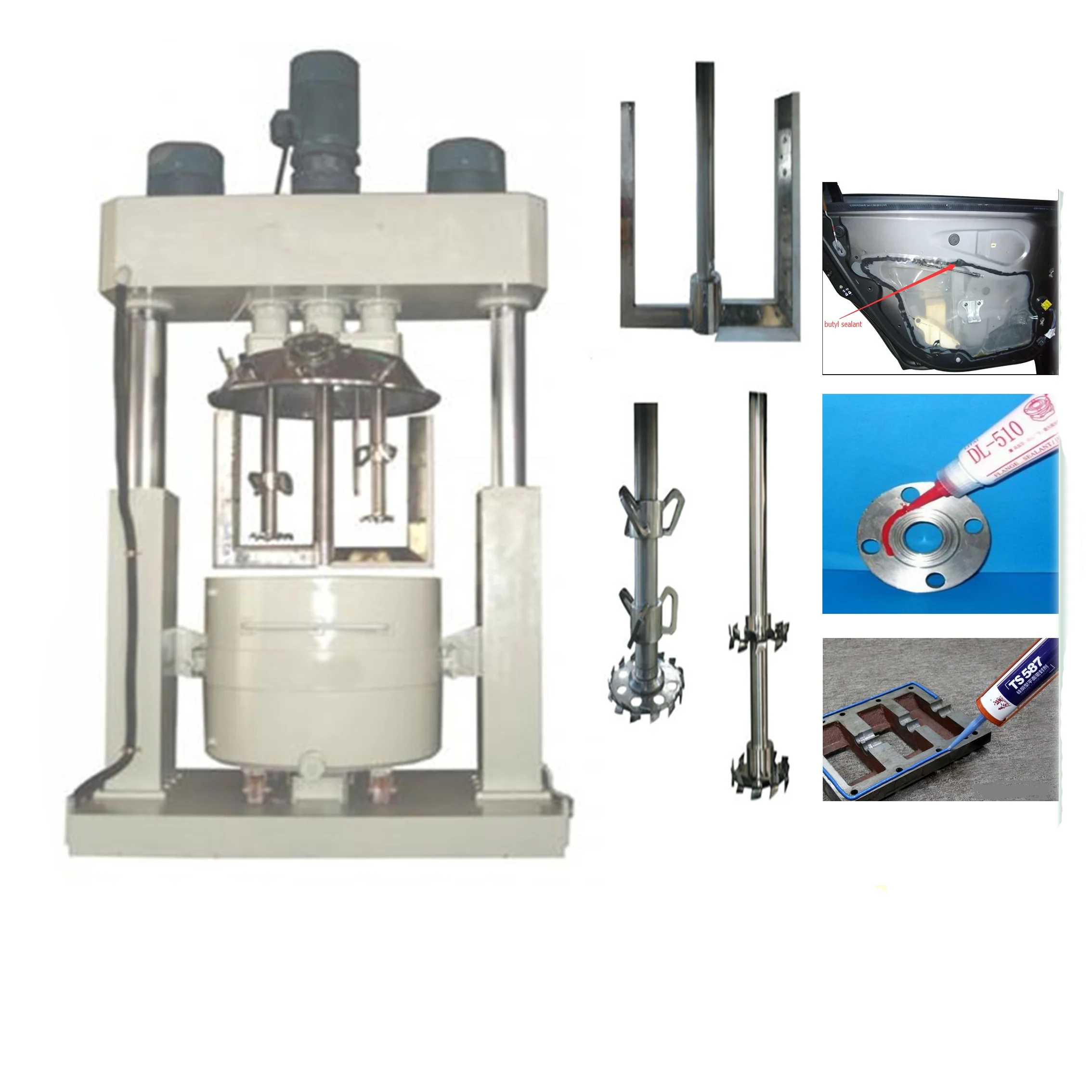

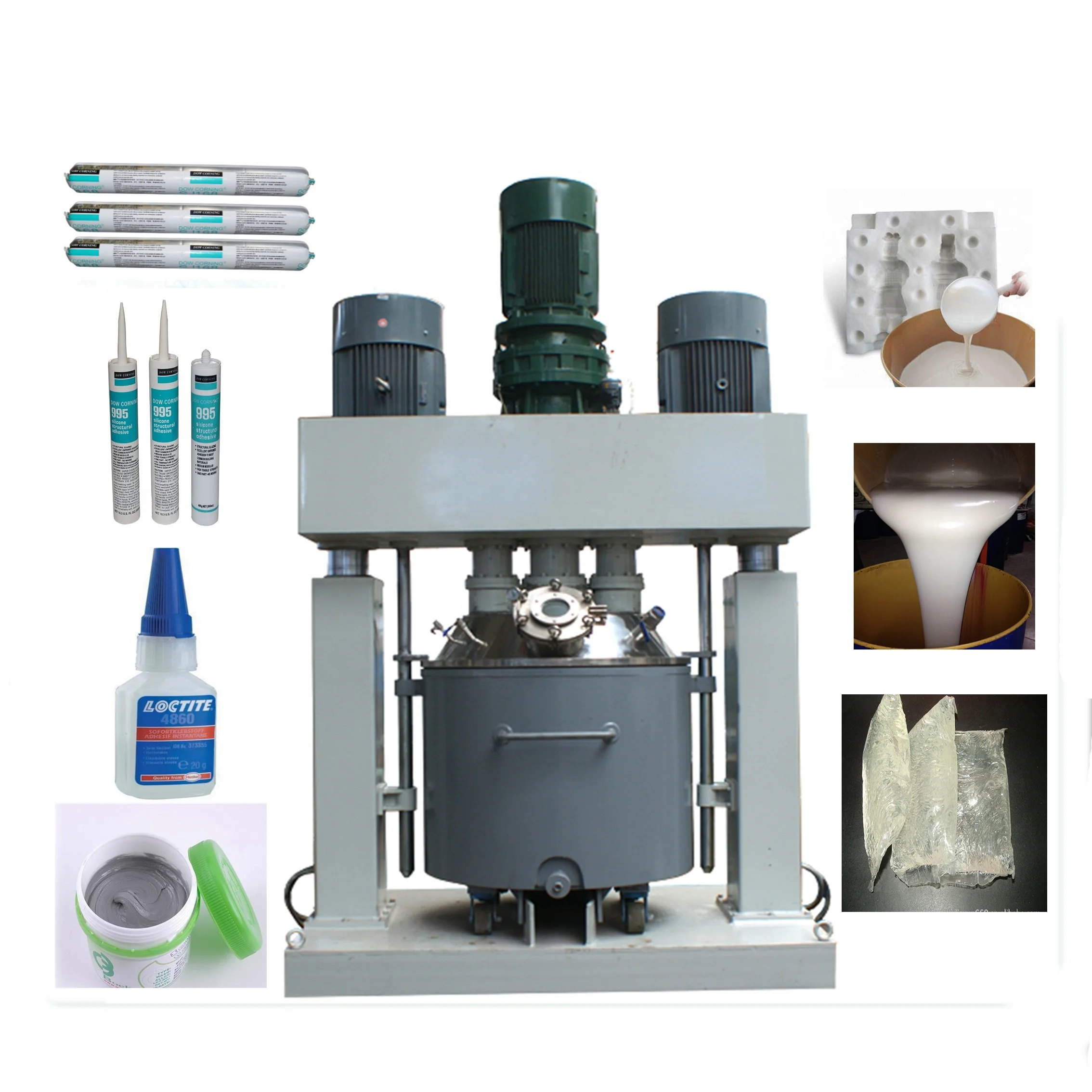

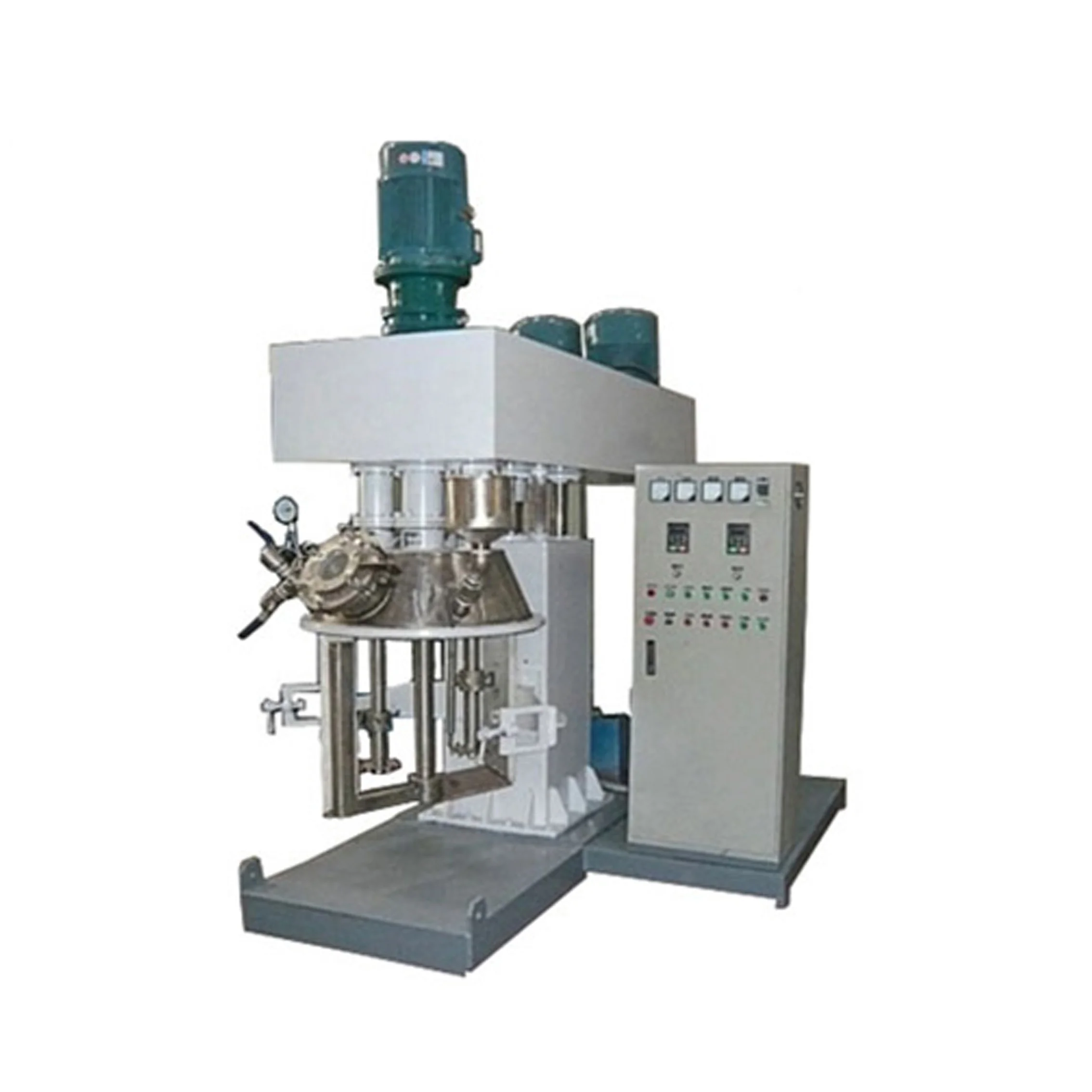

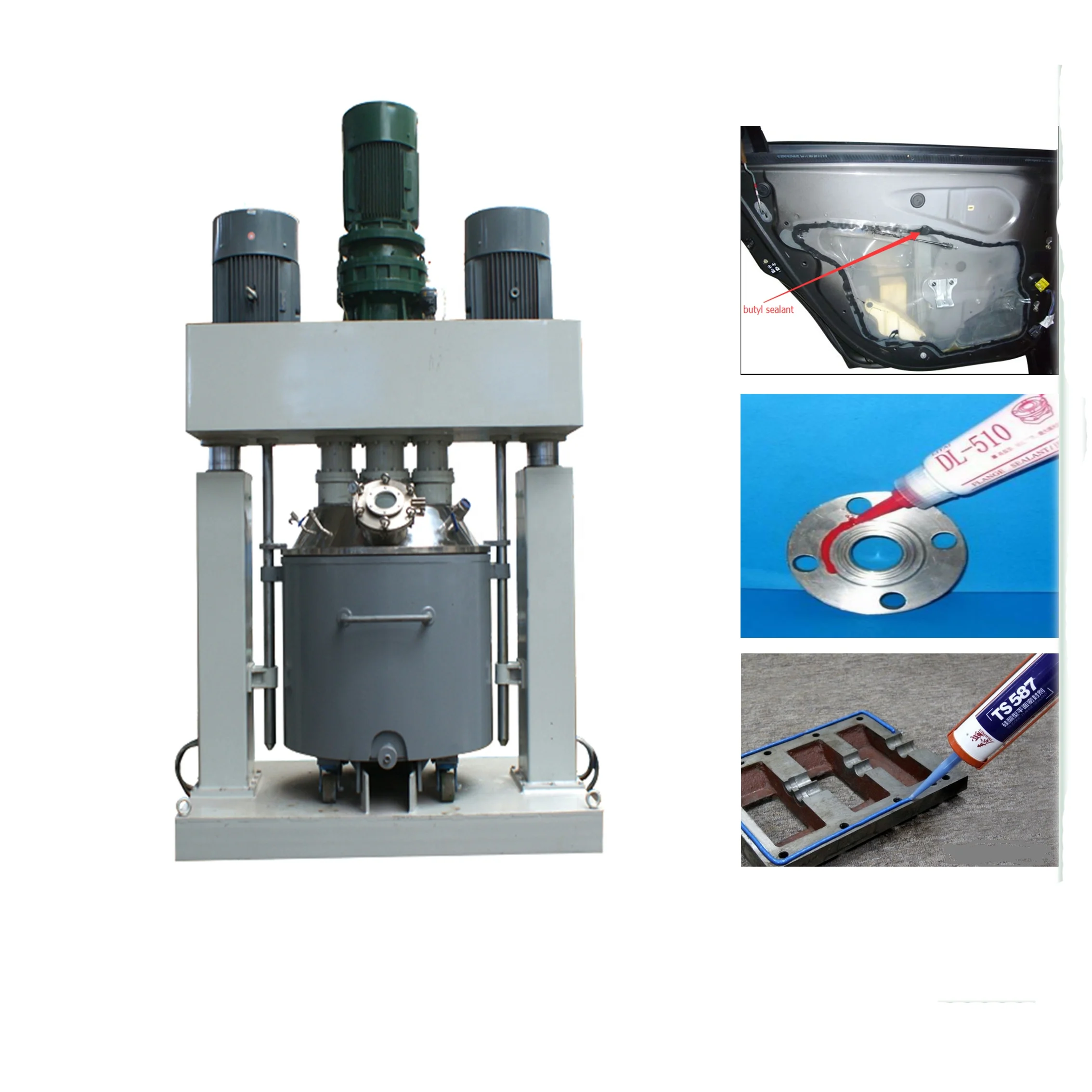

multi function silicone sealant dispersion machine
- Category: >>>
- Supplier: Rugao Lianchuang Kneader Machinery Co. Ltd.
Share on (62326951516):
Product Overview
Description
Product Description

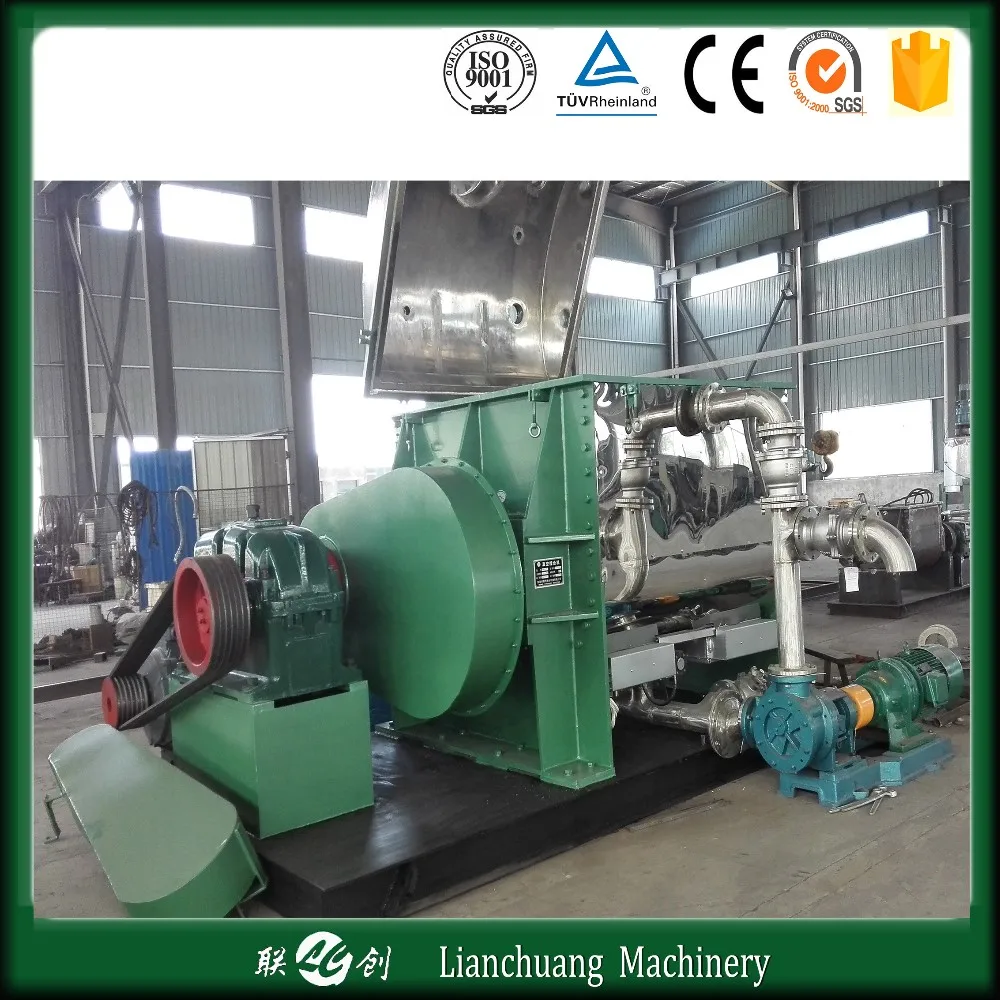

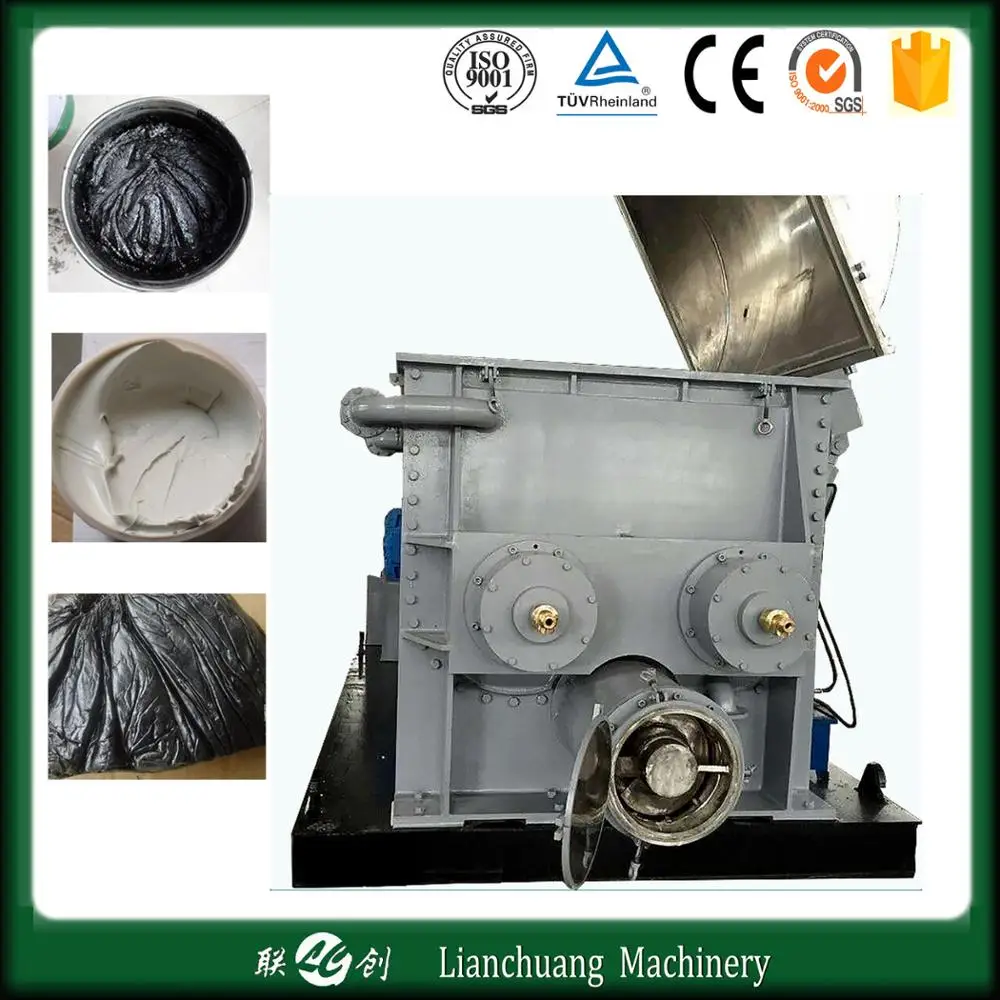

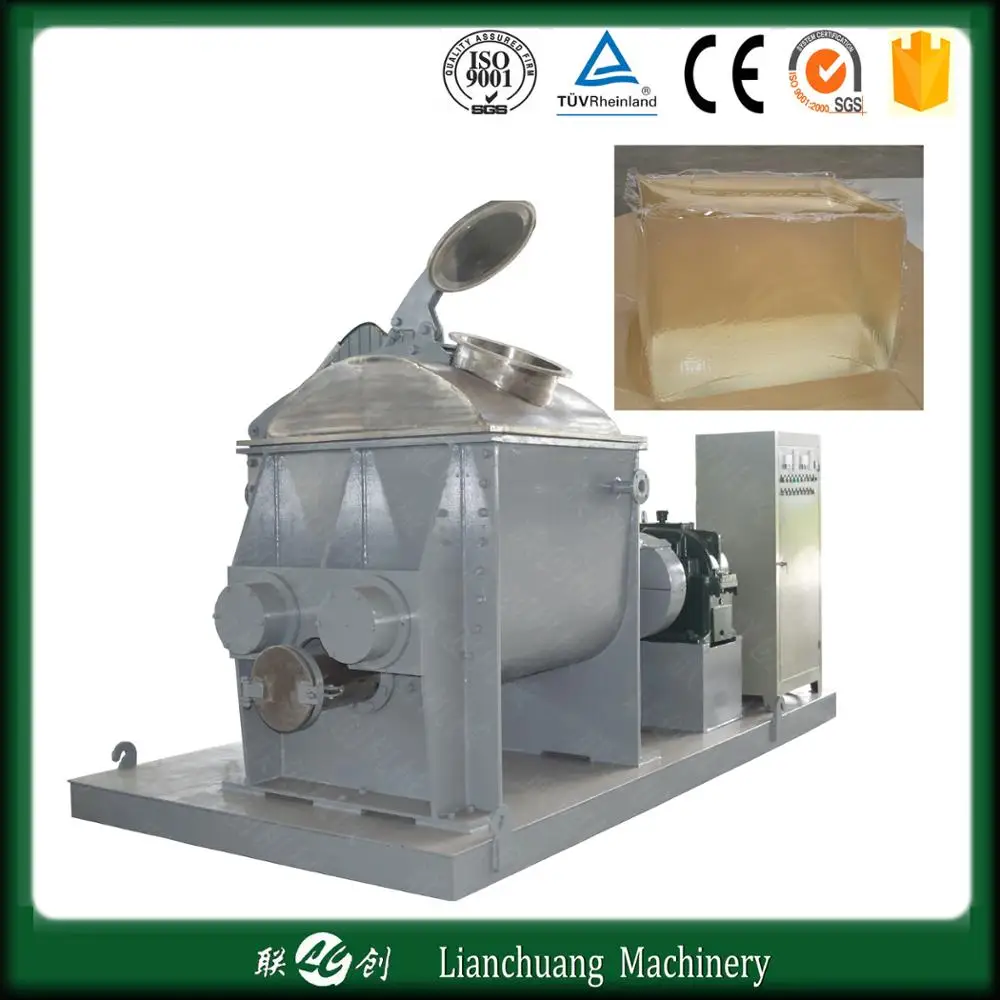

multi function sealant for construction kneading machine
1) Available models normal pressure, high pressure and vacuum, with touch part melted by stainless steel.
2) Temperature adjustment: heated by oil, steam or electricity, cooled by water.
3) The blades with fish-nail shape, whcich can cut the CMC chemicals products stirred and mixed fully.
4) Discharge method: tilt dump, bottom dump and screw discharge.
5) The seal of shaft agitator is adopted with unique balance construction of vacuum box.
6) The cover is controlled by hydraulic system.
Main Technical Data of Kneader Machine:
| Type | Volume Capacity (L) | Working Capacity(L) | Motor Power(KW) | Discharging methods | Heating method |
| NHJ-1L | 1 | 0.6 | 0.75 | Tank tilting | Steam |
| NHJ-2L | 2 | 1.2 | 0.75 | ||
| NHJ-5L | 5 | 3.0 | 1.5 | ||
| NHJ-10L | 10 | 6.0 | 2.2 | Ball valve | steam, eletric heating oil, hot water |
| NHJ-20L | 20 | 12.0 | 3.0 | ||
| NHJ-50L | 50 | 30.0 | 3-5 | ||
| NHJ-100L | 100 | 60.0 | 5-7.5 | ||
| NHJ-200L | 200 | 120.0 | 7.5-11 | ||
| NHJ-300L | 300 | 180.0 | 11-15 | ||
| NHJ-500L | 500 | 300.0 | 15-22 | Screw extruding | |
| NHJ-800L | 800 | 480.0 | 22-40 | ||
| NHJ-1000L | 1000 | 600.0 | 40-45 | ||
| NHJ-1500L | 1500 | 900.0 | 30-55 | ||
| NHJ-2000L | 2200 | 1300.0 | 45-75 | ||
| NHJ-3000L | 3000 | 1800.0 | 55-90 | ||
| NHJ-5000L | 5000 | 3000.0 | 90-160 | ||
| NHJ-8000L | 8000 | 4800.0 | 110-200 |
