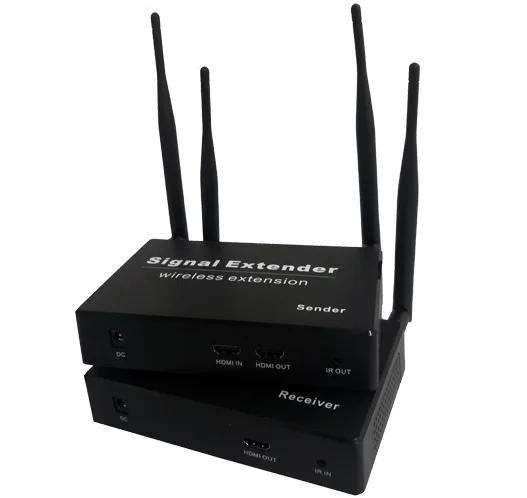

This product consists of a transmitter and a receiver, which perfectly realizes wireless transmission of high-definition HDMI audio and video to high-definition display output devices, and can also transmit IR infrared signals at the same time. It can remotely control infrared devices such as DVD, set-top boxes with a transmission distance of 300 feet.
Product Features
1.Support 1080P HD resolution 2.Support HDCP 3.The wireless configuration made the room to be clean and convenient from the wiring. 4.The Transmitter with HDMI loop-through. 5.Support one sender with many receivers. 6.Strong anti-interference, No interference with other WIFI equipment. 7.Strong penetration, easy crossing obstacles. 8.IR Function(optional)

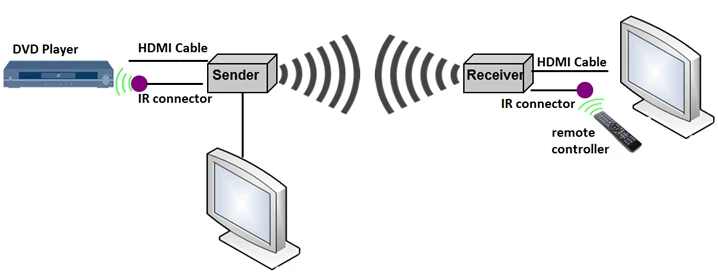

One to one installation diagram

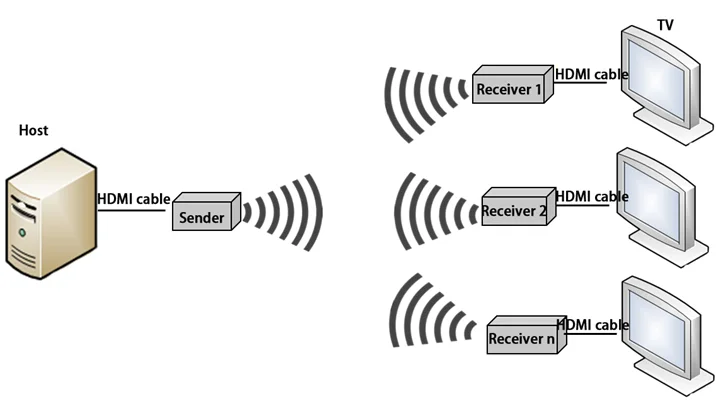

One to more installation diagram
Specification:
Function
Input signal
Sender:one CH HDMI
Receiver:one CH IR
Output signal
Sender:one CH HDMI,IR
Receiver:one CH HDMI
Transmission distance
Open range transmission:0-300 feet

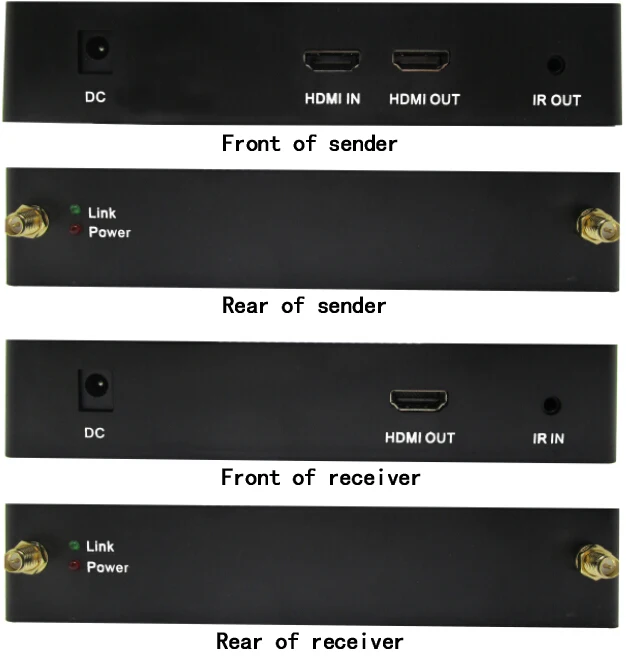

Video transmission performance and interface part
Video input/output interface
HDMI
Support HDMI version
HDMI1.3
Support HDCP version
HDCP1.2
HDMI Resolution
1080p/1080i/720p/720i/576p/576i/480p/480i
Support video color format
24 bits/dark 30 bits/dark 36 bits
Support audio format
DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD
Input and output TMDS signal
0.5-1.5Vp-p(TTL)
Input and output DDC signal
5Vp-p(TTL)
Infrared remote control performance and interface
Remote control interface
3.5mm audio
Remote interface signal
Infrared control signal
Wireless
Frequency
5.8GHZ
Sending/Receiver antenna
Outer
Property
Size(lengh*width*height)
Sender: 165 mm×105 mm×30 mm
Receiver: 165 mm×105 mm×30 mm
Case
Plastic
Color
Black
Power Supply
Adaptive voltage range
DC9V/2A
Sender consumption
7W
Receiver consumption
6W
Operating environment
Working Temperature
-15℃-55℃
Storage temperature
-40-80℃
Relative humidity
0-95% (No condensation)
