Product Overview
Description
Product Description

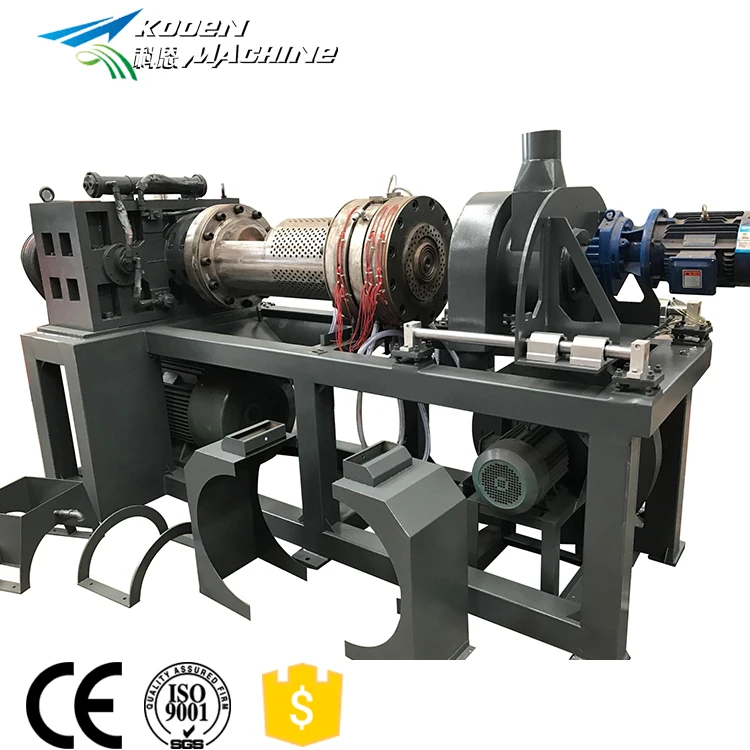

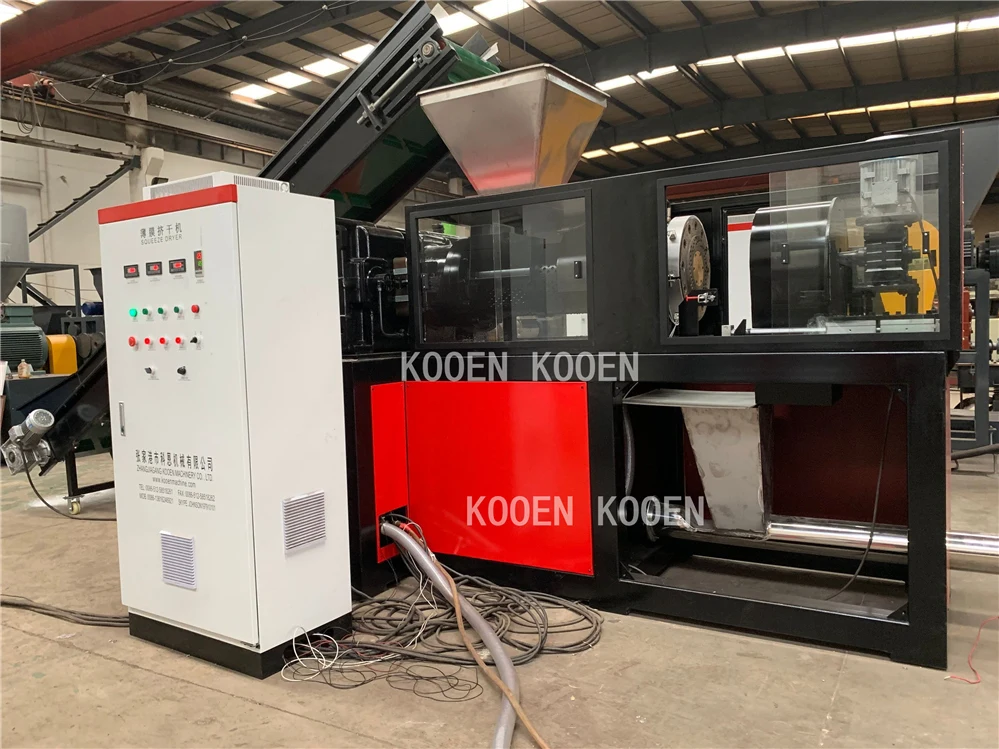

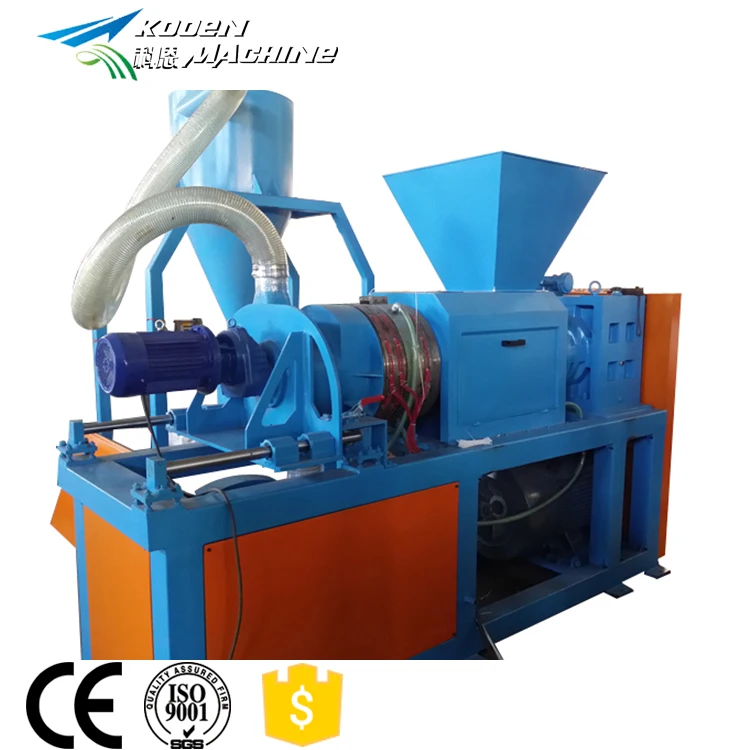

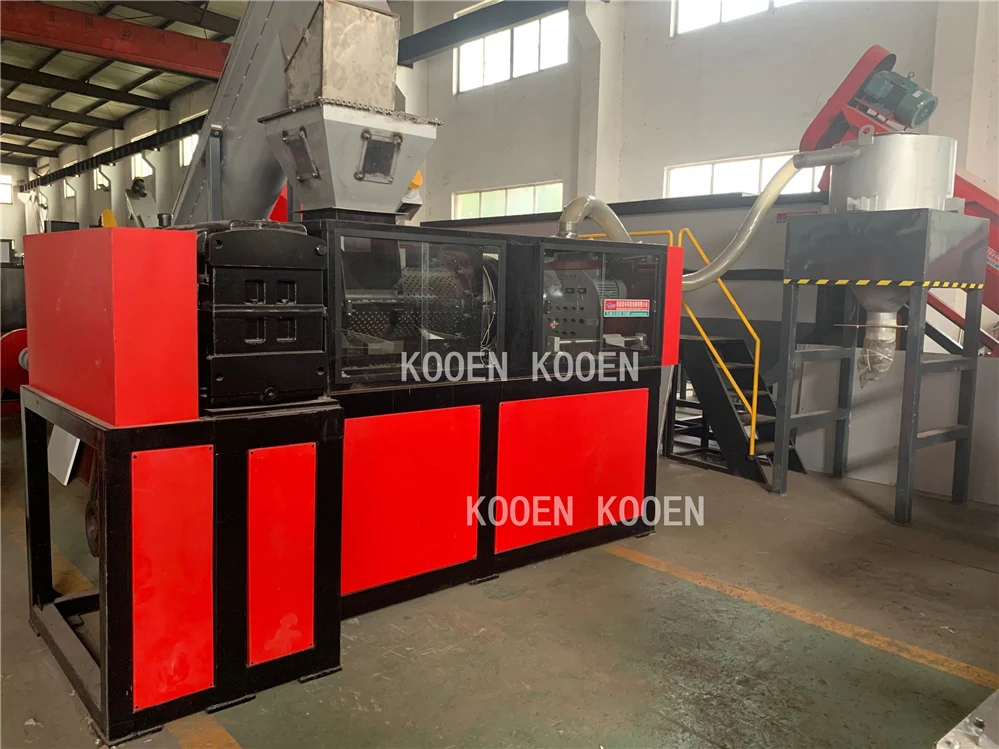

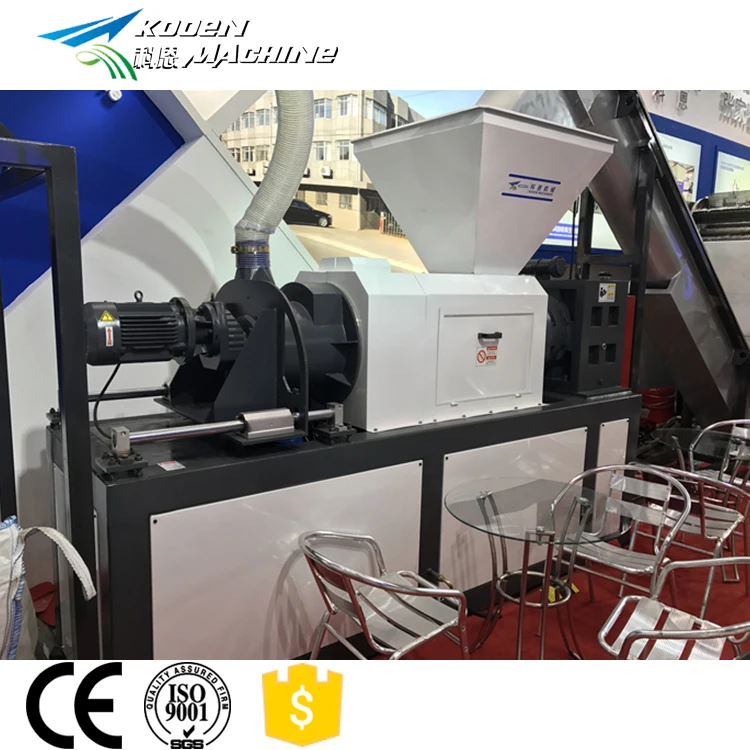

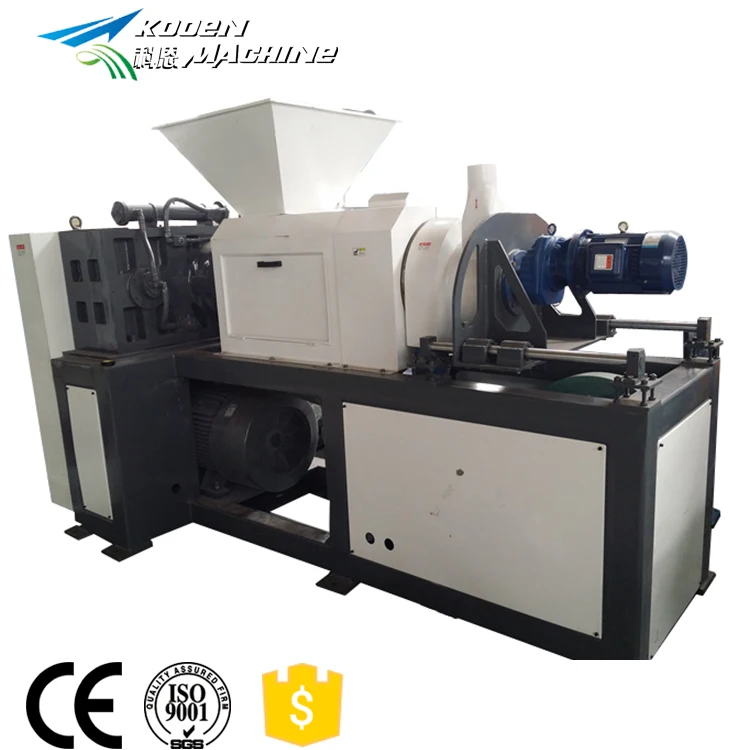

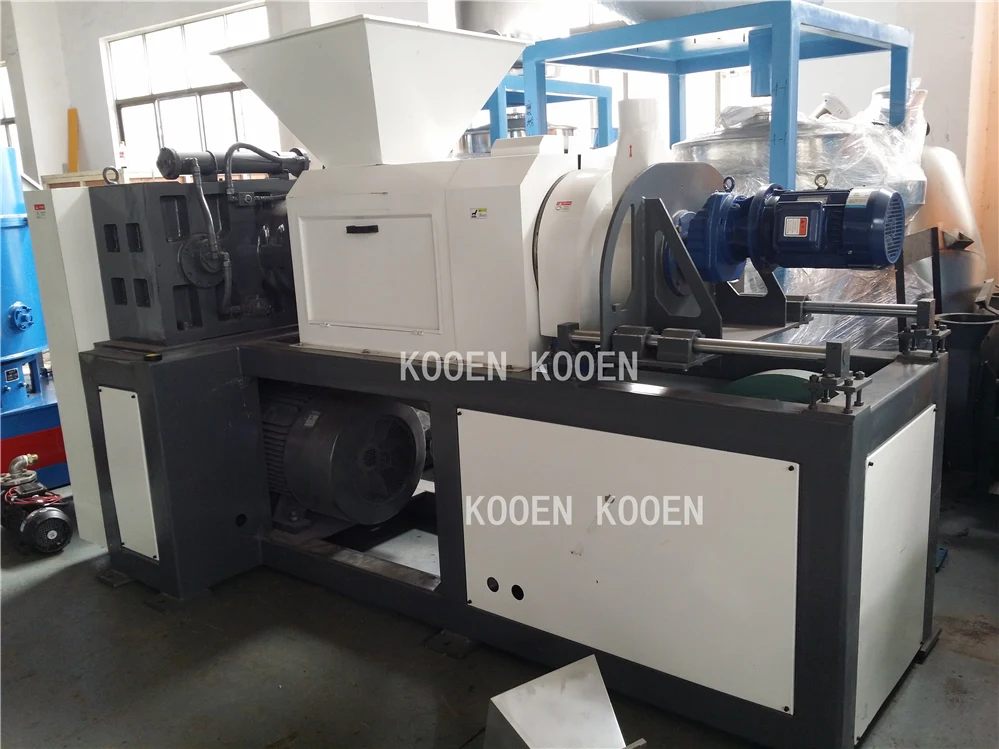

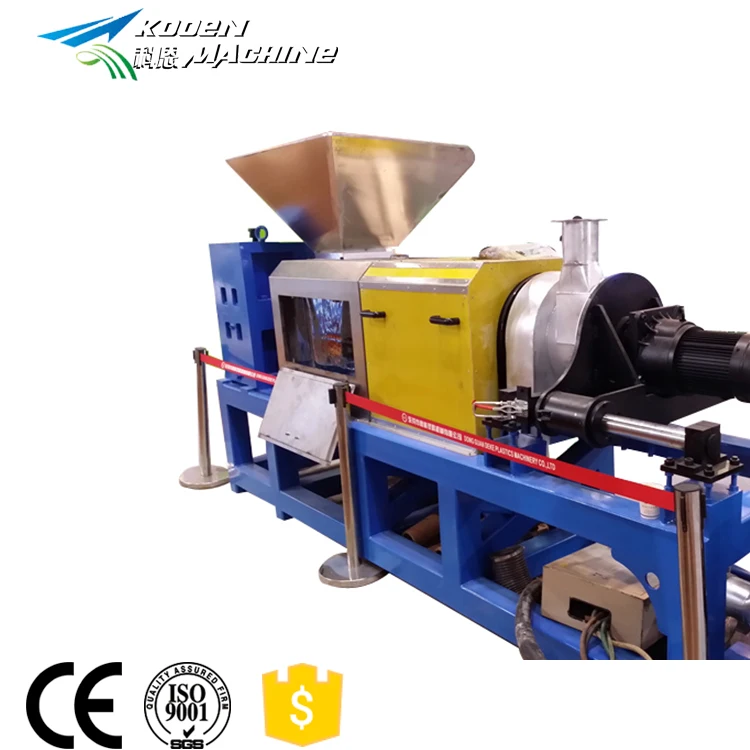

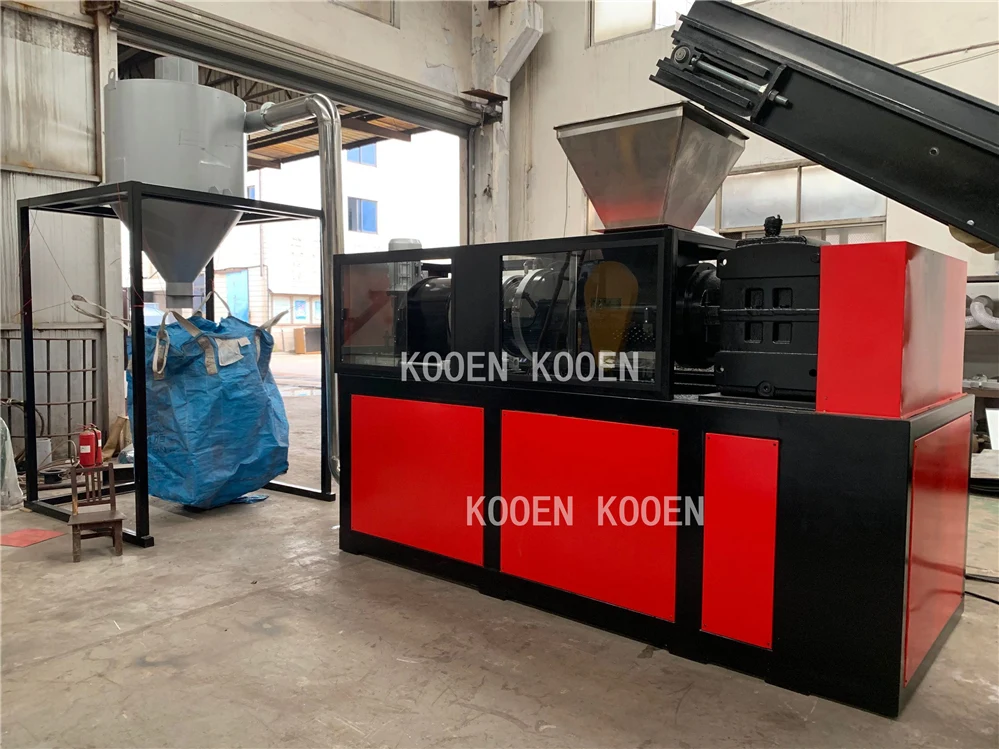

PE LDPE LLDPE film bag plastic centrifugal dryer Recycle Plastic Film Squeezer Drying Machine
Model | Capacity (kg/hour) | Motor power (KW) | Screw diameter(mm) | Rotation speed (rpm) | Cutting motor power (KW) | Fan blow power (KW) |
KN-250 | 300 | 75 | 250 | 55 | 5.5 | 7.5 |
KN-300 | 500 | 90 | 300 | 55 | 5.5 | 7.5 |
KN-350 | 800-1000 | 132 | 350 | 55 | 5.5 | 7.5 |
Usage:
This is new type film-squeezing machine which is designed by our company. It use squeezing & dehydration principle, after raw material (LDPE agriculture film, LLDPE strength film, and PP woven/big bags, etc) crushing and washed, this squeezer machine can quickly and effectively remove the water. It is easy to increase the subsequent granulating line production capacity.
Advantages:
1. Low power consumption.Main motor power between 75-132kw, no need to connection drying pipe system. Compare transitional horizontal dewatering machine + drying pipe system, can save electric consumption 40-50%
2. Small land occupied
3. Low rotation speed, almost no noise

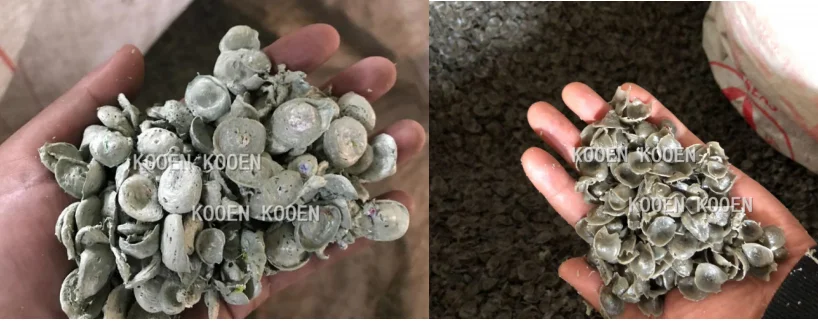

4. Dewatering function is better, final products humidity less than 2%
5. Can greatly increase the subsequent granulating line production capacity
Advantages:
1. Low power consumption.Main motor power between 75-132kw, no need to connection drying pipe system. Compare transitional horizontal dewatering machine + drying pipe system, can save electric consumption 40-50%
2. Small land occupied
3. Low rotation speed, almost no noise
4. Dewatering function is better, final products humidity less than 2%
5. Can greatly increase the subsequent granulating line production capacity

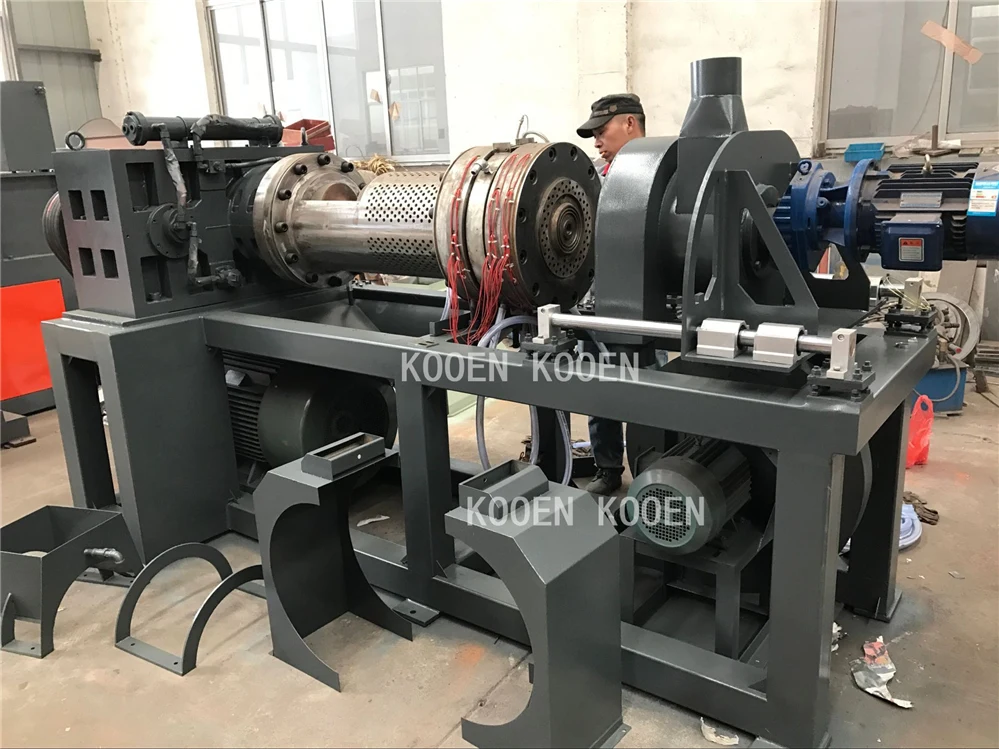

Main Components
Main motor power:75/90/110/132KW
Rotation speed:50-55rpm
Screw diameter:250/300/320/350mm
Rotation speed:50-55rpm
Screw diameter:250/300/320/350mm

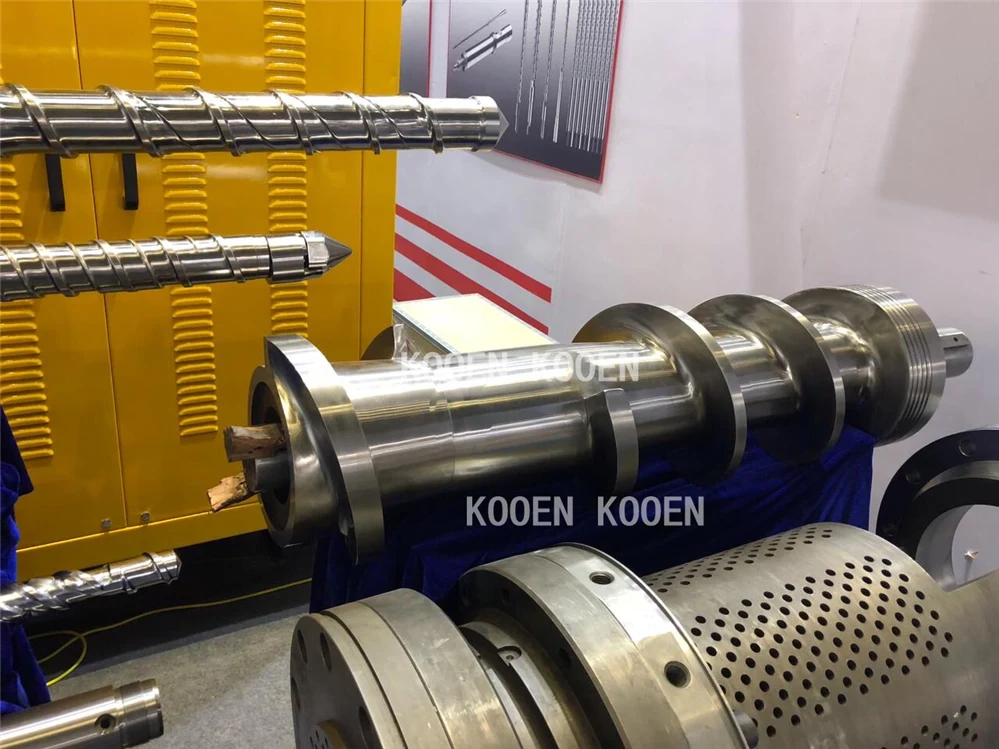

Material:38CrMoA1A Nitrified
Hardness: HV 740
Nitrified thickness: 0.4-0.6
CNC treatment
Hardness: HV 740
Nitrified thickness: 0.4-0.6
CNC treatment

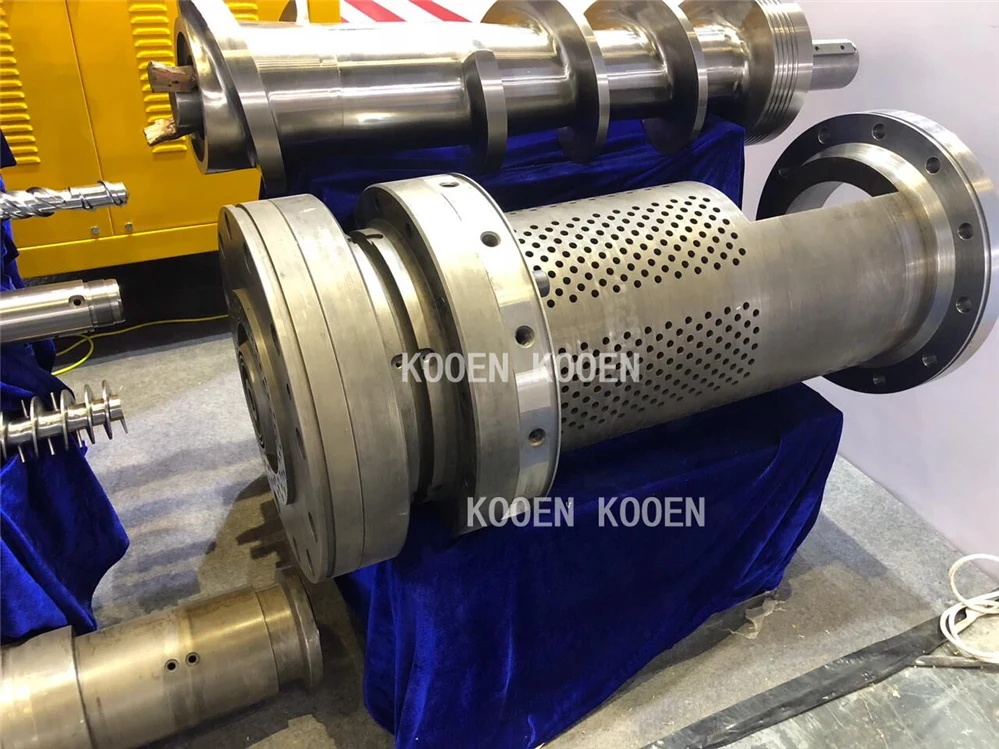

Material:38CrMoAl Nitrified
Hardness: HV ≥ 980
Nitrified thickness: 0.6-0.7
CNC treatment
Hardness: HV ≥ 980
Nitrified thickness: 0.6-0.7
CNC treatment

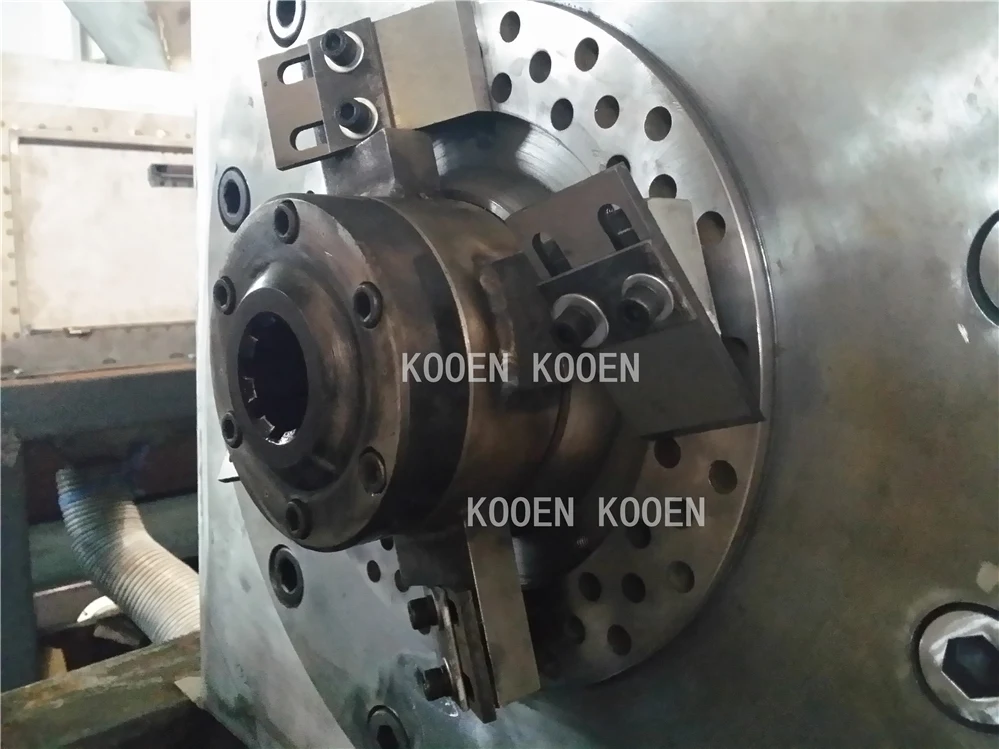

Cutting hood material:stainless steel
Cutting motor and cutting shaft connect directly
Cutting motor and cutting shaft connect directly

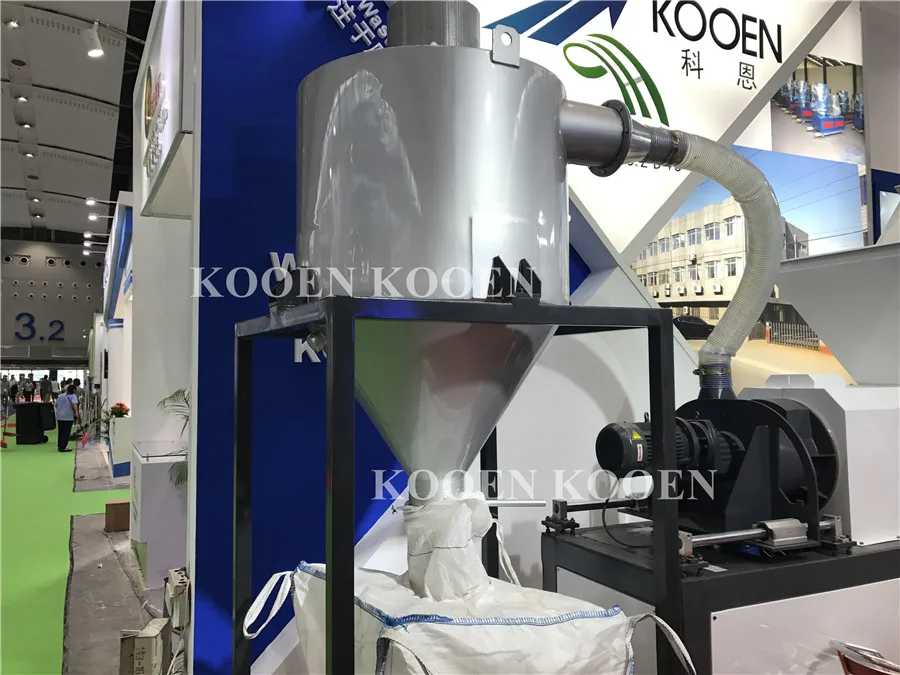

Wind transition + silo

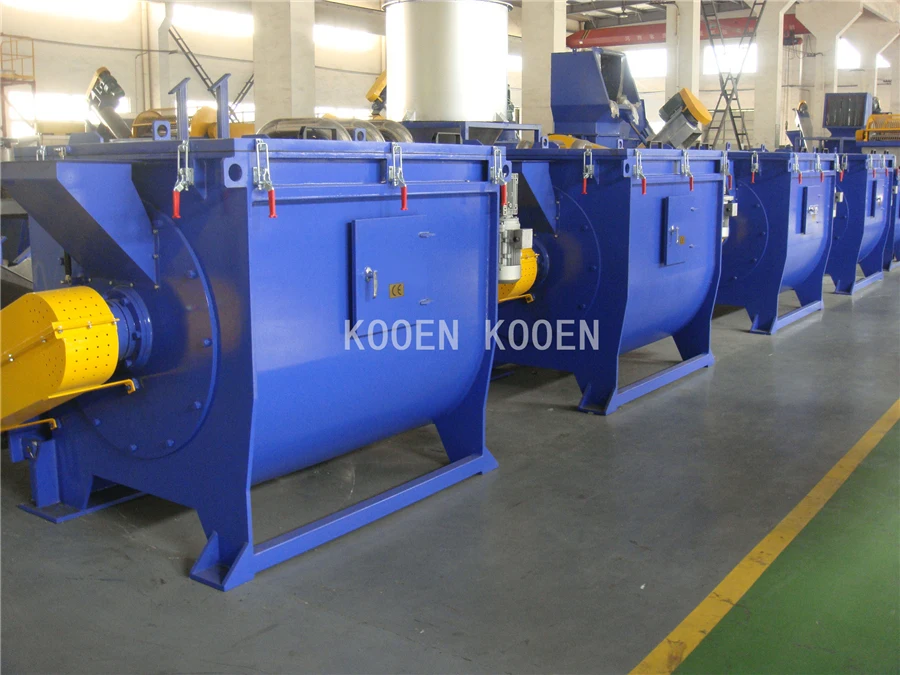

Our company also offer horizontal vertical dewatering machine:
