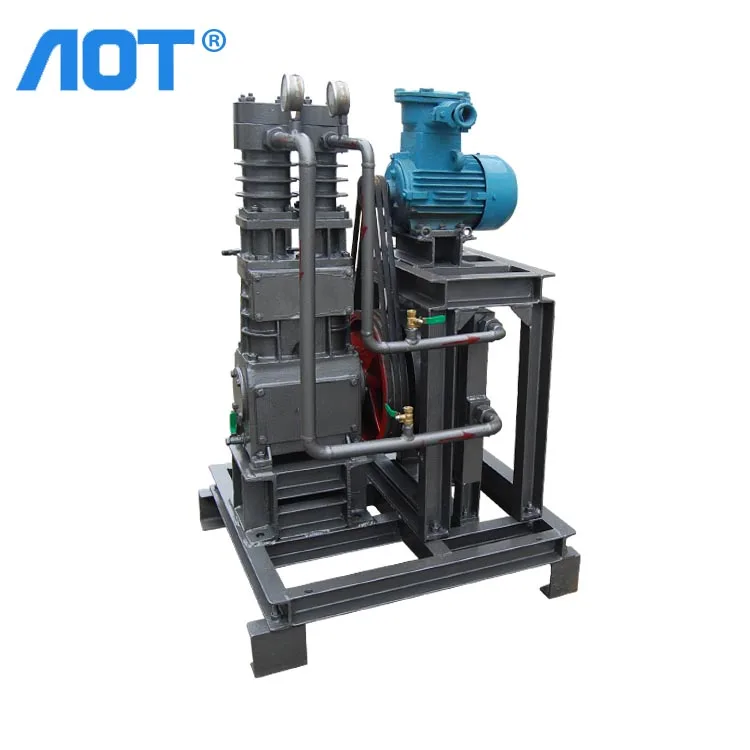

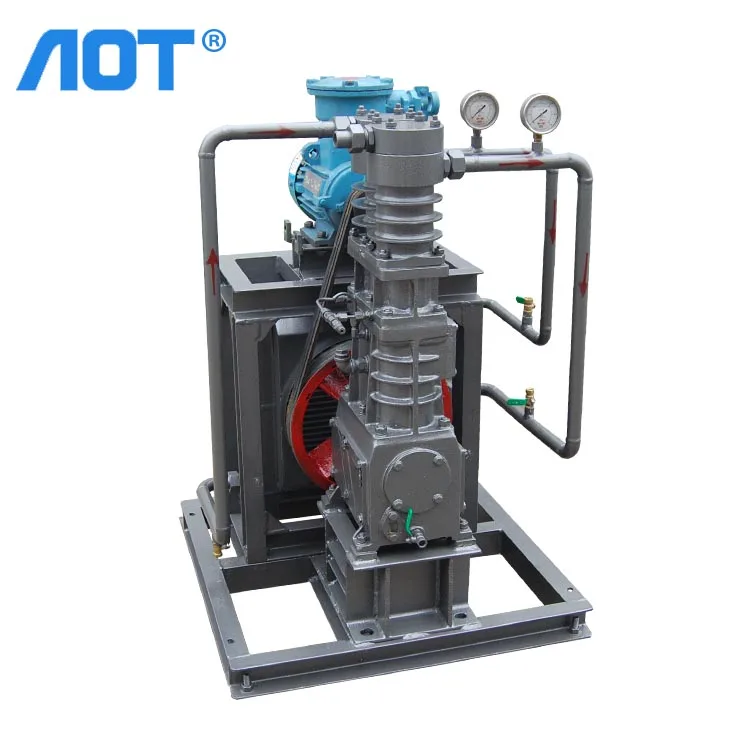

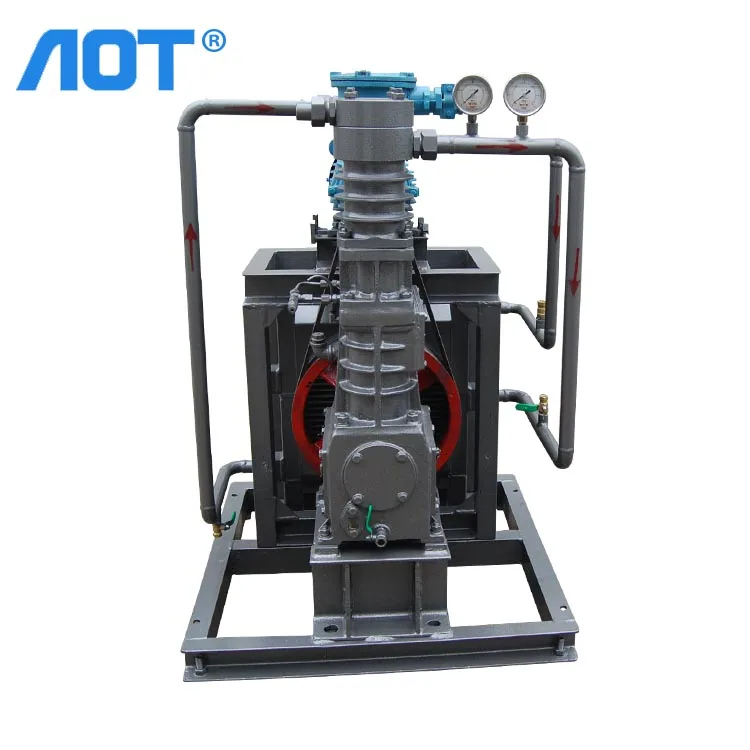

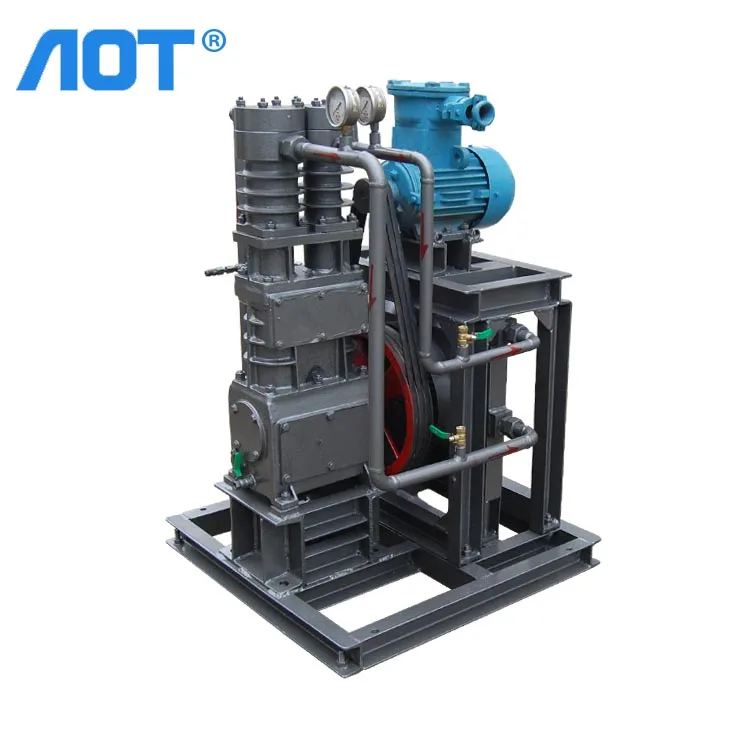

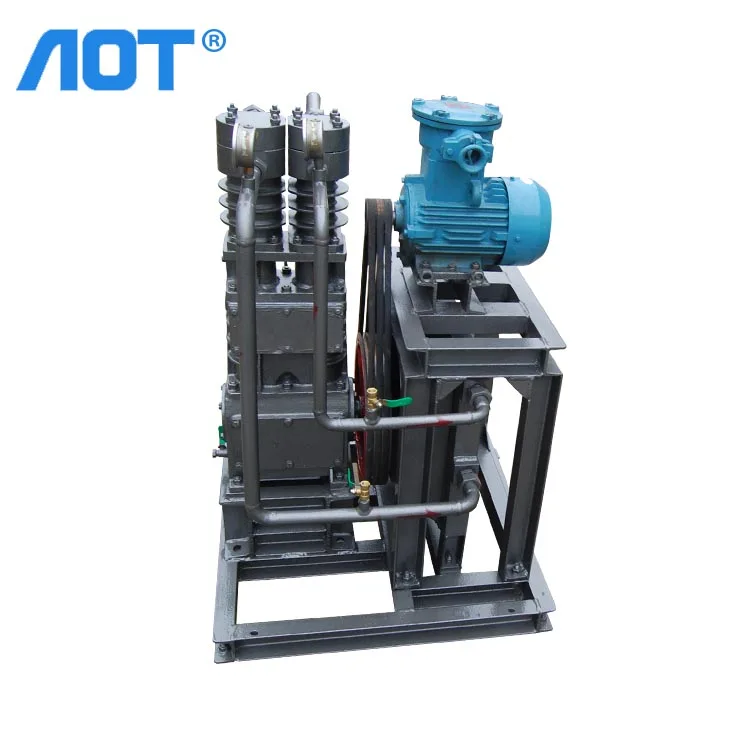

Sales Mini Biogas Plants Piston Air Compressor Silent Compressor for Biogas Station Sewage Treatment Plants
- Category: >>>
- Supplier: Bengbu AOT Compressor Co. Ltd.
Share on (62327069169):
Product Overview
Description
Product Description
Biogas compressor is a large, medium and small biogas compressor developed by our company in response to the demand of new energy and renewable energy. Our company methane compressor has a unique level of professional technology, cost-effective products.The exhaust pressure is from 0.2mpa to 25MPa, and the exhaust volume is from 0.2m3/min to 40m3/min.
The machine has the characteristics of low noise, high stability, simple structure and convenient maintenance.
The product is safe and reliable.
Range of application

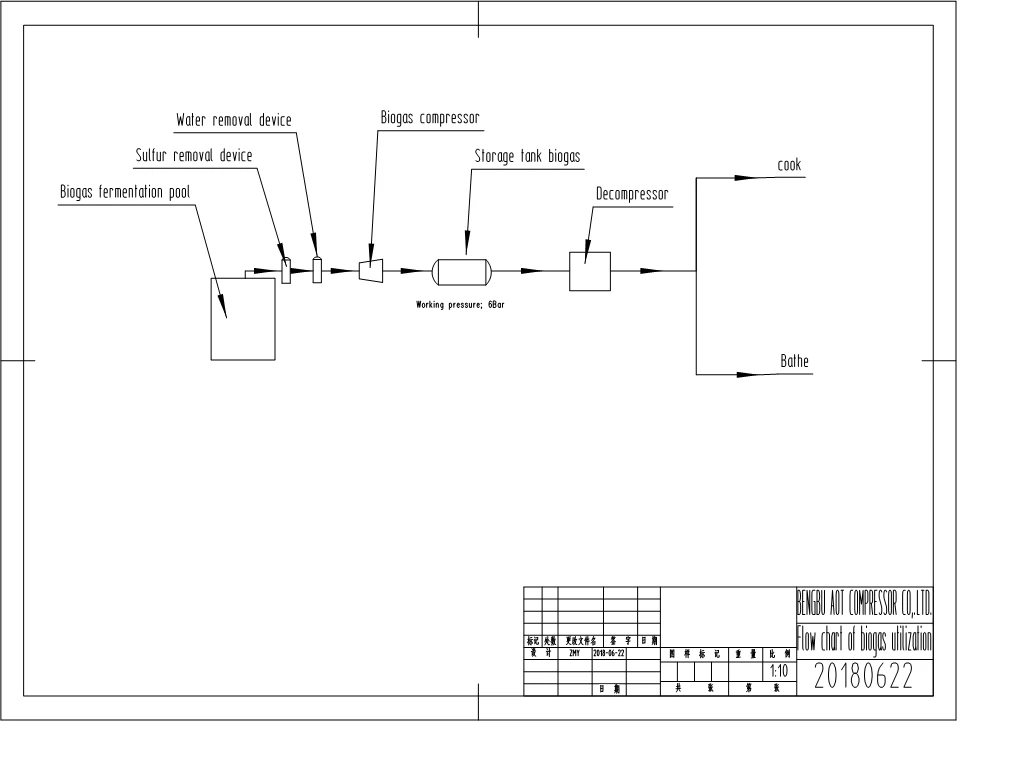

Widely used in biogas stations, sewage treatment plants and new gas stations
The compressor adopts oil-free lubrication structure and can run continuously for a long time. Meet the process requirements, suitable for all kinds of gases. All oil-free lubrication compressors with various parameters and requirements can be customized according to customer requirements.
gas compressor gas air compressor
oli free gas compressor
Compressor | Product Model | VW-5.2/0.1-14 | |||
Type | D Type | ||||
Compressed medium | Biogas | ||||
Nominal volume flow(m³/mim) | 300 | ||||
Compression stage | 3 | ||||
Cylinder number | 6 | ||||
driving mode | Coupling | ||||
Noise (sound pressure level) dB(A) | ≤85 | ||||
Cooling mode | Air cooling | ||||
Rotational speed (r/min) | 740 | ||||
Suction pressure (MPa G) | 0.01 | ||||
Discharge Pressure (MPa G) | 1.4 | ||||
Suction temperature (℃) | 40 | ||||
Discharge temperature (℃) | ≤140 | ||||
Crankshaft, connecting rod, cross head | Oil lubrication | ||||

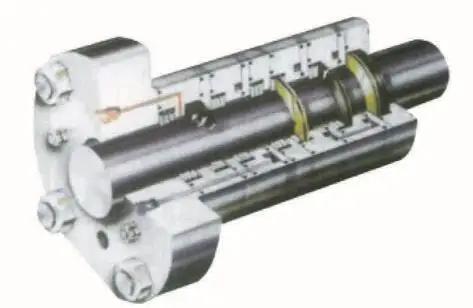

Cylinder, Packing | Oil-free lubrication | ||||
Motor | Model | YB3-280M-8 | |||
Explosion-proof grade | DIIBT4 | ||||
Rotational speed (r/min) | 740 | ||||
Rated voltage (V) | 380 | ||||
Rated frequency(Hz) | 50 | ||||
Rated current (A) | 91.4 | ||||
Rated power (Kw) | 45 | ||||
Compressor size (L×W×H) mm | ≈≈3000×2000×1100 | ||||
Weight(kg) | ≈3000 | ||||
Note:With the parameters of the logo will be subject to leave the factory
Scope of supply
No. | Name | Number | Note |
1 | Compressor host | 1 | / |
2 | Explosion-proof motor | 1 | / |
3 | Gas-liquid separator | 1 | / |
4 | The relief valve | 3 | / |
5 | Shared chassis | 1 | / |
6 | Coupling | 1 set | / |
7 | Piping components | 1 set | / |
8 | Random spare parts | 1 set | / |
9 | The technical documentation | 1 set | / |
10 | Air cooling system | 1 set | / |
11 | Non-explosion-proof soft start control cabinet | 1 set | / |
12 | Control system | 1 | Low intake pressure, alarm and shutdown. High intake pressure, alarm and shutdown. High outtake pressure, alarm and shutdown. Low lubricating oil pressure alarm shutdown |

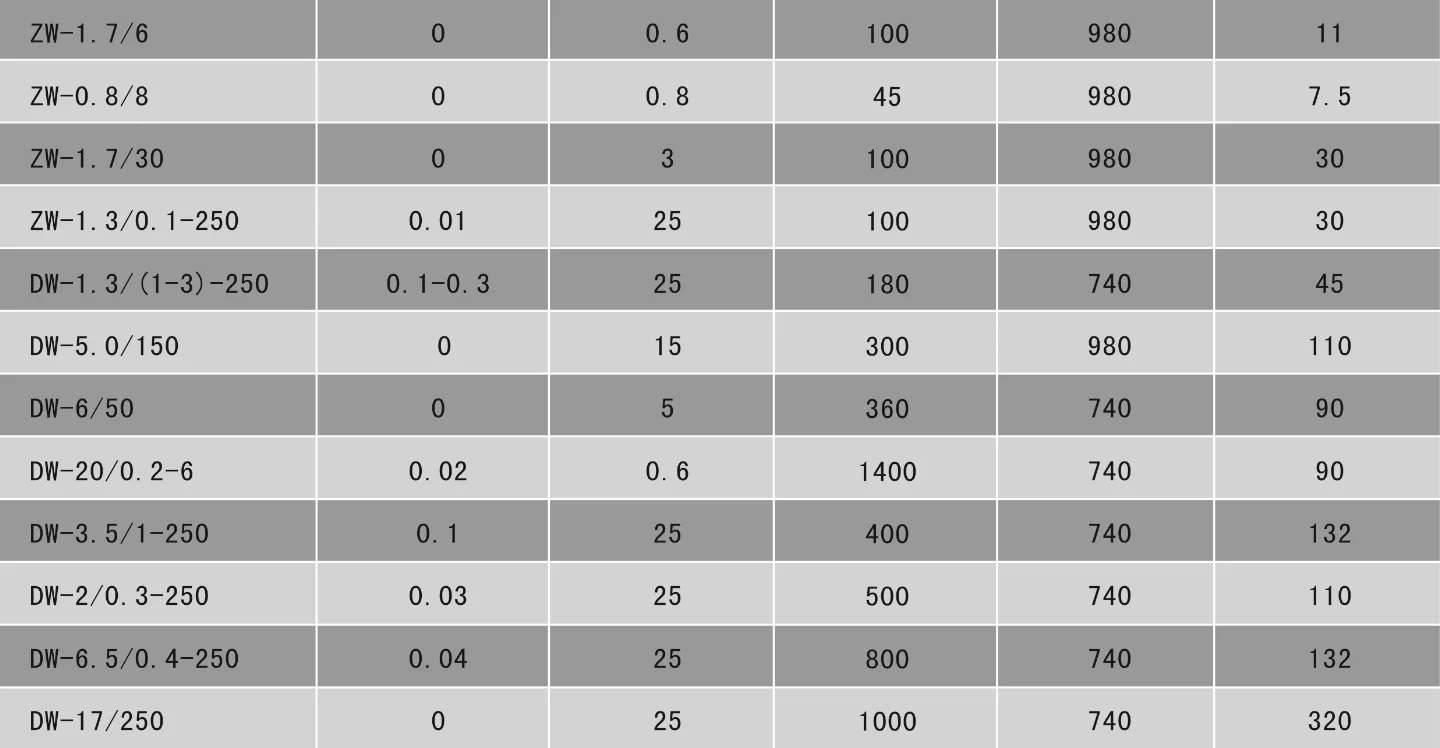

Biogas compressor product specification
Model | Inlet pressure (MPa) | Discharge pressure (MPa) | Displacement (Nm3/h) | RMP | Motor power (Kw) |
