LCD name | 13.3 inch Lcd module |
Size | 13.3 |
Resolution | 1366 * 768 |
Pixel pitch | 0.2148(H) * 0.2148(V) |
Display colors | 262K |
Luminance | 220 |
Contrast Ratio | 500:1 |
Active Area | 293.4168 * 164.9664 mm |
Outline Dimension | 314.1 * 188.75 * 3.6 mm |
Display mode | Normally white |
Viewing Angle | 45/45/20/45 ° |
Interface | LVDS,40pins |
The kind of signal | LVDS |
operation Temperature | 0 - +50 ℃ |
Storage Temperature | -20 - +60 ℃ |
Touch panel | support customization |
Warranty | 1 year |

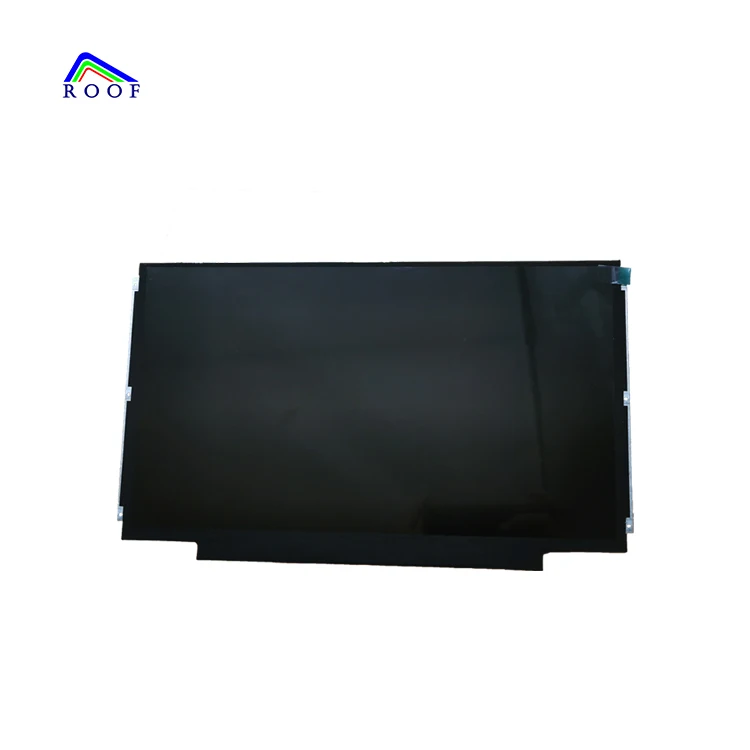

![]() | Product performance description N133BGE-L41 is a 13.3'' (13.3'' diagonal) TFT Liquid Display module with LED Backlight unit and 40 pins LVDS interface. This module supports 1366*768 HD mode and can display 262144 colors. The optimum viewing angle is at 6 o'clock direction. |



![]() | ![]() ![]() |

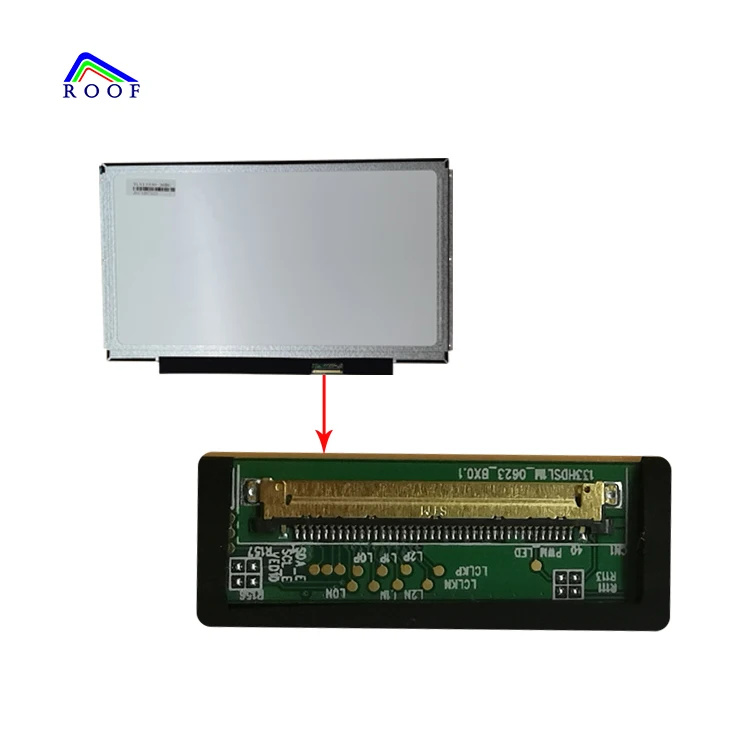

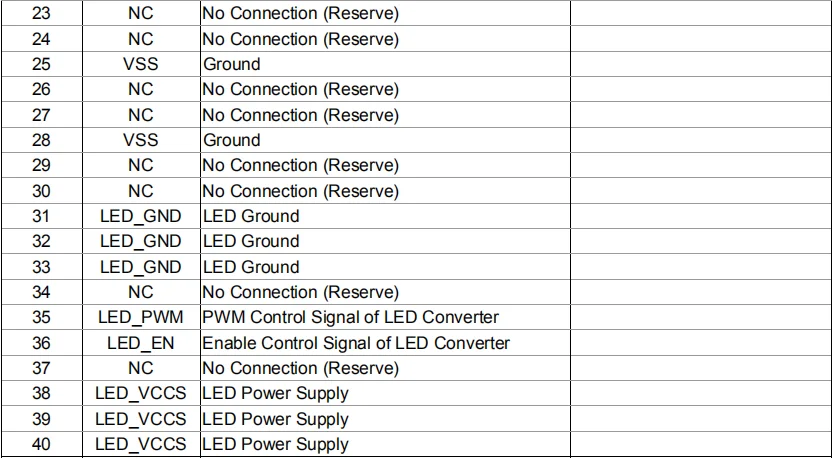

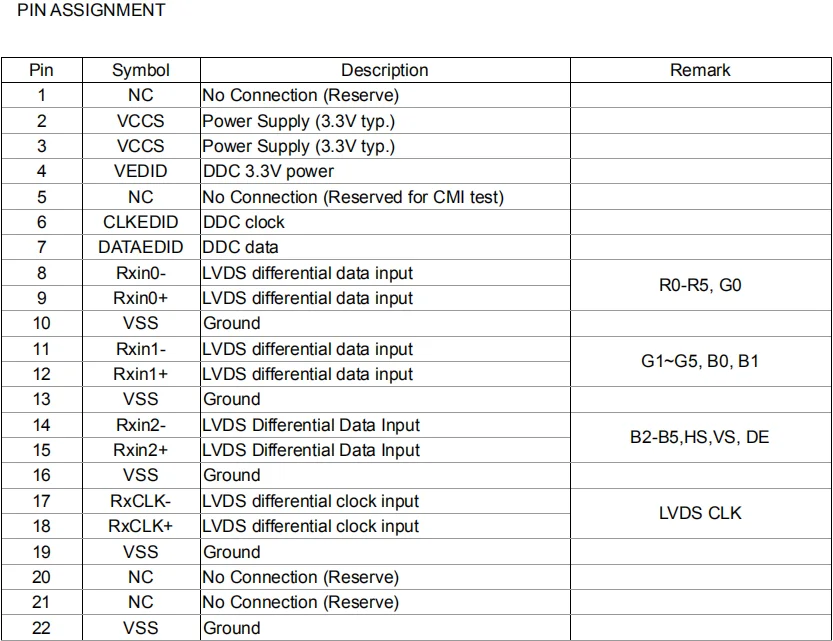

| 40pins LVDS Interface |


Product Uses

In order to ensure that the product will not be damaged during transportation, we have the default packaging and transportation method. Please contact us for details. If you have special requirements, please contact us.
New products from manufacturers at wholesale prices
