EP1000/4 24mpa belt conveyor for crusher
- Category: Rubber Belts >>>
- Supplier: Hebei Ssangyong Rubber Co. Ltd.
Share on (62327212828):
Product Overview
Description
ep150 15mpa sawdust belt conveyor for crusher
General specification: | Main products: |
|

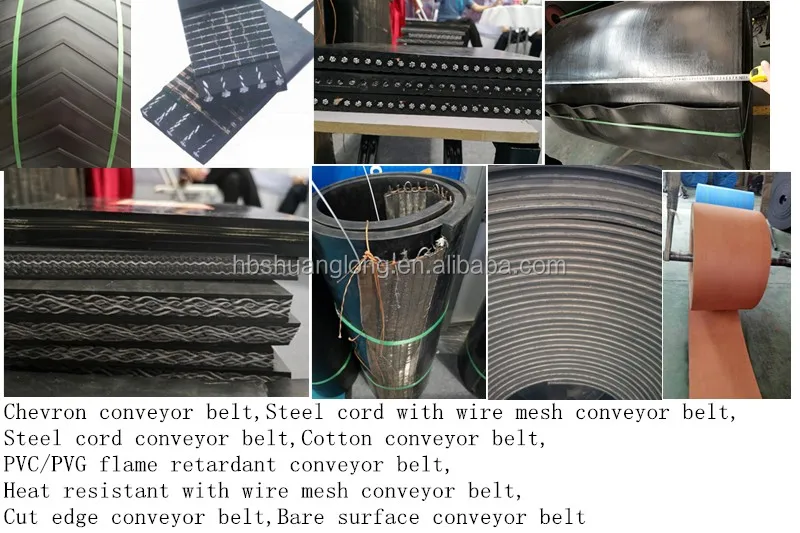

· EP/NN/CC56 conveyor belt · Heat resistant conveyor belt · Cold resistant conveyor belt · Oil resistant conveyor belt · Chemical resistant conveyor belt · Chevron conveyor belt · PVC/PVG Flame retardant conveyor belt · Endless conveyor belt |
Cotton Conveyor Belt >>
Cotton Conveyor Belt with lower elongation, good mechanical clamping fastening and good adhesive property to rubber. Has excellent use performance as the belt is much thinner and lighter, and the impact resistance is greatly improved, can save energy and reduce wastes, can create favorable economic benefits for users, and is suitable for material conveyance in medium and short distance and moderate load.
EP Conveyor Belt >>
EP conveyor belt have characteristics of good water resistance, unchanged wet strength, no mildew, and lower safety factor as the initial modulus of polyester is high, and is suitable for conveying materials in medium and long distance and high transmission capacity at a high speed.
NN Conveyor Belt >>
Nylon conveyor belt has the advantages of high tenacity, highly stretchable, shock resistant, light weight, good throughability etc. it is suitable for transportation in medium or long distance under conditions of big impact and heavy abrasion.
Belt type | Fabric type | Single Fabric strength (N/mm) | Rubber cover thickness (mm) | Total thickness (mm) | Ply | Belt width (mm) | Belt length (m)/roll | |
Top rubber | Bottom rubber | |||||||
Cotton Canvas (CC) conveyor belt | CC-56 | 56 | 3.0-6.0 | 1.5-6.0 | 3-30 | 3-12 | 300-2800 | 200m |
Nylon (NN) conveyor belt | NN100 | 100 | ||||||
NN150 | 150 | |||||||
NN200 | 200 | |||||||
NN250 | 250 | |||||||
NN300 | 300 | |||||||
NN400 | 400 | |||||||
NN500 | 500 | |||||||
NN600 | 600 | |||||||
Polyester (EP) conveyor belt | EP100 | 100 | ||||||
EP150 | 150 | |||||||
EP200 | 200 | |||||||
EP250 | 250 | |||||||
EP300 | 300 | |||||||
EP350 | 350 | |||||||
EP400 | 400 | |||||||
EP500 | 500 | |||||||
EP600 | 600 | |||||||
Rubber performance levels of conveyor belt:
Level Code | Tensile strength Mpa≥ | Elongation at break % ≥ | Wear mm3 ≤ |
D | 18 | 400 | 90 |
H | 25 | 450 | 120 |
L | 20 | 400 | 150 |
P | 14 | 350 | 200 |
Note:D-strong wear working conditions;H-strong draw crack working condition;L-general working conditions;P-oil resistant,heat resistant,acid and alkali resistant,cold resistant and general flame resistant conveyor belt. | |||
Application:
Application:

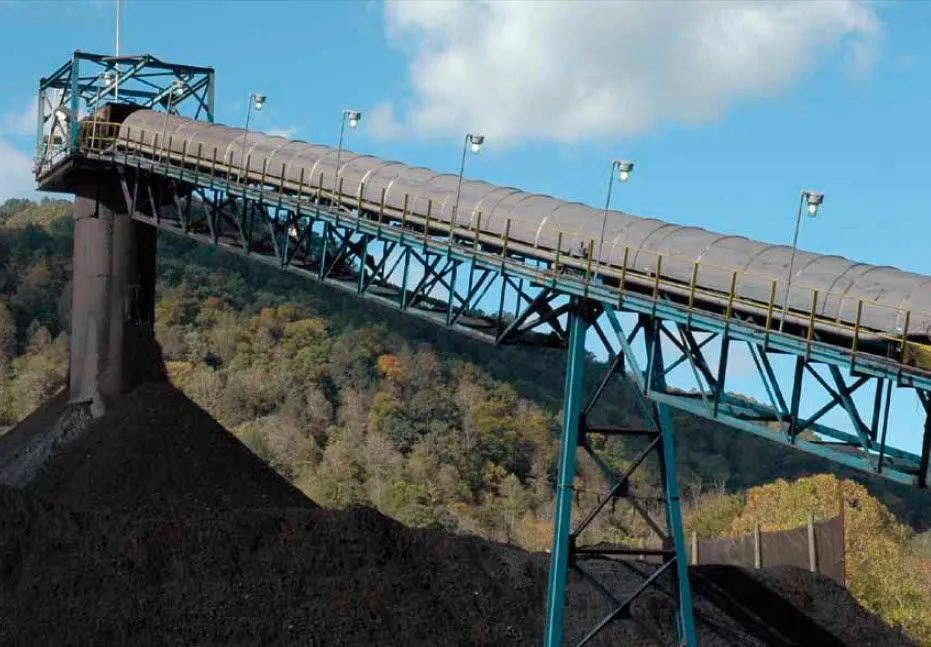

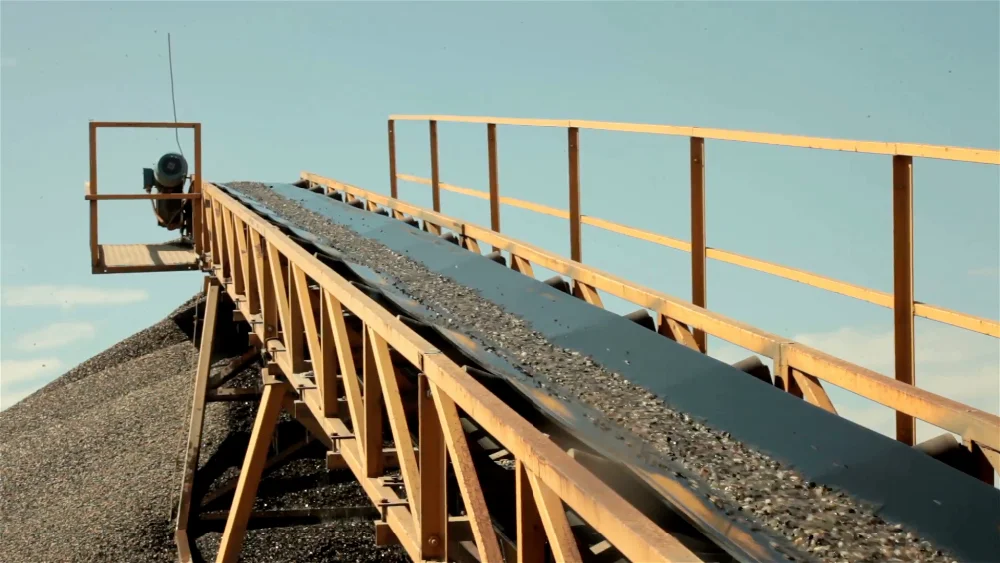

| EP/NN/CC56 conveyor belt | It is suitable for conveying informal temperature various non-corrosive pointless lumps, granular or powders such as coal, coke, gravel, cereal, sand and cement in bulk or packaged. |
| Heat resistant conveyor belt | used for heating stations,cement plants,power stations,garbage incineration plants,chemical industry,steel works,metal foundries,metal processing industry |
| Cold resistant conveyor belt | Suitable for conveying materials outdoors in freezing area, cold storage etc. |
| Oil resistant conveyor belt | suitable for transferring oily matedals or some kind of oily condition(excluding fuel and solvent oil). |
| Chemical resistant conveyor belt | suitable for the acid and alkali contact condition, eg phosphoric fertilizer, abstracts salt from sea water |
| Chevron conveyor belt | suitable for conveying loose, bulky or bagged materials on inclined surface at angles of less than 40 degrees. |
| PVC/PVG Flame retardant conveyor belt | applicable for the underground well haulage of coal mines, and also the conveyance of materials for metallurgical and chemical industries. |
About Ssangyong Rubber:
ABOUT PACKAGE:
general 200meter per roll,the diameter of roll control within 2.2meter .
Package is waterproof all side,rubber core inside,steel pallet on bottom.
or by customer's request.
Leading time:about 30 days for one container.
