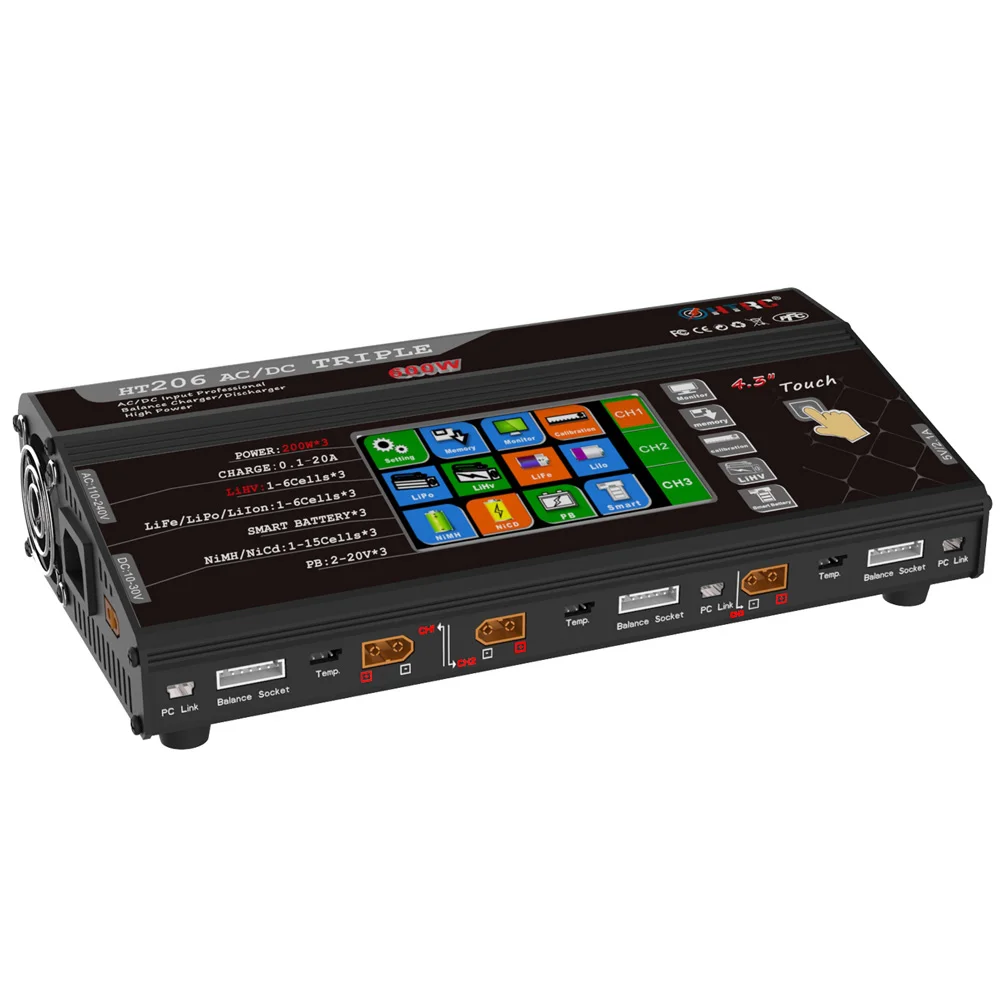

HTRC HT206 AC/DC TRI Professional RC Toy Lipo Battery Balance Charger 200W*3 20A*3 Triple Port for Lilon/LiPo/LiFe/LiHV Battery
- Category: >>>
- Supplier: Shenzhen Haitan Technology Co. Ltd.
Share on (62327289686):
Product Overview
Description
Product Description
HTRC HT206 AC/DC TRI Professional RC Toy Lipo Battery Balance Charger Discharger 200W*3 20A*3 Triple Port for Lilon/LiPo/LiFe/LiHV Battery
Setting: general settings such as Buzzer volume, Low input voltage, balance speed, Max charging power.
Memory: save up to 8 operation data.
Monitor: checking battey capacity ,voltage, Internal Resistance, balancer.
Calibration: calibrate battery cell voltage.
Features:
-AC/DC Dual Input.

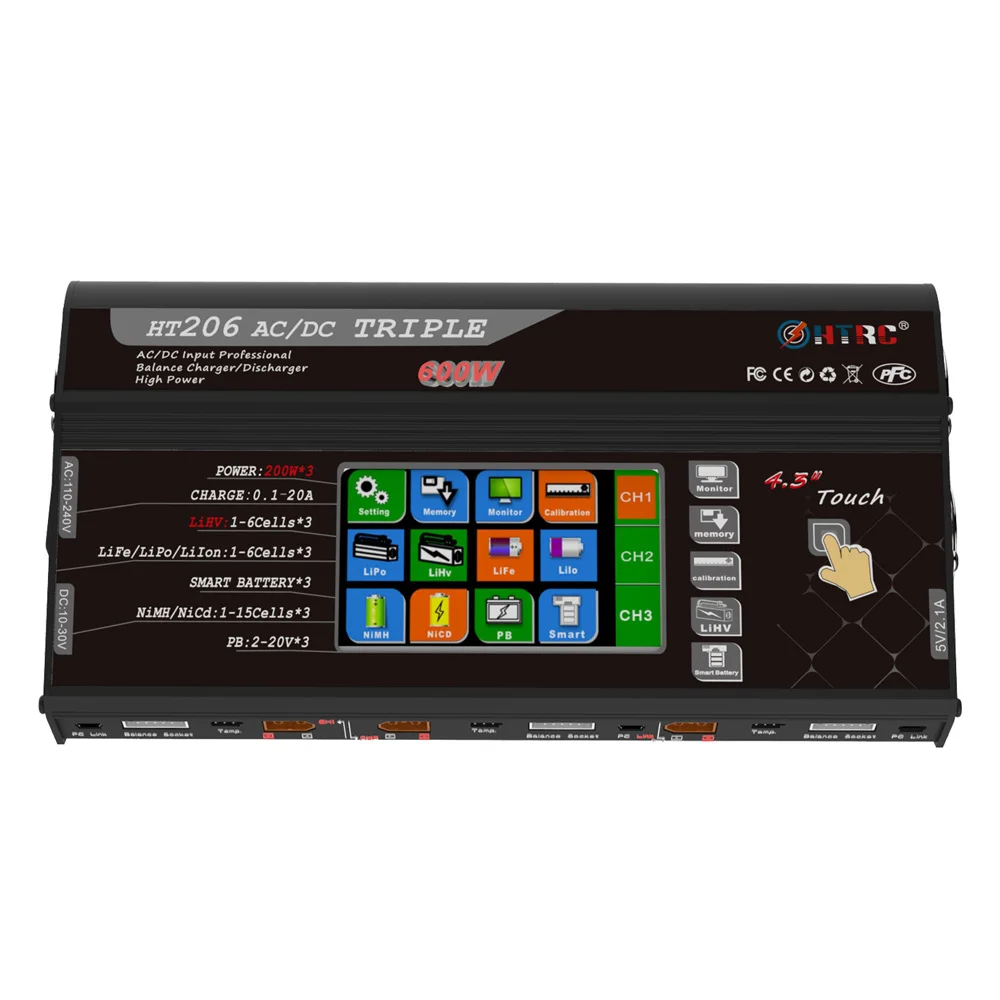

-4.3" Color LCD touch screen display for easy operation and convenient to use.

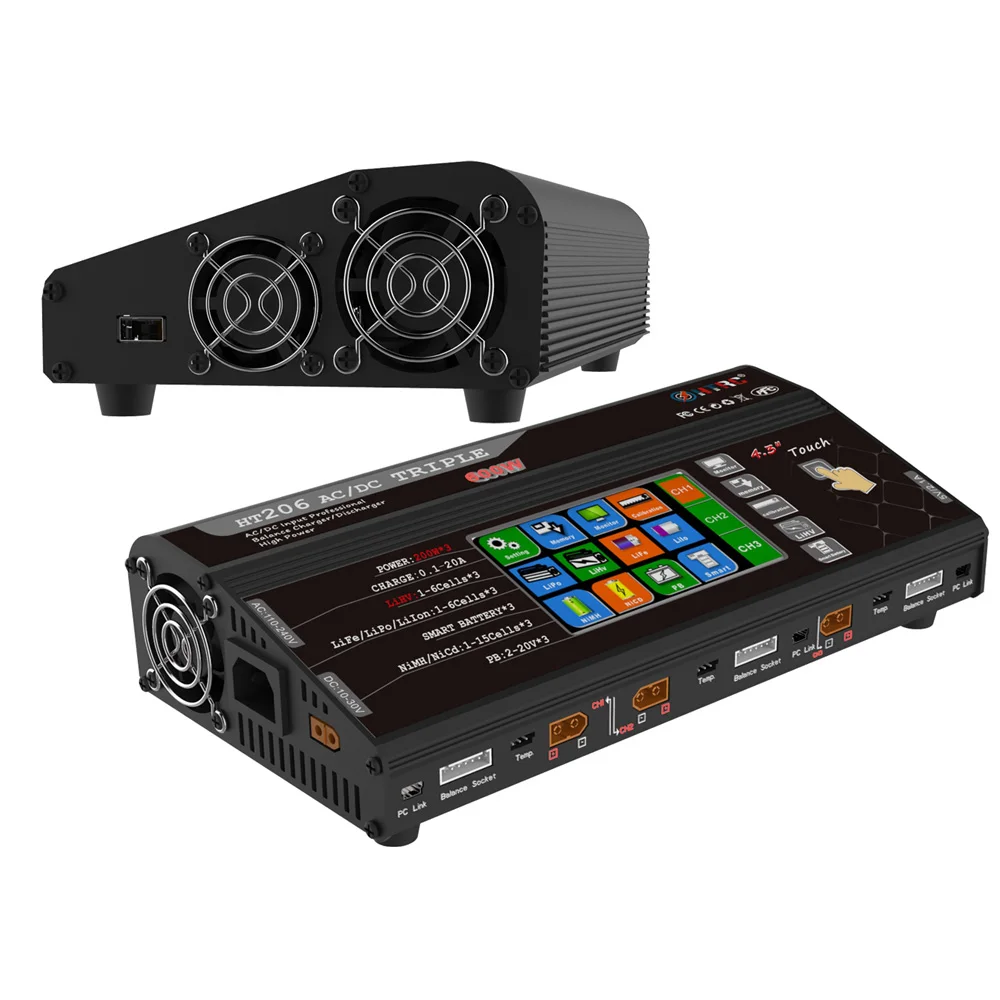

-Full Aluminium beautiful Appearance Design, Built in cool fan, Good Cooling System.
-With rubber pads, prevent sliding and the air can circulate.
-3 independent Port which can charge 3 different kinds of batteries simultaneously.
each port max charging power up to 200W, max charging current up to 20A.
-Automatic identification of Li-Po batteries cells.
-Support LIHV High Power Battery and Smart Battery.
-Battery management check battery capacity, voltage and balancer.
-Memory function save up to 8 operation data.
-5V 2.1A USB DC power supply output.
-Built-in PFC can improve the energy consumption from mainpower grid evidently,
-Soft switching is also introduced can reduce radiation interference
-Support firmware upgrades
Specifications:
Input Voltage:AC100-240V/DC10-30V
Charger Circuit Power:200W*3
Discharger Circuit Power:25W*3
Charger current range:0.1-20A*3
Discharge Current Range: 0.1-5A*3
Current Drian for Balancing Port:500mA/cell
Digital DC power:5-27V ,0.1-20A
Lilon/LiPo/LiFe/LiHV:1-6cell*3
Nicd/NiMh:1-15cell*3
PB: 2-20V*3
Smart battery: I/II/III*3
Demension:L27.35*W14.3*H7cm
Net Weight:1.12Kg
Gross Weight:2.38kg

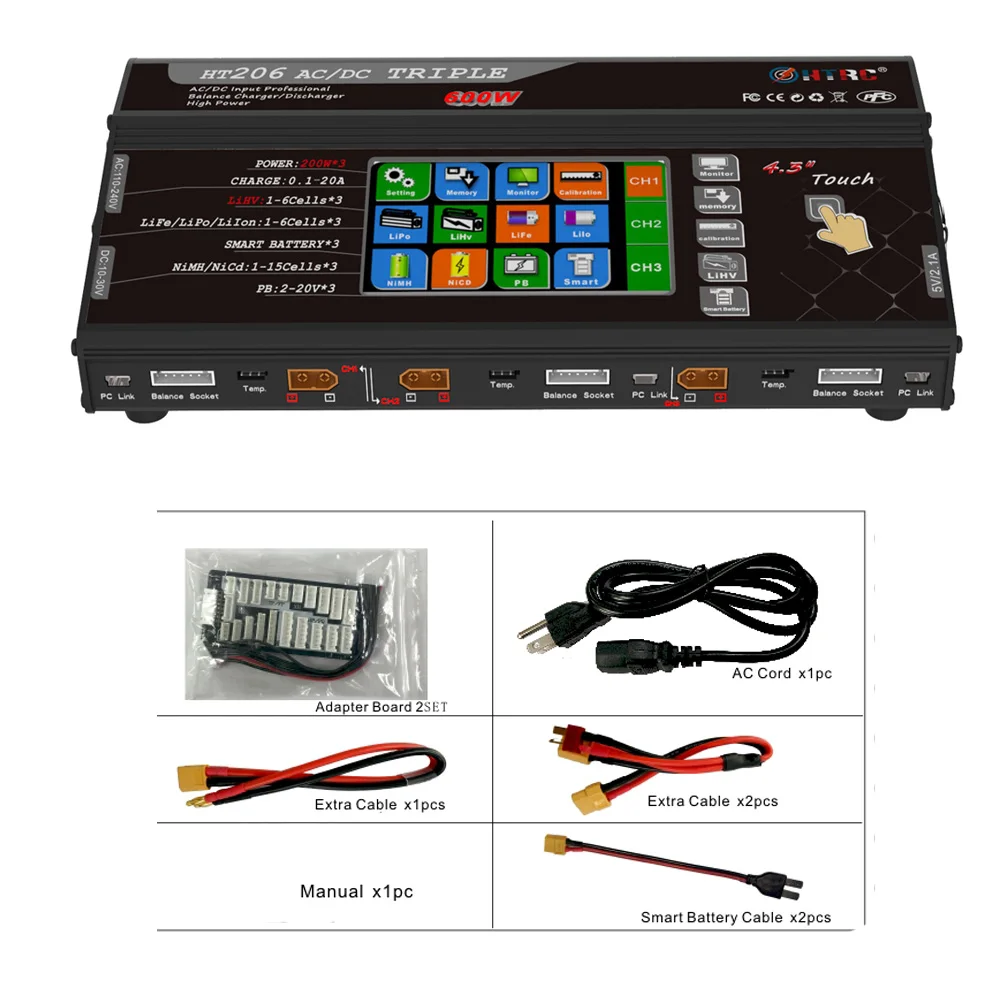

Package list:
1 x HT206 TRI Charger
1 x DC Cord
3 x Charging cable
3 x Charging Board with pin cord
1 x AC Cord (US EU UK AU Optional)
Please leave a message which standard you want!
Tips: Built-in AC high power charger naturally run hot,although with built-in fan, you need pay attention to the temperature,if prolonged use,especially in discharge modle,the internal AC adapter in a risk of damage.
if serious heat, it is better to place an external fan for heat radiating to prevent from damage. or use DC input to avoid problem.
if serious heat, it is better to place an external fan for heat radiating to prevent from damage. or use DC input to avoid problem.
