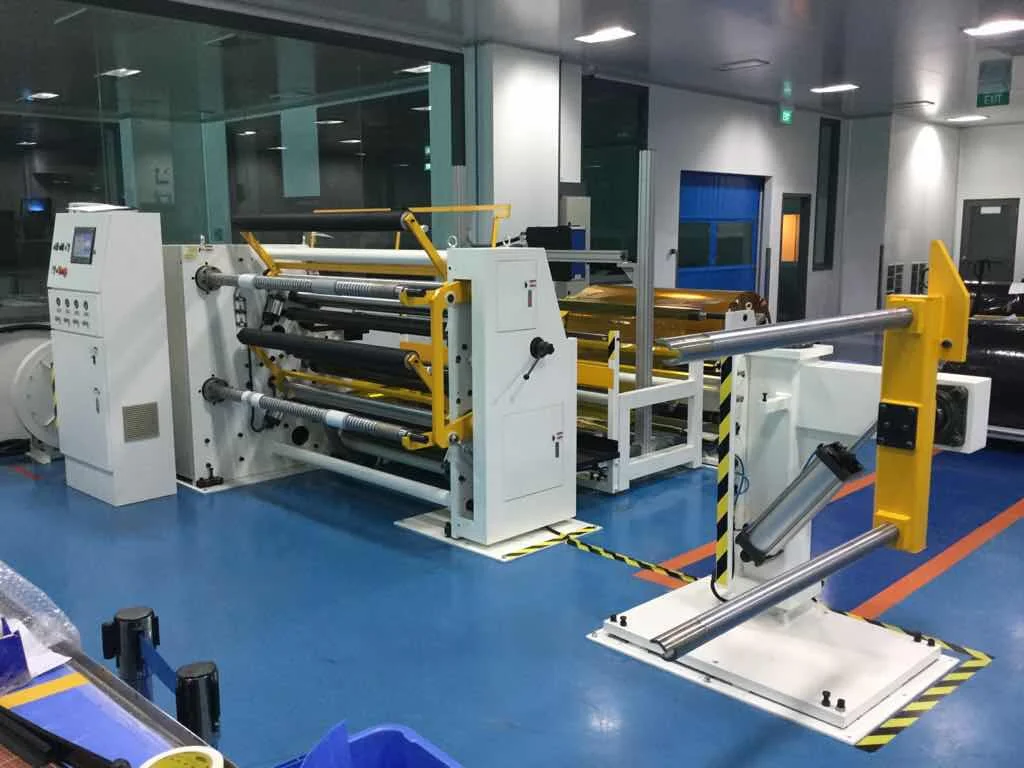

This slitter is used to provide customized solutions for PVC rigid sheet, PVC coated film, PVC lamination with PE film .
Its structure is very convenient and expandable, with certain versatility and good material adaptability.
It offers slitting and rewinding professional solutions for a wide range of films.
This model is advanced in design, high speed, high efficiency, flexible and reliable. It is an international advanced level intelligent slitting and rewinding processing equipment.
Machine Specification
The following parameter is only for reference. The exact specification can be designed according to buyer's request
BASIC PARAMETERS
Slitting Material
PVC rigid sheet, PVC coated film, PVC lamination with PE film
Material Thickness
200-400um
Material Tension
80N/M-500N/M
Machanical Speed
MAX 250m/min
Slitting Way
Shear cut
Unwinding Way
Unwinding arm adjustable width, screw clip
Unwinding Width
600mm-1500mm
Unwinding Diameter
Max.900mm
Unwinding Core Size
3” &6” paper core
Edge guide Way
Edge guide system (Germany E+L),Ultrasonic edge（EPC）
Rewinding Way
Central shaft rewinding
Rewinding Width
80mm-1100mm
Rewinding Diameter
600mm
Rewinding Core Size
3” paper core, 3” plastic core (3” core ID 76.2mm+0.4 -0.2)
Rewinding roll quality(if any)
according to the customer
unloading Way

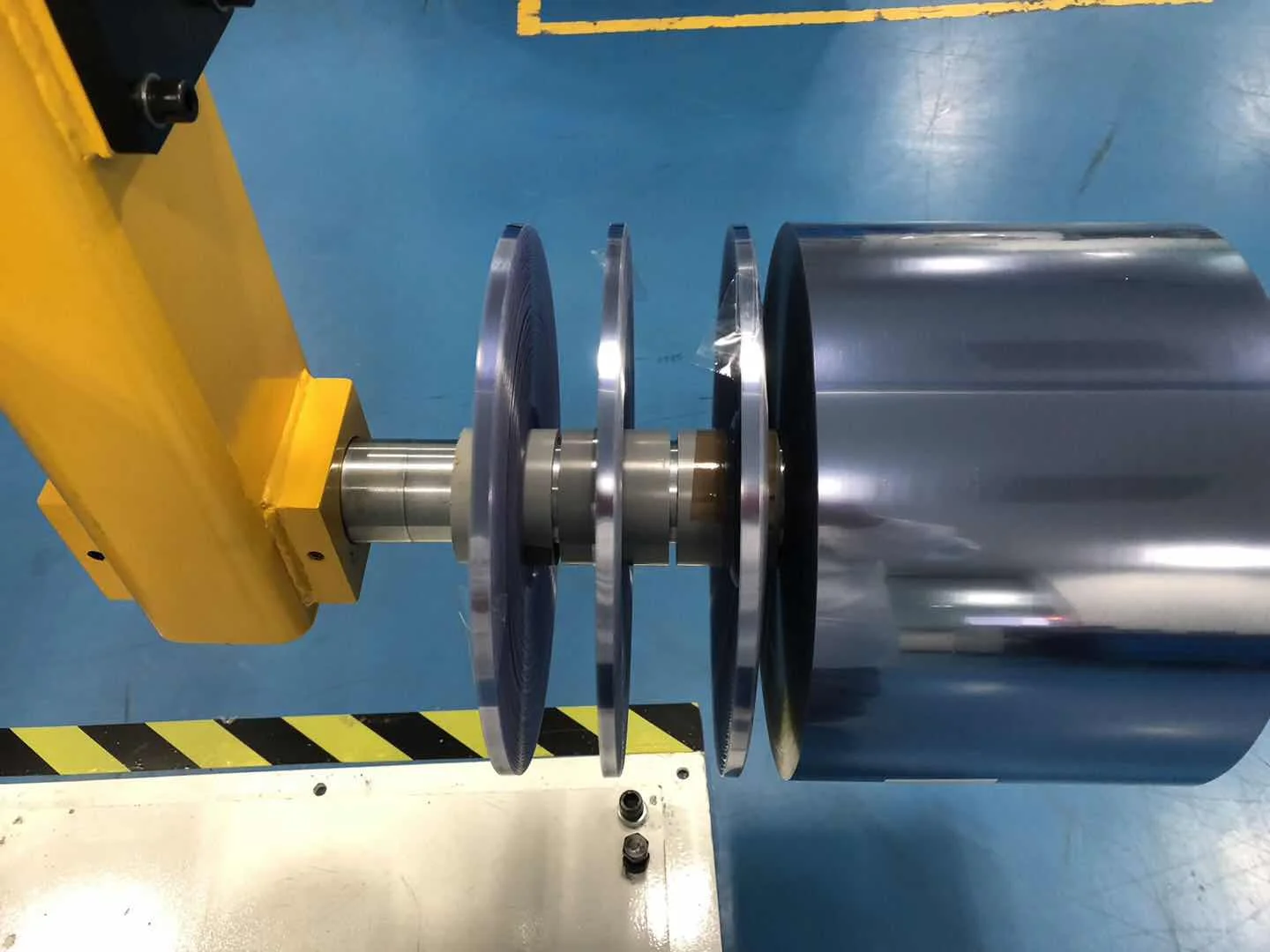

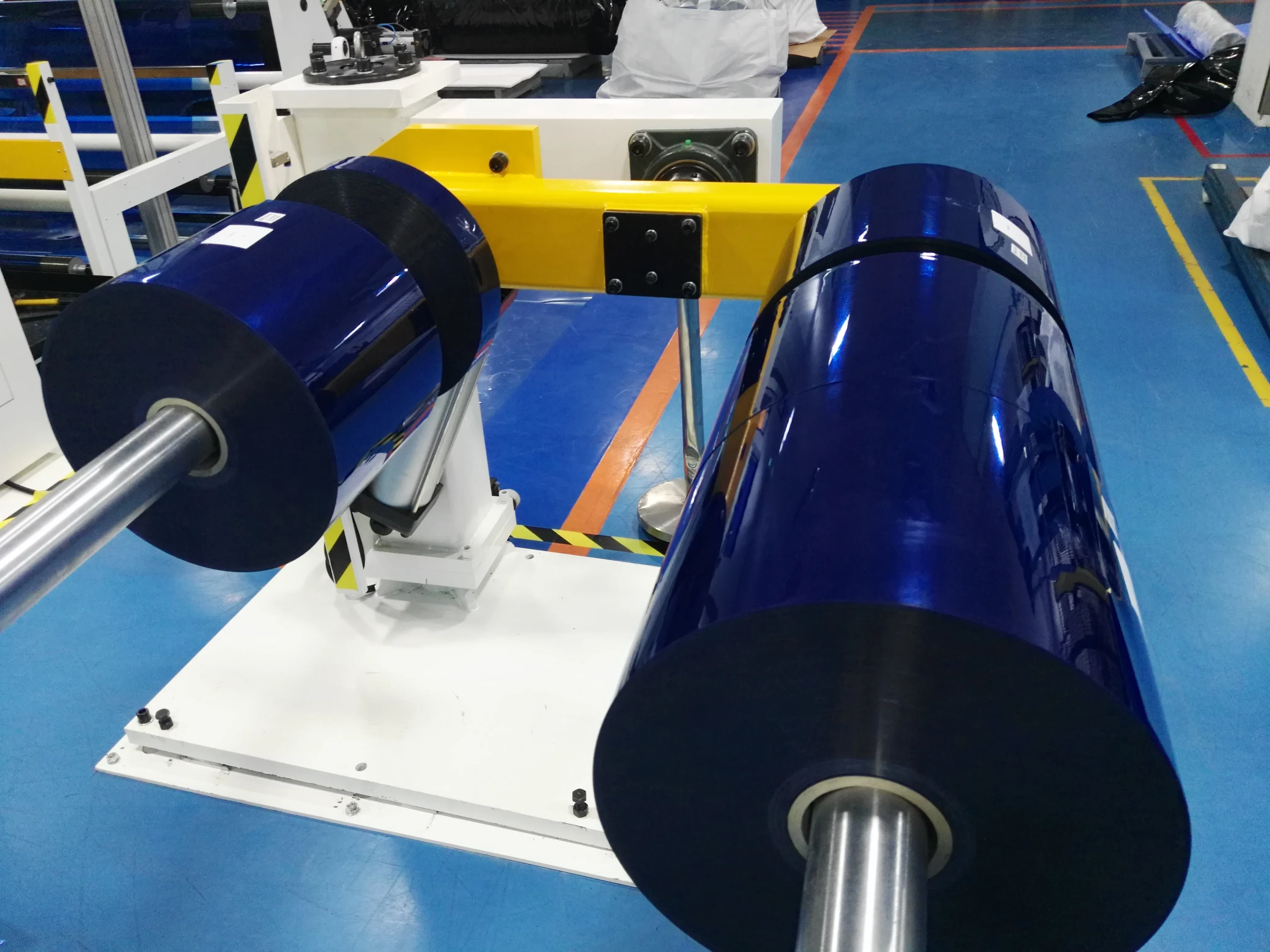

Stationary, storage roll unwinding
Edge Trim Way
vacuum suction system
Equipment Power
Around 20KW
Equipment Size
Around Length 3000mm×Width 3500 mm ×Height 1700mm
Control System
Japan Mitsubishi

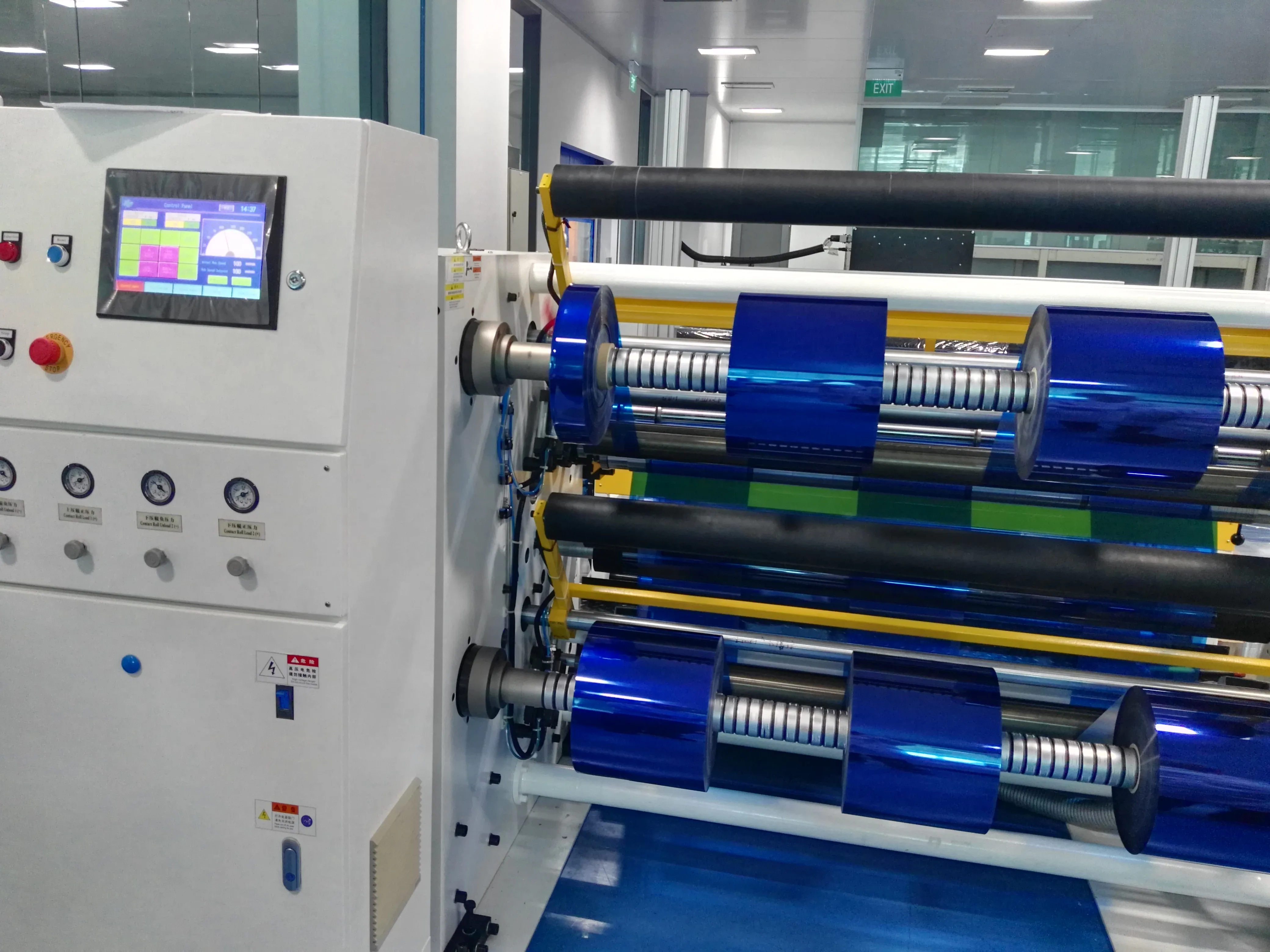

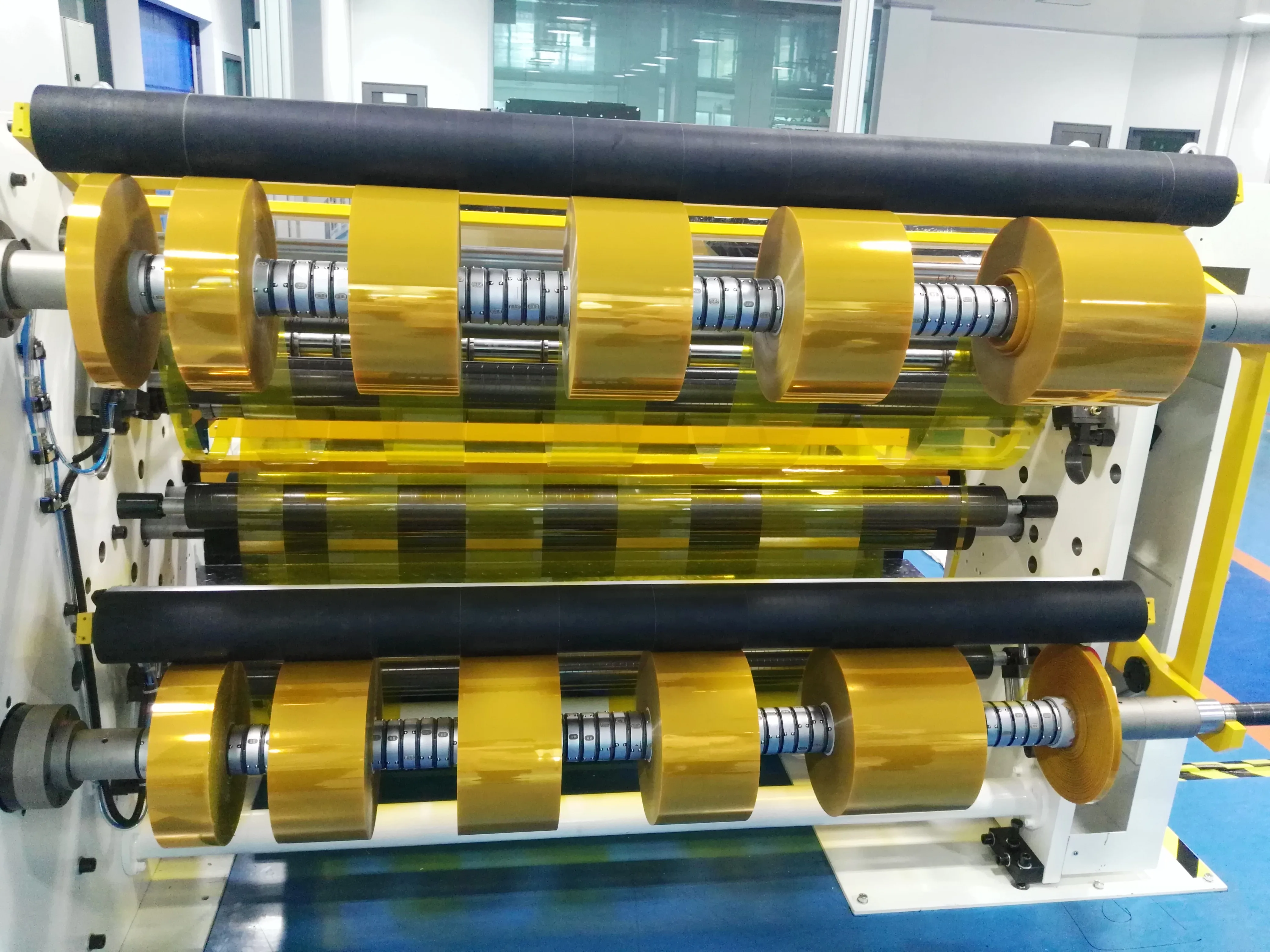

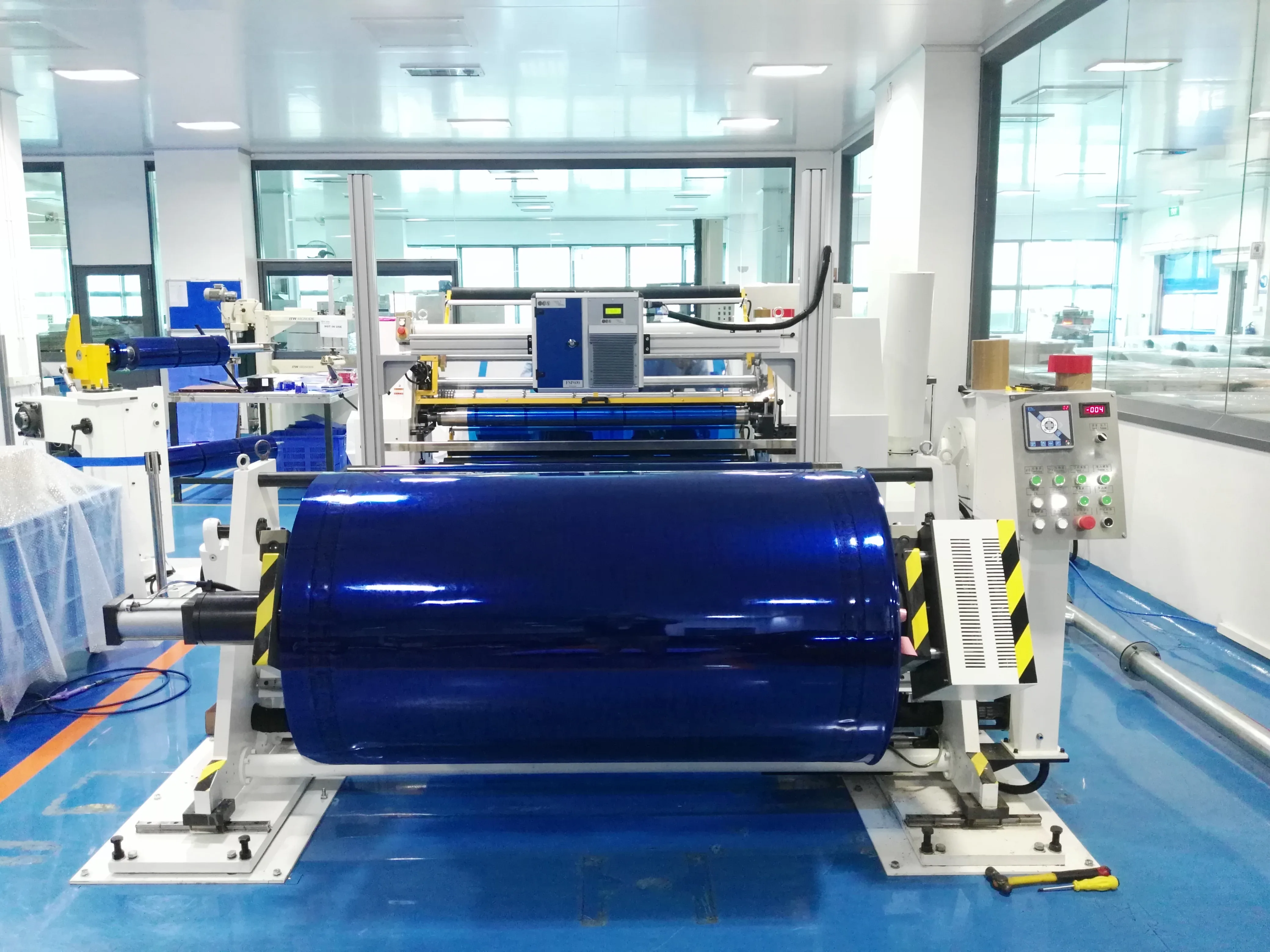

Detail Images
Equipment Main Feature
1、Intelligent control mode, one button works.
2、Advanced structure, good adaptability, High precision of parts processing and assembly

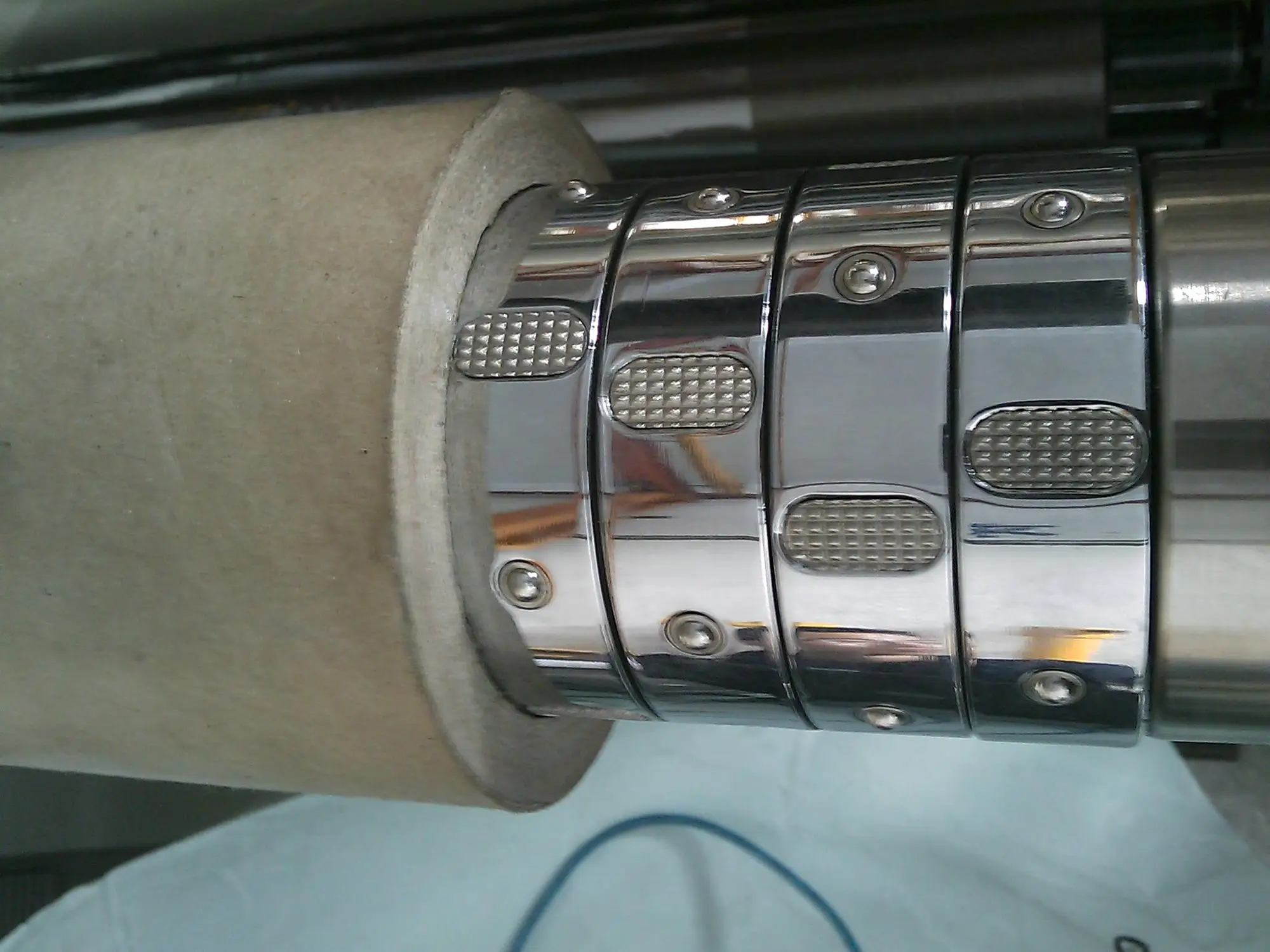

3、High-precision friction shaft effectively controls the tension of each roll and ensures the winding quality
4、Provide the perfect solution with competitive price
Acceptance index
1、250 m/min (qualified film roll, suitable winding width)
2、Uniformity of slitting end face（Qualified material）: ±0.5mm。

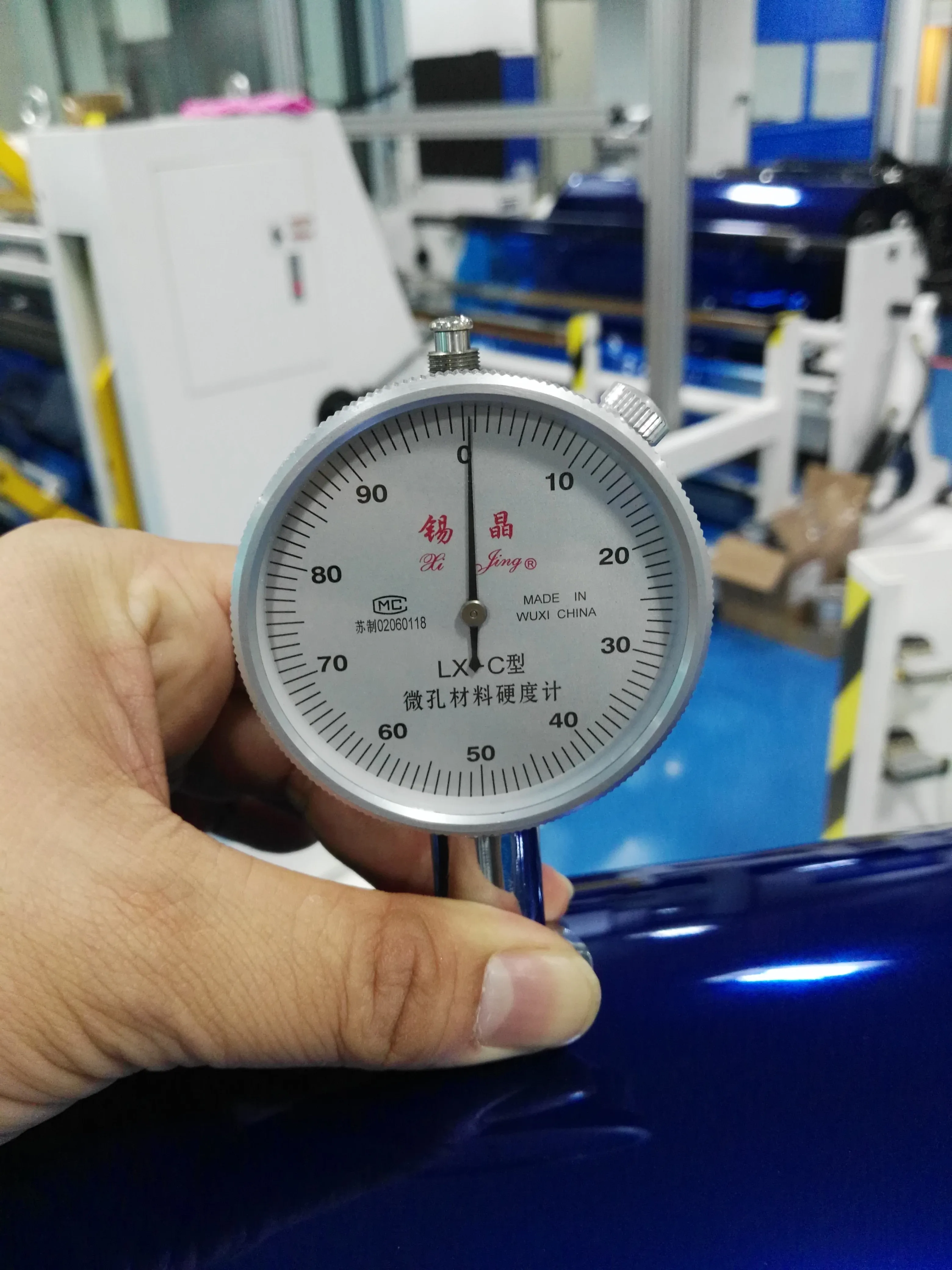

3、The finished product has a uniform hardness and no scratch on the film surface.
Special instructions of Equipment

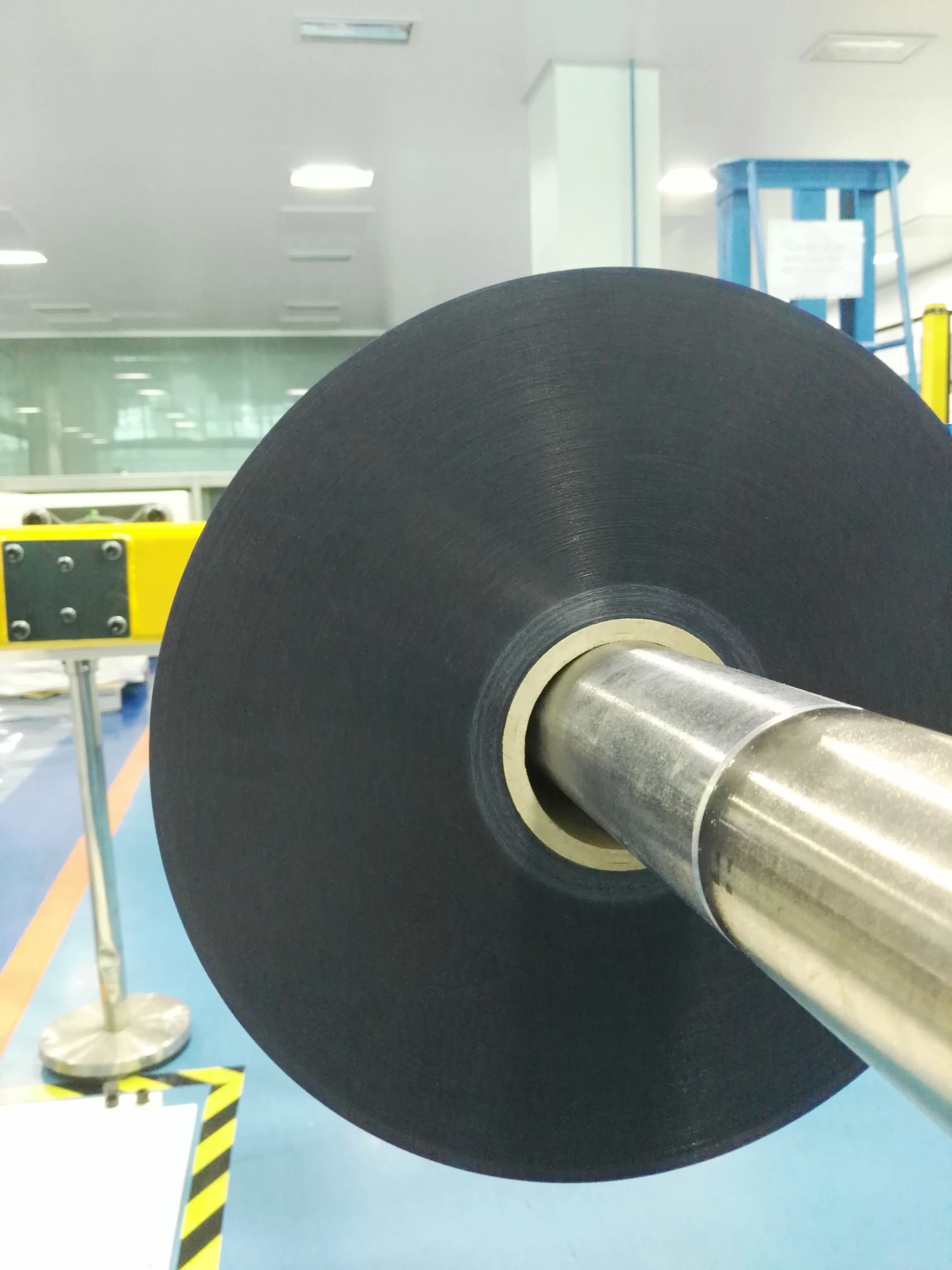

1、Rewinding end face neat.
2, The film surface is smooth and flat
3、No wrinkles and scratches on the film roll surface
