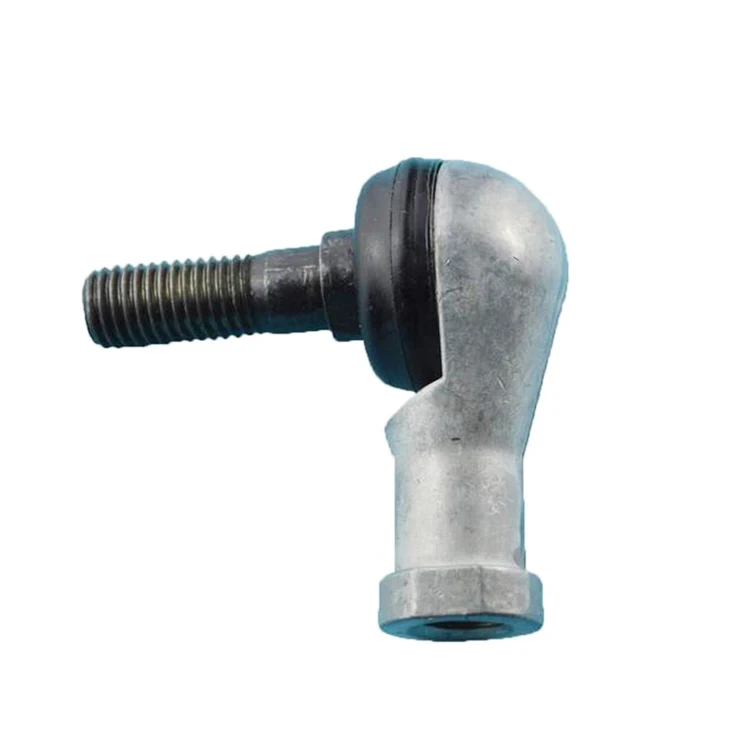

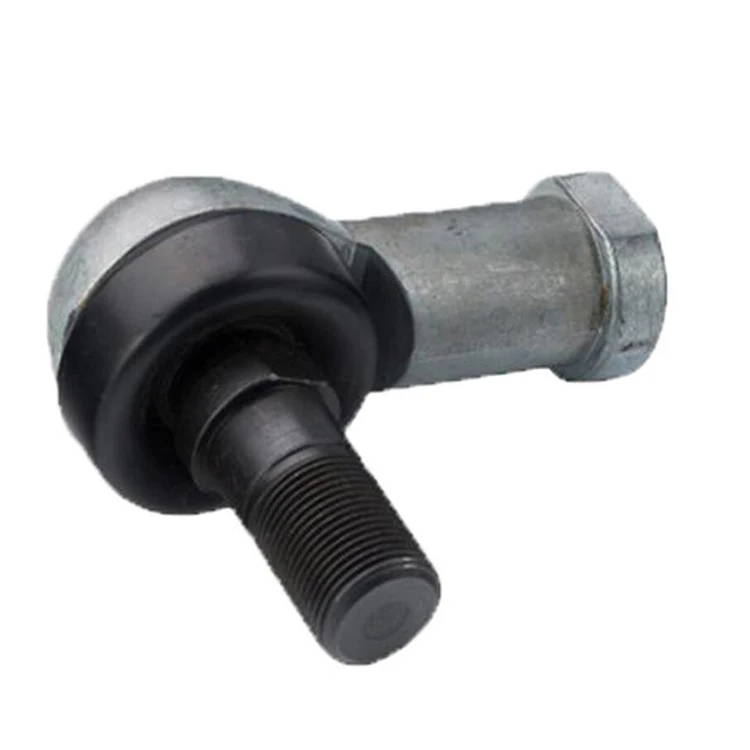

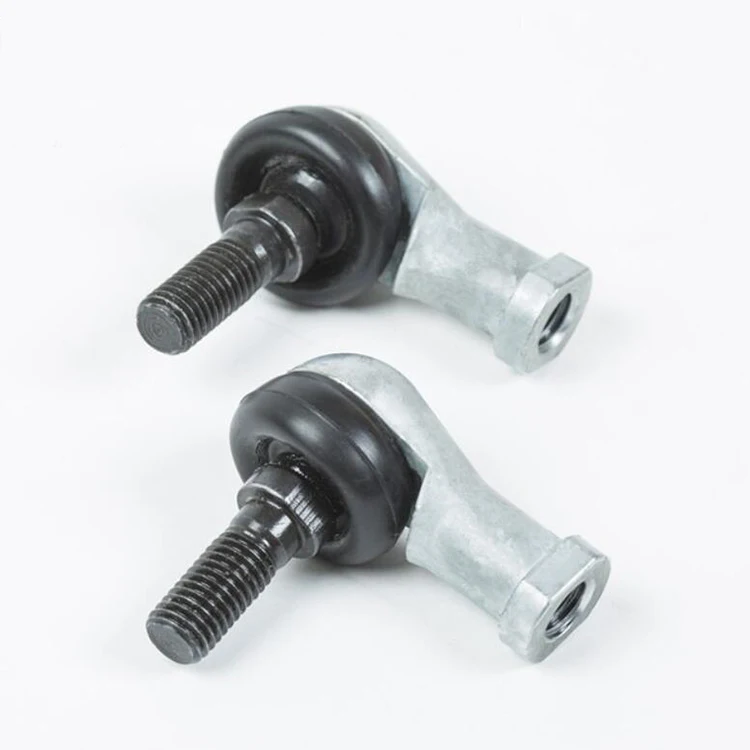

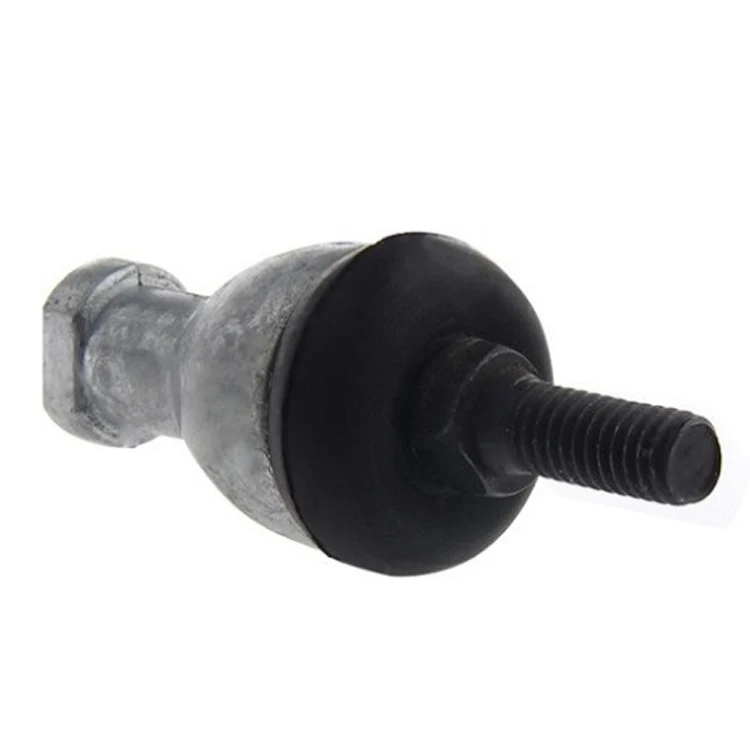

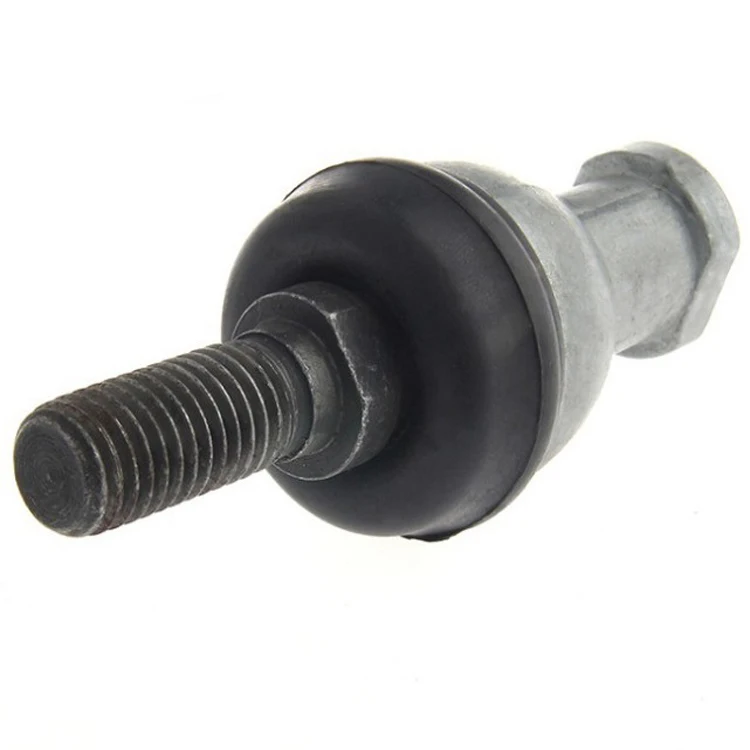

SQZ6 M6 6mm bearing ball joint rod end right hand tie rod end bearing SQZ8RS
- Category: >>>
- Supplier: Shenzhen YSD Technology Co. Ltd.
Share on (62327433632):
Product Overview
Description

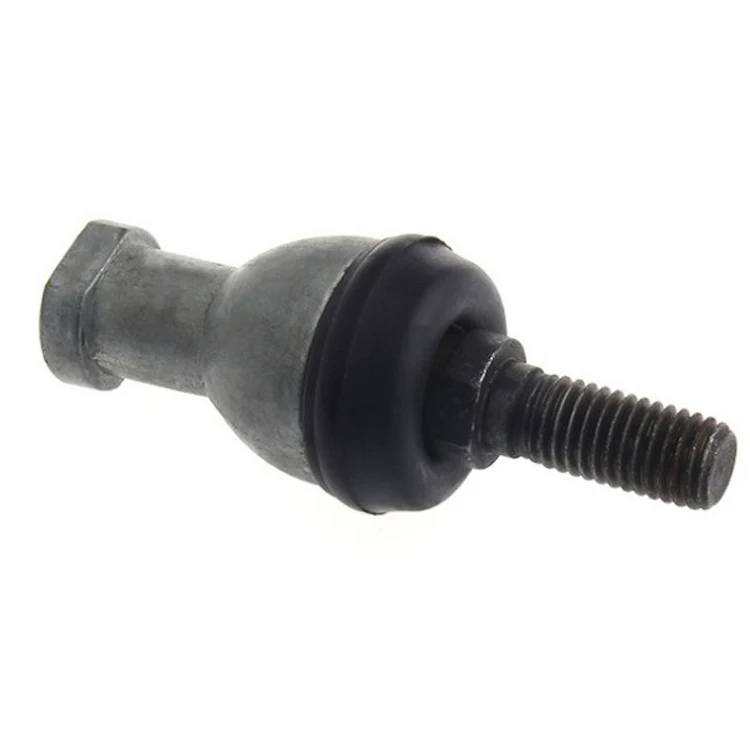

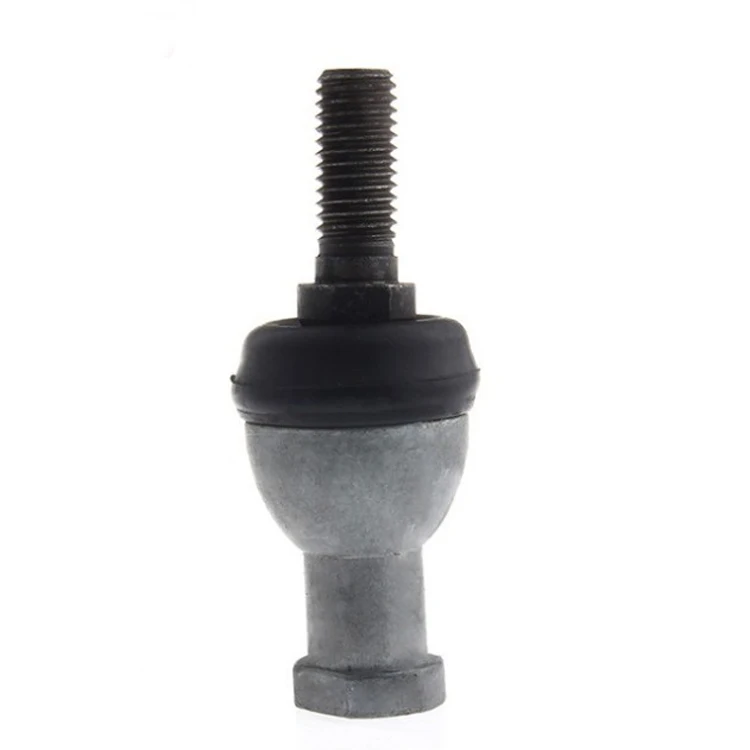

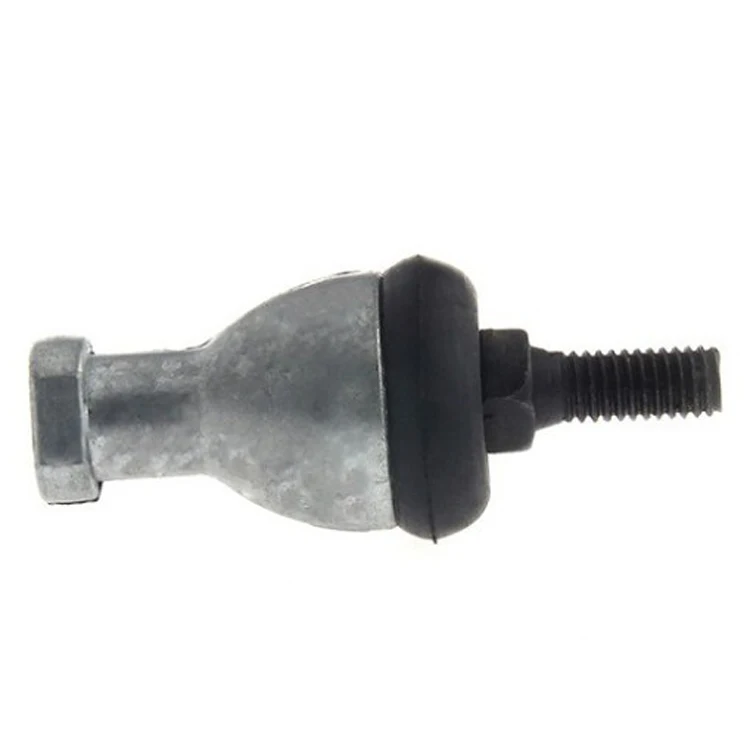

SQZ6 M6 6mm bearing ball joint rod end right hand tie rod end bearing SQZ6RS
Welcome your detail inquiry,i will quote you best price.
| Item | SQZ6 M6 6mm bearing ball joint rod end right hand tie rod end bearing SQZ6RS |
| Material | Chrome steel |
| Size | As per customers' requirment |
| Color | Any color or according to Pantone colors |
| Service | OEM or ODM |
| Samples | available |
| Production basis | Product drawing, 3D files or exsiting samples |
| Process Technic | Hot processing molding, injection molding, extrusion |
| Tolerance | ±0.05mm |
| Application | Automotive,Mechanical equipment,Construction,Home application,Aviation,Office facilities |
| Shipping & Payment | |
| Packaging | plastic bag +carton+pallet industry packing |
| Shipping Method | Sea, Air, DHL, TNT, Fedex, UPS, etc. |
| Payment Terms | Trade assurance, T/T, L/C, Western Union |
Features
• Housing: zinc base alloy
• Stud : carbon steel and black oxidized
• Sliding contact surface : alloy/steel
Dimensions
• Thread: M5x0.8
• Load Ratings: 2.2KN
• Weight: 0.026kg
• Total Length of Housing : 35mm
• Total Length of Stud : 29mm
• Maximum Angular Misalignment: 25 Degree
• Center of Ball to Bottom of Housing : 27mm
• Center of Ball to Bottom of Stud : 21mm

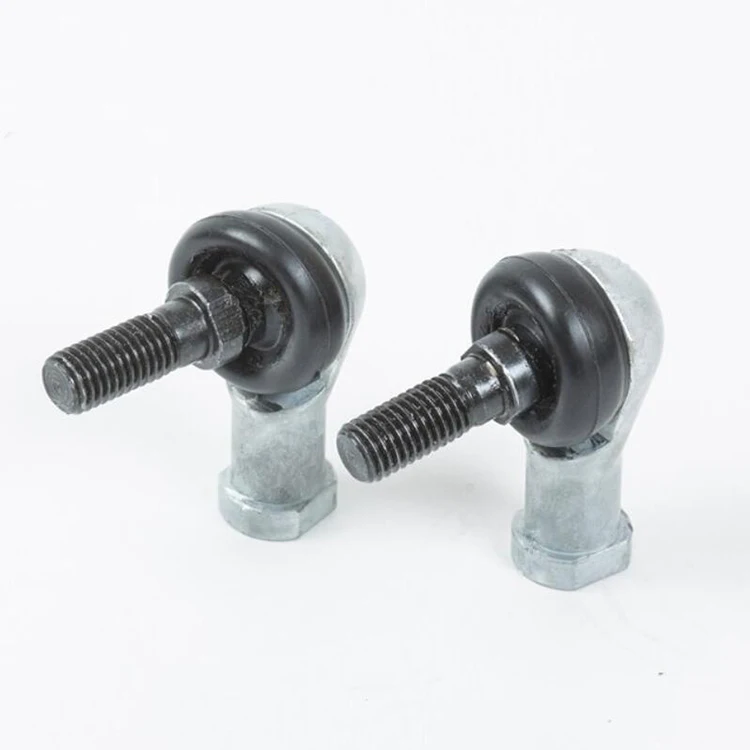

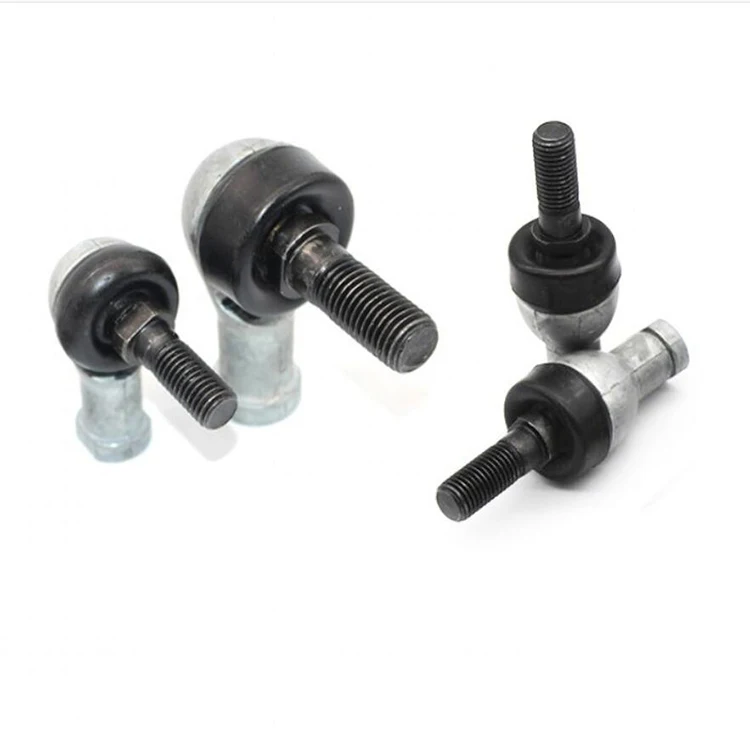

SQ..RS series angle joint are made of zinc base alloy and carbon steel was black oxidized.
Features • Sliding contact surface: Alloy/Steel • Housing: zinc base alloy • Stud: carbon steel,black oxidized
|
| Part No. | Dimensions mm | Load ratings | Weight
| ||||||||||||
| Right hand | Left hand | d | d1 | d2 | d3 | l3 | S1 | l | L | L1 | D2 | S2 | a ≈ | KN | kg |
| SQ 5 RS | SQZL 5 RS | 5 | M5x0.8 | 9 | 19 | 21 | 7 | 29 | 35 | 27 | 11 | 9 | 25 | 2.2 | 0.026 |
| SQ 6 RS | SQZL 6 RS | 6 | M6x1.0 | 10 | 20 | 26 | 8 | 35.5 | 40 | 30 | 13 | 11 | 25 | 3.5 | 0.039 |
| SQ 8 RS | SQZL 8 RS | 8 | M8x1.25 | 12 | 24 | 31 | 10 | 42.5 | 48 | 36 | 16 | 14 | 25 | 6.6 | 0.068 |
| SQ 10 RS | SQZL 10 RS | 10 | M10x1.5 | 14 | 30 | 43 | 11 | 56.5 | 57 | 43 | 19 | 17 | 25 | 10 | 0.112 |
| SQ 10-1 RS | SQZL 10-1 RS | 10 | M10x1.25 | 14 | 30 | 37 | 11 | 50.5 | 57 | 43 | 19 | 17 | 25 | 10 | 0.112 |
| SQ 12 RS | SQZL 12 RS | 12 | M12x1.75 | 17 | 32 | 49 | 15 | 64.5 | 66 | 50 | 22 | 19 | 25 | 16 | 0.164 |
| SQ 12-1 RS | SQZL 12-1 RS | 12 | M12x1.25 | 17 | 32 | 42 | 15 | 57.5 | 66 | 50 | 22 | 19 | 25 | 16 | 0.164 |
| SQ 14 RS | SQZL 14 RS | 14 | M14x2.0 | 19 | 38 | 62 | 17 | 79.5 | 75 | 57 | 25 | 22 | 25 | 19 | 0.254 |
| SQ 14-1 RS | SQZL 14-1 RS | 14 | M14x1.5 | 19 | 38 | 56 | 17 | 73.5 | 75 | 57 | 25 | 22 | 25 | 19 | 0.254 |
| SQ 16 RS | SQZL 16 RS | 16 | M16x2.0 | 22 | 44 | 66 | 19 | 85.5 | 84 | 64 | 27 | 22 | 20 | 26 | 0.336 |
| SQ 16-1 RS | SQZL 16-1 RS | 16 | M16x1.5 | 22 | 44 | 60 | 19 | 79.5 | 84 | 64 | 27 | 22 | 20 | 26 | 0.336 |
| SQ 18 RS | SQZL 18 RS | 18 | M18x1.5 | 23 | 45 | 68 | 20 | 90 | 93 | 71 | 31 | 27 | 20 | 33 | 0.464 |
| SQ 20 RS | SQZL 20 RS | 20 | M20x1.5 | 27 | 50 | 68 | 24 | 90 | 99 | 77 | 34 | 30 | 20 | 45 | 0.538 |
| SQZ 22 RS | SQZL 22 RS | 22 | M22x1.5 | 27 | 52 | 70 | 24 | 95 | 109 | 84 | 37 | 32 | 16 | 48 | 0.713 |
Q: Are you trading company or manufacturer ?
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
