AH3-2 AH3-1 AH3-3 DPDT 12VDC 24VDC AC/DC 112-240V Timer delay relay

Product Description

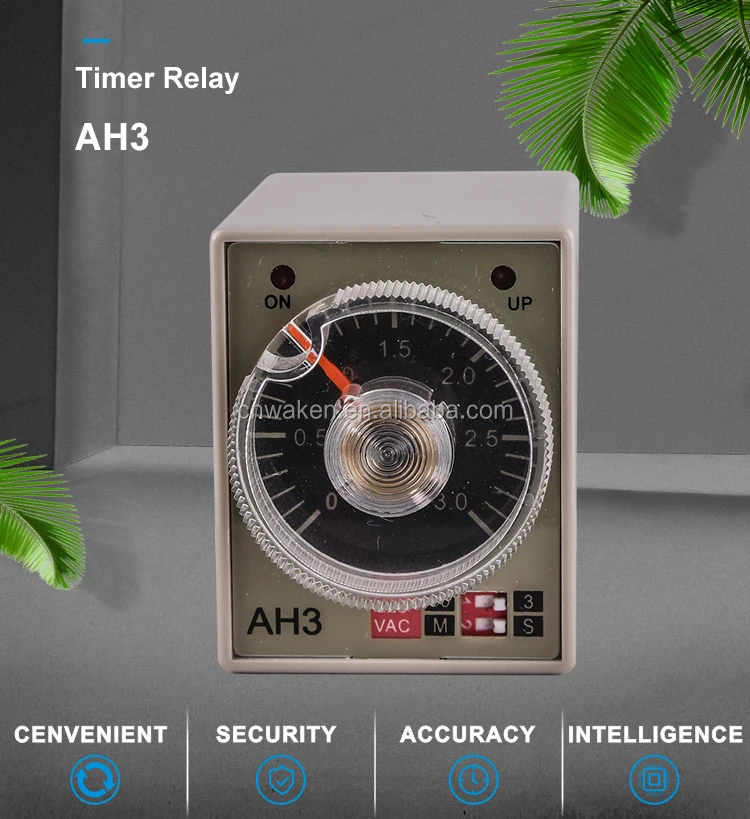

AH3 4.jpgAH3-2 3.jpg

Main Technical Parameter:

ModelCH3-*AH3-*
Technical ParameterMulti Range VariableVariableMulti Range Variable
Repeat Accuracy±1%<0.5%+20ms<0.5%+20ms
Contact RatingAC220V 10A AC220V 10A AC220V 10A
Rated voltageVAC: 12 24 110 220 380  VDC:12 24VAC: 12 24 110 220 380      VDC:12 24                      VAC/DC:12-240VAC: 12 24 110 220 380  VDC:12 24                    VAC/DC:12-240
Output ContactA:DPDT                           B:SPDTSPDTDPDTOne Inst.        One Delay outputA/B
TypeCH3-ABAH3-1AH3-2AH3-3AH3-A/B/C/D/E/AB-A/AB-B
Time Range0.01s-990hSEC:1,3,6,10,12,30,60    MIN:3,6,10,12,30,60        HR:3,6,10,12,30A:1S/10S/1M/10M           B:3S/30S/3M/30M           C:6S/60S/6M/60M           D:1M/10M/1H/10H           E:3M/30M/3H/30H

Dimensions:

AH3 1.jpg

Wiring Diagrams:

AH3 2.jpg

Application

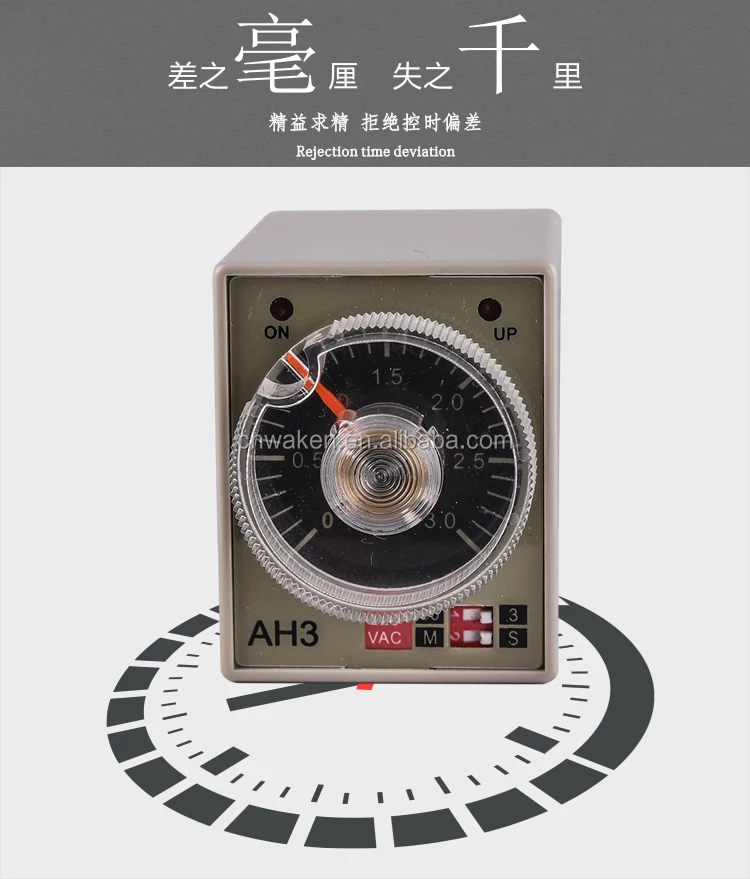

AH3 5.jpg
