Автоматический гибочный станок для алюминиевых профилей с надписью и логотипом
- Category: Channel Letter Bending Machine >>>
- Supplier: Wuhan Beisida Laser Co. Ltd.
Share on (62327568761):
Product Overview
Description
Product Description
sign box letter logo automatic aluminium profile bending machine
Bonnie(@)bstlaser.com ,Whatsapp: +86 18971376270
Brief Introduction:
The channel letter bender has auto slotting function(45 -135 degree), suitable for processing sheet metal, stainless steel, aluminum profile.
What's more this machine has double side slotting function . In addition, the vertical slotted design extends machine life time and reducing part replacement.
Machine's perfect arc bending part makes the finished letter with smooth line and natural bending effect.
The finished product can be completely matched with cnc engraving machine and laser cutting machine, making your perfect manufacturing dream come true.
channel letter bending machine suppliers Main Features
1.Automatic feeding, automatic arc bending (minimum diameter 15mm), automatic opening angle (45°-135° arbitrary angle)
2.Molded at one time, no need for separate acrylic caps.
3.It adopt dual stepping motor control which high work efficiency, just takes 48 second for making 30cm large "S" .
4.can be customized processing all kinds of aluminum strips, aluminum profiles materials, the maximum width of up to 128mm.
5.Low energy consumption, total power 3000W, use power no more than 1500W.
6.can read dxf, ai, plt format a variety of appropriate files, matching with the engraving file.
7.Dimensions: 2180mm × 850mm × 1780mm
8.processing materials: aluminum strip, aluminum profile, stainless steel strip, metal stripe, processing thickness: stainless steel 304 # ≤ 0.8mm, iron sheet ≤ 1.0mm, Aluminum strip/ profile 0.4 mm—1.2mm.
9.Special specifications and requirements can be customized
2.Molded at one time, no need for separate acrylic caps.
3.It adopt dual stepping motor control which high work efficiency, just takes 48 second for making 30cm large "S" .
4.can be customized processing all kinds of aluminum strips, aluminum profiles materials, the maximum width of up to 128mm.
5.Low energy consumption, total power 3000W, use power no more than 1500W.
6.can read dxf, ai, plt format a variety of appropriate files, matching with the engraving file.
7.Dimensions: 2180mm × 850mm × 1780mm
8.processing materials: aluminum strip, aluminum profile, stainless steel strip, metal stripe, processing thickness: stainless steel 304 # ≤ 0.8mm, iron sheet ≤ 1.0mm, Aluminum strip/ profile 0.4 mm—1.2mm.
9.Special specifications and requirements can be customized
Detailed Images

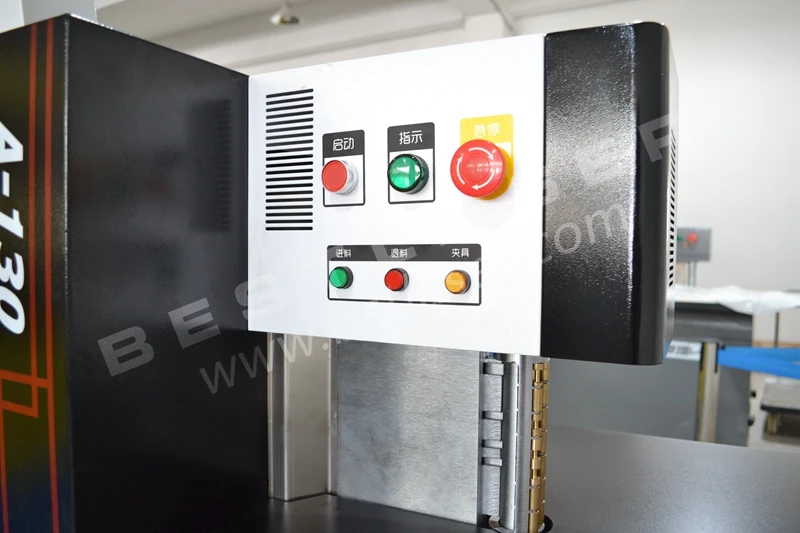

Indicator and Function Press
Button
1.)Clear button for each normal function,
making whole operation easy.
2.) Easy to change between bending stainless steel and aluminum materials by pressing
switch button

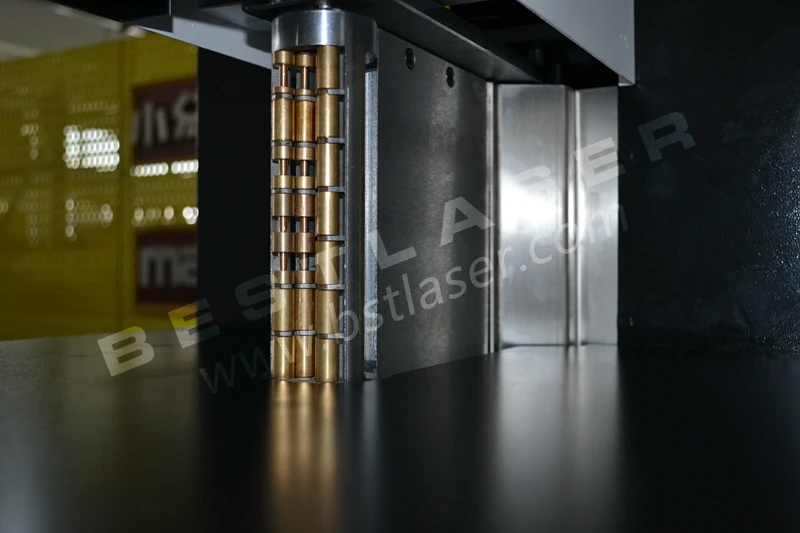

Japanese Imported Hard Alloy Bending Knife
According to Aluminum's characteristics, the bending knife bend aluminum with accurate positioning, lower noise, non-deformation, derust, easy to install and fast speed.

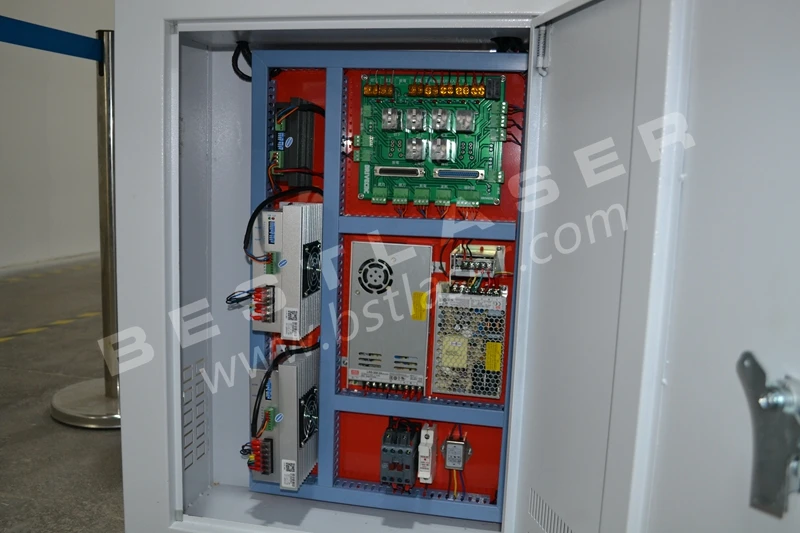

Electric Controlling Cabinet
Integrated PCB board, power supply, driver...all assembled in cabinet, which prove our strict production standard and bring convenience to customers.

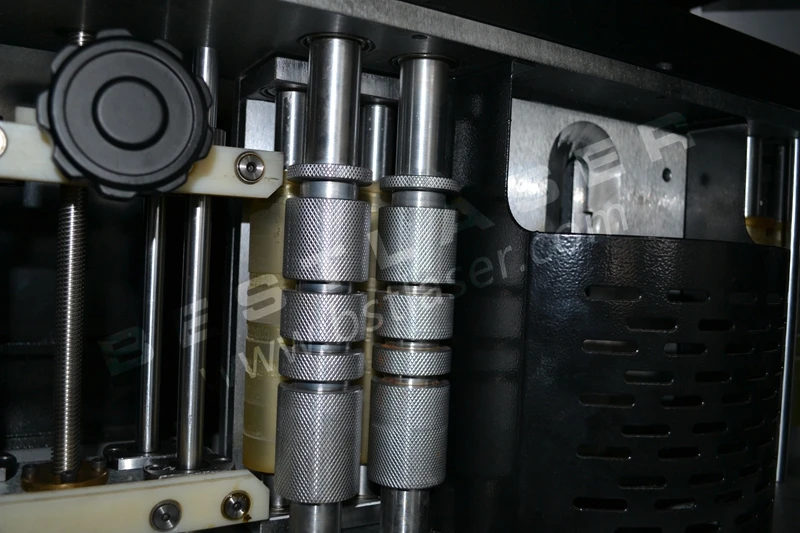

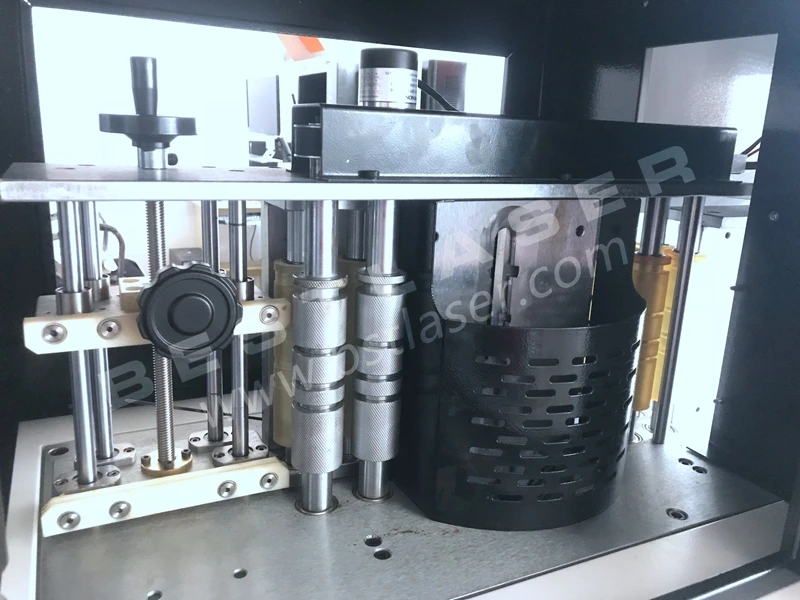

High Precision Roller Feeding
High precision roller feeding enable the smooth feeding of Aluminum strips, and correct the aluminum's position.
Precision Milling Cutter for
Aluminum
Can swing all around,identity angle automatically ,processing variety of aluminum profile.
Model No. | Multifunctional Channel Letter Auto Bending Machine BEL-S130 |
Working Principle | Auto feeding +slotting +bending |
Processing Materials | Can bend all kinds of Stainless Steel, Carbon Steel, Galvanize Plate, Aluminum, etc..... Special for bending single-folded-edge and double-folded-edge AL And also for 7,9,11cm strip with sponge |
Slotting Angle | 45°-135° |
Feeding Speed | 5~20 m/ min |
Bending Radius | ≥12mm |
Profile height | ≤128mm |
Profile thickness | 0.1-1.2mm |
Machine Size | 2180mm × 850mm × 1780mm |
Gross Weight | 350kg |
Working Voltage | 220V |
Assistant Gas Pressure | 0.6Mpa |
File format | DXF PLT AI |

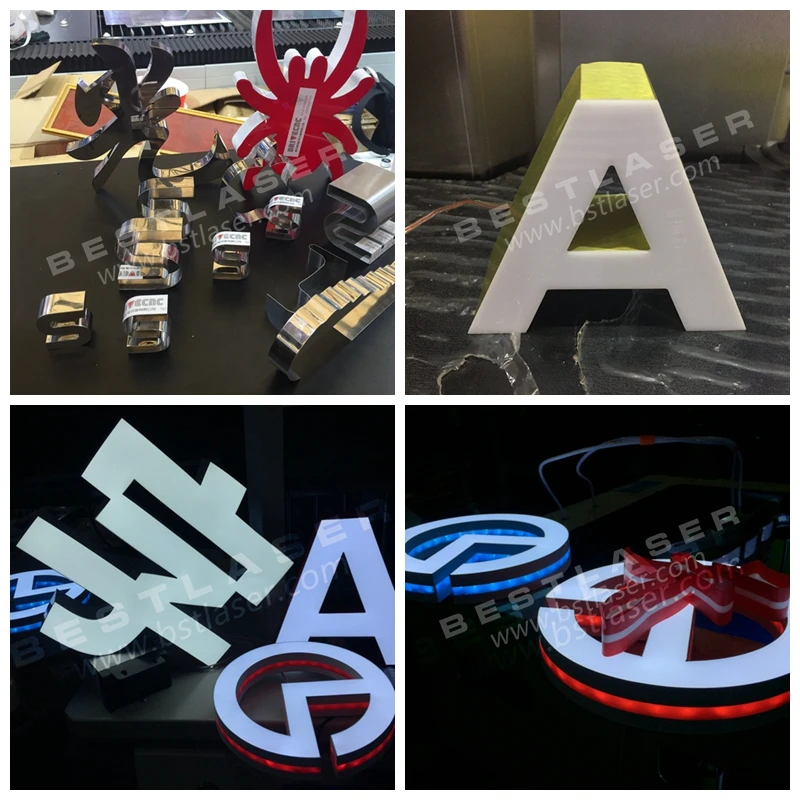

Application
Application for channel letter machine for sale
Applicable Industries:Advertising industry (Logos, signs, neon signs, billboards, light boxes production, outdoor advertising and other advertising production).
Applicable Materials :Aluminum strip bending, stainless steel strip bending, iron bending, galvanized steel bending and bending galvanized pipe, ect.(there are two kinds of slotting knives, one is especial for aluminum bending, another type is to bend stainless steel, galvanized steel bending, etc.)
Applicable Materials’ data Width:30-110mm Thickness:0.5-1.2mm Materials:Single-Folded-Edge Aluminum and Double-Folded-Edge Aluminum, all colors Aluminum edgings or 7,9,11cm edgings with sponge.
Packing & Delivery
Packaging | ||
Size | 210*80*170cm,2.9CBM | |
Weight | 340KG | |
Package Details | Professional Export Wood Craftcase with IPCC sign 1.Outside:we adopt wood craft case 2.Middle: the machine is covered by foam, to protect the machine from shaking. 3. Inside layer, the machine is covered by thickening plastic bag for waterproof. | |

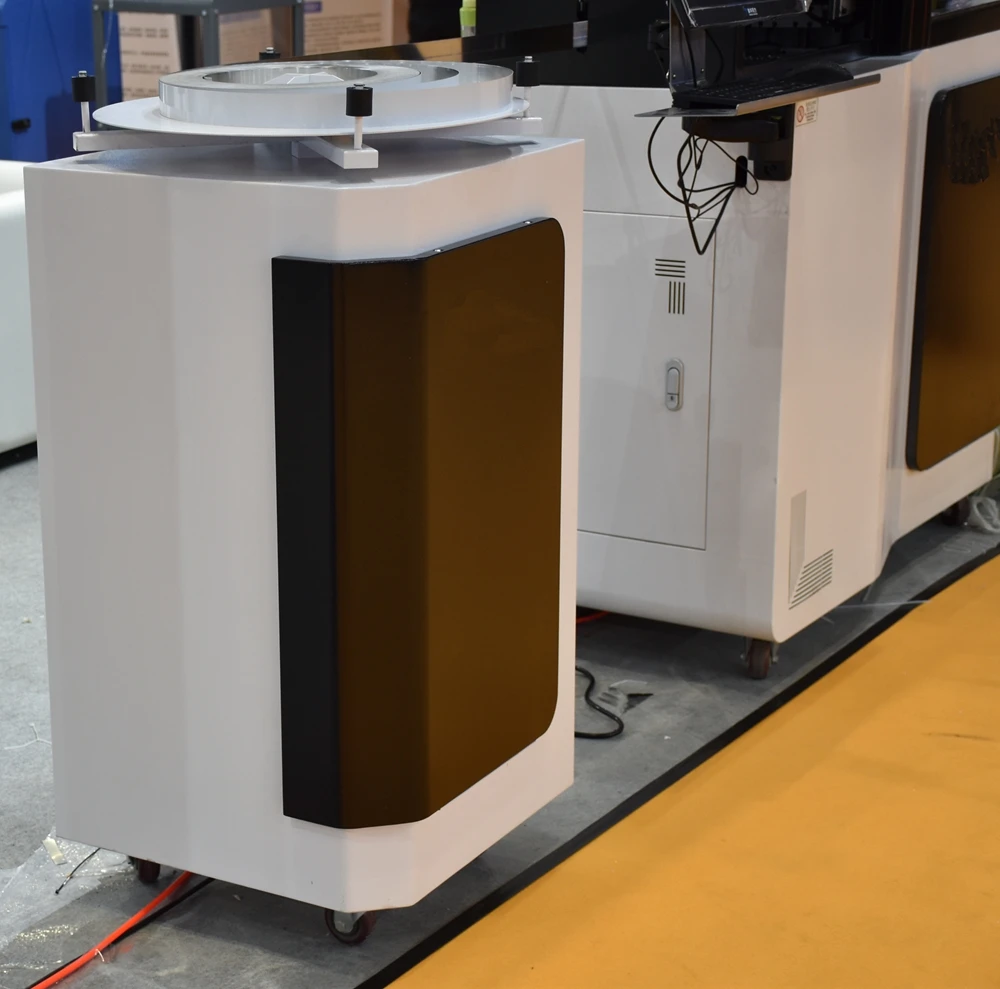

BEL-A130 channel letter bending machine on exhibition show:
You can see, lots of global customers are interested in this machine.
\t\t\t\t\t\t\t\t\tCompany Introduction \t\t\t\t\t\t\t
As 15 years laser machinery manufacturer, Best Laser is committed to providing customers with high-quality, reliable laser machines.
As a result of our quality control measures, our laser cutting machine, laser marking machine, laser engraving machine all have got CE certification. High precision, low energy consumption, automatic processing, little environmental pollution and make our products more and more industries played a important role.
To be recognized as China's foremost manufacturer and supplier of laser marking, engraving, etching and cutting systems. Dedicated to providing the best-quality equipment and services all over the world. Looking for distributors and users globally!
After Service
\t\t\t\t\t\t\t\t\tContact \t\t\t\t\t\t\t
Full Solution for Channel Letter Making
As the machine manufacturer , we could supply full- solution on channel letter making ,
the details as below:
1>CO2 laser cutting machine, engraving and cutting acrylic very well, the cutting depth around 1-28mm
for different thickness.
2> CNC Router machine, engraving an cutting MDF board and Metal.
3>Mixed Cutting Laser Cutter, Cutting 2mm stainless steel and 20mm Acrylic /MDF
4>Fiber Metal Laser Cutting Machine, specially for cutting thin metal materials with high precision
and speed .
5>CNC Plasma Cutting Machine, economic metal cutting machine for cutting thin and thick metal
6> Channel letter bending machine, widely used for bending metal materials.
7> Advertising letter laser welding machine is used for making a variety of stainless steel letter, LED luminous characters, LOGO, signs and other fast welding.
8>Acrylic Vacuum Forming Machine : Making 3d advertising acrylic / plastic letter
The best way to get a good impression of the various machines is by
testing your products on our systems during a demonstration.
Interested? Let us know! Welcome your inquiry!
