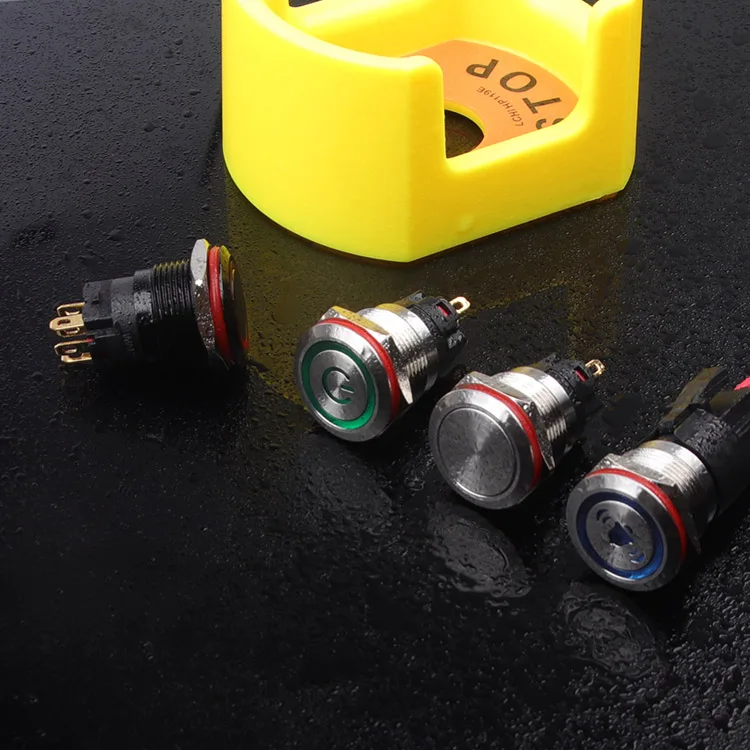

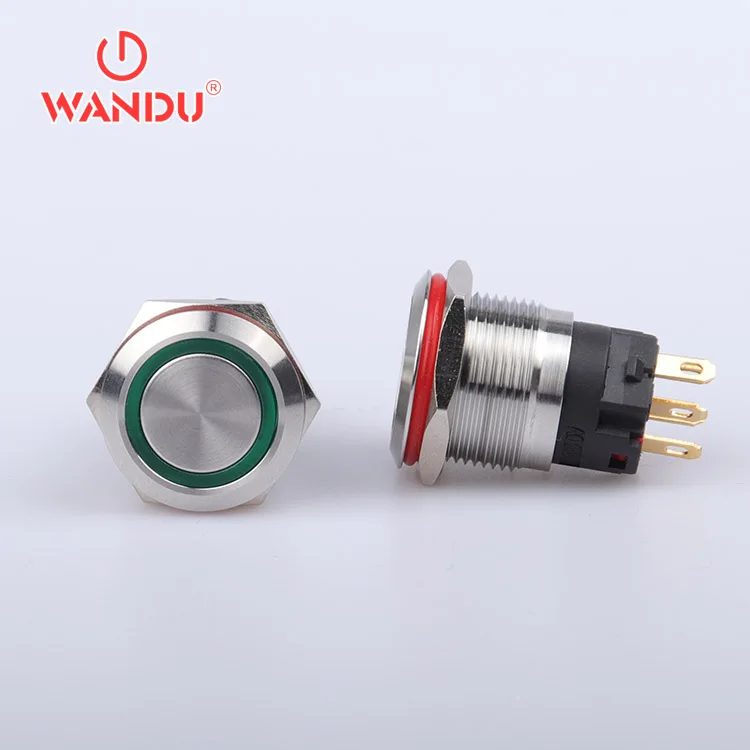

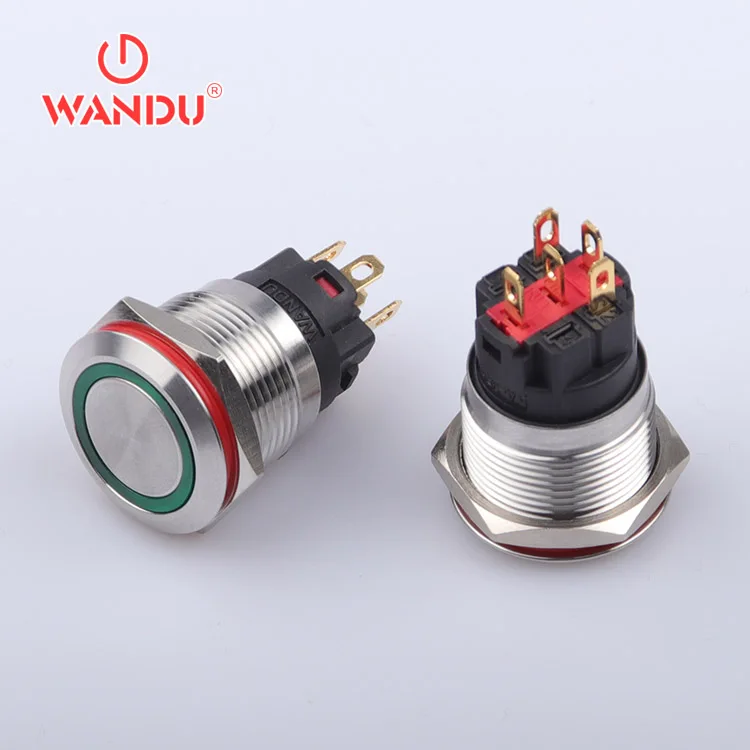

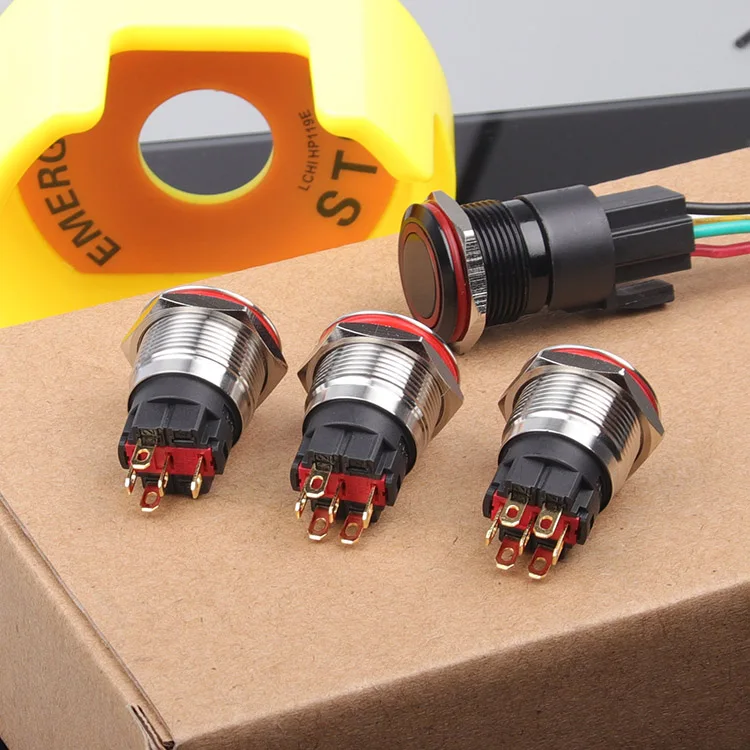

Metal button 19MM with lights of various types of symbols High power 250VAC current 5A
- Category: >>>
- Supplier: Yueqing Wandu Electric Co. Ltd.
Share on (62327811035):
Product Overview
Description
Product Description
Functional description.
1. 5A metal push button switch

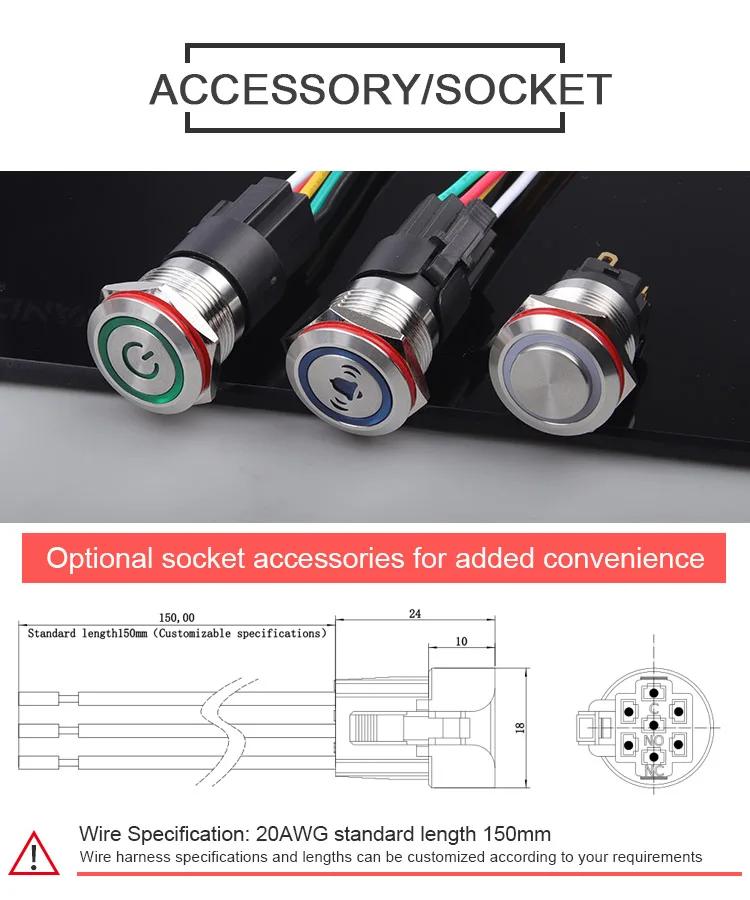

2. Optional connector,To ensure contact performance,reduce waste of labor;
3. With concave design,operation is more convenient;
4. With super metal texture and high-end of appearance design,improve the ability to resist welding deformation;
5. Waterproof and dustproof grade up to IP67;
6. Mechanical life: up to 600,000times,it can work at -30℃~80℃;
7. 1NO1NC function
8. It has applied of many patents ,CCC,CE approved;
9. 19MM SPST ON OFF IP67 IK10 momentary stainless steel push button
With years of export experience along with excellent quality, advanced services and competitive prices, WANDU has won numerous customers' trust and support.

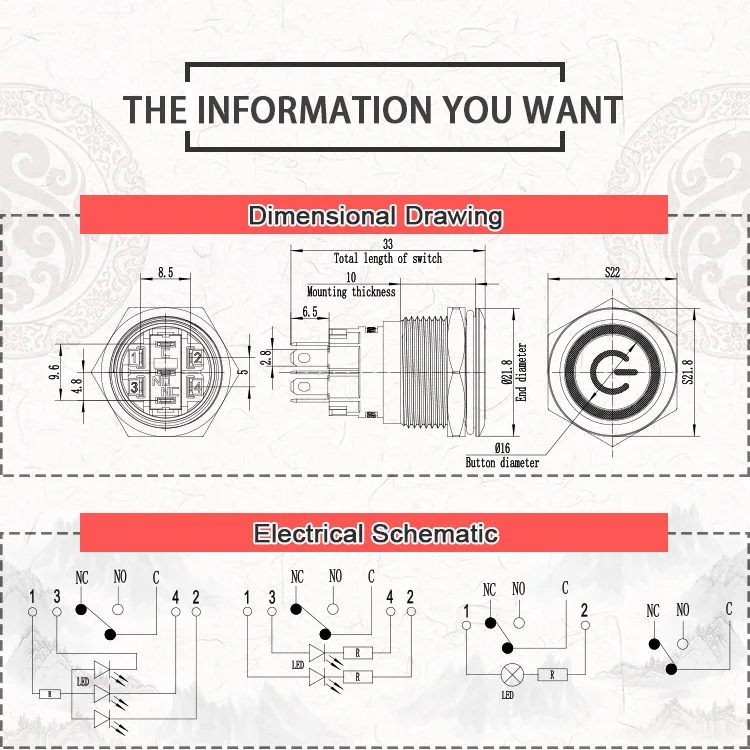

Dimensions
Certifications
Technology Parameter

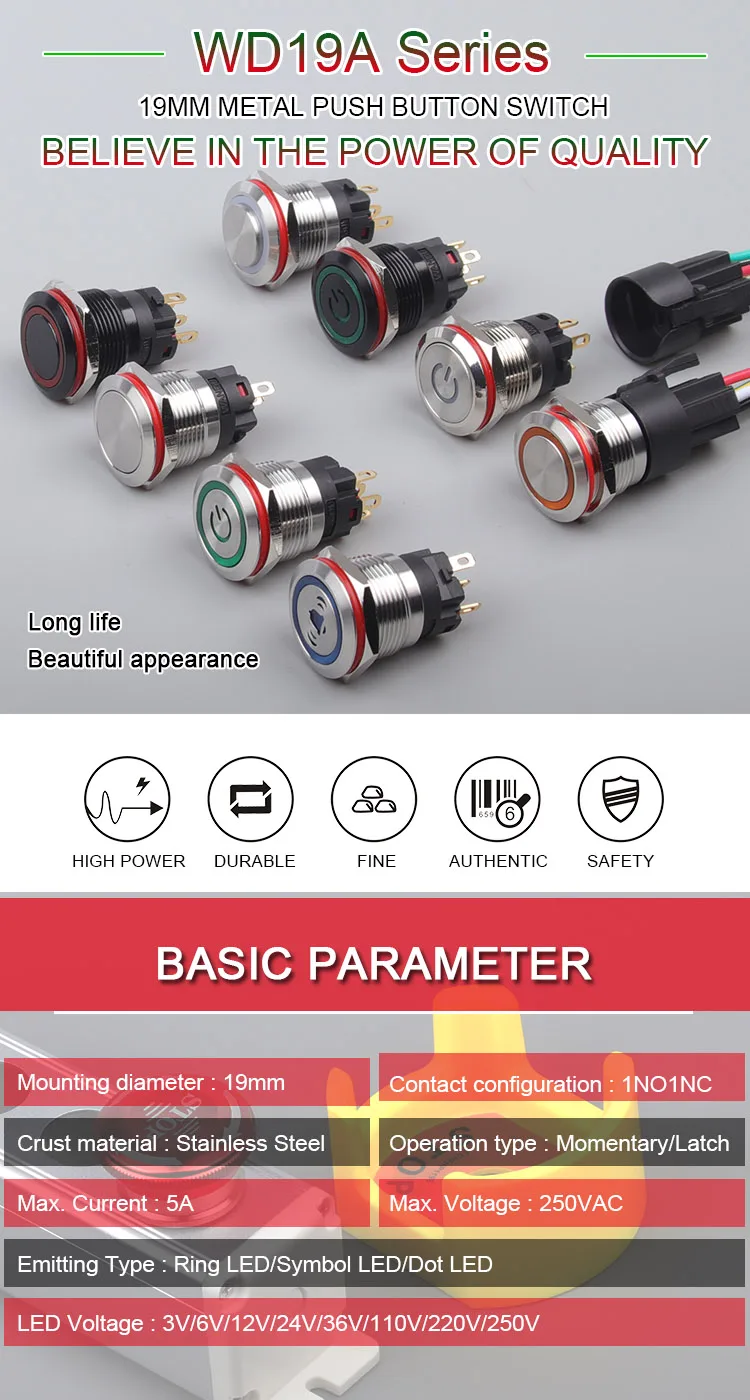

Model Description | ||||||
Model NO. | WD19A button switch | |||||
Mounting diameter | 19mm | |||||
Head shape | Flat Head / High Head | |||||
Switch Combination | 1NO1NC | |||||
Operation type | Momentary/ latching | |||||

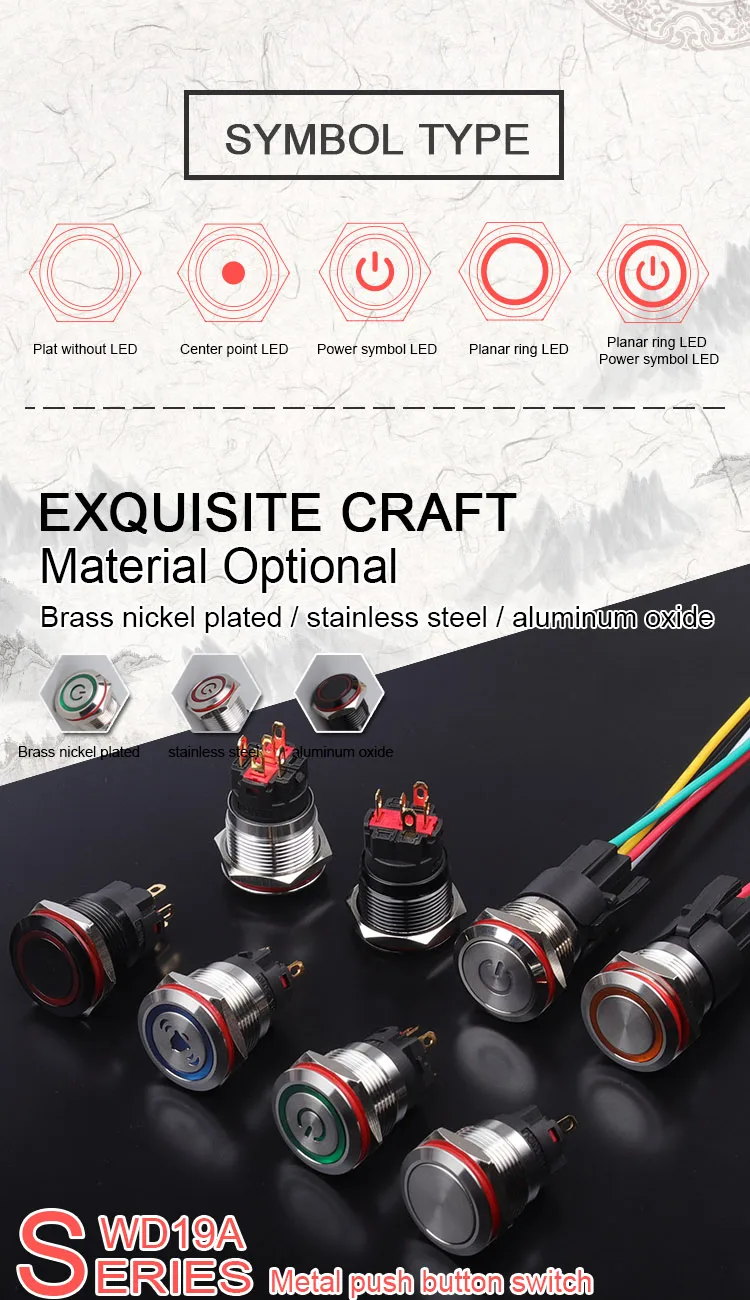

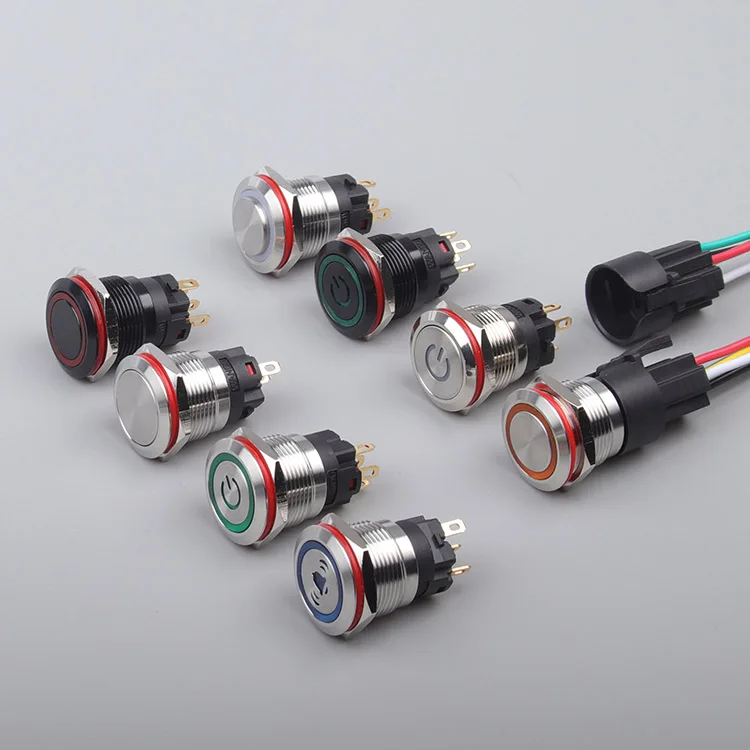

Illuminating type | Annular,power symbol,dot | |||||
Illuminating color | red,green,blue,yellow,orange,white,purple,pink | |||||
Lamp voltage | 3V/6V/12V/24V/36V/110V/220V/250V | |||||
Shell material | Stainless steel,aluminum oxide,copper plating | |||||
The Others Parameters | ||||||
Project | Parameter | Project | Parameter | |||
ontact type | Slow moving single contact | Operation Schedule | Connected:1.8mm,Total:3.1mm | |||
Contact Resistance | ≤50mΩ | Actuating Force | about 4N | |||
Insulation Resistance | ≥1000mΩ | Mounting panel thickness | ≤11mm. customised the others | |||
Dielectric Strength | 1000VAC min | Nut torque | 5~14N.m | |||
Ambient Temperature | -30℃~+80℃ | Outshell/Press Key | Stainless Steel/Aluminum Oxide/Copper plate / According to the request | |||
Protection Levels | IK10 | Diffuser | Environmental protection PC | |||
Electrical Life | Rated:2A250VAC- 100,000 time | Nut | Nickel brass | |||
Rated:5A250VAC-50,000 times | Base Seat | |||||
Rated:8A250VAC-20,000 times | Bottom Seat | |||||
Reated:10A250VAC- 20,000 times | Insert seat | |||||

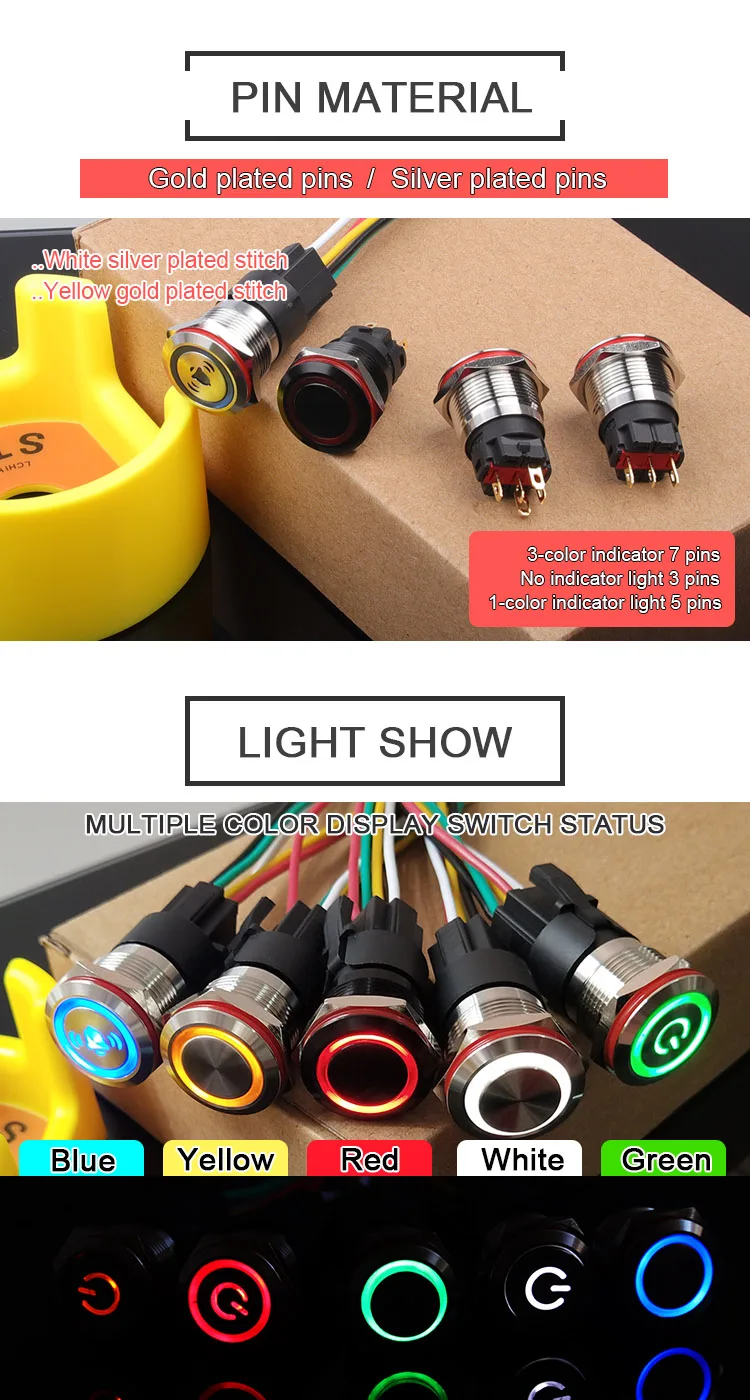

Momentary-500,000 times | Pins | H65 / H65 Silver Plated / Gold | ||||
Latching-300,000 times | Contact | Environment-friendly Silver Contact | ||||
Waterproof | IP67 | Spring | Imported steel wire | |||
Switch Rated Load | ||||||||||
Project | Parameter | |||||||||
Reated Insulation Voltage | AC250V | |||||||||
Fusing Current | 5A | |||||||||
Rated Voltage | DC12V | DC24V | DC36V | AC220V | ||||||
Nonreactive Load | 3 | 2 | 2 | 3 | ||||||
Inductive Load | 1 | 0.5 | 0.5 | 0.5 | ||||||
Led Lamp Parameters | ||||||
Project | Parameter | |||||
Led type | High Brightness LED lamp,cool | |||||
Luminous color | Red,Green,Blue,Yellow,Orange,White,Purple,Pink | |||||
Rated Voltage | AC/DC3~8V,AC/DC9~24V,AC/DC 25~48V,AC110V,AC220V | |||||
Rated Current | ≤20mA | |||||
Reference Life | 40,000hours | |||||
