Jinyi Split Separate Pressurized Solar Hot Water Heater with Pump Station
About JINYI SOLAR Factory:
1. We have 12 year history/experience in manufacture solar water heater products, include solar collectors, Cylinders;
2. We are a directly manufacturer, have our own factory, we manufacture: Pressure stainless steel cylinder, heat pipe/U-type solar collector, split pressure/heat pipe pressure/nonpressure solar water heater.etc;
3. We are near Shanghai city for 25minutes by train, it’s convenience for you to visit us, welcome!
4. Our factory is 12000 square meter big, our showroom is 100 square meter big;
5. We 100% test each cylinder with 10Bar/1.0MPa pressure to avoid leakage problem;
6. We produce each order strictly with the Auto CAD drawing paper.
7. Our production capacity is 3000 units/month;

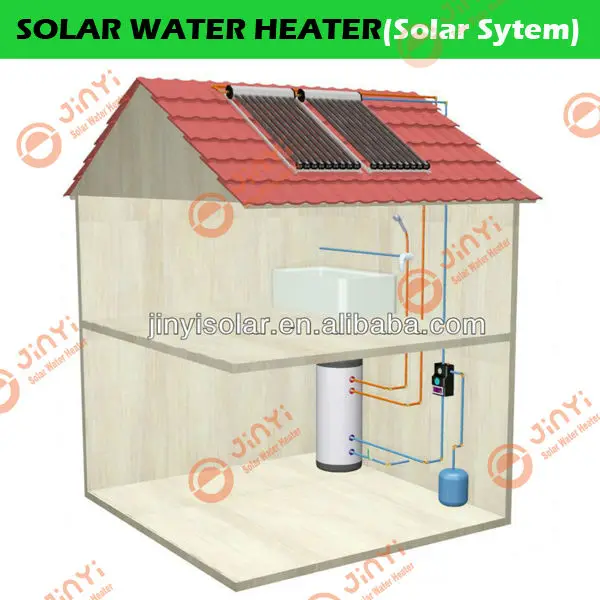

How split pressurized solar hot water heater system works:
JinYi split pressurized solar hot water heater system is an active system. It uses a solar workstation the fluid between heat pipe solar collector and pressurized water tank. Tank and solar collector are separate, solar collector could be installed on the roof or somewhere sunshine could shine on, while tank, solar workstation could be installed anywhere of the building. The piping between the main components is twin way pre-insulated solar hose. one coil system is suit for climates where there is risk of freezing. it is the simplest and the most typically and the least expensive active system. The system operates at standard line pressure. The system integrates easily with existing systems.
Data for split pressurized solar hot water heater system:
The whole split pressure solar hot water heating system Kit consists:
All solar collectors are approved to EN12975 & Solar KeyMark
1) 1 × High performance 20 Tube Jinyi Ø58mm - 1800mm collector, featuring a contoured aluminium alloy manifold.
2) 2 × Easy fit solar roof bolt pack (total 4 bolts)
3) 80L-500LL Stainless Steel Un-Vented single or double coil solar tank/ solar cylinder with 60mm insulation (Plastisol Finish)
4) 1 × Installation control and safety pack for unvented cylinder ( See Unvented Cylinders for details
5) 1 × Jinyi Pump Station, containing: High lift Wilo pump, Delta Sol Electronic solar controller full kit (with sensors), Flow setter, Filling connection, Isolating valve, Non return valve, Safety pressure valve (6 bar), Flushing connection, Pressure gauge, Wall fixings & Insulated body.
6) 1 × 15Mtr Silicone sensor extention wire (for collector sensor)
7) 1 × Automatic Air Vent, for air purging.
8) 1 × 5-24 Ltr High Pressure / Temperature Expansion Vessel
9) 1 × Expansion Vessel Mounting Kit (with flexible mounting hose)
10) 2 × 6 Ltr Premix Anti freeze / Heat Transfer Fluid
11) 1 × Sensor Connection Box for Lightening Protection
12) 1 × Tube Heat Conductive Paste
13) 1 × Transit Tube ( A spare tube is shipped with each collector order safe guarding against any damage in transit)
OEM and ODM orders:
OEM orders are warmly accepted,welcome you inquiry!
A QC team with more than 10 years’ experience and technical personnel. To ensure 100% products checking.
Material: Strictly control of material purchasing and using, meet international requested standards
Semi-finished products inspection: Product inspection before 100% finished, such as visual inspection, leaking and pressure testing, comprehensive safety test and so on.
Production line test: With work team or data engineer who will inspect machines and lines at fixed period.
Finished product inspection: Quality and property test before products are packed and loaded.
We provide 5 years warranty of products and shipment with 1% spare parts
We can send the parts free on condition that there is any breakdown with convincing evidence
1% spare parts include:
- Wiper scraper seal
- Tube holder
- Screws & screw caps
We will reply your email or fax within 24hours
You can call us at any time if there is any question on our production
We are sincerely invite you and your company to join Jinyi Team!
