High Speed 4 Color Paper Cup Blank Fan Flexo Printing Press Machine
- Category: >>>
- Supplier: Hangzhou Depai Machinery Co. Ltd.
Share on (62328041434):
Product Overview
Description

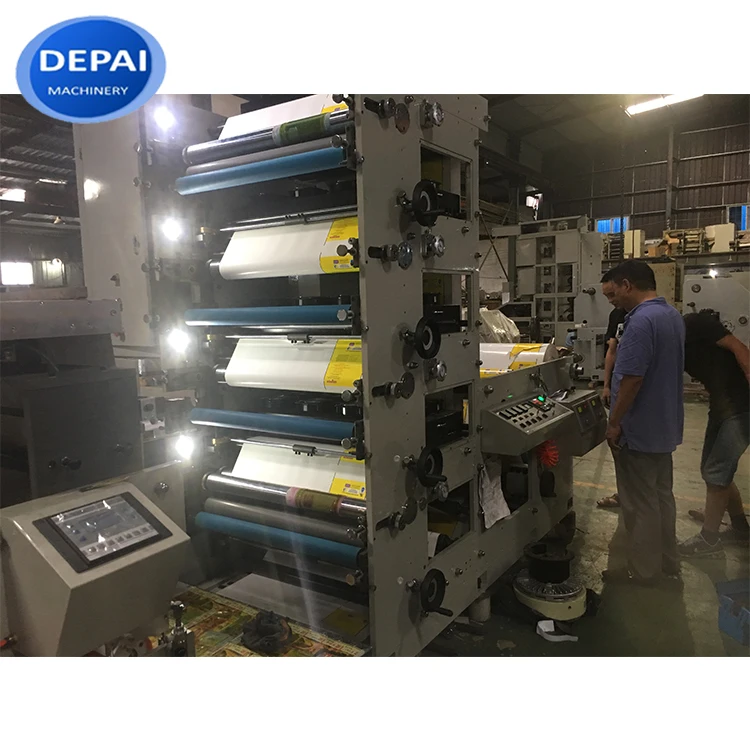

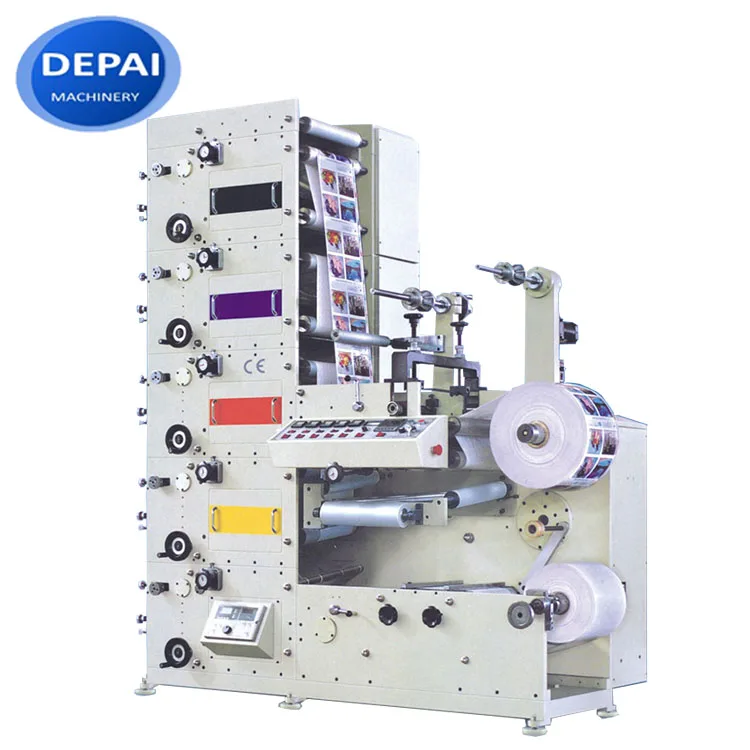

High Speed 4 Color Paper Cup Blank Fan Flexo Printing Press Machine
Product Description
Characteristics
1. Adopt the ceramic anilox cylinder to transfer the ink.
2. Each printing unit adopts 360 .plate-adjustment.
3. Three die-cutting stations,the first and second die-cutting station can do double sides working,the third die-cutting station can be used of sheeter.
4. Computerized web-guiding system is installed in the front of printing unit,it ensures the material always in the right position.(standard configuration)
5. After sheeting in the third die-cutting station,conveyor belt can output the products orderly.(option)
6. Unwinding and rewinding tension are auto-controlled by magnetic powder,two rewinders is possible in this machine.
7. Video inspecting system is an option,it can watch the printing quality when in high speed.
8. The ink rolleres will be separated from the printing roller,and keep running when the machine stops.
9. Main machine inverter is imported.
10. The machine can finish material-feeding.printing,varnishing,drying,laminating,die-cuting,rewinding and sheeter in one process.It is an ideal machine for printing note and top-grade adhesive label.
Main Technical Variables
| Model | CLFPL-320 | CLFPL-480 |
| Printing speed | 60m/min | 60m/min |
| Printing colour | 1-8 colors | 1-8 colors |
| Max.Web width | 330mm | 490mm |
| Max.Printing width | 320mm | 480mm |
| Max.Unwinding diameter | 700mm | 700mm |
| Max.Rewinding diameter | 700mm | 700mm |
| Printing girth | 175-380mm | 175-380mm |
| Precision of overprint | ±0.10mm | ±0.10mm |
| Dimensions(LxWxH) | 3730x1150x3000mm | 3730x1310x3000mm |
| Machine weight | 3500kg | 4000kg |
| Total power | 10.5kw | 15kw |

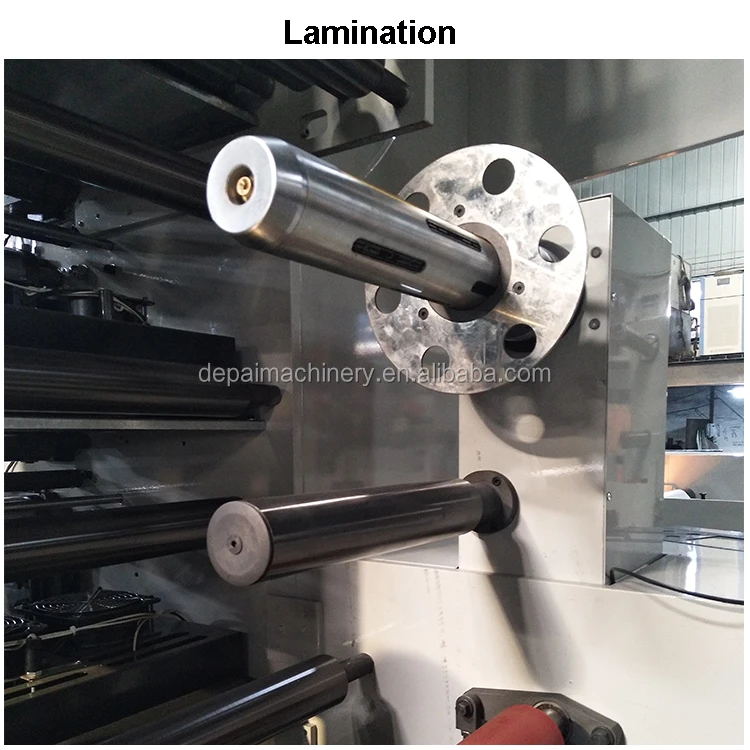

A: Printing Unit B: Lamination C: Waste Rewind D: Magnetic Cylinder E: Web guiding F: Unwinding tension controller(Mitsubishi, Japan) G:Sheeting H: Rewinding tension controller I: Stacker J: Video Monitor

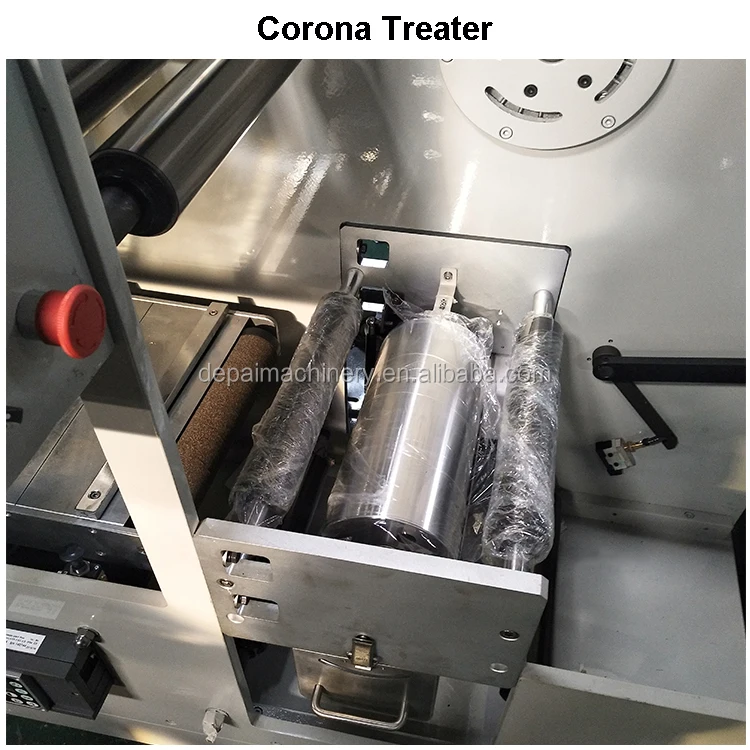

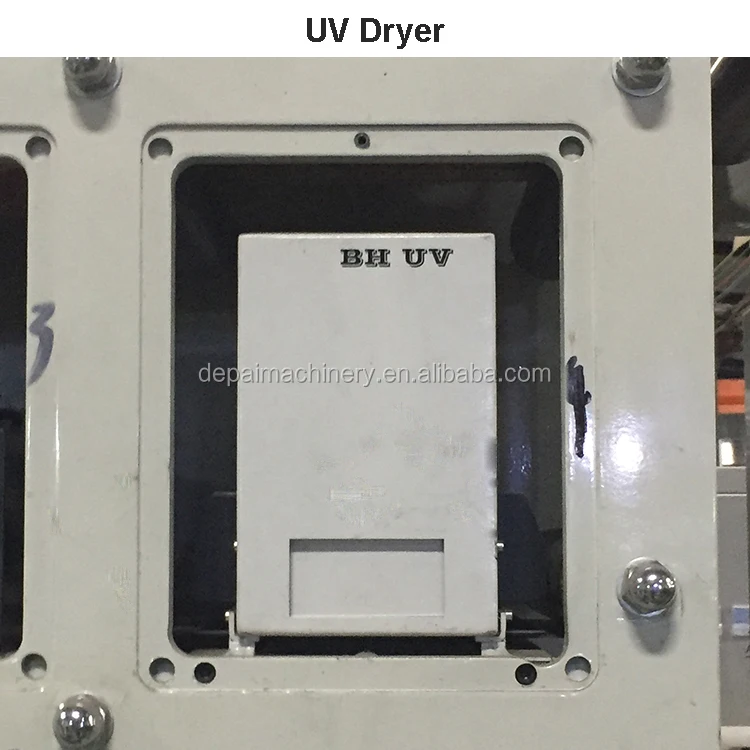

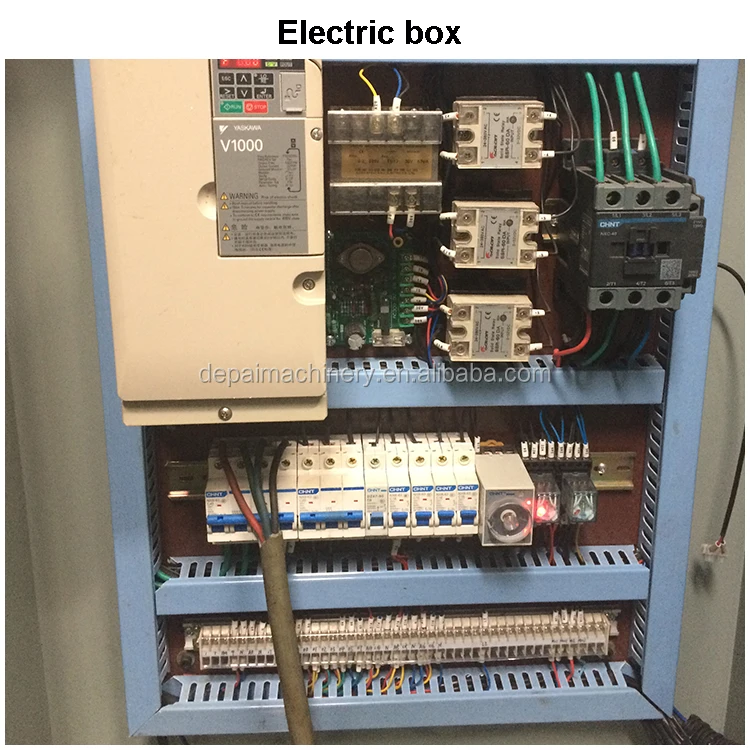

Optional parts: UV Varnishing / Corona treater / Electric / Video monitor / Tension controlle / Turn Bar
Detailed Images

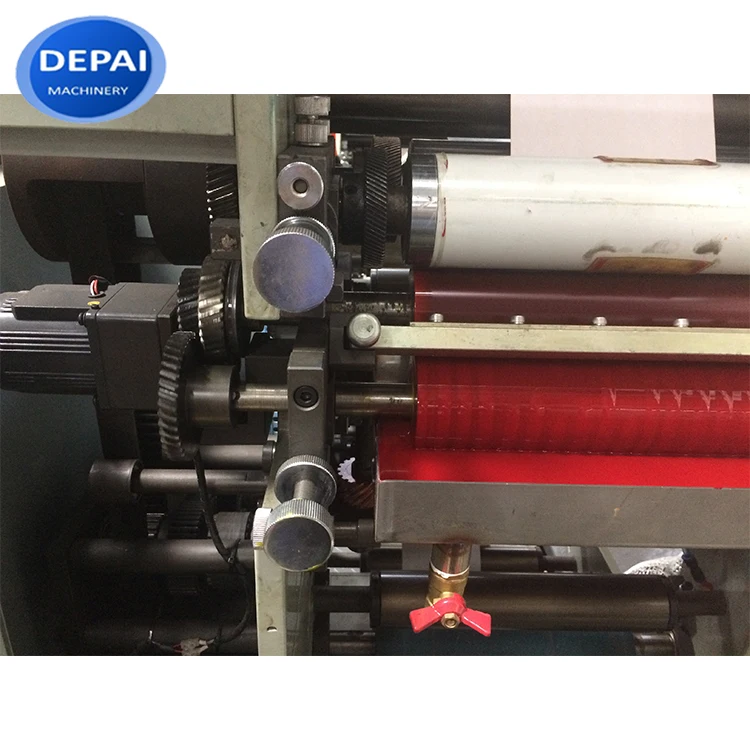

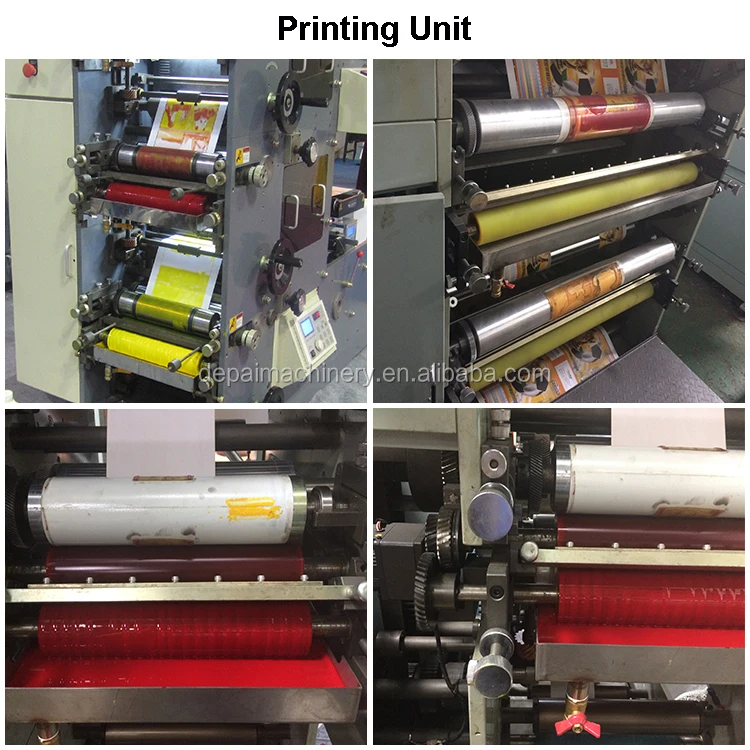

Printing color unit---6 units
• Anilox cylinder pneumatic clutch
• Ceramic anilox roller---one set (6 pcs) or as your require
• Printing cylinder---three set (6 pcs) or as your require
• Single side doctor blade
• Manual vertical and horizontal roller controllers(details is in the following Main Part, Printing Device)

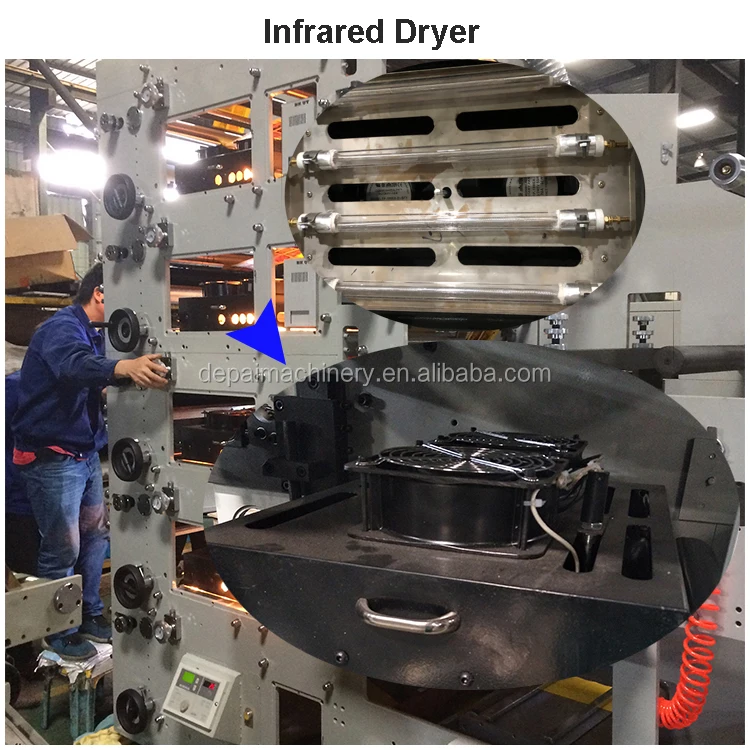

IR Drying system
• Infrared Heating Drying Unit--- 1 unit / each color station
• 4 pcs IR lamp each IR heating unit

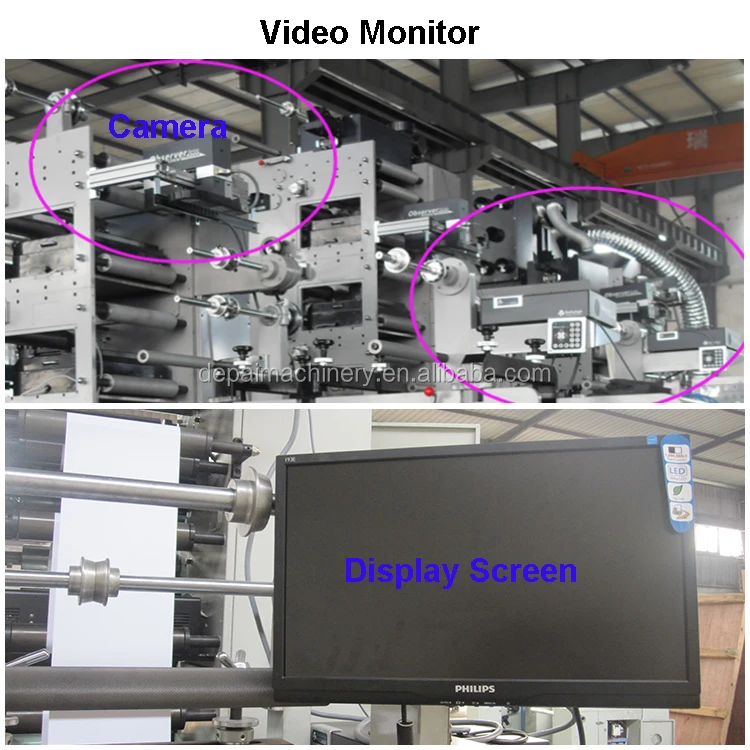

Video Inspecting System
By video inspecting system, the machine can regulate and horizontal register without stopping, it improves the printing quality and increases the producing capacity.
Unwinding unit and rewinding unit
• Magnetic powder as brake, motor as clutch
• Max rewinding and unwind material diameter: 600mm

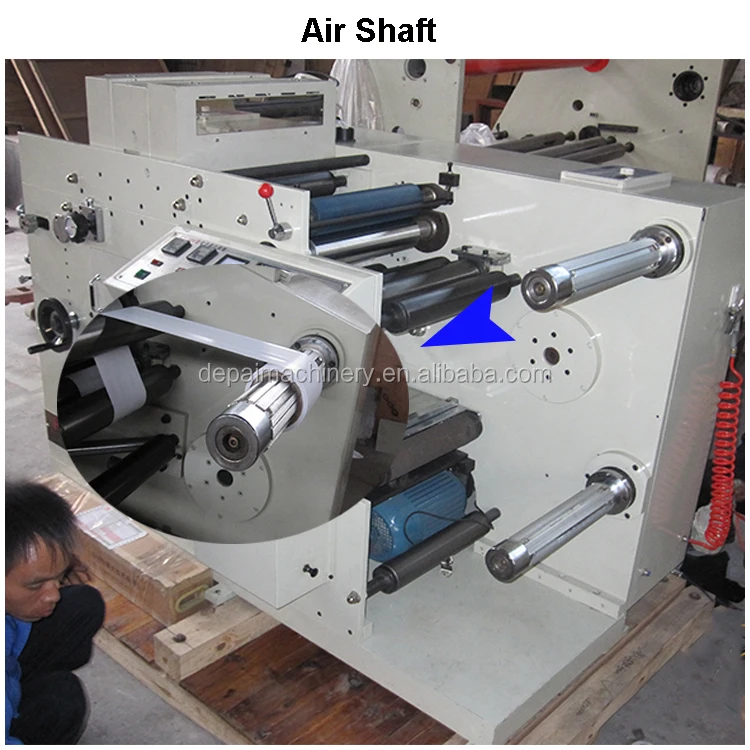

• One 3 inch air shaft (you can change 6 inch air shaft)

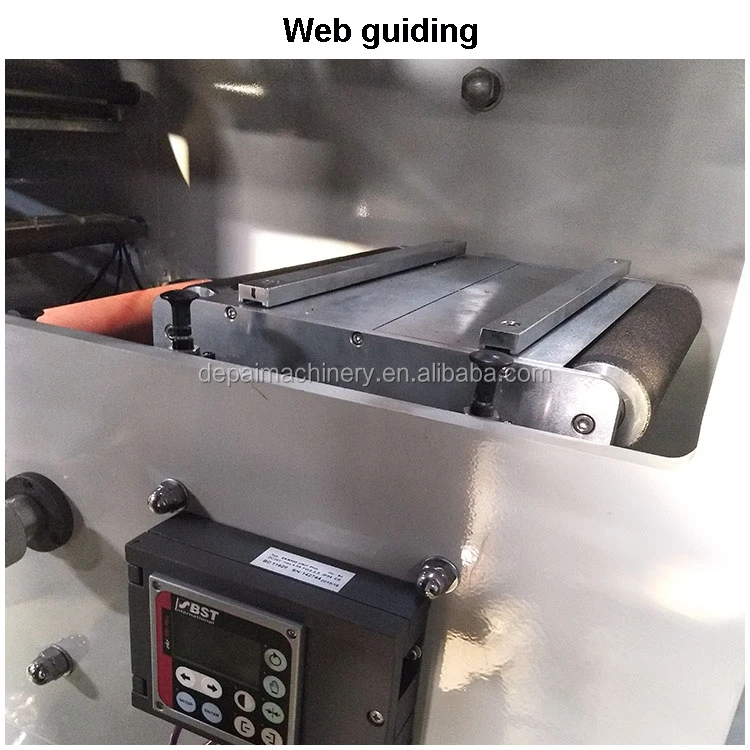

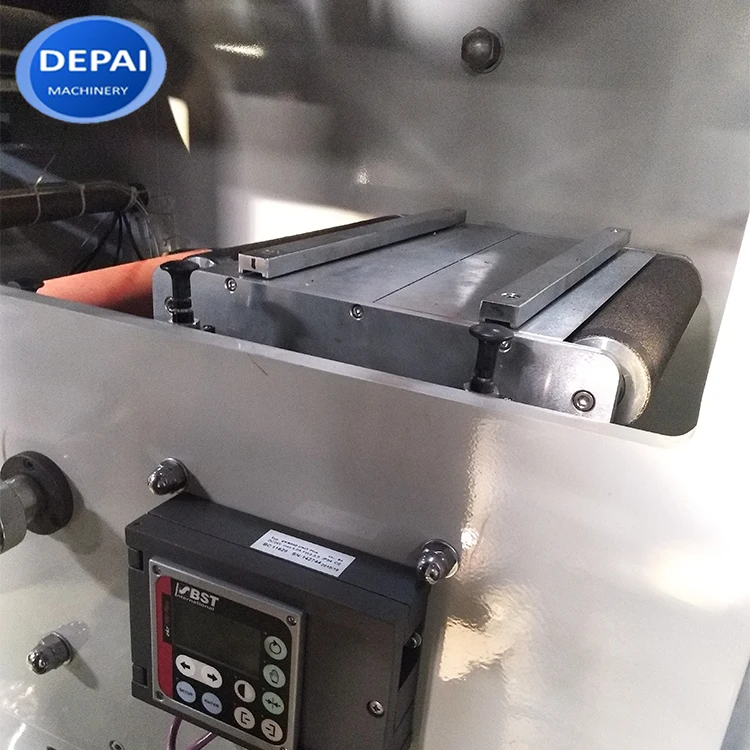

Auto web guiding system
• One set of paper binding table
• Electronic paper web guide traction device, there was a small offset paper web movement, the system can accurately continuously revised.

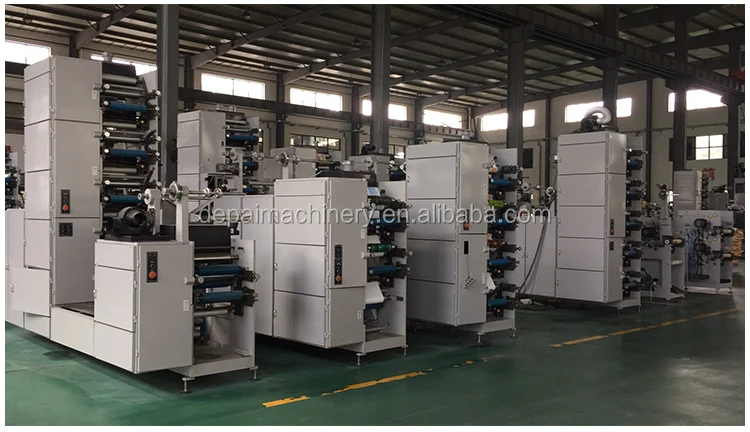

Our Factory
Packaging & Shipping
Finished products
Suitable Material: Self Adhesive paper, Self -Adhesive Film , Laminating Film, Paper, Opp, Alumium, CPP, PET.
FAQ
1. Q: How does your factory do regarding quality control?
A: Quality is priority. We always regard great importance to quality controlling from the very small thing (even a small screw we will choose the best quality) from the beginning.
2. Q: What is your after-sales service?
A: Our after-sales service is first class. We have a powerful team to help you solve problems.The Warranty is one year and if the machine is damaged by natural not by human, we can send the new parts to you for free.
3. Q: What is the terms of payment you accept?
A: 30% T/T in advance, 70% T/T balance before delivery. We also accept L/C and Western Union.
