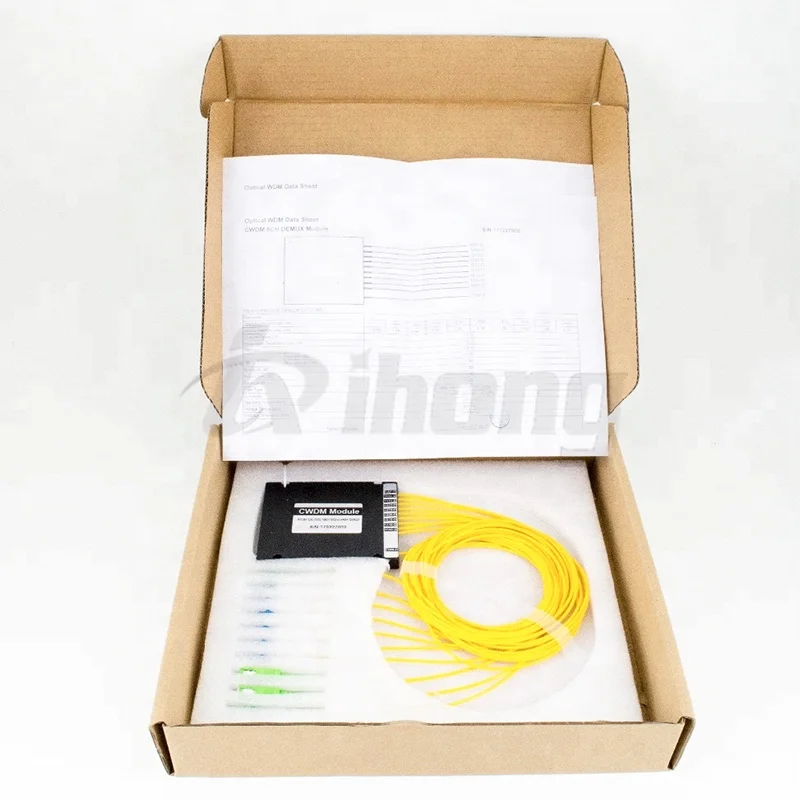

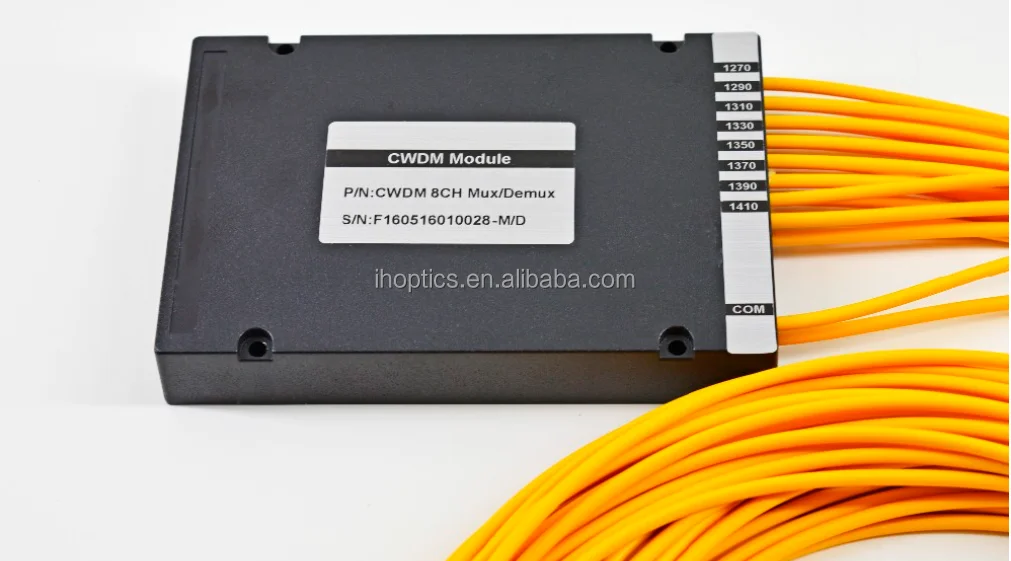

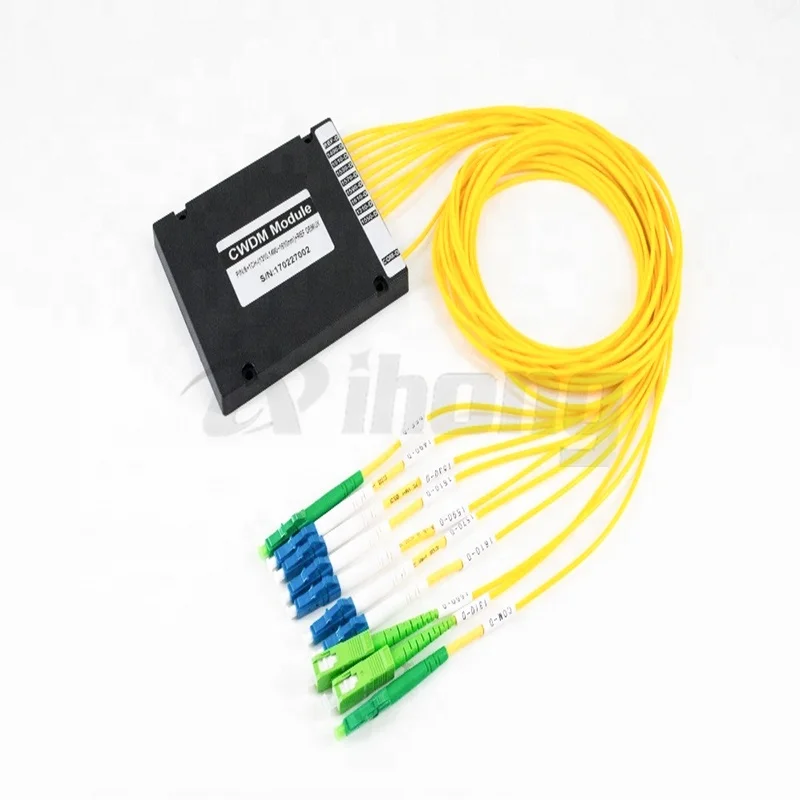

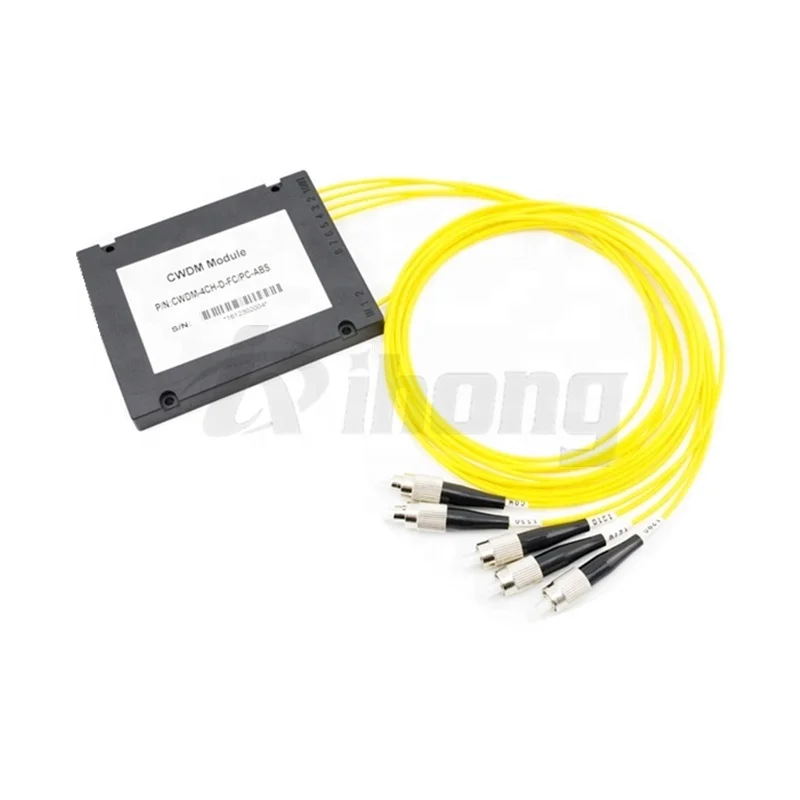

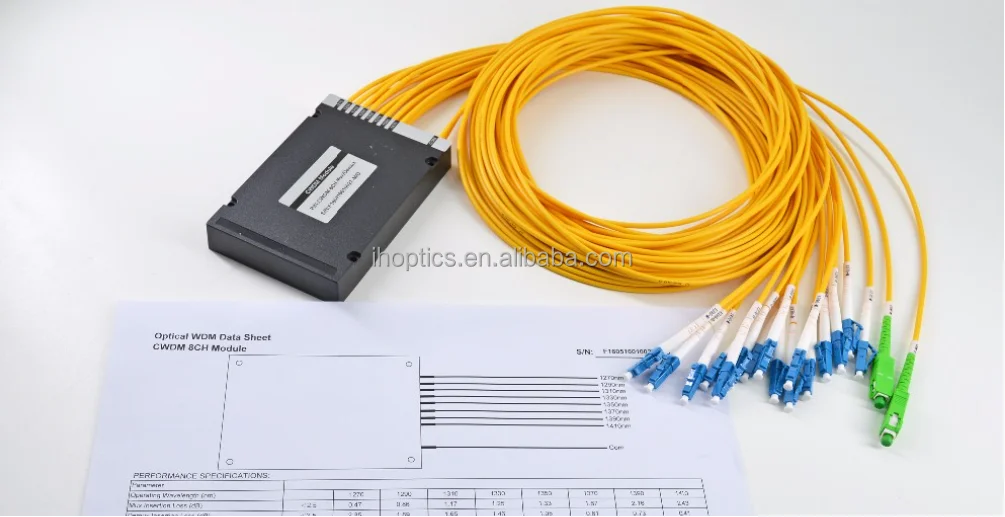

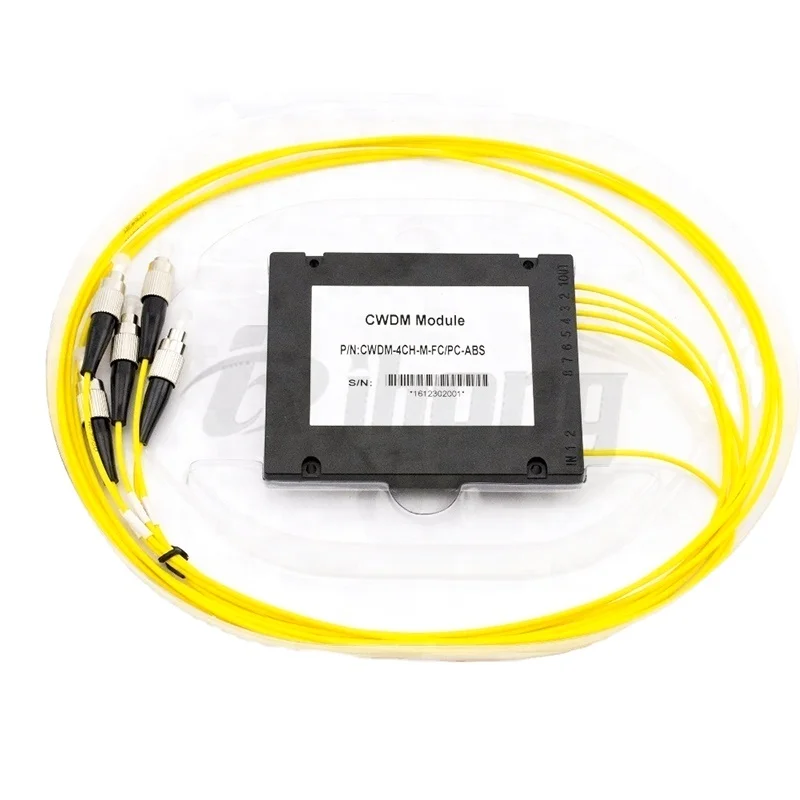

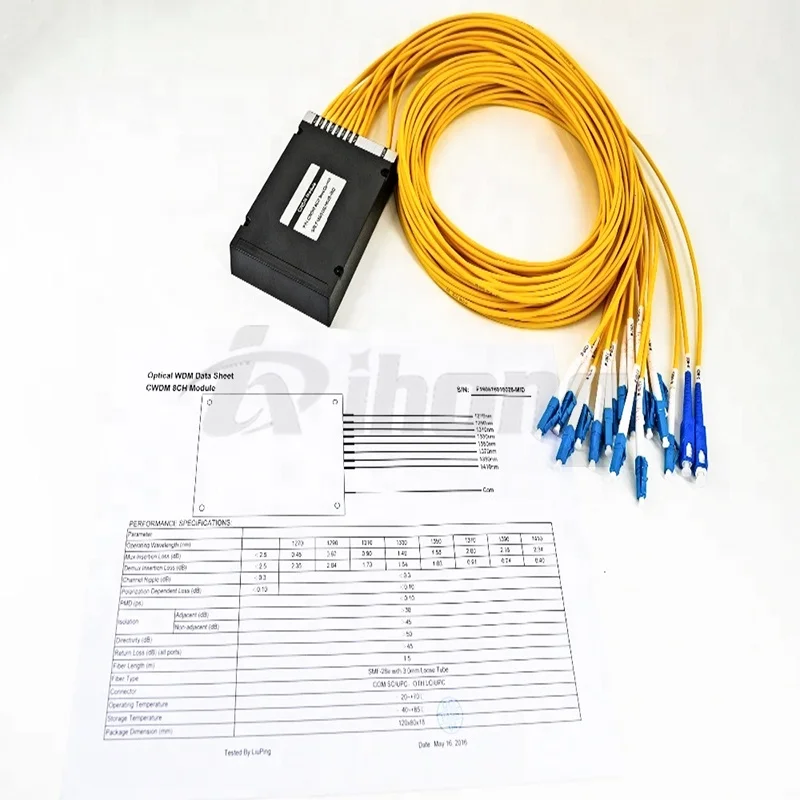

CWDM Module 1270~1610nm Wavelength Division With ABS Package 2/4/8/16 Channel Mux / Demux
- Category: >>>
- Supplier: Shenzhen Ih Optics Co. Ltd.
Share on (62328072368):
Product Overview
Description
Product descripition
Coarse wavelength division multiplexer (CWDM Mux/Demux) utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path.
CWDM products include: bare single CWDM device packed in glass tube or stainless steel tube, CWDM Mux Demux modules packed in ABS box up to 16-channel or even 18-channel Multiplexing on a single fiber or CWDM modules packed in standard 19” 1U rackmount. Due to the low insertion loss is needed in WDM networks, we can also add “Skip Component” in a CWDM Mux/Demux module to reduce the IL as an option. Standard CWDM Mux/Demux package type include: Glass tube, stainless steel tube, ABS box package, LGX pakcage and 19” 1U rack mount.
CWDM products include: bare single CWDM device packed in glass tube or stainless steel tube, CWDM Mux Demux modules packed in ABS box up to 16-channel or even 18-channel Multiplexing on a single fiber or CWDM modules packed in standard 19” 1U rackmount. Due to the low insertion loss is needed in WDM networks, we can also add “Skip Component” in a CWDM Mux/Demux module to reduce the IL as an option. Standard CWDM Mux/Demux package type include: Glass tube, stainless steel tube, ABS box package, LGX pakcage and 19” 1U rack mount.
Parameter | 4 Channel | 8 Channel | |||||
MUX | DEMUX | MUX | DEMUX | ||||
Working Wavelength | 1270-1610nm/1271-1611nm | ||||||
Channel Spacing | 20 | ||||||
Channel Passband | ±7.5/±6.5 | ||||||
Insertion Loss | ≤1.5 | ≤2.5 | |||||
Channel Ripple | ＜0.3 | ||||||
