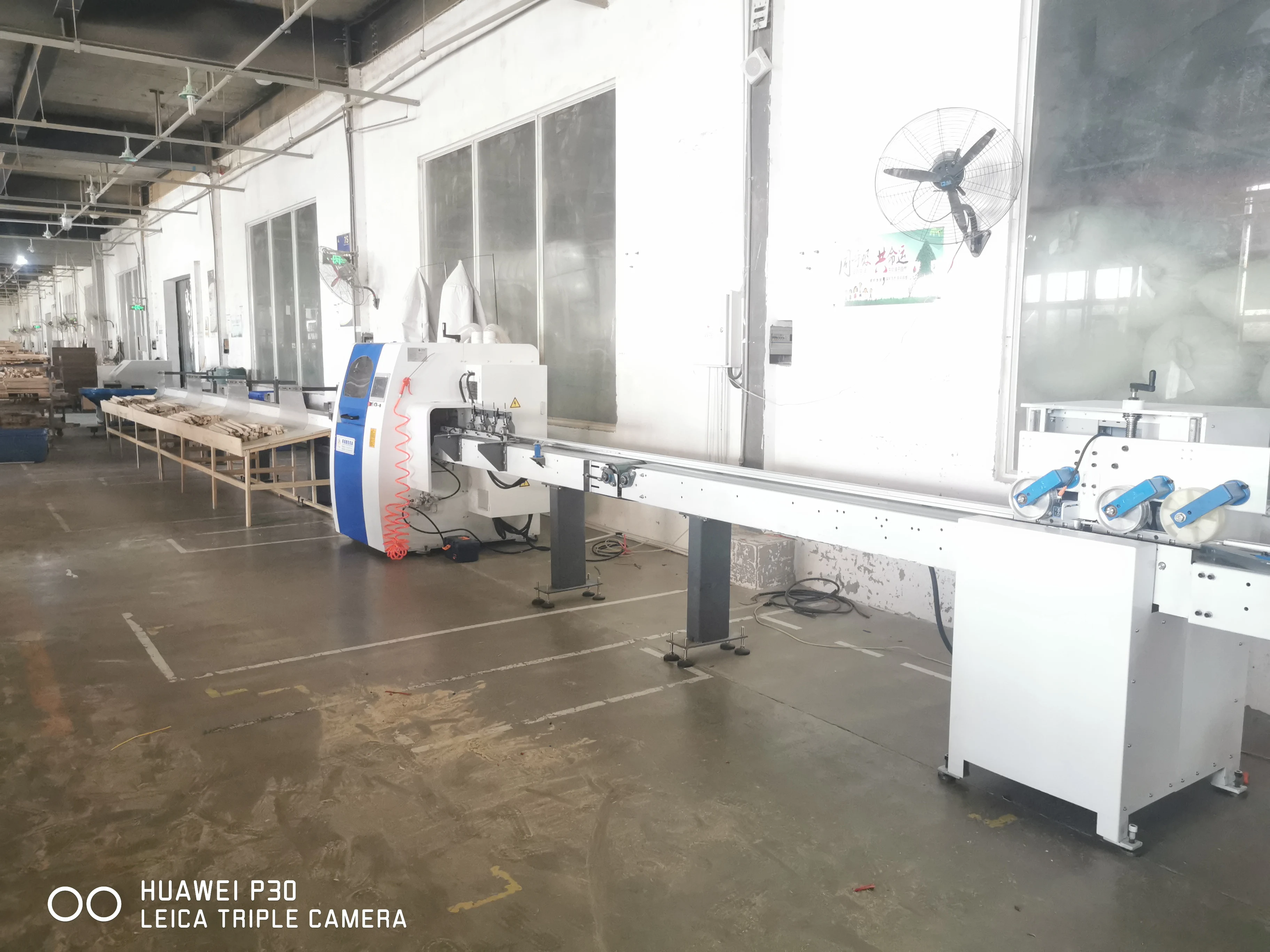

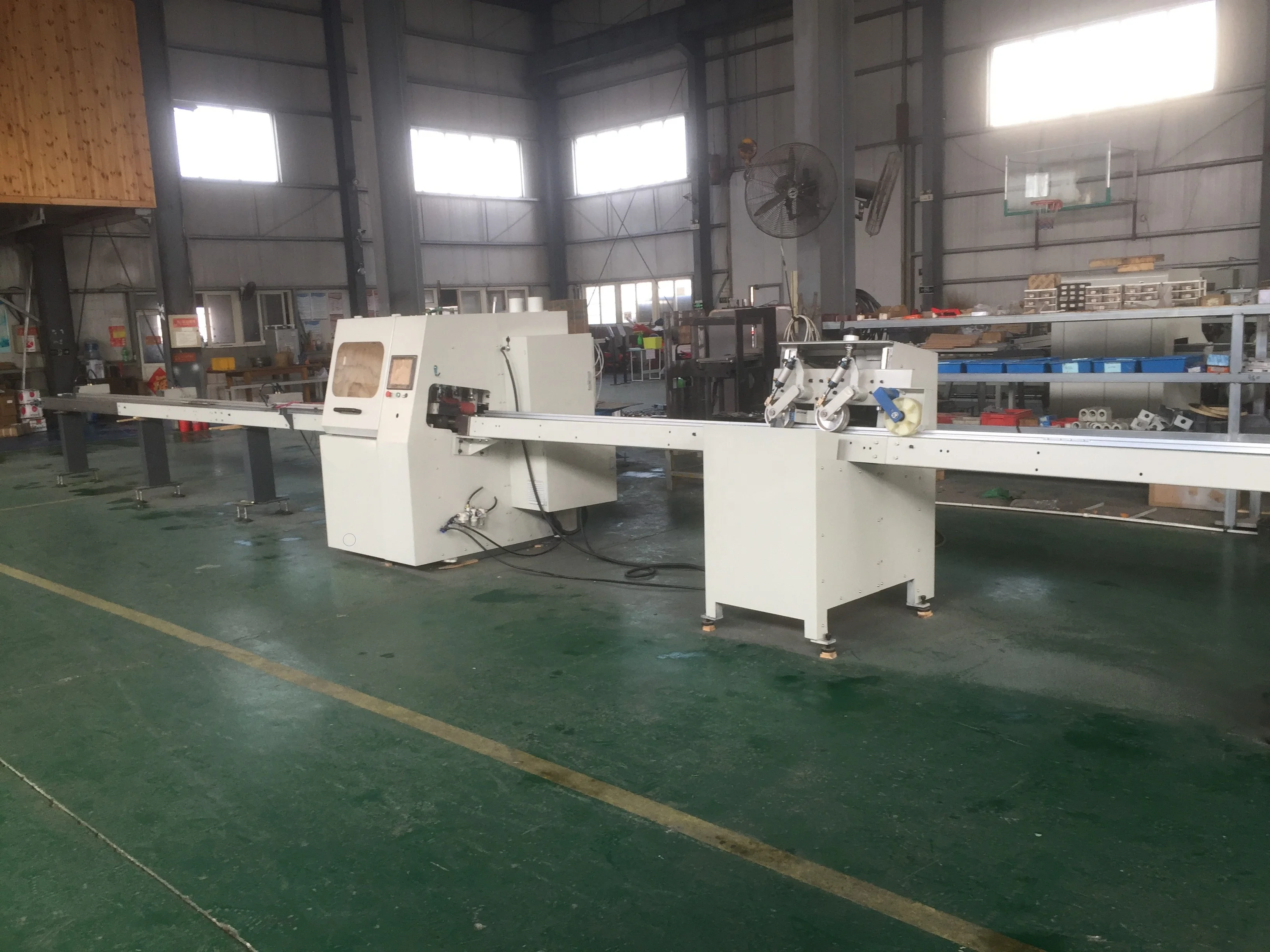

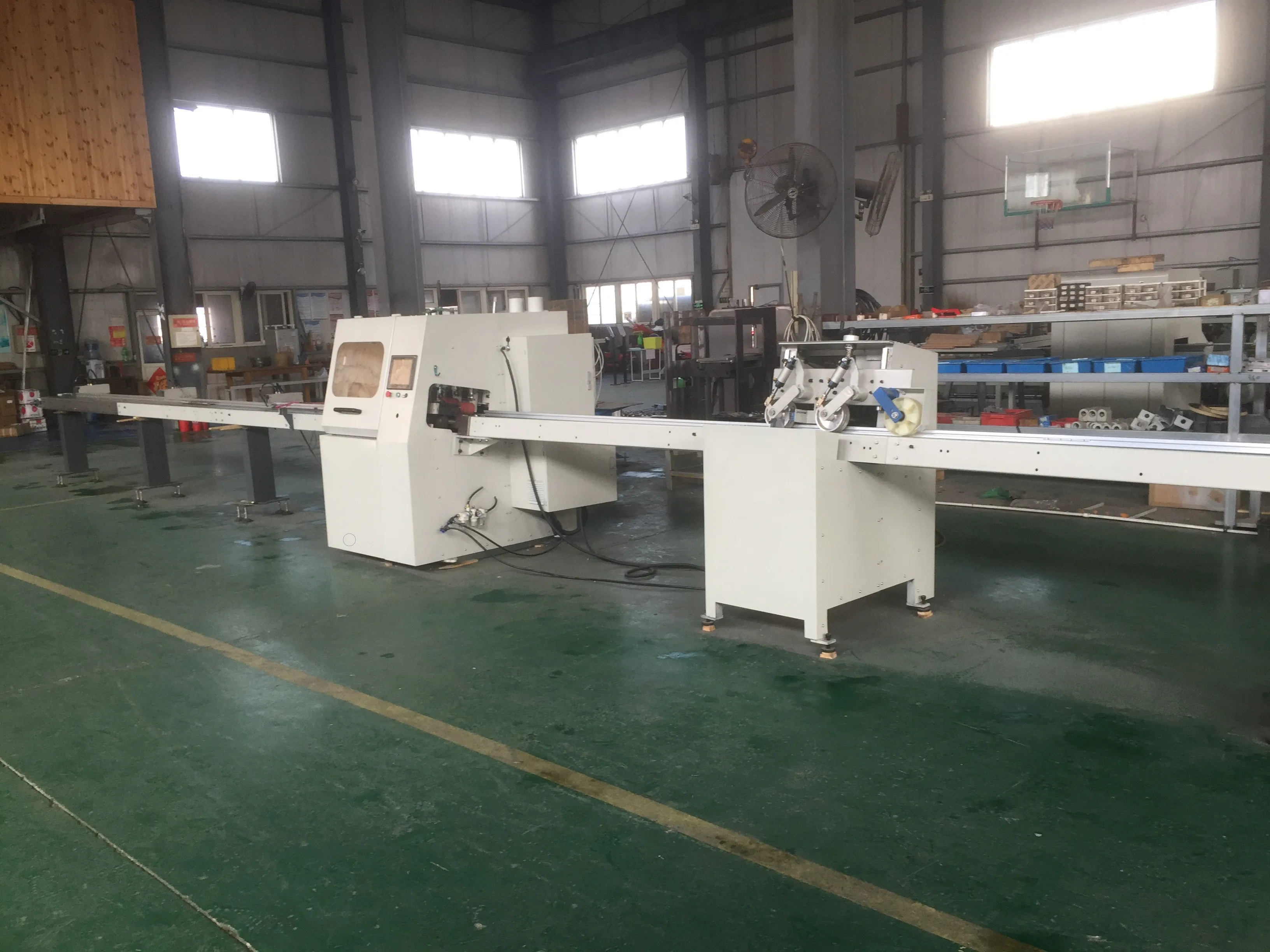

CNC Full Automatic Optimizing Cross Cut Saw



1. Specification
MJD344 is used for wood profile optimizing and cross cut off.
1. Stable and efficient- The saw unit is controlled by servo motor, 4-5 times efficiency of manual cut.
2. High precision-High quality sensor and pneumatic components to make sure cut tolerance within 0.1mm, and also can save profiles.
(Sensor:Germany Sick and Leuze. Pneumatic components: Japan SMC)
3. Adopt CNC system to select and optimize wood profile and select profiles according to requirements ro select profile can Improve wood grade and utilization.
4. Safety: Workers are far from the saw blade to avoid the risk of injury.
5. Low maintenance costs: Adopt worldwide top quality electric and pneumatic components, low failure rate.
6. Remote control via the Internet allows for quick troubleshooting, adjustment of settings, and cost savings and time for customers.









 7. Parameters:

Model	MJD344
Max feeding speed	100m/min
Efficiency	25-35m/min (Cut 4-5 pieces per minute)
Saw Blade Diameter	450*3.2*30*100T / 500*3.8*30*120T
Max Cutting Section	75*125mm / 50*180mm
Cutting thickness	9-75mm
Mini material length	350mm
Max material length	No limited
Motor rotary speed	4000 r/min
Saw spindle power	5.5kW
Feeding servo motor power	4.5kW*2
Top press roller qty	6
Bottom press roller qty	6
Feeding conveyor width	200mm
Overall diameter	14000*1400*1550mm
Weight	2000kg



8. Machine Configuration

1) Electric parts: Schneider. It is easy to operate by using a combination of electrical control and manual control.
The control circuit is DC 24V to ensure the safety of the circuit.
Schneider PLC,
Taiwan DECTA servo control system. High speed, high precision. The maximum overload current of the motor can reach 300% and the torque is powerful.
2)Motor:SIMENS Beide brand.
Touch screen: 10 inch Schneider touch screen.
3)Sensor: Germany SICK
4)Pneumatic components: Japan SMC. Low control current and fast response speed are powerful guarantees for ensuring machine operation accuracy.
5)NSK bearing. According to the force analysis, the bearing point of the main shaft is adopted. The double bearing design makes the spindle rotate smoothly and durable

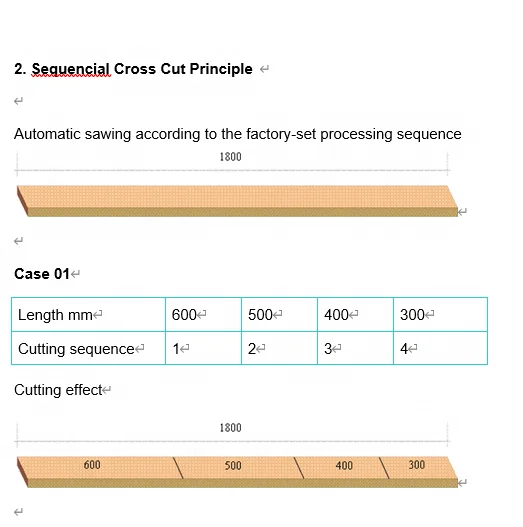

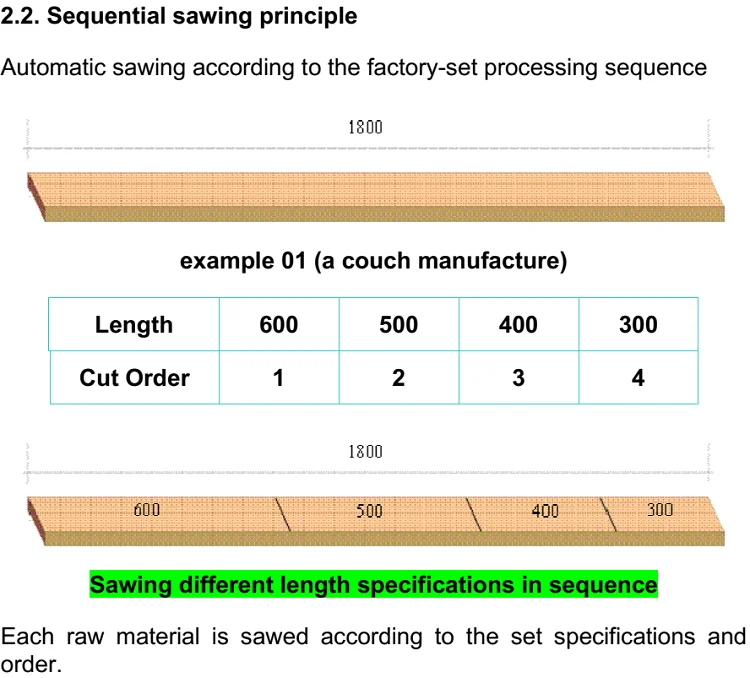

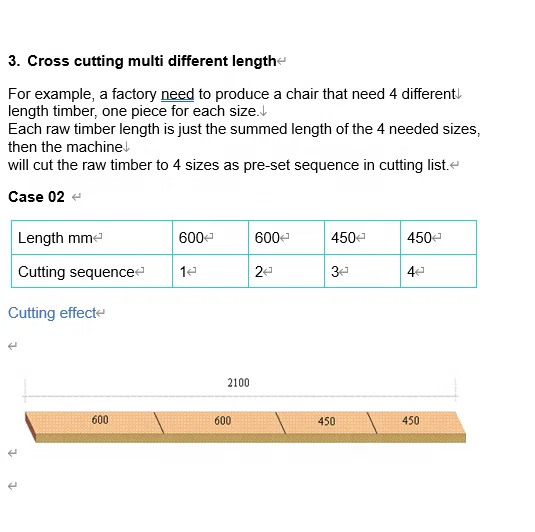

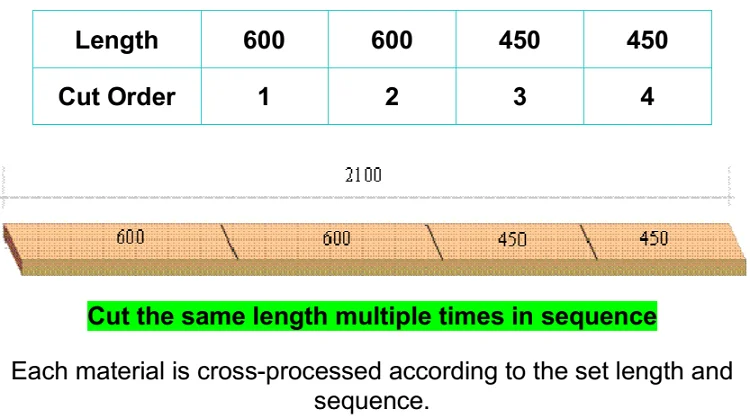

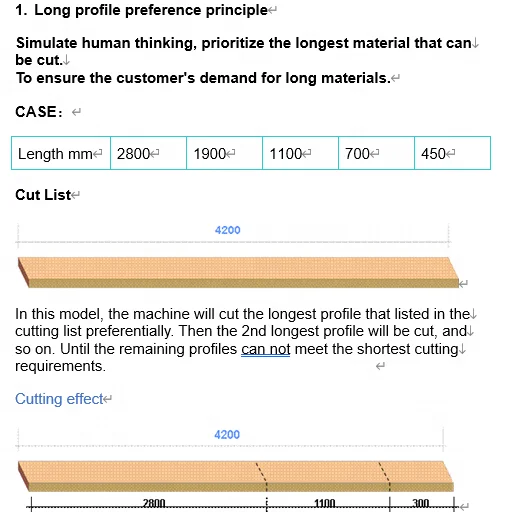

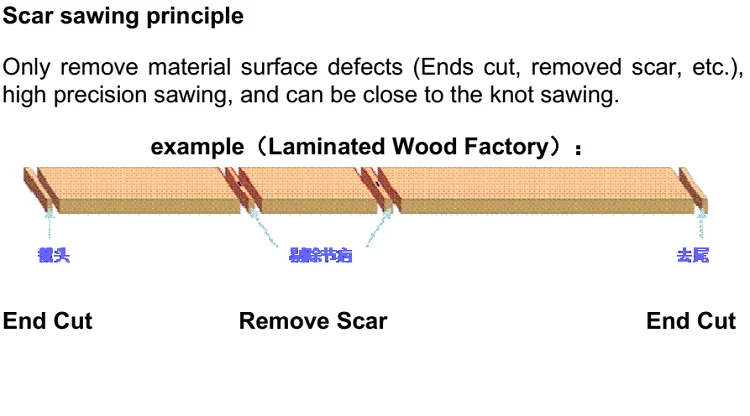

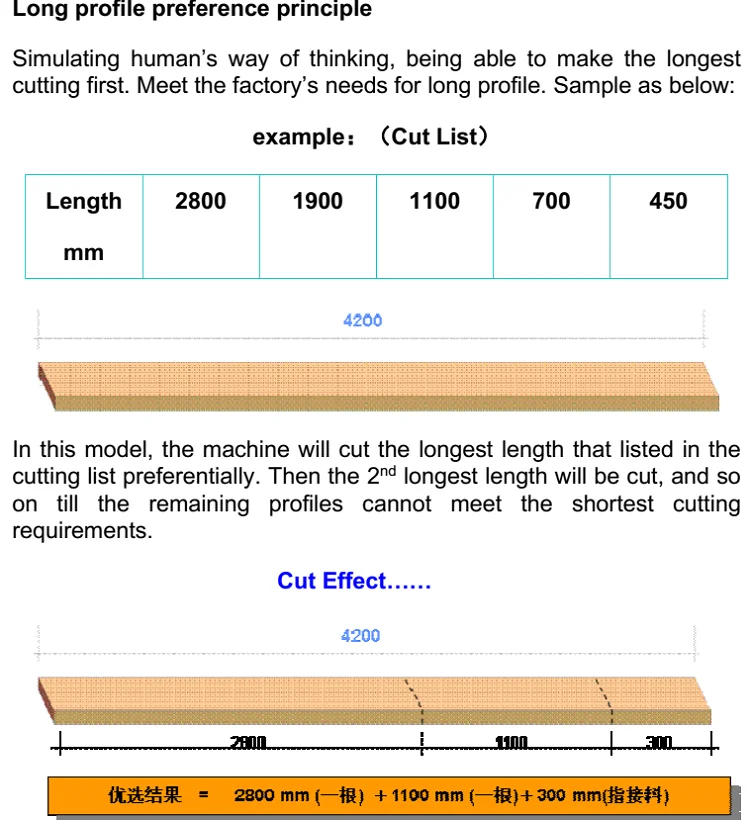

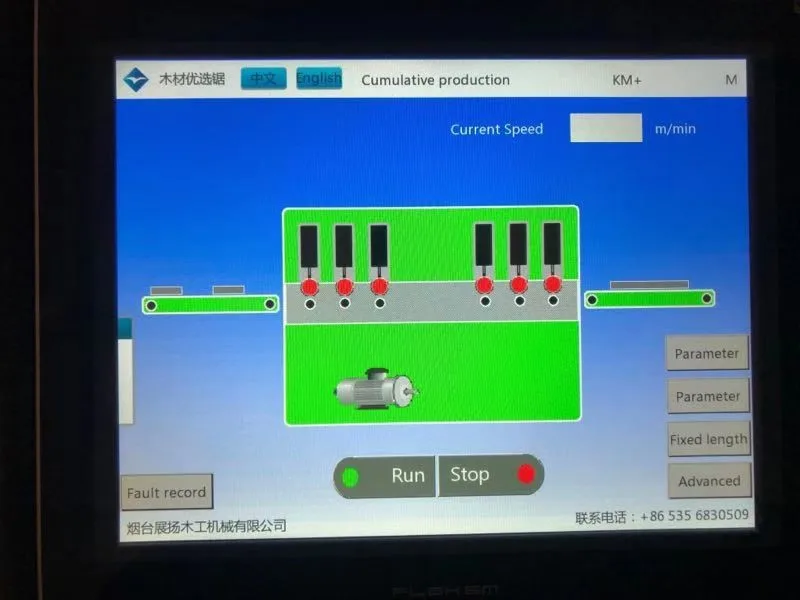

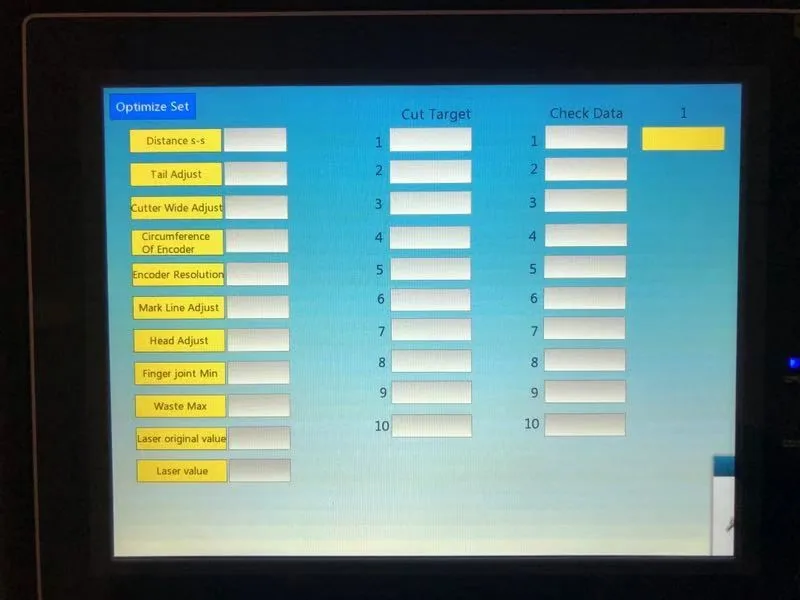

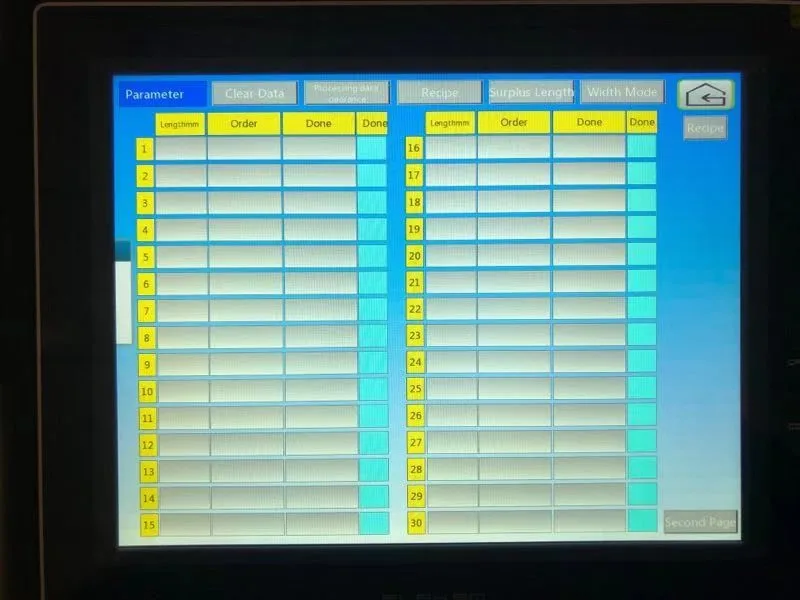

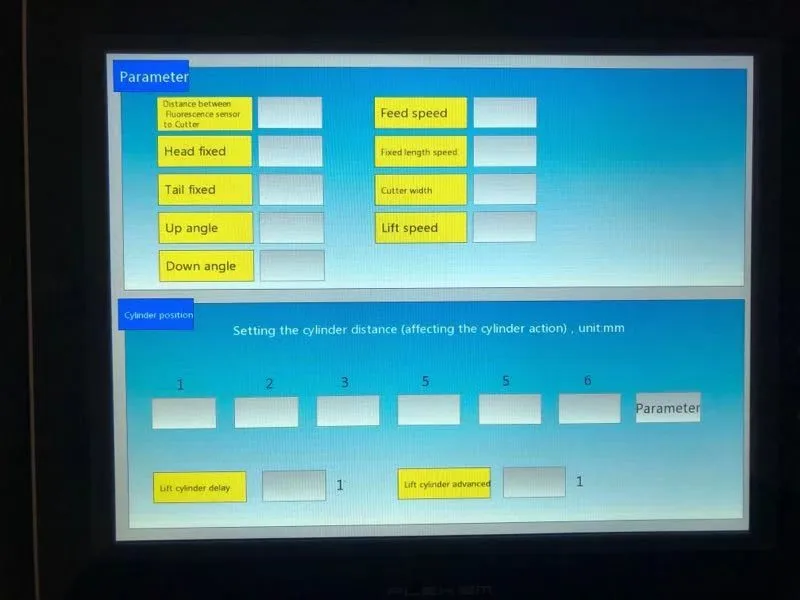

9. CNC System Interface
