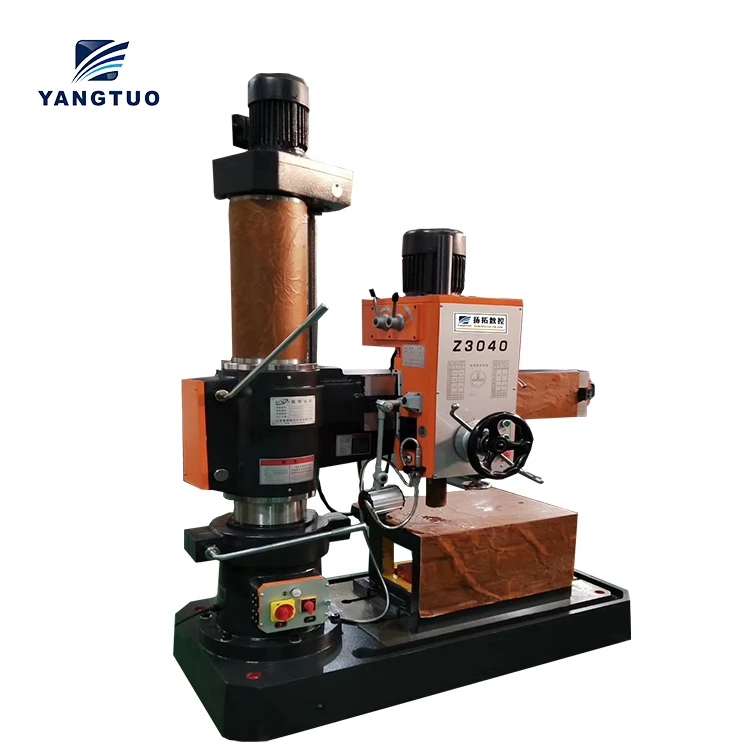

z3040 radial table arm drilling and milling machine
- Category: >>>
- Supplier: Shandong Yangtuo CNC Machine Tool Co. Ltd.
Share on (62328201953):
Product Overview
Description
Product Description

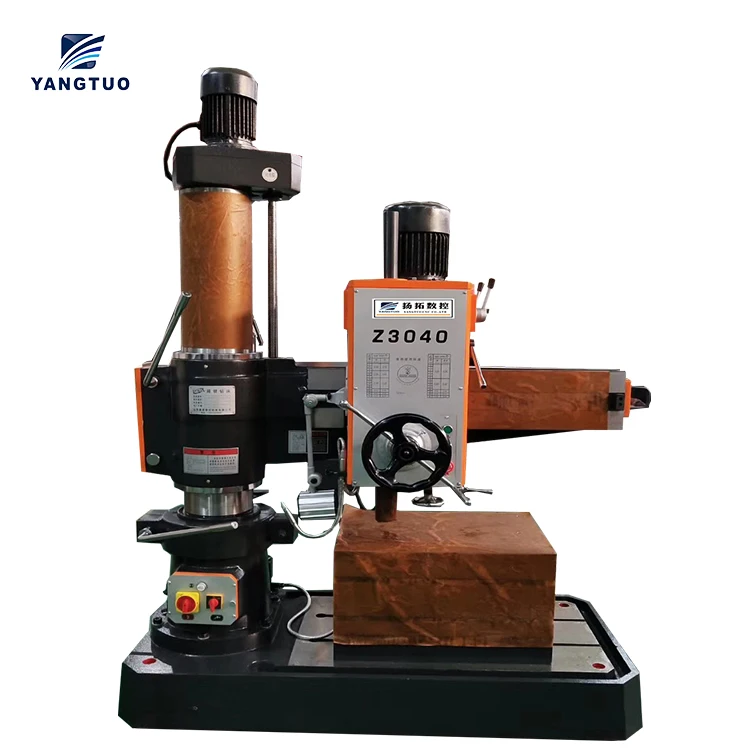

z3040 radial table arm drilling and milling machine

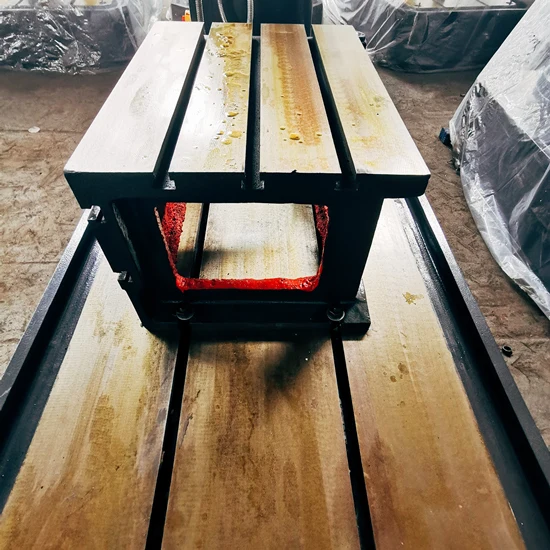

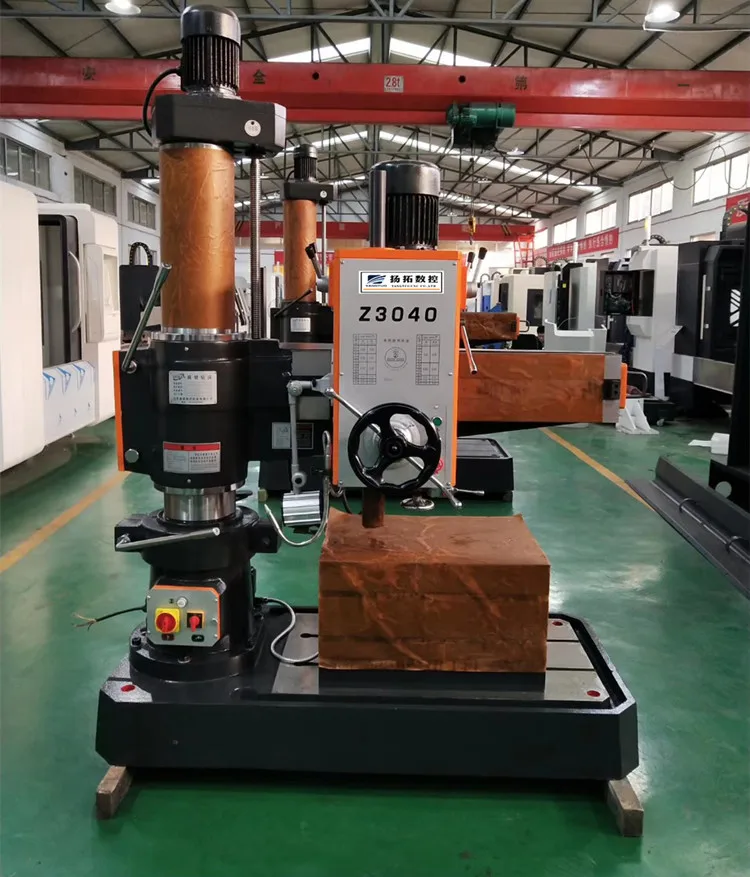

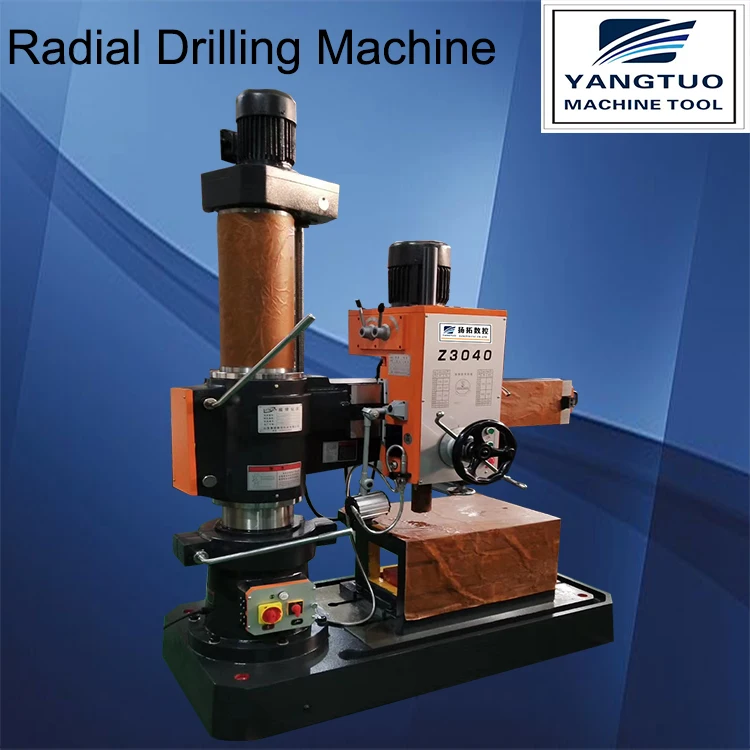

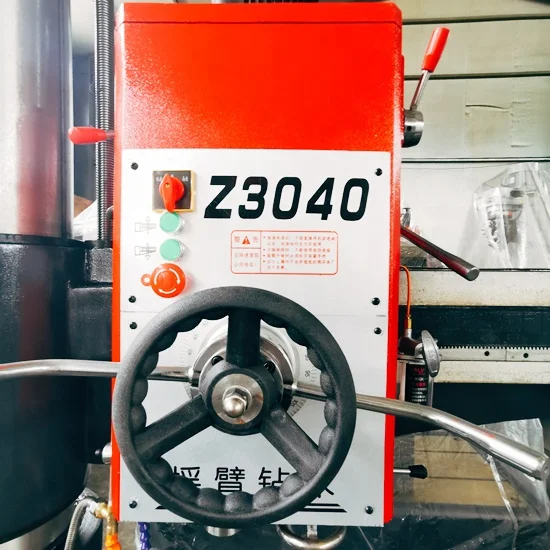

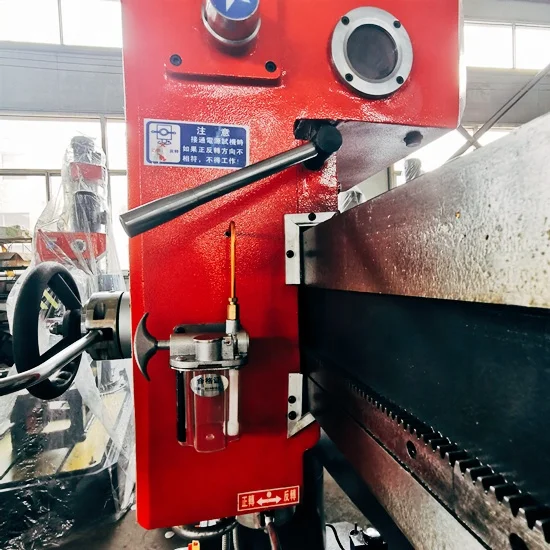

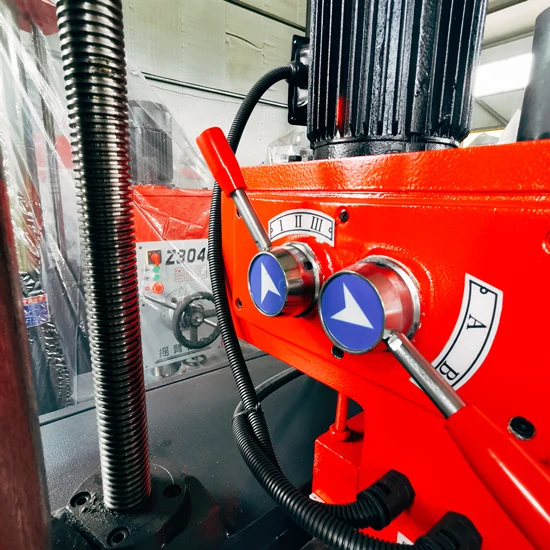

Detailed Images
The main performance characteristics：
Mechanical transmission
Mechanical clamping
Mechanical speed
Automatic take-off and landing
Automatic feed
Mechanical transmission
Mechanical clamping
Mechanical speed
Automatic take-off and landing
Automatic feed

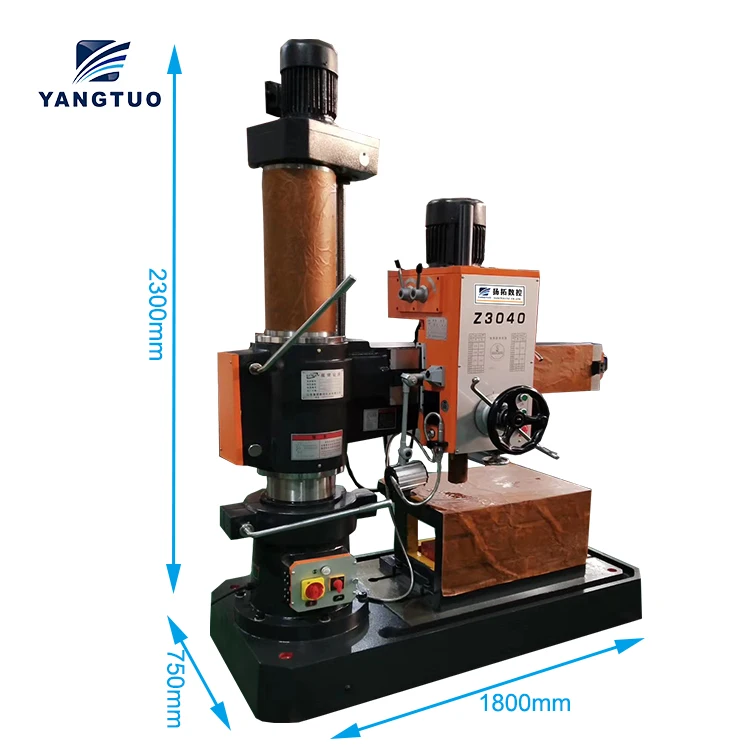

Size Information
SPECIFICATIONS | Z3040×11A |
Max.drilling dia (mm) | cast iron 40 / Steel32 |
Distance from spindle nose to table surface (mm) | 320-1200 |
Distance from spindle axis to column surface (mm) | 330-1100 |
Spindle travel (mm) | 200 |
Spindle taper(MT) | 4 |
Spindle speeds range (r.p.m) | 75,130,240,380,660,1200 |
Spindle speed steps | 6 |
Spindle feeding range(mm/r) | 0.10-0.25 |
Spindle feeding steps | 3 |
Rocker rotary angle (°) | ±90° |
Main motor power (kw) | 2.2 |
Movements motor power (kw) | 0.75 |
Weight (kg) | 1600 |
Overall dimensions (mm) | 1500×705×2200 |
Related Products
After Sales Service
one year During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express. Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you as usual.
FAQ
1.How to send my enquiry? You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype). 2 . How can I
choose the most suitable machines? Please tell us your requirement of the machine, or you can also send us the products drawing,
our engineer can help to choose the best model for you. 3: What's your main products of your company? A: We specialized in all
kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine
,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on . 4: What's the Payment Terms ? A : T/T ,30% initial payment
when order ,70% balance payment before shipment ; Irrevocable LC at sight . 5.Check the acceptance When receiving the goods,
please check product carefully: Whether there is packing damage, leakage and whether the goods are damaged; Whether product
quantity and accessories are same as required; Whether all machine details are fine If there is any problem about machine, please
take pictures and contact us immediately. 6.OEM Service We accept purchase orders with customers' brand or trade mark.
choose the most suitable machines? Please tell us your requirement of the machine, or you can also send us the products drawing,
our engineer can help to choose the best model for you. 3: What's your main products of your company? A: We specialized in all
kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine
,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on . 4: What's the Payment Terms ? A : T/T ,30% initial payment
when order ,70% balance payment before shipment ; Irrevocable LC at sight . 5.Check the acceptance When receiving the goods,
please check product carefully: Whether there is packing damage, leakage and whether the goods are damaged; Whether product
quantity and accessories are same as required; Whether all machine details are fine If there is any problem about machine, please
take pictures and contact us immediately. 6.OEM Service We accept purchase orders with customers' brand or trade mark.
