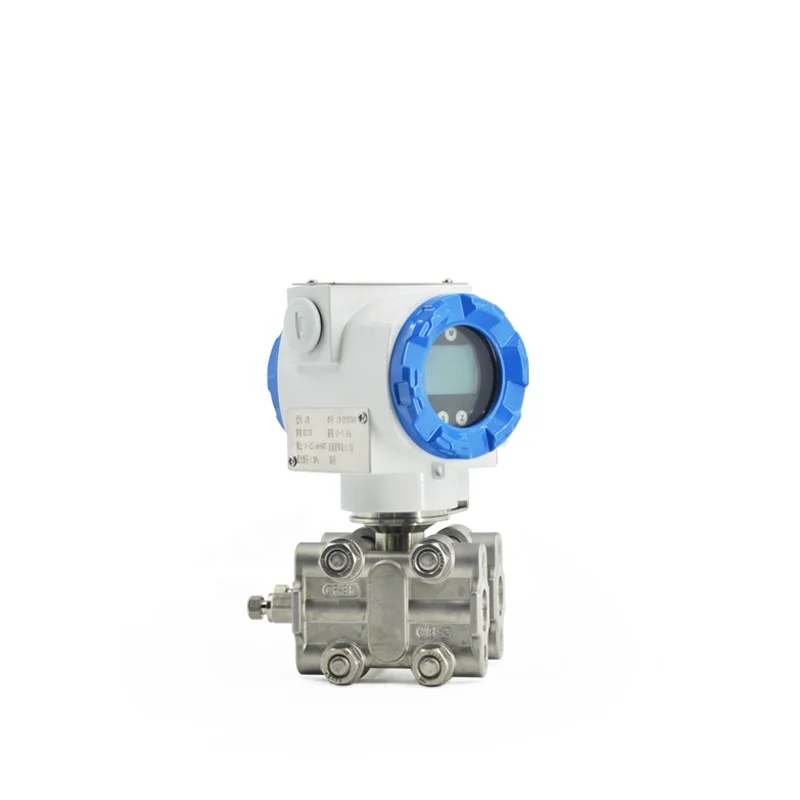

High Quality air pressure transmitter differential 4 20ma

Product Overview

Description

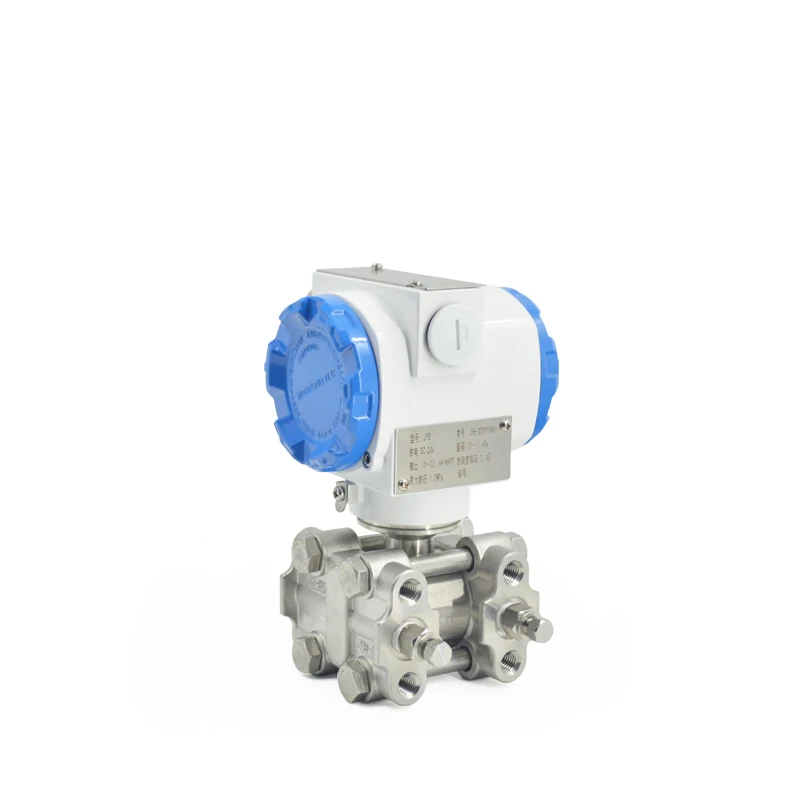

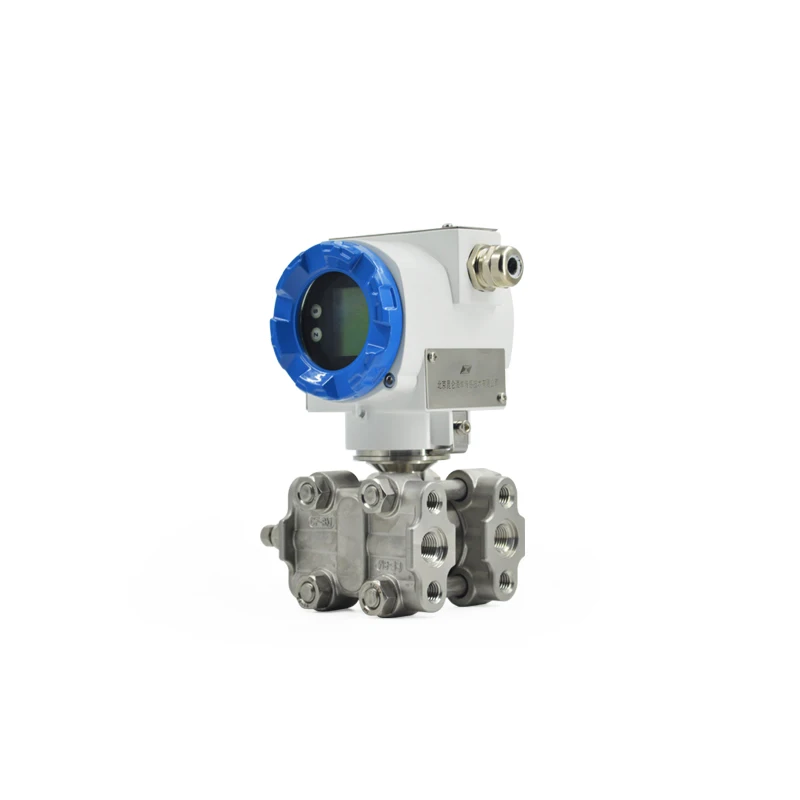

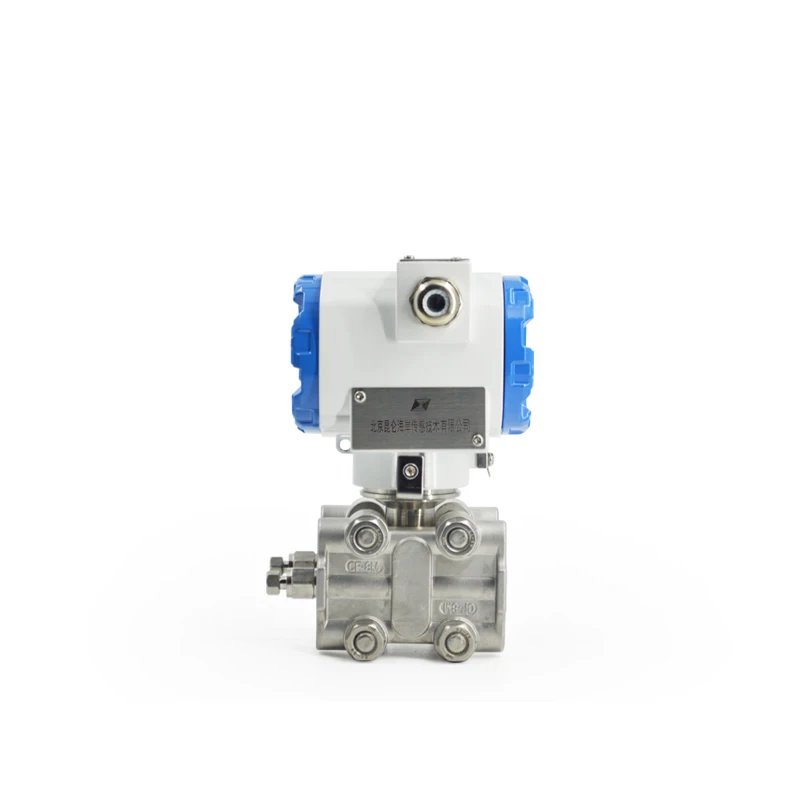

High Quality single crystal silicon differential pressure transmitter



technical parameters
Measuring the dielectric	It took me my whole life
range ability	0MPa~4MPa
output power	] two-wire system4-20MA
service voltage	ordinary type:DC10.5-45V
	Dear Sir/madam,:DC10.5-26Vload resistance0~600Ω(DC24V)
Length of communication line	longest2KM
saturation current	Upper limit 20.8MA lower limit 3.8MA
alarm current	Upper limit: 22.8MA lower limit: 3.6MA (mode can be set)
Adjustment function	Zero point and full range point can be adjusted locally by three buttons on the top of the shell or adjusted remotely by configuration software
Moving zero	It can be migrated within the range of -20%~+20% of the maximum range
environment temperature	(-40℃~85℃)
Installation position influence	The change of installation position in the direction parallel to the membrane one-sided will not cause zero drift. If the change of installation position and the membrane one-sided is more than 90°, the zero drift in the range of 0.4KPA can be corrected by zero adjustment
response time	≤90ms
damp	The time constant can be adjusted in 0~99.9 seconds





specifications and models					Product specification code
JYB-
	D3151				Intelligent single crystal silicon differential pressure transmitter
		O			ordinary type
			AH		two-wire system4mA~20mACurrent output stackHART
				1	0kPa~1kPa static pressure2MPa
				2	0kPa~6kPa static pressure3.5MPa
				3	0kPa~10kPa static pressure3.5MPa
				4	0kPa~40kPa static pressure3.5MPa
				5	0kPa~100kPa static pressure7MPa
				6	0kPa~400kPa static pressure7MPa
				7	0kPa~4MPa static pressure13MPa
