Product Overview
Description
Product Description

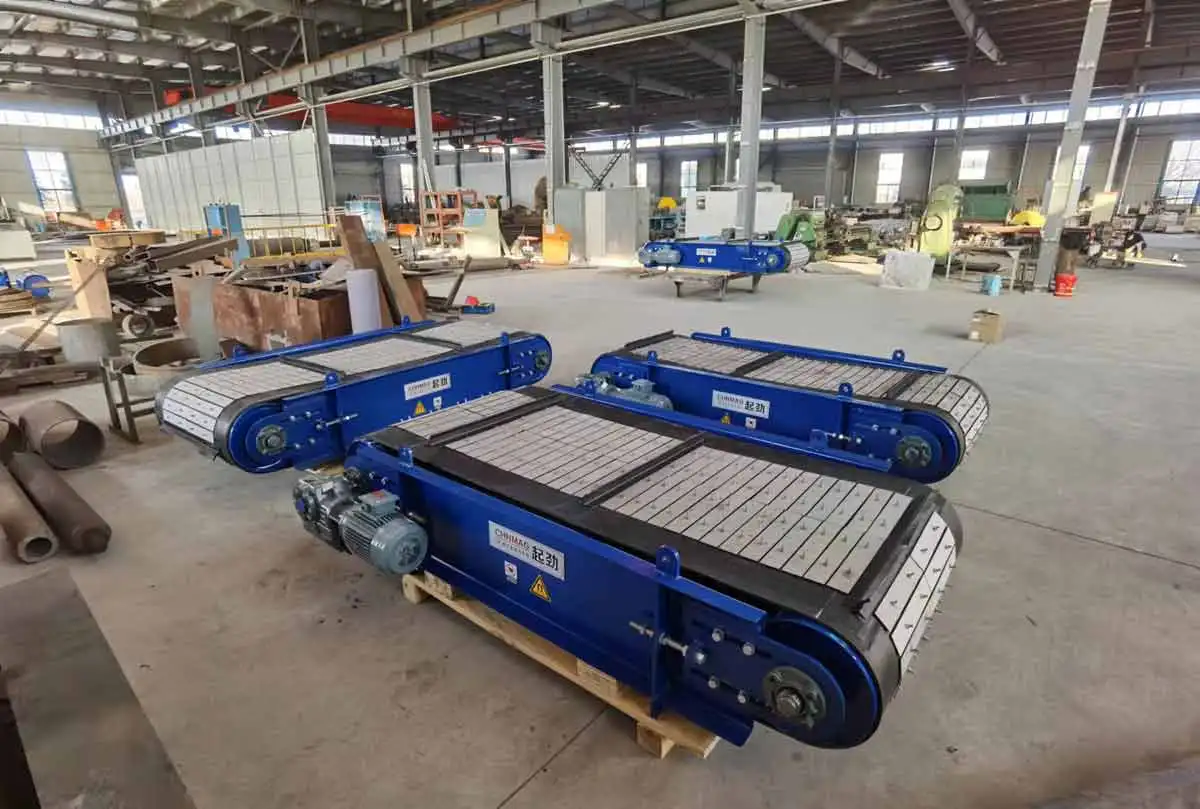

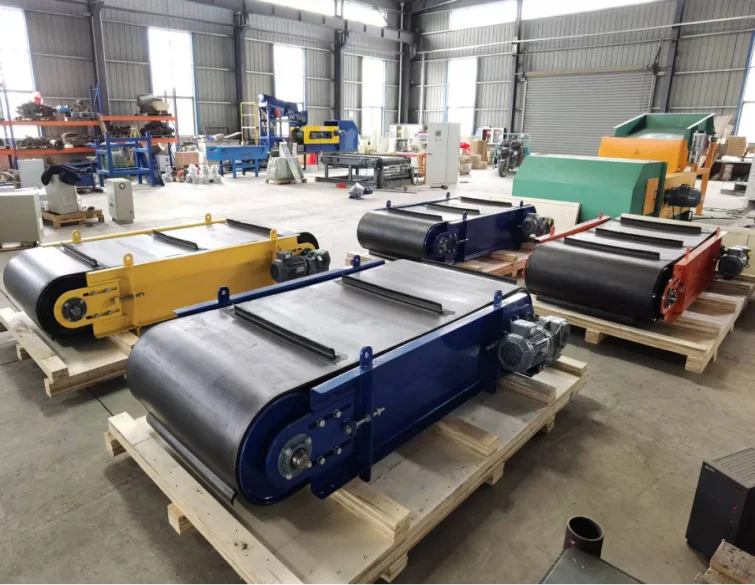

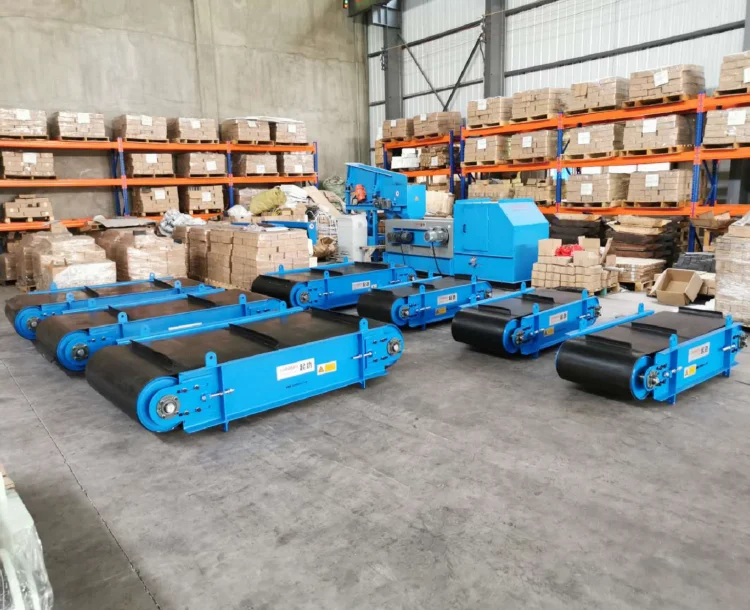

QJRCY-L Over band Magnetic Separator designed with strong and stable magnetic strength is used for separation of tramp iron from belt conveyed material stream.The advanced design and construction make it ideal for waste recycling, shredding,mining, woodchips and demolition applications.
Features:
1.Applicable for conveyor width from 500mm to 2000mm.
2.Deep reaching magnetic circuit design to penetrate heavy product burdens.
3. Stainless steel support frame.
4.Special sealed bearing block ensure the stable working in harsh environment.
5.Easy belt deviation adjustment with screw fasten.
6.Magnetic force will not decrease more than 5%within 10 years.
1.Applicable for conveyor width from 500mm to 2000mm.
2.Deep reaching magnetic circuit design to penetrate heavy product burdens.
3. Stainless steel support frame.
4.Special sealed bearing block ensure the stable working in harsh environment.
5.Easy belt deviation adjustment with screw fasten.
6.Magnetic force will not decrease more than 5%within 10 years.
Optional Configuration:
·Electric or Hydraulic Driven Motor
·Ferrite Or Rare Earth Magnet System
·Protection Cover for Belt Running
·Stainless Steel Armed Belt
·Electric or Hydraulic Driven Motor
·Ferrite Or Rare Earth Magnet System
·Protection Cover for Belt Running
·Stainless Steel Armed Belt
Support Frame
Stainless Steel Frame will under sand blasting before painting process

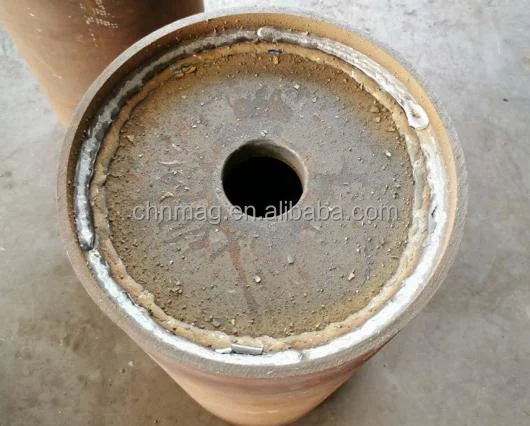

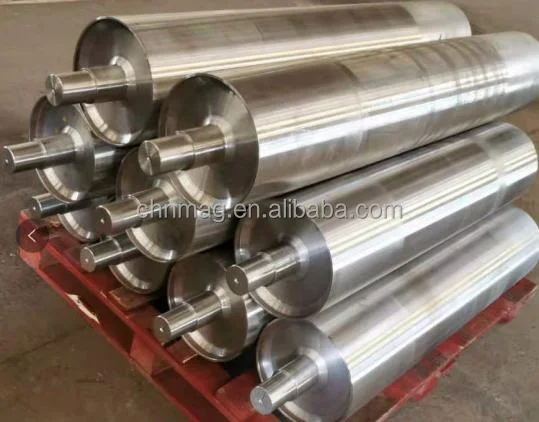

Drums Welding
High Thickness Shell and Strong Welding to make sure it endure all life span

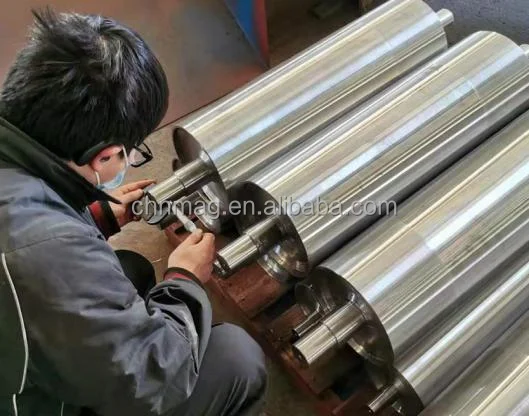

Drum Finishing
Perfec Lathing after welding make sure the surface is clean and even welding seam is ourstandingly pretty
Shaft
Drum shaft is connect to drum via shaft capt lockers, not welding.

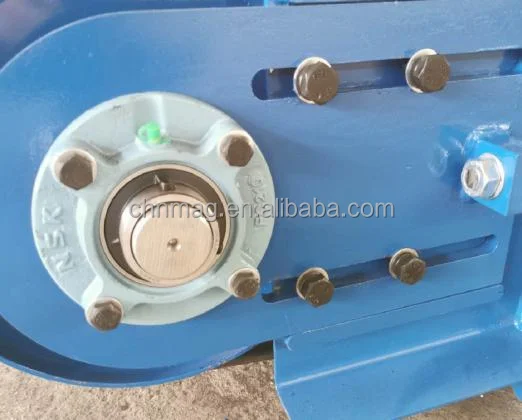

Bearing
Robust bearing and drum support plate

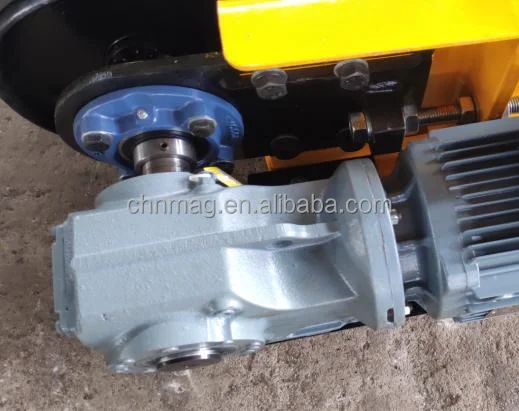

KA helical-bevel gear units
KA helical-bevel gear ensure the high effiency and long life span
Model | Applicable conveyor width | Applicable conveyor speed | Material burden depth | Rated suspended height | Motor power | |||||
QJRCY-L-50 | 500mm | ≤4.5m/s | ≤100 | 180mm | 1.5kw | |||||
QJRCY-L-65 | 650mm | ≤150 | 200mm | 1.5kw | ||||||
QJRCY-L-80 | 800mm | ≤200 | 250mm | 2.2kw | ||||||
QJRCY-L-100 | 1000mm | ≤250 | 300mm | 3.0kw | ||||||
QJRCY-L-120 | 1200mm | ≤300 | 350mm | 4.0kw | ||||||
QJRCY-L-140 | 1400mm | ≤350 | 350/400mm | 4.0kw | ||||||
QJRCY-L-160 | 1600mm | ≤400 | 350/400/450mm | 5.5kw | ||||||
Optional: T series applicable for the high materials thickness and high material density application T1-700 Gauss/T2-900 Gauss | ||||||||||

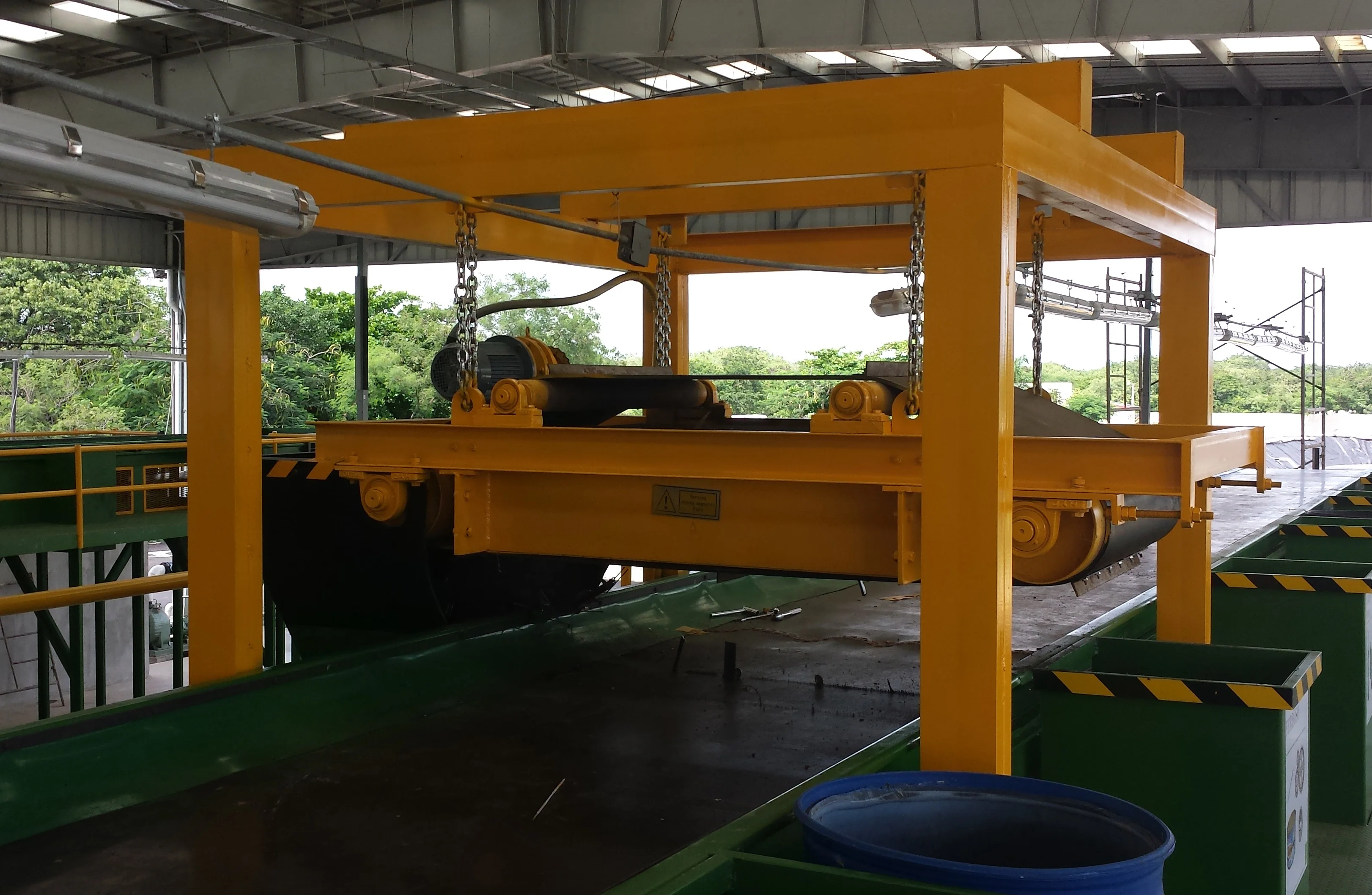

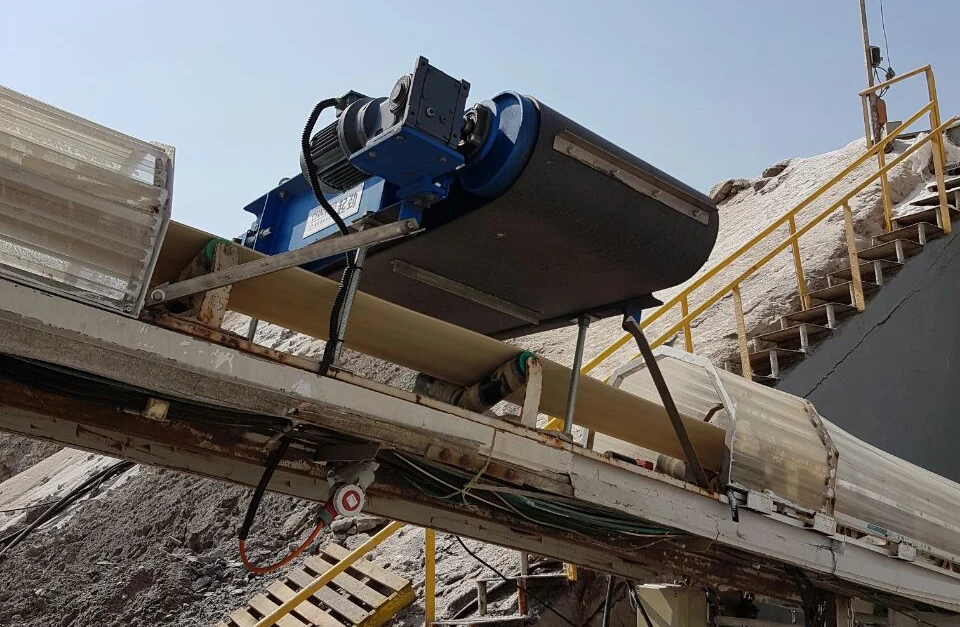

Working SIte Photo
Installation Instructions
Related Products
Packing&Shipping
Company Introduction
QIJIN MAGNET CO.,LTD is a high-tech enterprise devoted to manufacturing high-end permanent magnetic equipment and magnets. Our company covers an area of 15,000 sqm with modernized workshops and we have successfully designed and built several magnetic separation lines in more than ten countries such as Mexico, the Philippines, Indonesia, India, etc.Our magnetic separators have been exported to more than 40 countries and commonly applied in raw material recovery, metal recycling industry, waste industry, refuse processing and mining industry to select magnetic materials out of material stream or to purify material.Our major products are wet permanent drum magnetic separator, dry permanent drum magnetic separator, over band magnetic separator and suspended magnets. All these equipment can be designed and manufactured in accordance with the specific requirements of our customers.Any question regarding our products, please contact us without hesitation.
Exhibition

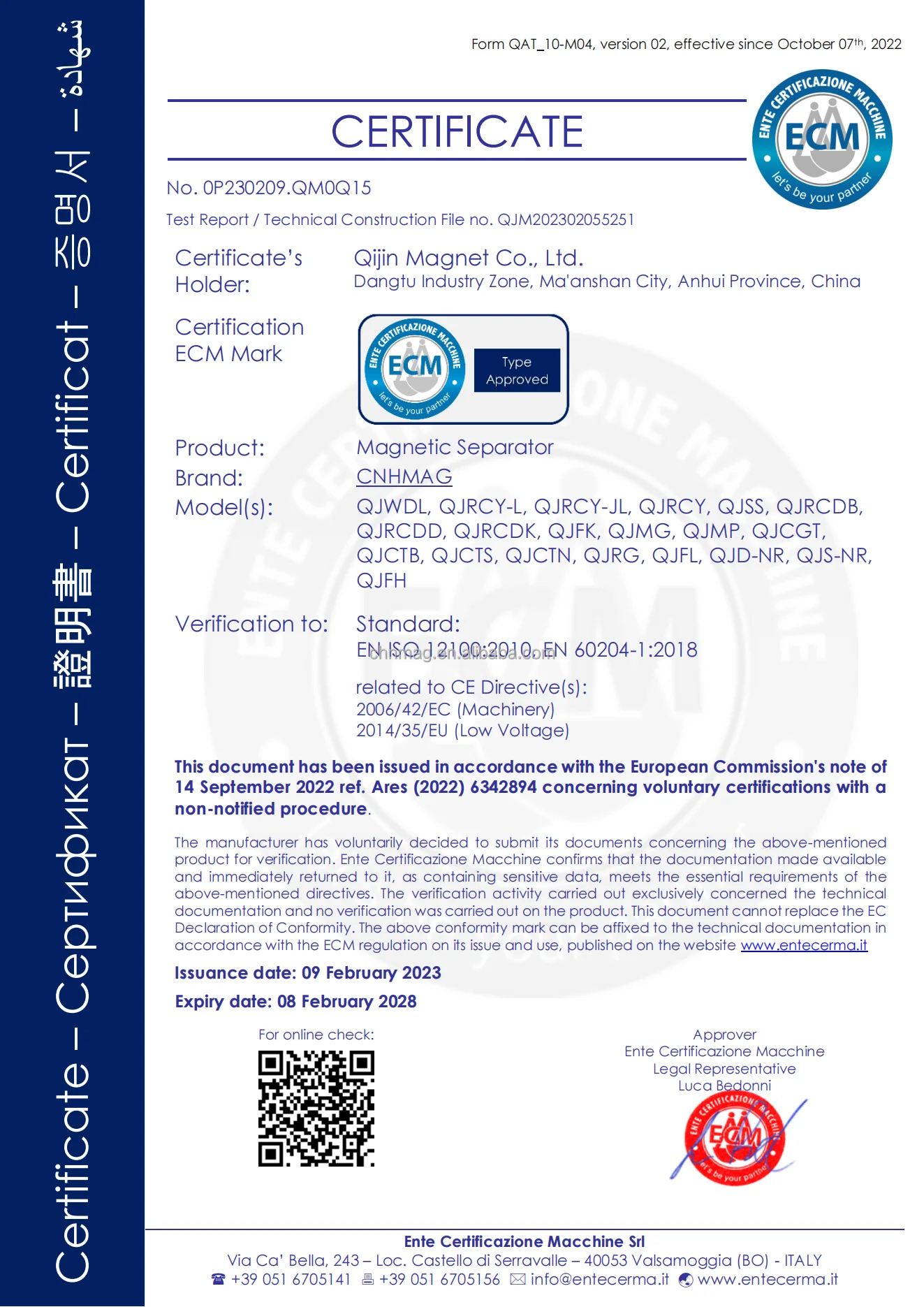

Certifications
