HDV S2 1080P 3D FULL HD 4 Port 4K HDMI Splitter 1x2 HDMI Splitter
- Category: >>>
- Supplier: Shenzhen Langcen Technology Co. Ltd.
Share on (62328617277):
Product Overview
Description
Product Description
This is a 1X2 HDMI splitter that supports full HD and 3D, which can distribute one signal source to two HD display terminals such as monitor or projector.
HDMI resolution | 24/50/60fs/1080P/1080i/720p/576p/576i/480P/480i,1080P,4K×2K |
Video color format | 24bit/ 30bit/ 36bit /48bit |
Audio format | DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD |
Max bandwidth | 340MHz |
Max transmission speed | 10.2Gbps |
Input/output TMDS signal | 0.5-1.5Vp-p(TTL) |
Input/output DDC signal | 5Vp-p(TTL) |
Input cable length | ≤15m AWG26 HDMI standard cable |
Output cable length | ≤15m AWG26 HDMI standard cable |
Max working current | 500mA |
Power adaptor | AC input: 100~240V 50/60HZ; DC output: 5V/1A |
Working temperature | -15 to +55℃ |
Working Humidity | 5 to 90%RH (non-condensing) |
Dimension | 154X52X26(mm) |
Product weight | 86g |

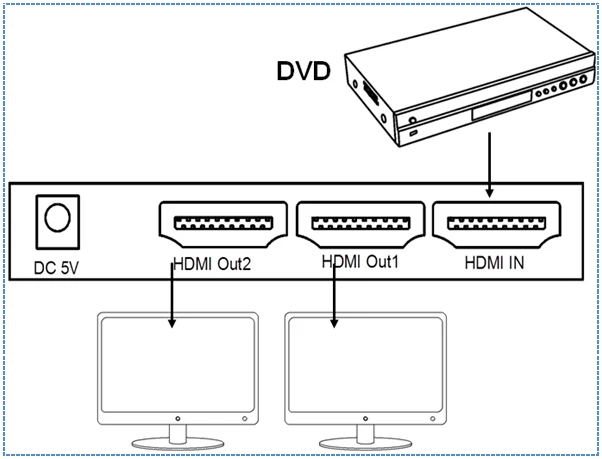

Connection Diagram:
FAQ
Are you a manufacturer?
Yes. We have own technical team and production line,Our company have over 200 kinds of product for your choice.
Can I get a sample?
Yes.Our MOQ is 1PC.We are pleasure to offer you samples.
How about the payment terms?
We've accpet T/T,paypal,western union,Credit card.
Where's your company?
6th Floor East,Building A2, ZhongTai Information Technology Industrial Park,Shiyan Street,Baoan District,Shenzhen, PRC
We are sincely welcome you visit us.
