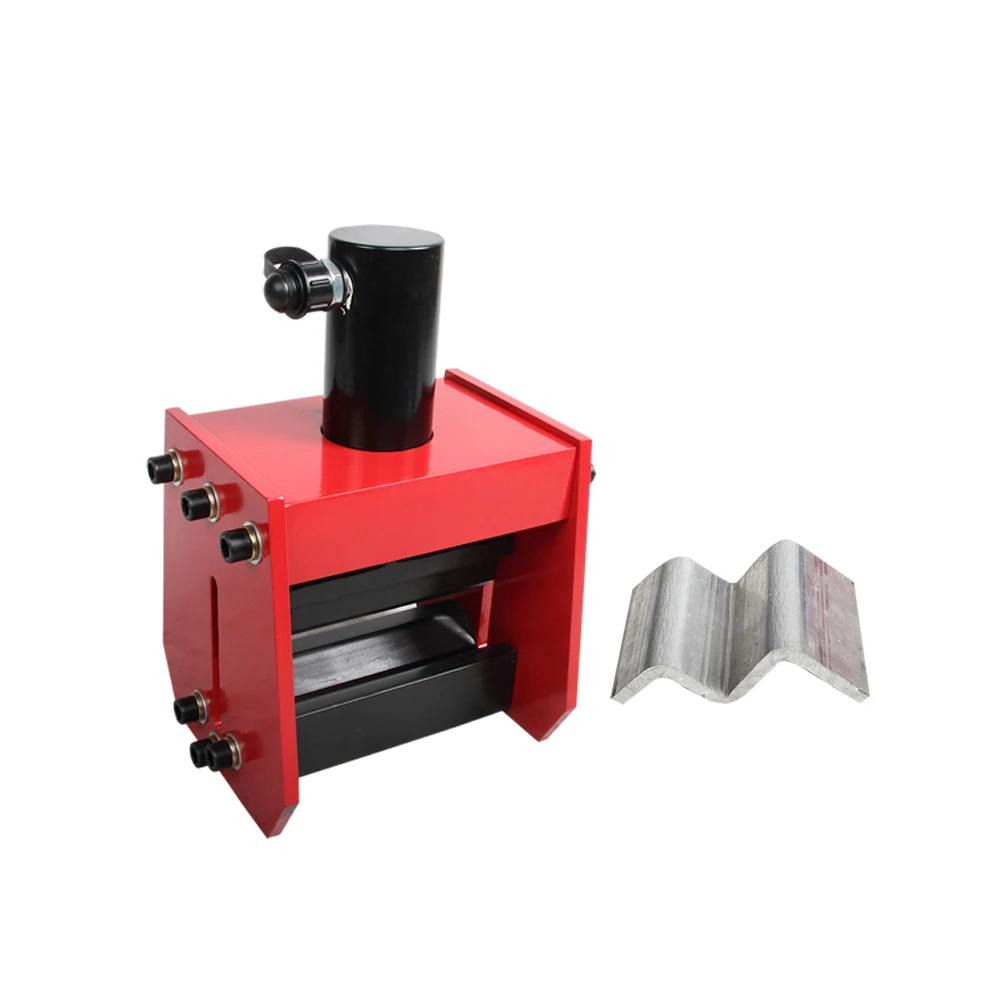

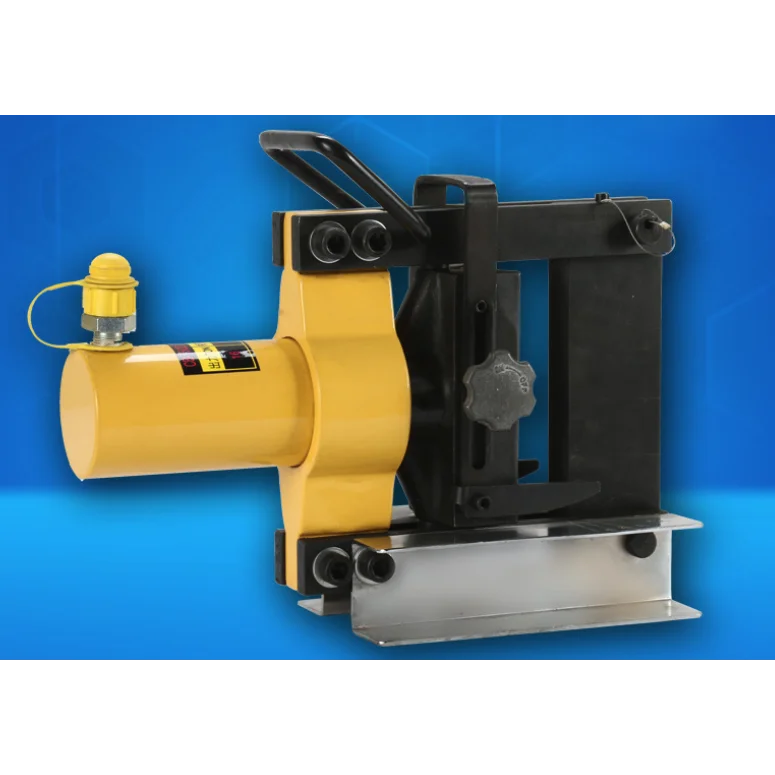

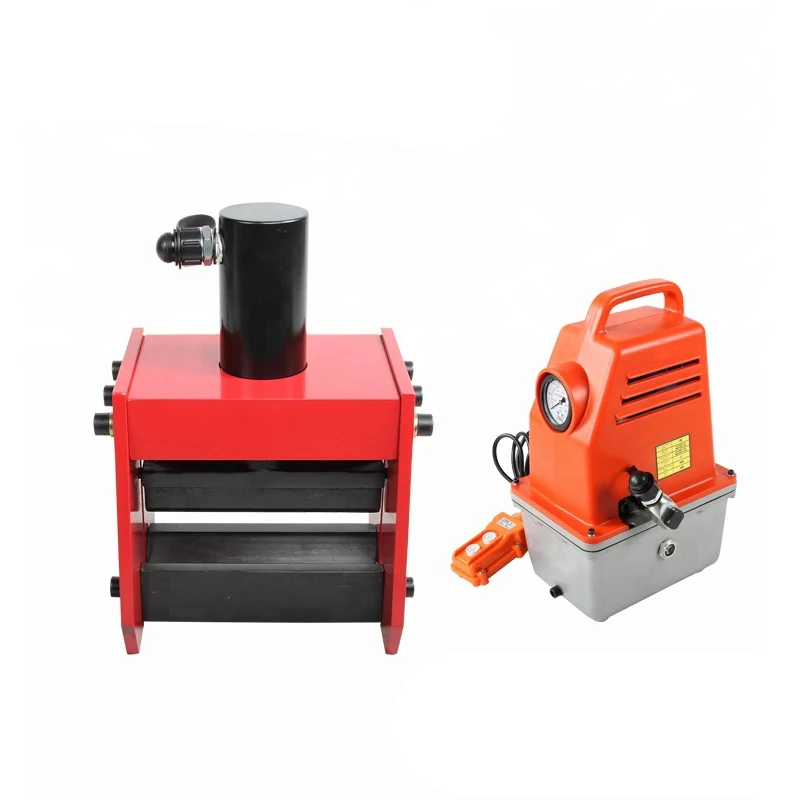

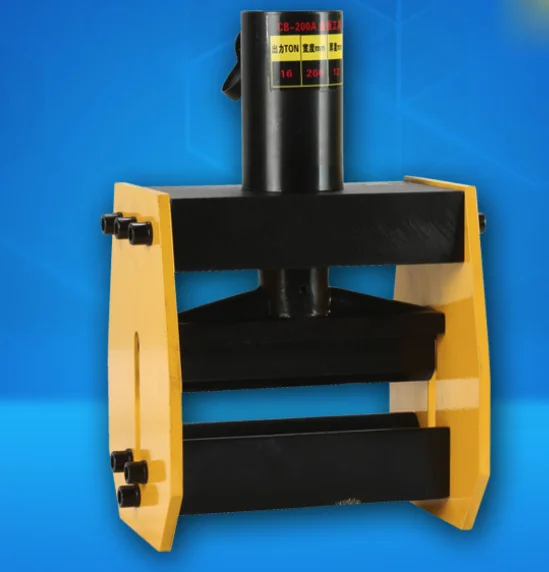

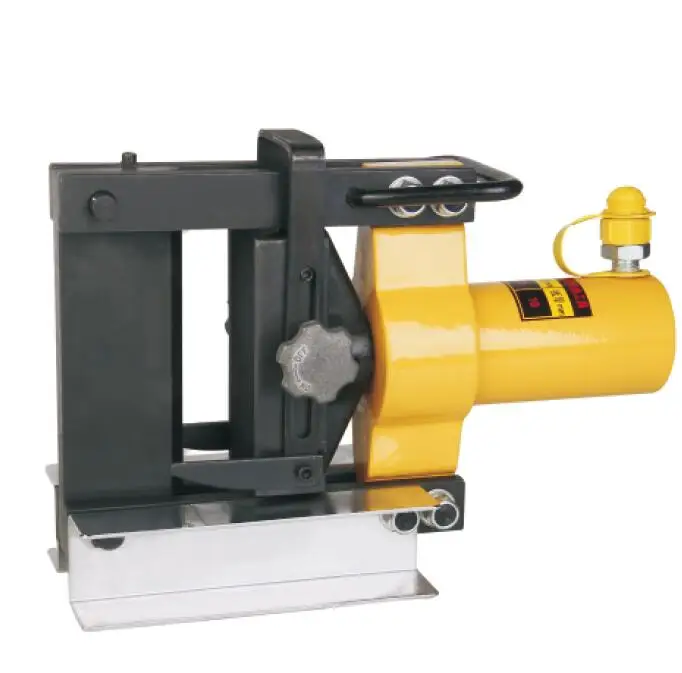

CB 200A Copper And Busbar Bending Process Machine
- Category: Bending Machines >>>
- Supplier: Xianheng International Science&Technology Co. Ltd.
Share on (62328645778):
Product Overview
Description
Technical Data:
Model | CB-150D | CB-200A |
Cutting force | 170KN | 170KN |
Max thickness | Cu/Al 10mm | Cu/Al 12mm |
Max. width | 150mm | 200mm |
Height | Approx. 250mm | 340mm |
Weight | 17kg | 27kg |
Packing | Wooden case | Wooden case |
Features:
1. Bend Cu and al busbar, etc
2. With angle scale on to see bending angle; Max. bending angle up to 90°
3. Portable for mobile operation, also suitable to fix in workshop for batch bend work
4. Make the finished bending surface smooth without wrinkle
5. With quick coupler for easy disassembly
6. Powered by single acting hydraulic pump
1. Bend Cu and al busbar, etc
2. With angle scale on to see bending angle; Max. bending angle up to 90°
3. Portable for mobile operation, also suitable to fix in workshop for batch bend work
4. Make the finished bending surface smooth without wrinkle
5. With quick coupler for easy disassembly
6. Powered by single acting hydraulic pump
