We use best imported Fiberglass yarn as the weaving material to plain knit or specially knit into superior fiberglass basic cloth, coat it with fine PTFE resin then make it into various PTFE fabric in different thickness and widths.


111



Styles and Specifications of Hot sale PTFE coated fiberglass cloth for ptfe fabric coating process : |
Item | Color | Thickness | Max Width | Weight | Tensile Strength | Temperature resistance(℃) |

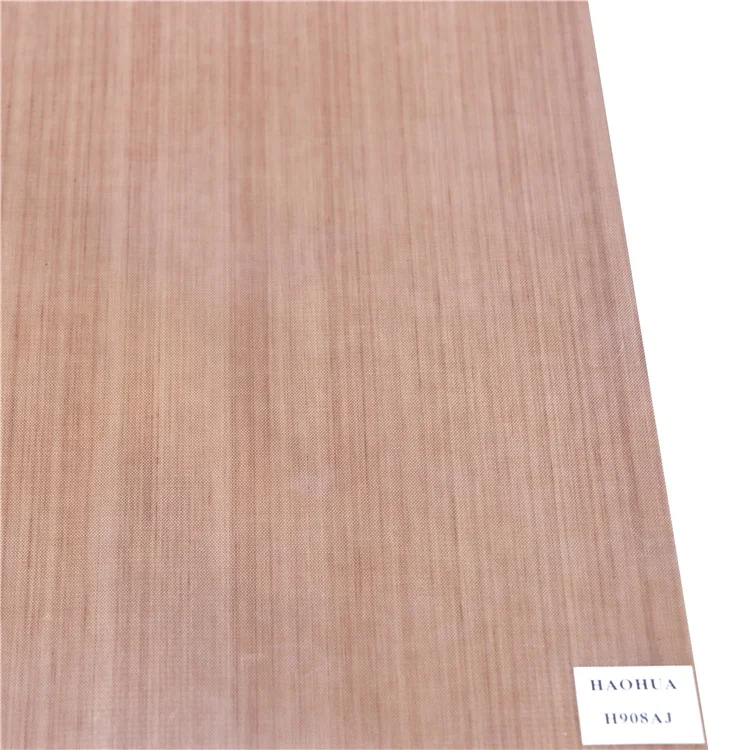

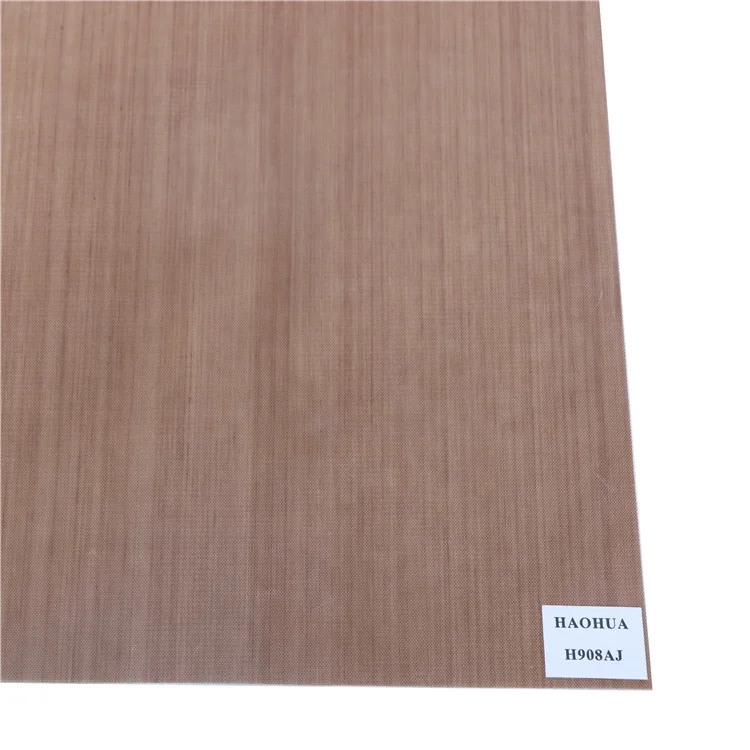

H908AJ | brown | 0.08mm | 1.25m | 165g/sqm | 550/450N/5cm | -70 to 260 |
H908BJ | black | 0.08mm | 1.25m | 170g/ sqm | 550/450N/5cm | -70 to 260 |
H913AJ | brown | 0.13mm | 1.25m | 260g/sqm | 1100/1000N/5cm | -70 to 260 |
H913BJ | black | 0.13mm | 1.25m | 275g/sqm | 1100/1000N/5cm | -70 to 260 |
H915AJ | brown | 0.15mm | 1.25m | 380g/sqm | 1200/1000N/5cm | -70 to 260 |
H918AJ | black | 0.18mm | 1.25m | 395g/sqm | 1800/1700N/5cm | -70 to 260 |
H925AJ | brown | 0.25mm | 3.20m | 490g/sqm | 2100/1800N/5cm | -70 to 260 |
H925BJ | black | 0.25mm | 3.20m | 510g/sqm | 2100/1800N/5cm | -70 to 260 |
H935AJ | brown | 0.35mm | 3.20m | 660g/sqm | 2600/2300N/5cm | -70 to 260 |
H935BJ | black | 0.35mm | 3.20m | 680g/sqm | 2600/2300N/5cm | -70 to 260 |
H940AJ | milk white | 0.40mm | 3m | 780g/sqm | 3000/2500N/5cm | -70 to 260 |
H940BJ | black | 0.40mm | 3m | 820g/sqm | 3000/2500N/5cm | -70 to 260 |
H965AJ | milk white | 0.65mm | 3m | 1150g/sqm | 4400/4000N/5cm | -70 to 260 |
H990AJ | milk white | 0.90mm | 3m | 1550g/sqm | 6000/5000N/5cm | -70 to 260 |
H990BJ | black | 0.90mm | 3m | 1650g/sqm | 6000/5000N/5cm | -70 to 260 |
Features of PTFE Coated Fiberglass Fabric:
1. stable dimenson, high intensity, elongation coefficient less 0.5%.
2. good temperature resistance, 24 hours working temperature -70-260 degree C.
3. low coeffcient of friction and dielectric constant, good insulating ability.
4. non stick, easy to clear stains and adhesives on the surface.
5. good chemical resistance, it can resist all most of chemical medicines, acids, alkalis, and salt, it is fireproof, low erinaging.
PTFE coated fiberglass fabric applications:
PTFE fabric could be used as various of liners to resist high temperature, such as microwave liner, oven liner, or other liners. used as non stick liners, intermediate. used as various conveyor belts, fusing belts, sealing belts or anywhere need resisting high temperature, non stick, chemical resistance etc. used as covering or wrapping material in petroleum, chemical industries, as wrapping material, insulating material, high temperature resistance material in electrical industries, desulfurizing material in power plant etc.
1. Is the PTFE fiberglass mesh belt a UV mesh belt?
The UV mesh belt is a mesh conveyor belt used in the UV curing machine. The PTFE glass fiber mesh belt is made of glass fiber or aramid as the base material and woven into a mesh base cloth to coat the excellent high quality PTFE resin. Commonality is grid
2. Are you a factory? where are you?
We are a manufacturer located in Chengdong Environmental Protection Industrial Park, Taixing City, Jiangsu Province. It takes about 1~2 hours from Shanghai to our factory.
3. Packaging and shipping.
Normal packaging: carton (including unit price)
Special packaging: you need to charge according to the actual situation.
Normal shipping: FedEx is also your designated freight forwarder.
4. What is the use of your PTFE coated fiberglass?
Suitable for heat sealing packaging machines, plastic molded products, etc.
5. What is the product range of your company?
We specialize in producing all kinds of PTFE and silicone coated fiberglass fabrics.
Polytetrafluoroethylene fiber tape, PTFE tape, PTFE grille mat, etc.
