Solar street light jinsdon solar street light jd 650 50w solar street light jd jindian

Share on (62328826306):


Price:RUB 7,651.02

Quantity:


Product Overview

Description

Product Description

Solar street light jinsdon solar street light jd-650 50w solar street light jd jindian

solar street light jinsdon

180lm/W super bright integrated all in two solar street light

Product Detail

Led chip brandUSA Bridgelux 210lm/W
Solar Panel18V60W mono
ControllerMPPT
BatteryLithium battery(LiFeP04)18ah/12.8v
Back up days3 days
Maintenance8 years free maintenance
Working ModeFull power and dim mode
Lamps materialAluminium alloy
Mounting height4-5m
Distance between poles12-15m
Product Keywords solar street light jinsdon,solar street light jd-650 50w,solar street light jd jindian

Lower Operation Cost: It is less expensive to operate a solar powered street light than a traditional street light.

Compact Design: Our design and technology implementation have been driven by our desire to eliminate the need for bulky external battery boxes and external solar panels and achieve All in One Solar Powered Street Light.

Reduced Damage/Theft: By locating directly on the light fixture and placing the battery within, the risk of damage, theft or tampering is greatly reduced. There are no wires in the street pole, which means that the wire itself (which exists in regular street lights) can’t be stolen and sold for scrap.

Ruggedized Technology: Require less maintenance and reduced parts replacement due to initially incorporating higher quality components.

Insect Swarms: The solar powered street light uses LED lighting which does not produce Infrared light, and therefore will not attract insects.

Improved Safety: The solar powered street light does not require connection to an electrical grid. It is safer and easier to install. In the event of a power outage, the light remains on. This reduces the chance of accidents and the constant light deters theft/vandalism.

Anywhere/anytime: The solar powered street light can be used in any location. Since no electrical grid is required, it can be installed on buildings, in parking lots, in remote locations simply by hanging it on a pole.

Faster Installation: Since you don’t need to trench power lines to the pole, run wires up the pole, connect wires to an electrical grid, or hard wire the street light, the installation is significantly faster. In fact, it is so easy, it can be installed on the pole before it’s erected, and thereby reducing a step completely from the process.


  Data sheet


Lighting Time10-14hrs/day(adjustable),3-7 rainy days back-up

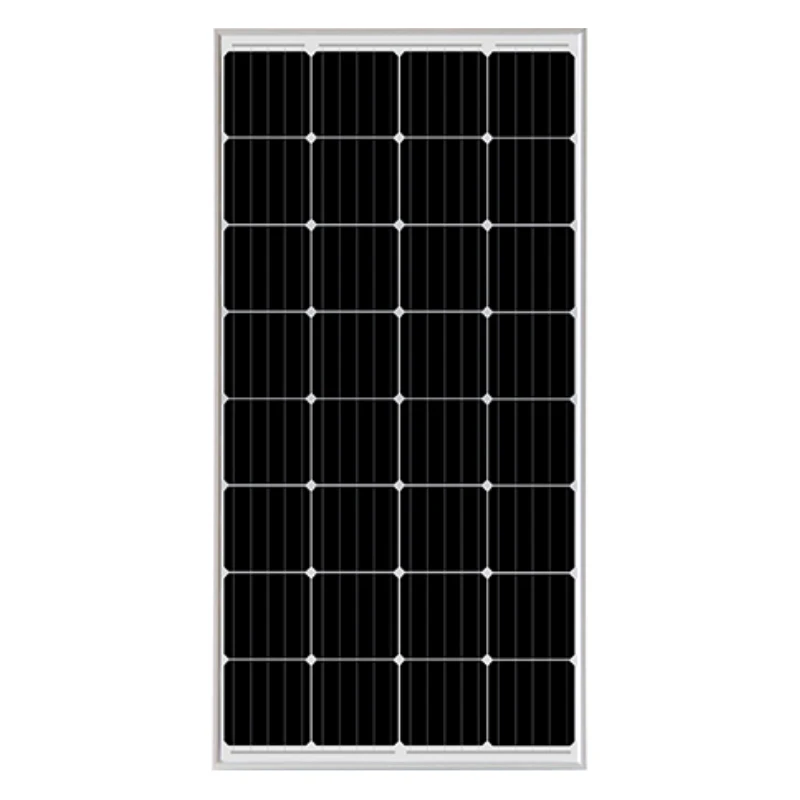

Solar PanelPoly solar panel 60w(optional)*1pcs,high efficiency,life span >25years 80% rated output power

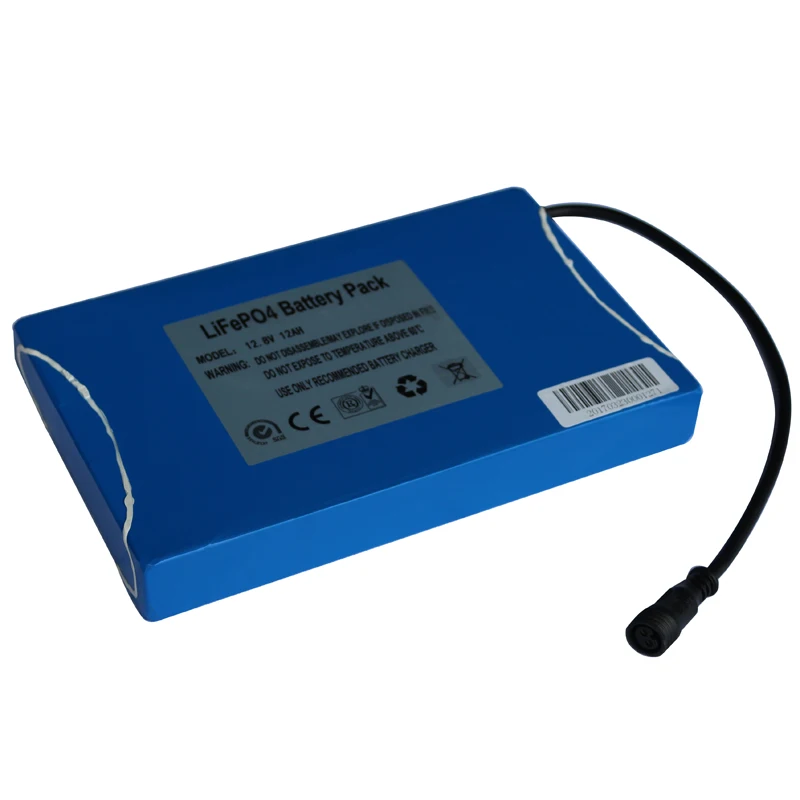

Batterylithium battery 1pcs,free maintenance,better weather-ability(-30ºC to +70ºC)
Deep cycle 3500 times @ 20% DOD,low self discharge rate,life span>8 years

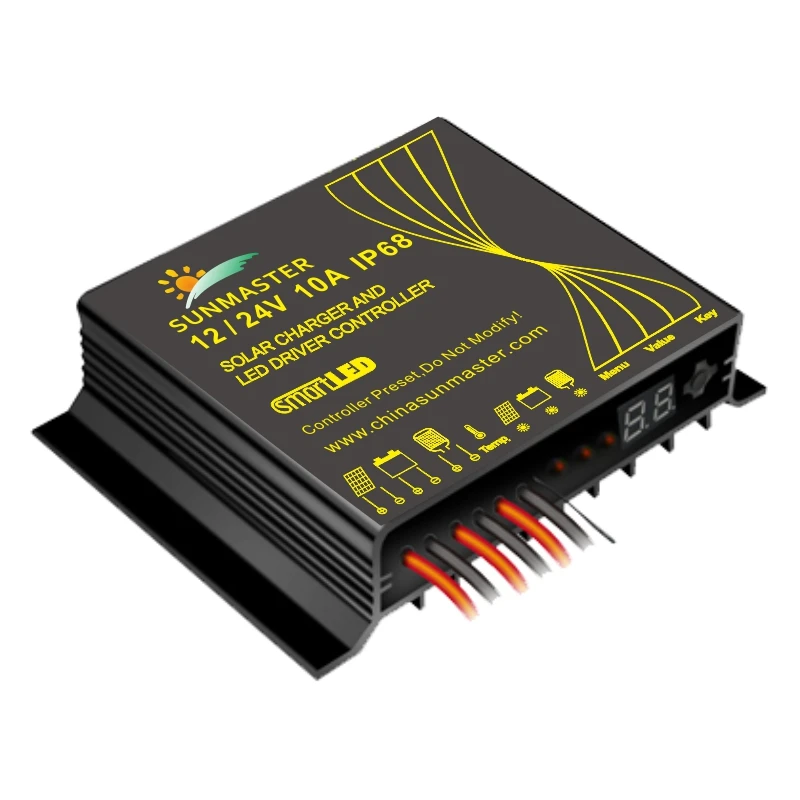

Solar Controller

MPPT/PWM,intelligent output power control,light on/off+time off,remote control,waterproof IP68

over-charge/discharge/over heat/over load/short circuit/anti-reverse protections,life span:>10 years

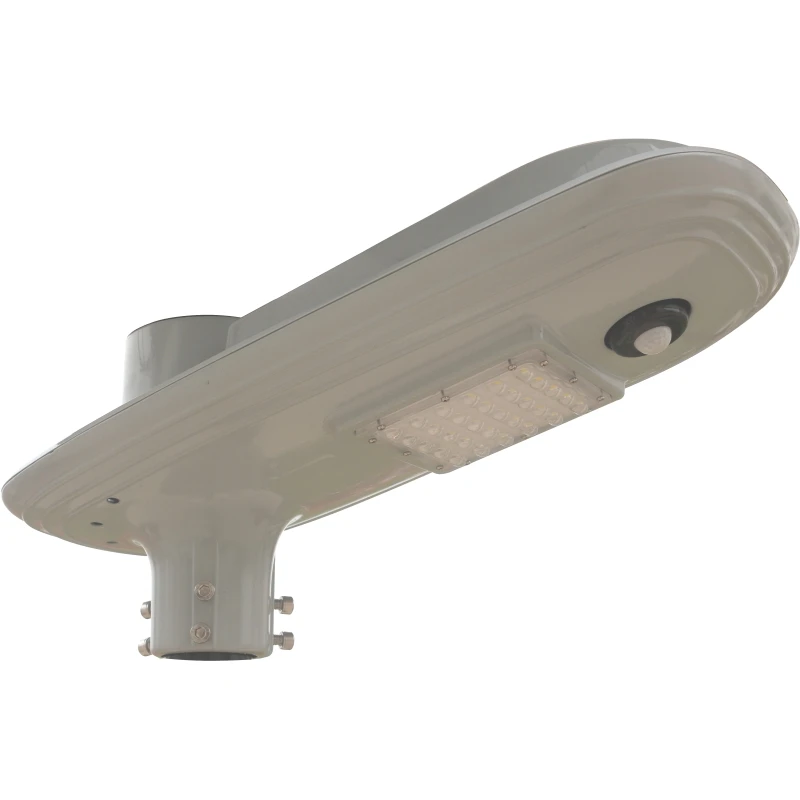

LED Lamp

LED power 30w,USA Bridgelux LED chip efficiency 200lm/w,Whole LED lamp efficiency 180lm/w,

IP65 or higher,CRI>70Ra,C.T. 3000-6500k(optional),life span>100,000hrs

Light Pole

Q235 steel material,hot-dip galvanized and powder coating,equipped with lamp arm/solar panel

mounting bracket/flange/fittings/foundation kit,wind resistance>150km/h,life span>20 years


  FREE PROJECT EVALUATION AND DESIGN


solar street light jinsdon

Free Sample, Free Project Design, Free Project Evaluaton, Free Tender Support please

Click for inquiry


Tell us your requirements,we make the specific design  for your project

Contact Lily   Whatsapp / wechat/skye: 0086-139-6796-1680  E-mail info(AT)chinasunmaster.com

  Product Overview



solar street light jinsdon


  Explode Drawing

solar street light jinsdon


  Smart phone App remote management

solar street light jinsdon


  140 Beam angle 160lm/W


solar street light jinsdon

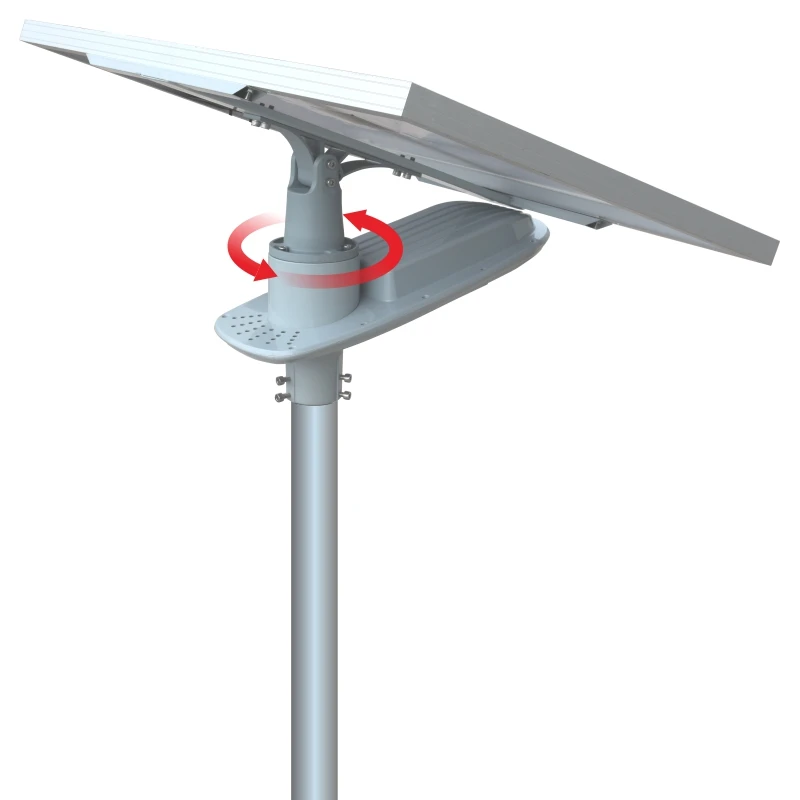

  180 Rotatable solar panel

solar street light jinsdon


  IP66 Waterproof protection grade


solar street light jinsdon


  Automatic energy saving working mode


solar street light jinsdon

Free Sample, Free Project Design, Free Project Evaluaton, Free Tender Support please

Click for inquiry


Project Case

OUR PROJECTS

solar street light jinsdon

UNDP TOGO PROJECT

2018  /  Model: STL08-50W

10,000sets /  Various location throughout TOGO

50W lamp, 250W solar panel, 300Ah Batttery, 8m Pole; With 4G WIFI and USB charger

PAKISTAN PROJECT

2017  /  Model: SMLN-50W

840 sets /  Various location throughout karachi Packistan

50W All in one solar street


UNDP SYRIA PROJECT

2016  /  Model: SLD08-95W

500 sets /  Hama

95W LED lamp, 240W solar panel, 150Ah*2pcs Batttery, 15A controller, Battery box on top of pole


MALAYSIA PROJECT

2019   /  Model: SMLN-120W

1300sets /  Malaysia

120W All in one solar street light


Free Sample, Free Project Design, Free Project Evaluaton, Free Tender Support please Click for inquiry

Company Information

solar street light jinsdon

SunMaster

20 UNDP Projects/Customized Design/Tender Support

Established in 2006,SunMaster is professional manufacturer of solar street lights with 80,000 sets capacity annually

Technical staff provide  design, engineering and drawing services.

Excellent product quality control and fast goods delivery      → READ MOREE

solar street light jinsdon


Free Sample, Free Project Design, Free Project Evaluaton, Free Tender Support please Click for inquiry


Certifications
solar street light jinsdon


Free Sample, Free Project Design, Free Project Evaluaton, Free Tender Support please Click for inquiry

DELIVERY TIME:

     3-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.

PACKAGING:

Standard export carton packing with pallet.

solar street light jinsdon

FAQ

1.Q:What is your warranty terms?

A: 5years standard. 8 years negotiatable.



2.Q:How to Choose a realiable solar street light supplier?

·         System Warranty: The manufacturer’s warranty has a lot to say about their systems. If the system only has a year warranty, chances are, they do not expect their system to last very long in the field. Look for something that has at least a five year warranty, or the components broken out for separate warranty information for individual components. This will ensure that the system will have a long life and you are dealing with a company that will stand behind their product.

·         Longevity: How long is each component meant to last? Warranty is great to understand how long the manufacturer will ensure their system components will last, but what about lifecycle. Make sure to receive not only warranty information, but lifecycle and longevity information. If a component needs to be replaced every year, this will waste time and money maintaining the systems.

·         Proven Field Installations:  How long has the company been in business? Are there field installations over five years? Ten years? There are many companies coming into the market today that have only been in business for a year or two. Understanding the difference of a company that has proven field installations over a company who is new to the market can help ensure that the systems are built to last for many years. Solar has a life span of 25+ years, but if everything else degrades and falls apart, then the premium for solar power is wasted. Systems should be able to operate in the field for over 20 years with very little maintenance.

·         Specifications Met:  Light level requirementsnights of autonomy, plenty of solar power and operation schedules all are parts of the design of a reliable solar outdoor light. All four factors must be met to the highest standard to ensure that the light will operate as required. Having a lighting plan completed to ensure that light level requirements are met is the first step to making sure that the purchase is from a reputable company. If the autonomy and solar power is not completely understood, calculations provided by the manufacturer can show exactly how the system is configured.
