Diesel Concrete Demolition Driven Hydraulic Rock Splitter Tools
- Category: Rock Splitter >>>
- Supplier: Henan Yugong Machinery Co. Ltd.
Share on (62328845322):
Product Overview
Description
Product Description

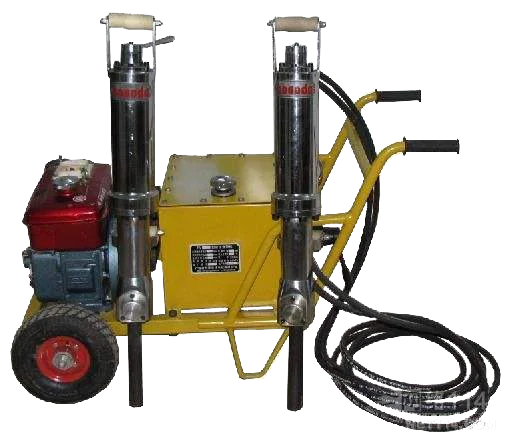

Diesel concrete demolition driven hydraulic rock splitter tools
Hydraulic Rock Splitter is used for the division of rock,It can be used in construction, decoration, ,mining operations, the secondary disintegration of large pieces of ore, the local parts of concrete and all the demolition work.

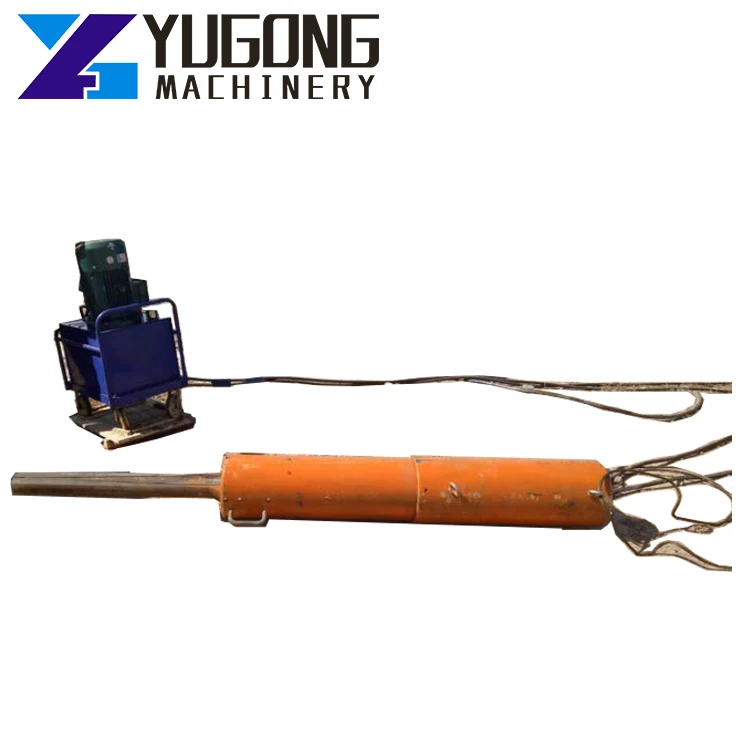

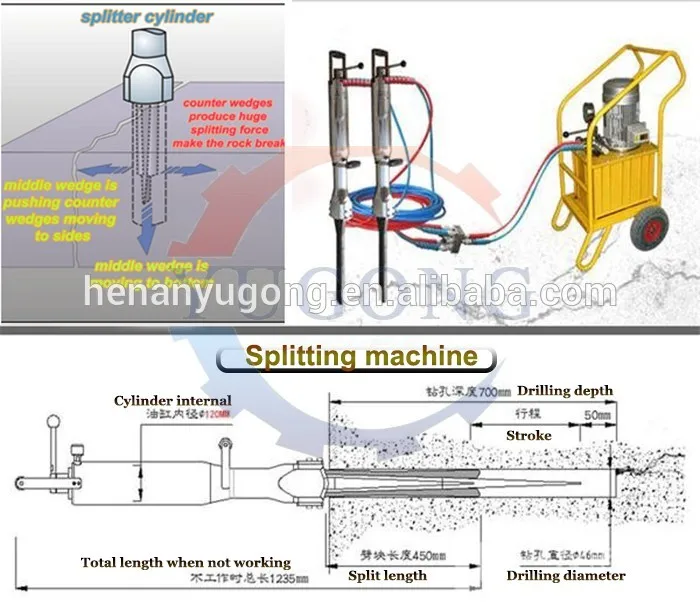

Hydraulic rock splitter is composed of two parts:

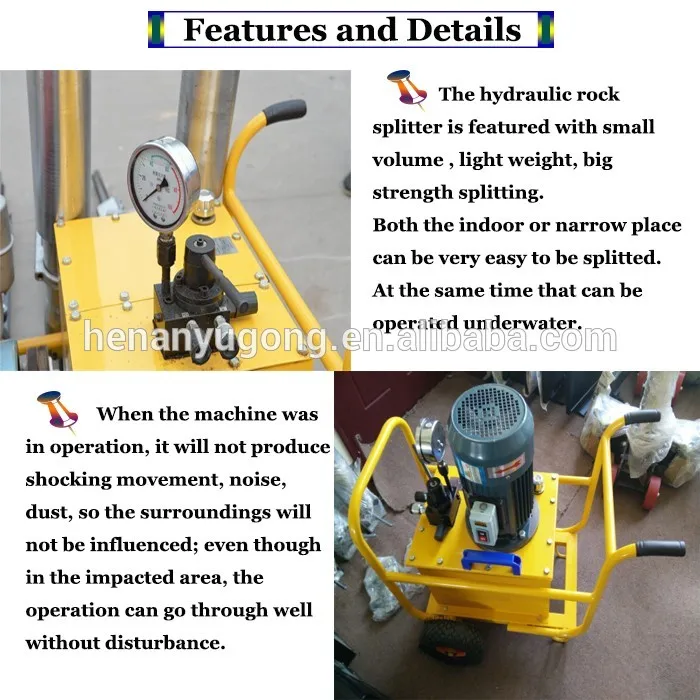

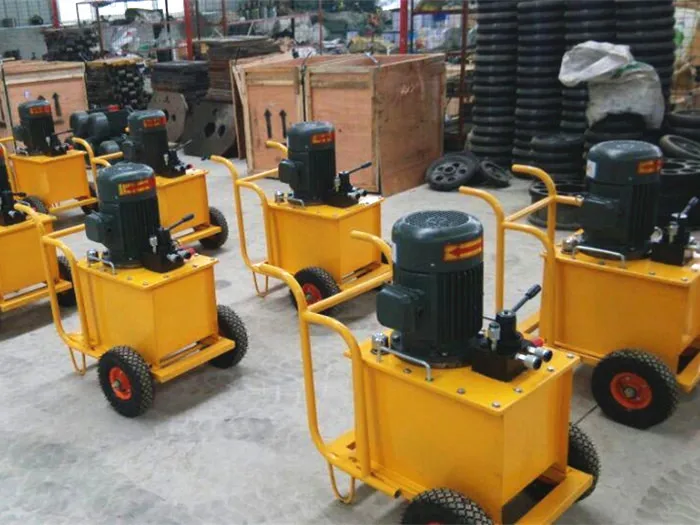

hydraulic power pump

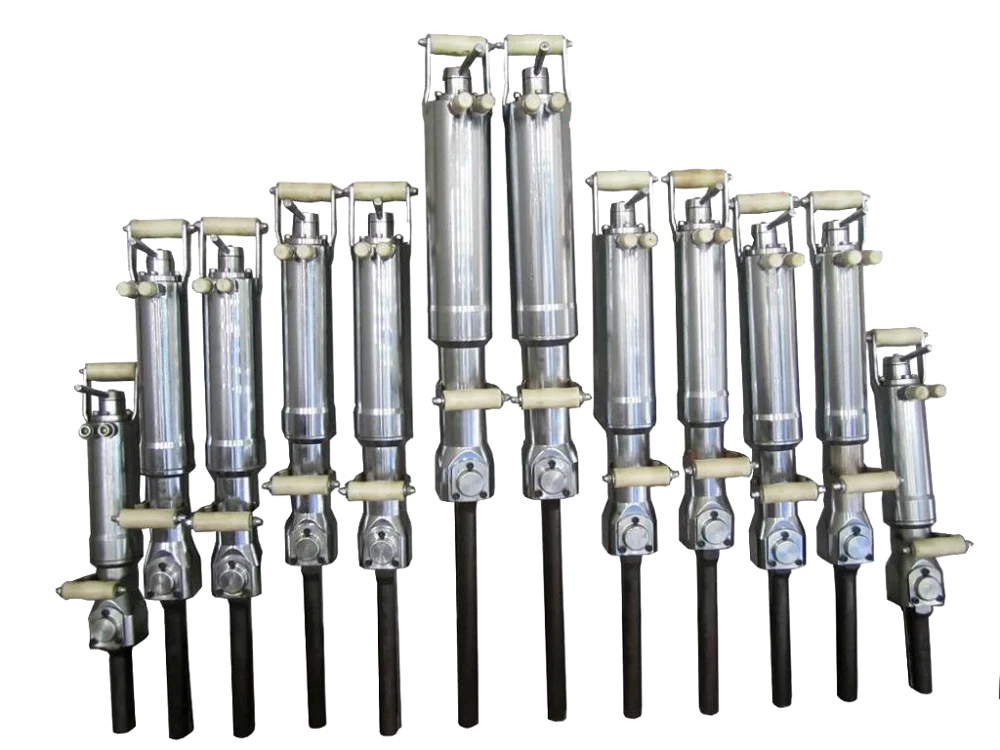

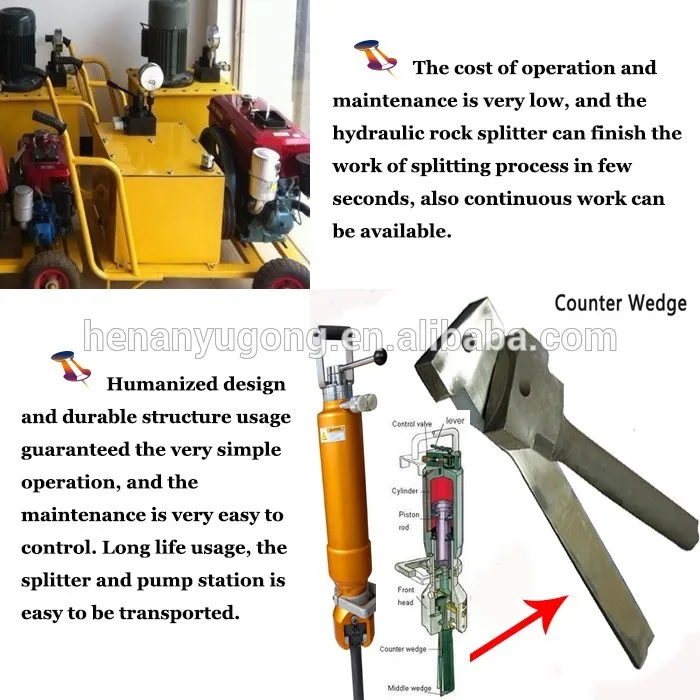

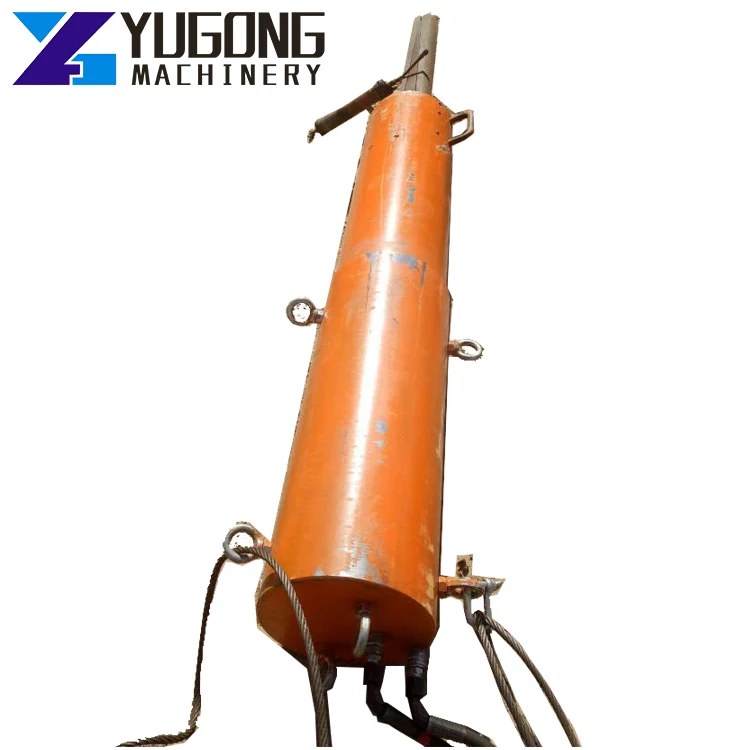

splitter.gun
According to the type of power pump, it can be divided into:
Electric engine rock splitter

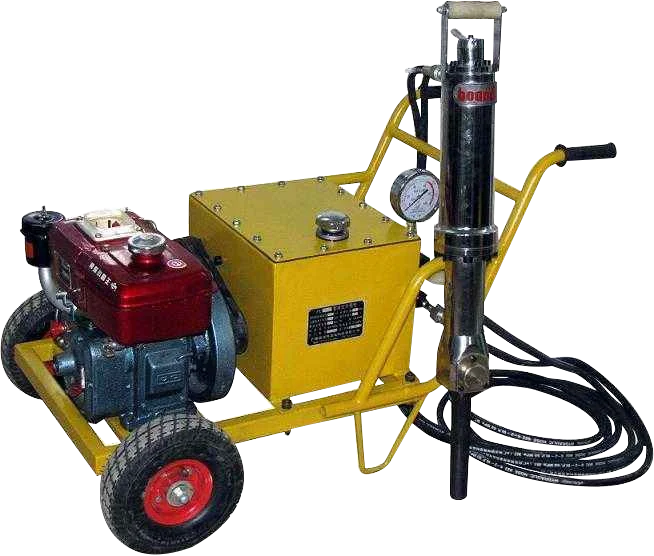

Diesel engine rock splitter
Gasoline engine rock splitter
Main Parameters
| Splitter Gun | |||
| Model | YG-250 | YG-350 | YG-450 |
| Wedge Length(mm) | 250 | 350 | 450 |
| Splitter Lebght(mm) | 1000 | 1100 | 1200 |
| Drilling Depth(mm) | 500 | 700 | 900 |
| Drilling Diameter(mm) | 42 | 46 | 46 |
| Crack Width(mm) | 10-20 | 10-20 | 10-20 |
| Splitting Time(s) | 10-15 | 10-15 | 10-15 |
| Splitting force(T) | 500 | 800 | 800 |
| Weight (kg) | 30 | 30 | 30 |
| Hydraulic Pump Pack Parameters | ||||
| Engine | Diesel | Electric | Pneumatic | Gasoline |
| Power | 6HP | 4kw,5.5kw | 8HP | 8HP |
| Weight | 150kg | 130kg | 130kg | 150kg |
