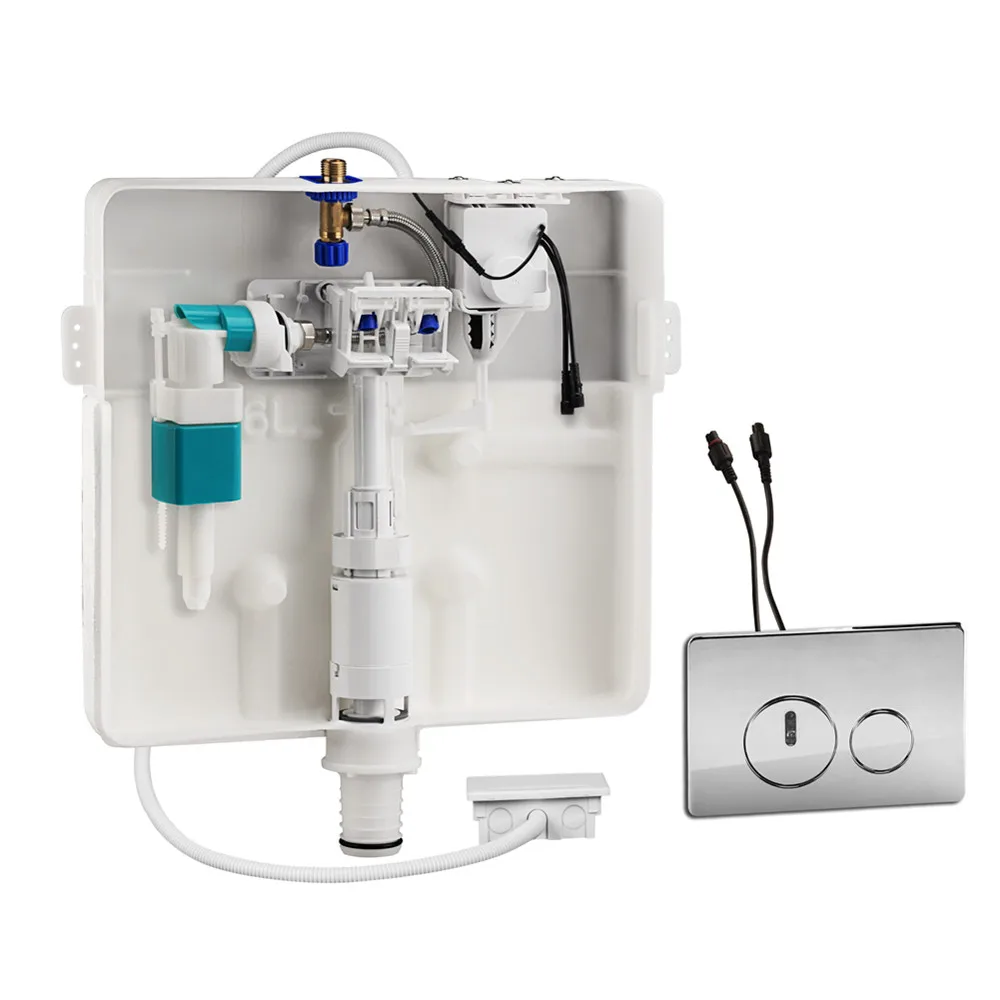

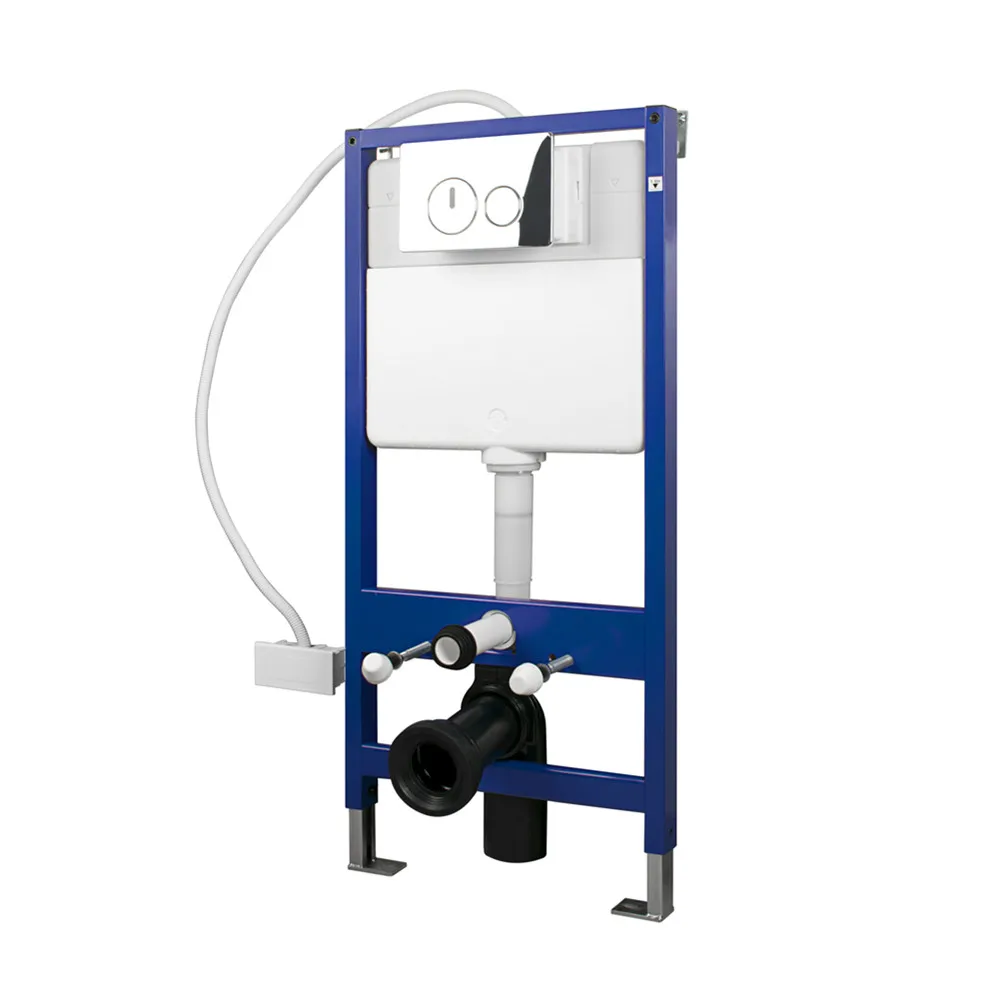

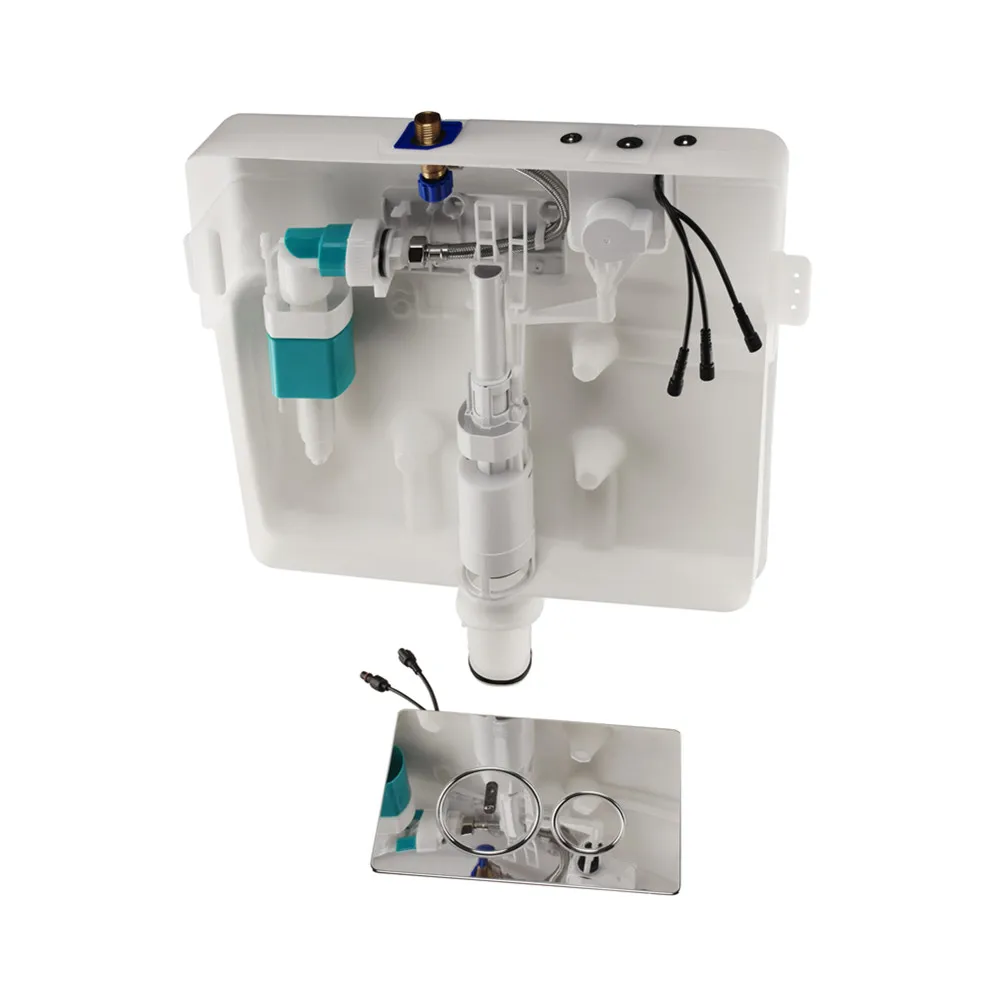

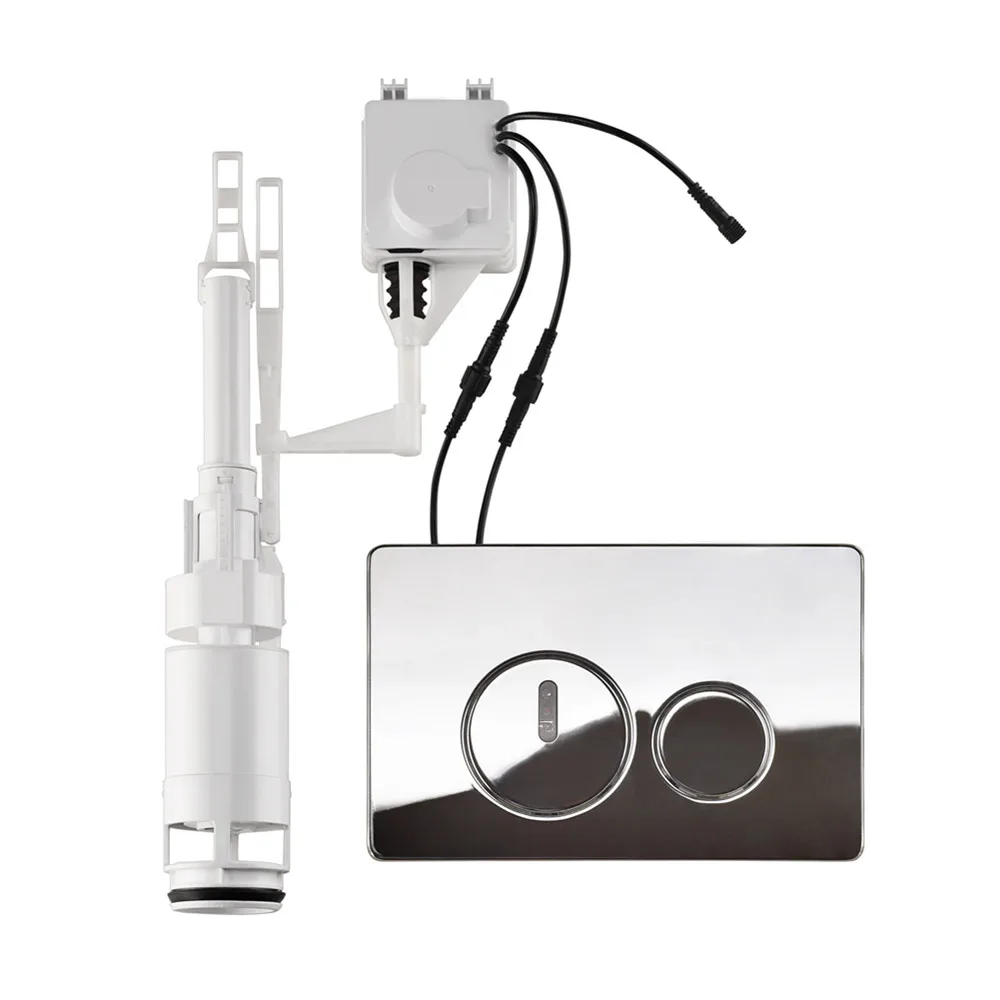

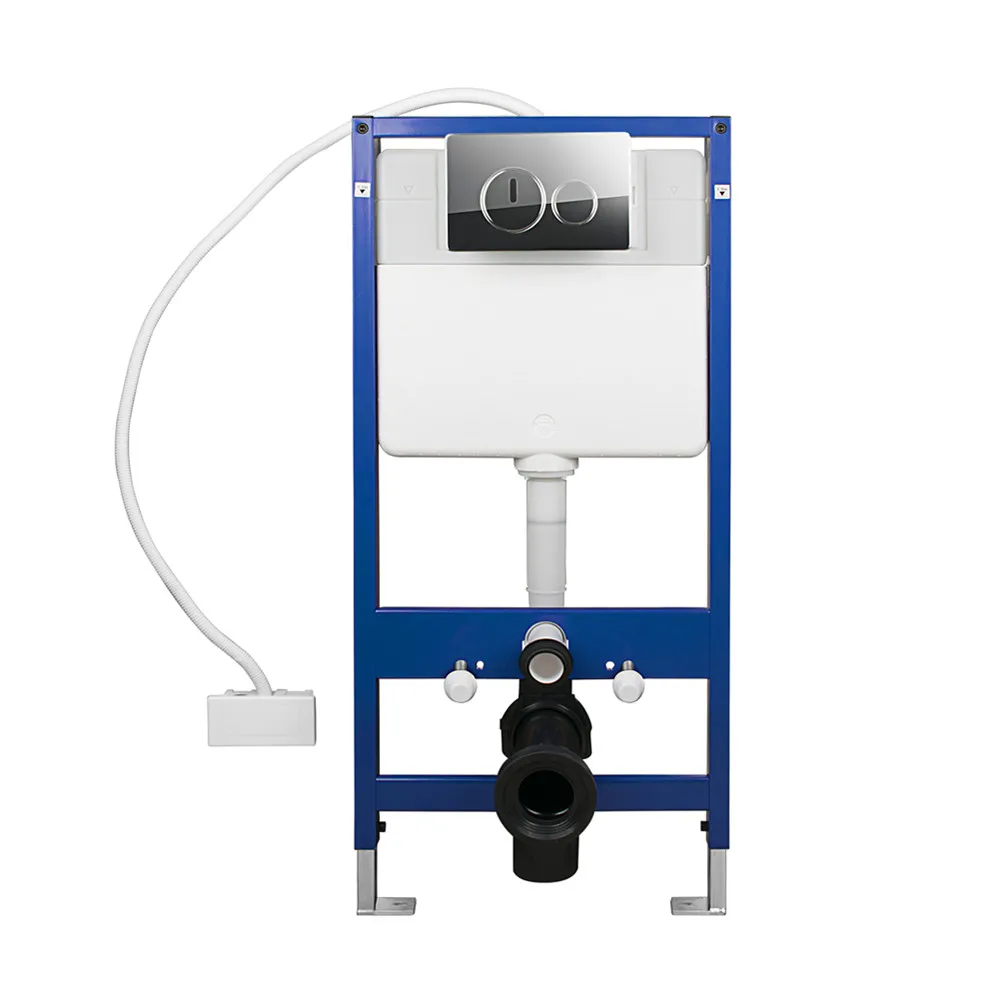

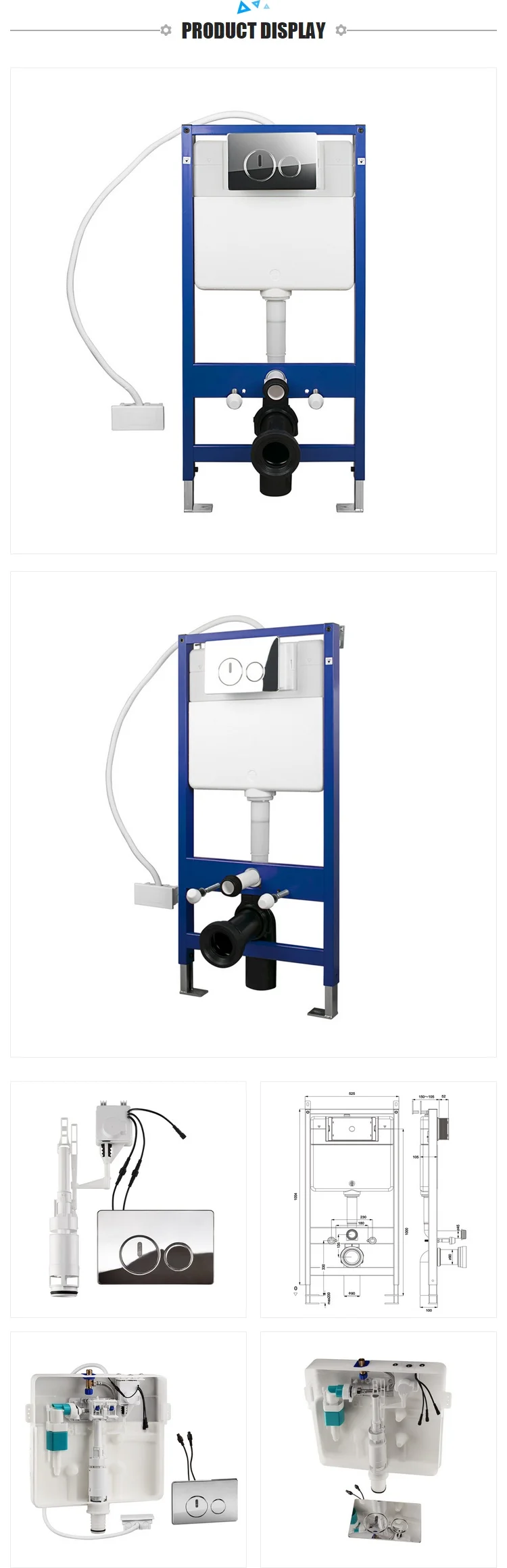

Special design no flush button automatic cistern motion sensor concealed toilet cistern for wall mounted toilet

1.Product parameters

• Power supply adapter (input voltage: 100-240Vac 50 / 60Hz, output voltage: 24V / 1.5A)
• Working temperature 1-55 ℃
• Relative humidity ≤ 95%
• Sensing distance 0-80cm

2.safety precautions

• If there is any sign of damage or failure, please do not open it and try to repair by yourself. Please contact the maintenance personnel for troubleshooting.
•  Only special personnel can use original accessories  for maintenance.
•  Please operate and maintain according to the operation instructions.

3.safe operation guide

• The adapter shall not be installed in the open or without any protection, especially in the sun.
• The power adapter cannot be installed in a humid environment.
•  The power adapter shall not be installed and maintained by wet hand wiring.
• The high voltage end of the power adapter shall be connected to the circuit with leakage protection device.
• The input end shall be 1.0 to 2.5 flat copper wire; the wire head shall be firmly connected.
• Do not disassemble the product.

4.product function

• The maximum sensing distance is 0.8m, and there is no barrier within the sensing range.
• When the sensing time is less than 3S, no action will be taken; when the sensing time is more than 3S and less than 10s, pre flush once; when the sensing time is more than 10s and less than 3min, semi drain once. Induction duration ≥ 3min, full drainage once.
• It will be fully drained once without induction for 12h.
• In case of power failure or mechanical failure, press the flush button manually.
