Ultra small Mini Weight 4.6g Embedded 2D QR Barcode Scanner Module for Handheld PDA POS Scanner
- Category: >>>
- Supplier: Shenzhen Rakinda Technologies Co. Ltd.
Share on (62328890765):
Product Overview
Description
Product Description

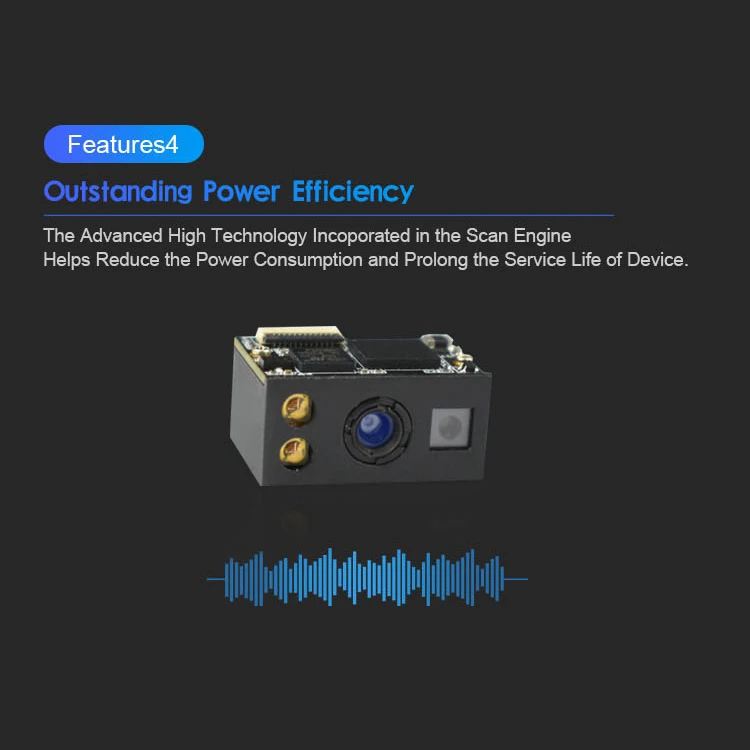

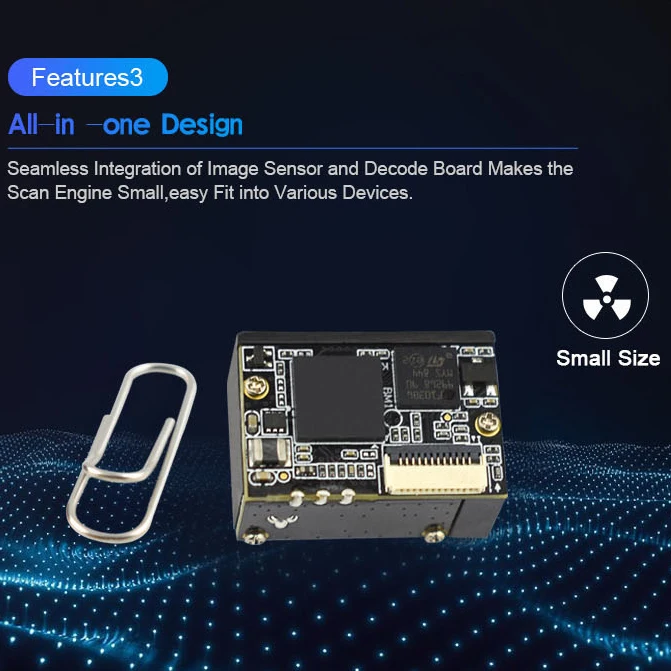

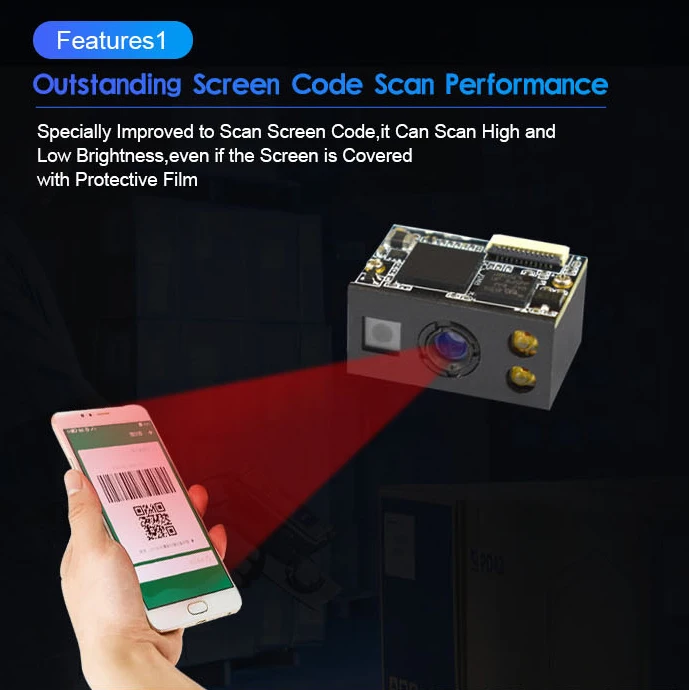

Ultra-small Mini Weight 4.6g Embedded 2D QR Barcode Scanner Module for Handheld PDA POS Scanner Barcode Scanner Module 2d qr code module
Embedded Barcode Scanner Module
Product Parameters:

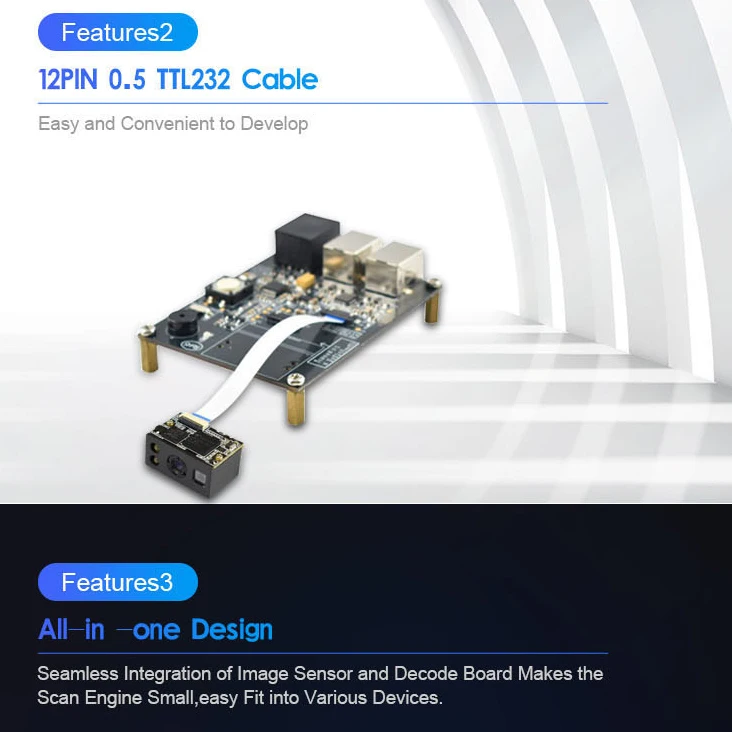

| Interface | TTL-232, USB (optional) |
| Image Sensor | 752×480 CMOS |

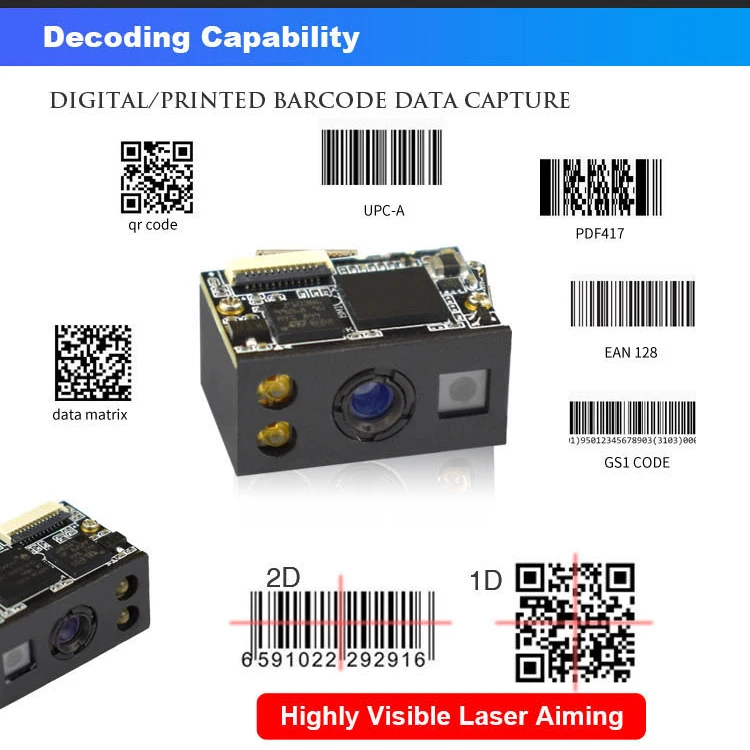

| Symbologies | 2D: PDF 417, DataMatrix (ECC200,ECC000,050,080,100,140), QR Code
1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5,ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc. |
| Illumination | Red LED 612nm-624nm, 650nm laser |
| Resolution | > 3mil |
| Ambient Light | 0 ~ 100,000 LUX |
| Power Consumption | 0.76 W |
| Operating Voltage | 3.3±10% VDC |
| Current @ 3.3 VDC | Operating Current 230 mA Standby Current 4mA (USB communication not supported); 7mA (USB communication supported) Sleep Current <5 uA |
| Dimensions | 21.3(W)×11.6(D)×15.5(H)mm |
| Weight | 5.0g |
| Operating Temperature | -20℃~ +60℃ |
Ultra-small Mini Weight 4.6g Embedded 2D QR Barcode Scanner Module for Handheld PDA POS Scanner Barcode Scanner Module 2d qr code module
Embedded Barcode Scanner Module
3 Series of 1d 2d Barcode Scanner Module:
We have scanner models in different size which could be installed flexiblely in various applications, if there is any product you are interested in for your projects, please Contact Us.
