Product Overview

Description

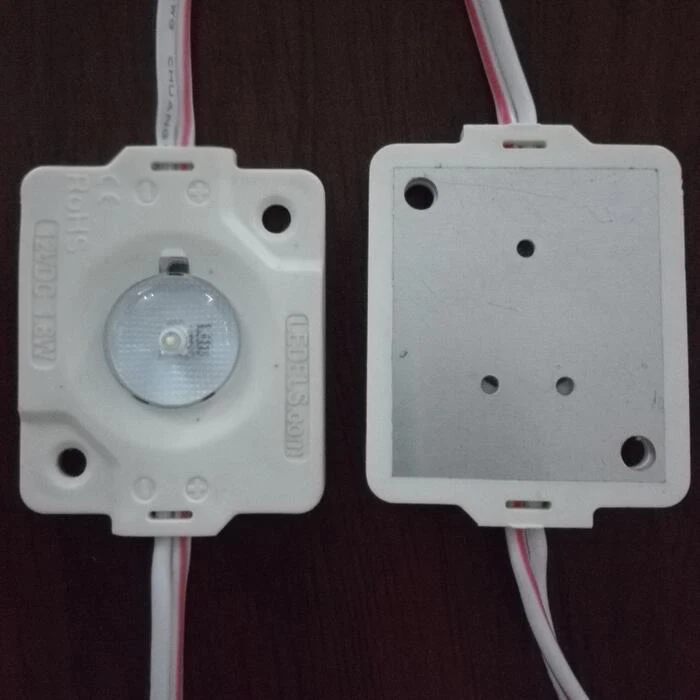

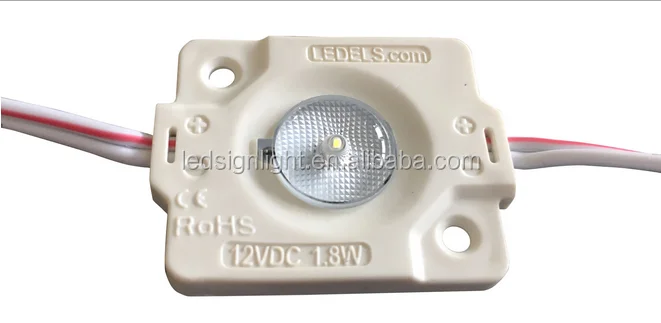

high power 1.8w injection led modules, CE ROHS 12v 180lm led lights for single-side lightbox

Product Feature:

1.Powered by original Epistar 1.5Watt LED

2. Wide viewing angle with even light output: 175 degrees

3. Backlighting to light boxes whose depth is more than 50mm.

4. Energy saving on lightbox illumination.



5. Cost effective on lightbox illumination.

6. Fire retardant, waterproof IP65, ideal for outdoor use



7. Back lighting in Single-side Lightbox signs and signage advertising signs

Datasheet table

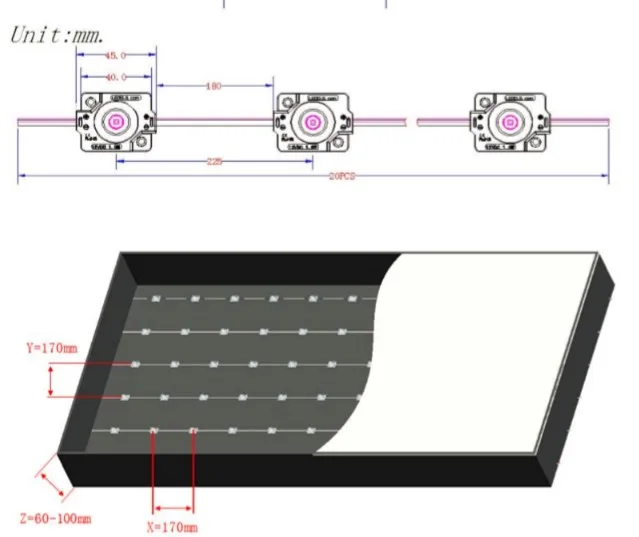

This led module is specifically designed for being used in light boxes and channel letters whose depth is 60-250mm. It's equipped with Epistar led, whose prestige and quality are recognized with over 15 years of experience.

LL-F12P600W1L45 Lighting Parameters
Emission color	Natural White
Color temperature	3000-7000K
Luminosity	180LM
Beam angle	175° Wide Angle
CRI(Ra>)	80
LL-F12P600W1L45  Physical Parameters
IP	IP65
another colors	Warm White/Cool white
Number of leds	1
Body material	ABS Plastic&Aluminum PCB

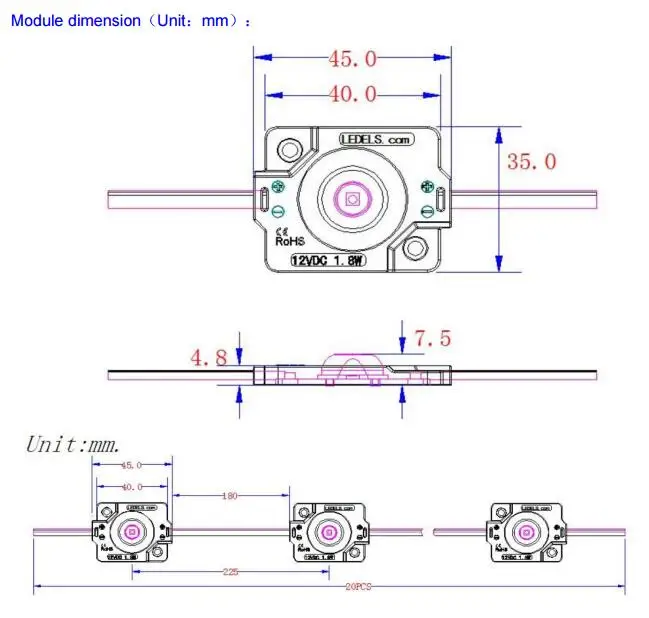

Distance between modules	180mm +/- 5%
Resine	Water clear
LL-F12P600W1L45 Chip Parameters
Branch	Epistar LED
Forward current	150mA
LL-F12P600W1L45 Other Parameters
Span life	50000
Warranty	5 years
Successful rate	>95% after 5 years
Usage	60-250mm
Working temperature	-40-70 °C
Storage temperature	-50-80 °



Features:

·Easy Installation

LED Modules can be easily installed with blue double-sided sticking tape and connectors.

·Friendly environment
Pb free. With CE/RoHS  certificate, Waterproof LED Modules are up to 60% more energy efficient than neon.

All models have the UL listed CE and RoHS certificates because are the most requested. Also this certificates are printed in every bag and every box we deliver.Certificates

Pictures of certificates:

Applications:

1. Pic of Project Application: LED modules back lighting for advertisement signage

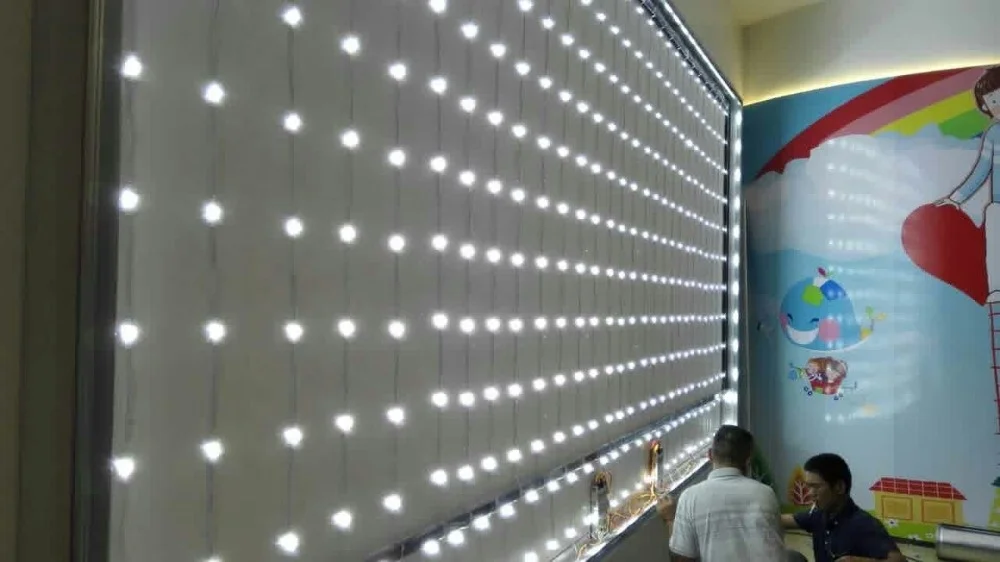

2.    Pic of Project Application: LED modules backlighting in ceiling





3.  Pic of Project Application: LED modules for different shape signs



Why to choose LL-F24P600W1L40 as a ceiling light or backlights to signs?

Delivery

We have bags of different sizes to minimize the shipping cost. For example 35x25x23 cm,45.5x25x46 cm o 53.5x38.5x38.6cm.

We package giving priority to the safety of the product, according to the amount to ship the products are first bagged and then introduced in small boxes for being, finally, put inside larger ones. Once we calculate the weight, they are secured with a yellow plastic strip to prevent its opening until arrival to your company.

Each bag and box are individually labeled with barcode, specifying model, technical data, quantities and certificates among others.

Thanks to our contracts with forwarders, we can offer you excellent fast and cheap services.

Delivery pictures:

This is a real example which shows how the modules are stored in bags, these in small boxes and finally these ones into larger ones.   Also its appreciated the individualized labeling and safety yellow tape.

Catalog and news

In our catalog we have different models that for sure will interest you, and numerous specifications for each model that canfit your requeriments.

Furthermore, we are constantly developing new designs, circuits, housings and settings to give you the chance to get the best and most innovative solutions on the market.

To stay updated and get the last catalog, please reply this post asking for it.

Collaboration

We are looking for partners to create a distribution network that includes own branch name, joint branch name, exclusivity and so on. Please contact us for more information.



If you need to know more about this product,welcome to send a inquiry to us!!
