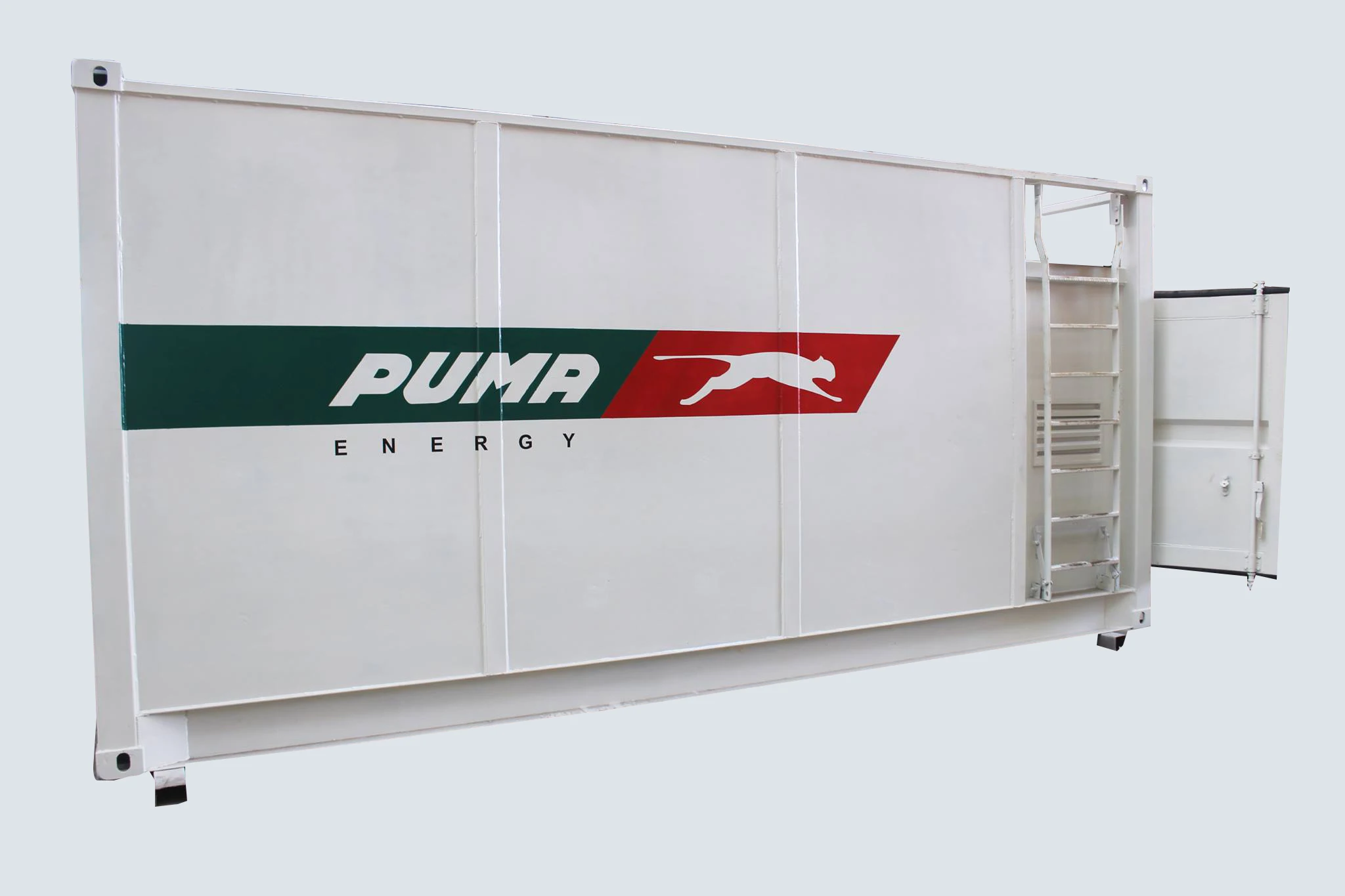

Ecotec Mobile fuel station

FUEL STATION 20ft

1 x 20ft container  with  capacity of  tank 10 m3
1 x 2 Nozzle fuel dispenser RT-HY222
1 x electric transfer pump 2 inch for discharging
1 x explosion proof control box
2 x fire extinguisher
2 x explosion proof lights
some ball valves,fillter,Flame retardant valves.piplines and other components

FUEL STATION 40ft

1 x 40ft container  with  capacity of  tank 25 m3
1 x 2 Nozzle fuel dispenser RT-HY222
1 x electric transfer pump 2 inch for discharging
1 x explosion proof control box
2 x fire extinguisher
2 x explosion proof lights
some ball valves,fillter,Flame retardant valves.piplines and other components

Option:
» Generator,  supplying the power
» Solar Panel, supplying the power
» Oil and Gas recovery system for gasoline
» Integrated Office with AC, Table etc
» Metering System, to measure the quantity during loading
» Self-Service with IC card or Bank card or RFID card
» Advertising LOGO light box

Characteristics:

• Excellent stepless adjusting mechanism allows a micro adjustment on the meter;
• High accuracy and repeatability over the widest range of flow; Superior accuracy at constant flow;
• Low maintenance, no metal-to-metal contact in measuring chamber, long life service;
• Low pressure loss, a true gravity flow meter;
• Accuracy regardless of pressure fluctuations, temperature variation, viscosity.

 Specification of Container station:

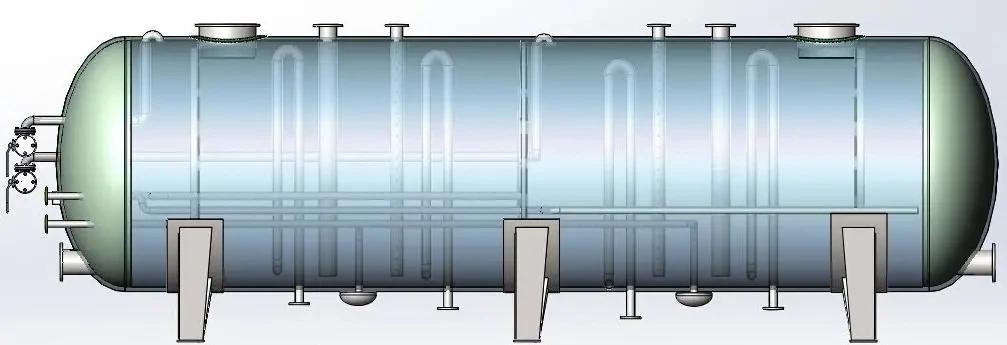

 FUEL TANK
Both single and double layer is available , both single and double product is available, fully tested and certified according BS EN 12285-2 Class A, with leak detector.
Capacity from 10000 Liter to 68000 Liter

FUEL DISPENSER

Suction / Submersible available
Single products / Multi products available
Standard flow / Heavy duty flow available
All the models of fuel dispenser is available, customer can choose Commercial dispenser, Economic dispenser, mini dispenser or Mechanical dispenser.

Commercial Dispenser                  Economic                  Mini Dispenser               Mechanical Dispenser
     RT-CY122                                   RT-P111                      RT-M111                             TYB-60

EX Proof Transfer Pump

For discharging and loading the products from Trailer to Tank or from Tank to trailer
Power supply: 380V / 220V / 110V is available, because different area may need different power supply
Size: 1 inch / 2 inch / 3 inch available

Transfer Pump DYB-80                            Vane Pump YB Series
   220/110V, 80L/M                                   380V 100-1500L

Industries:

Automotive; Adhesives; Agriculture; Asphalt ; Aviation fueling ; Animal feeds; Beverage; Cosmetics ; Chemical processing; Concrete Add mixtures; Dairy; Liquid fertilizers; Food processing ; Fuel oil delivery; General industrial; Hydrocarbon processing; Liquefied gases; Lube oils; Marine; Paint and varnish; Petroleum marketing; Petroleum production ; Pharmaceutical; Printing ink; Pulp &paper; Refining commercial Solvents; Recycling Railroad ; Textile.

 Standard Carton or Wooden for transportation

 Warranty : 12 months

WENZHOU ECOTEC ENERGY EQUIPEMNT Co., Ltd as a professional supplier of Petroleum equipment, Energy device, can offer customer the better products with better price.

Ecotec Energy is founded in 2019, but the Ecotec team are all with experience for over 10 years. We can package service from Design, Manufacturing, Delivery and after-sale service, we have exported to over 60 countries now, and have agent in Africa, Middle East, Asia and South American countries.

Here Eectec Energy are on the position to offer the below products:

1. Fuel station: Fuel dispenser, Pump, Meter, fuel accessoires, Ablue and contrainer stations

2. LPG station: LPG dispenser, LPG pump, LPG meter, LPG Tank, LPG skid and other LPG station equipment

3. CNG station: CNG dispenser, CNG compressor, CNG cylinder and skid type CNG station

4. LNG Station: LNG dispenser, LNG pump, LNG pumping skid, LNG vaporizor etc

5. Valves for petroleum industrial: Ball valve, Gate Valve, Global valve, Check valve with differnet standard

6. Station Automation system: Station Retail system, Cell phone APP system, Tank Gauging system

7. Auto Parts: Tyre inflator, Wheel Balancer, Car Washing Machine etc

Customer and Dedication is what we standarding for, we will alwasy focus customer′s need, and struggle for it, Looking forward to cooperate with you
