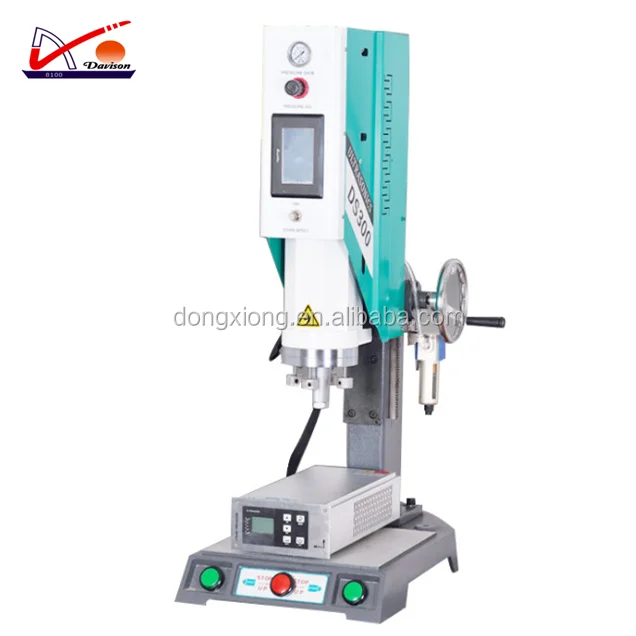

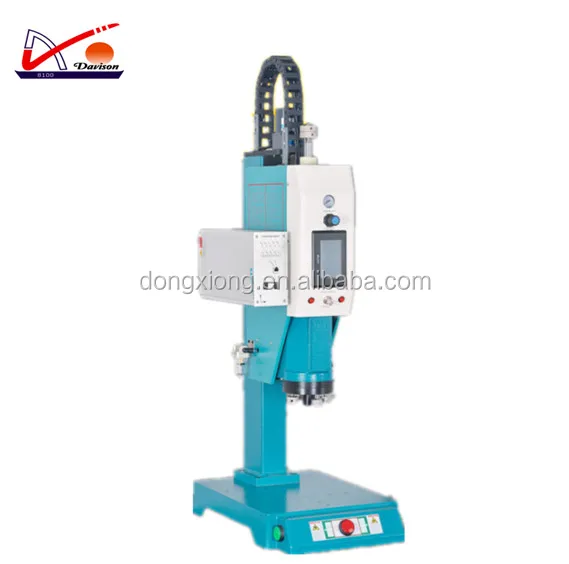

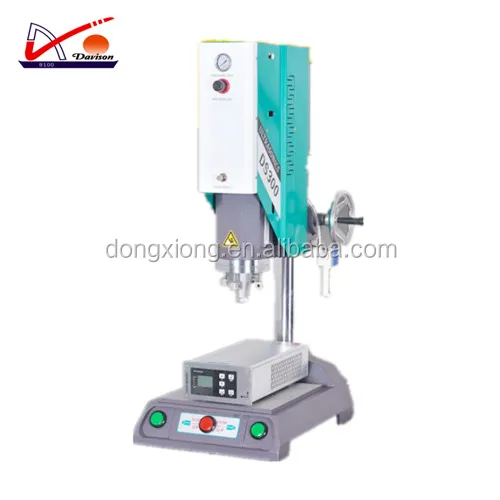

gauze mask welding equipment ultrasonic welding machine for face mask

Product Overview

Description

FEATURES

1. Adopts high quality piezoelectric ceramics transducer, have a high and stable power output

2. The body is designed as the coaxial direct pressure to avoid backward bending,pressure applying                                                                                    balanced to enhance welding precision

3. Digital welding parameters set-up is direct and accurate

4. Quick, convenient adjustment of die level

5. Three digits dip switch, 0.01-9.99s precise time control

6. Main components or fittings are applied as top brands

7. Latest optimal circuit or transducing system, high power out, especially suited for welding of ABS,PP, PS, nylon     materials





TECHNICAL SPECIFICATIONS





Item No.	DXCS2615
Power supply	220V
Input power	3.5KW
Output power	2.6KW
Frequency	15KHz
The moving distance of active horn	70mm
Oscillation system	auto-stimulating
Output time	0.01-9.99S
Weld area	180mm
Main Body	Length:    390mm
	Width:       685mm
	Height:   1,000mm
Plywood Box Packing Size	Length:     420mm
	Width:       715mm
	Height:   1,100mm
	0.33CBM
N. W.	78.00 kgs
G. W.	100.00 kgs
Mini. Order	1 set





APPLICATIONS:



ultrasonic plastic welding machines are commonly used in the automotive industry, electronic industry, medical industry, household appliances, no cloth clothing, office supplies, packaging industry, toy industry and so on. Such as plastic body parts, car doors, car car dashboard, lights, mirrors, sun visor, interior parts, filters, reflective material, reflective spike, bumper, cable, motorcycle plastic filter, heat , brake fluid tank, oil cups, water tanks, fuel tanks, air hose, exhaust purifiers, tray plate; Plastic Electronics: Pre-paid water meters, communications equipment, cordless phones, mobile phone accessories, mobile phone shell, battery case, charger , valve regulated lead acid battery maintenance, 3-inch floppy disk, U disk, SD card, CF card, USB connector,  toys stationery: File folders, photo albums, folding boxes, PP hollow board, pen, ink cartridges, toner cartridges, ; Medical Daily: Watches, kitchen utensils, oral liquid bottle, drip caps, mobile phone accessories, gold soft brush, daily necessities, health supplies, children's products, air mattresses, clothes hangers, holders, gardening supplies, kitchenware ware, shower, gold soft brush, shower head, security caps, cosmetic caps, coffee maker, washing machine, air dehumidifiers, electric irons, electric kettles, vacuum cleaners, metal cover and Civil speaker grille.

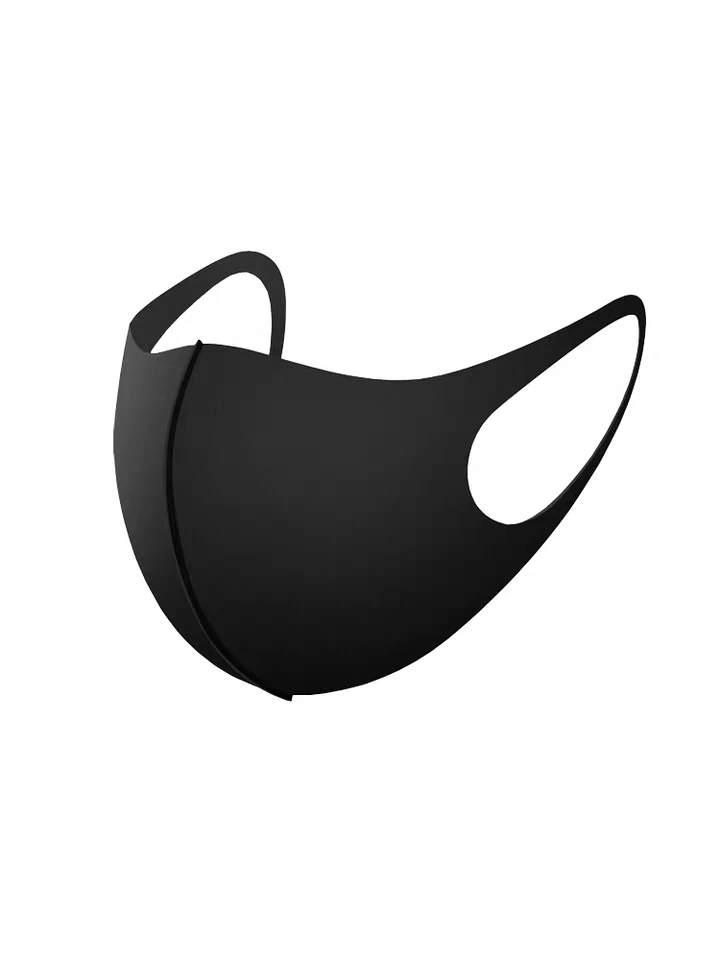

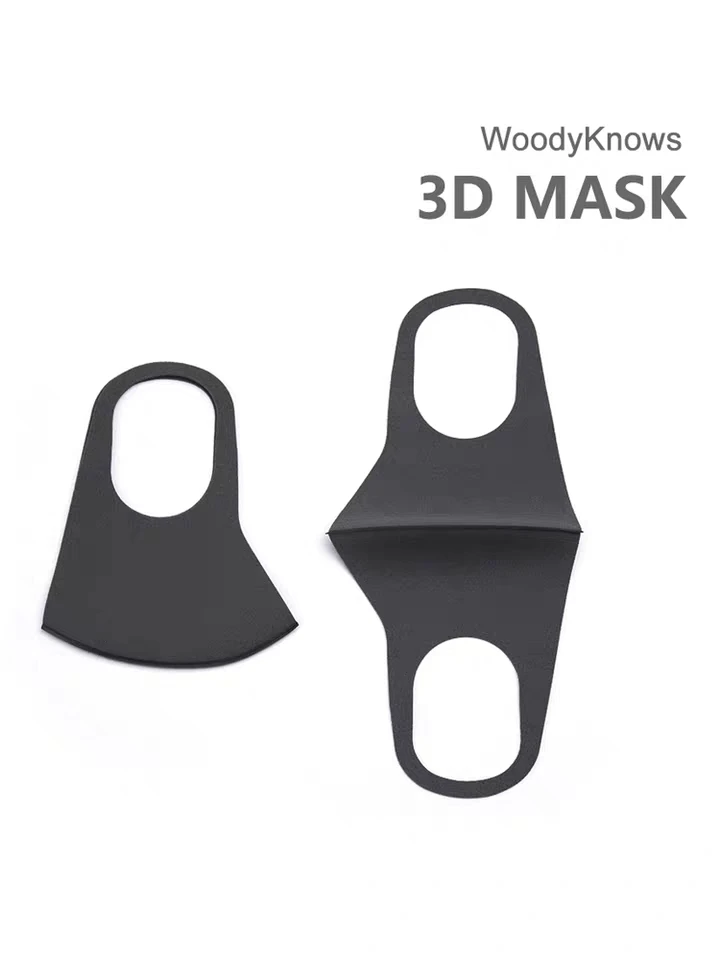

PRODUCT SAMPLES
