Veterinary Equipment: PPM T12V 12.1inch Professional Veterinary use Monitor

PPM-T12V Professional Veterinary use Monitor (Respironics ETCO2, Nellcor SpO2 & SunTech NIBP Optional)

Advanced Features:
1) Super ability in against electrosurgical interference.
     Neither in cutting nor in burning, ECG waveform can be influenced, very short recovering time after defibrilation,
     especially suitable for use in emergency or operating room.

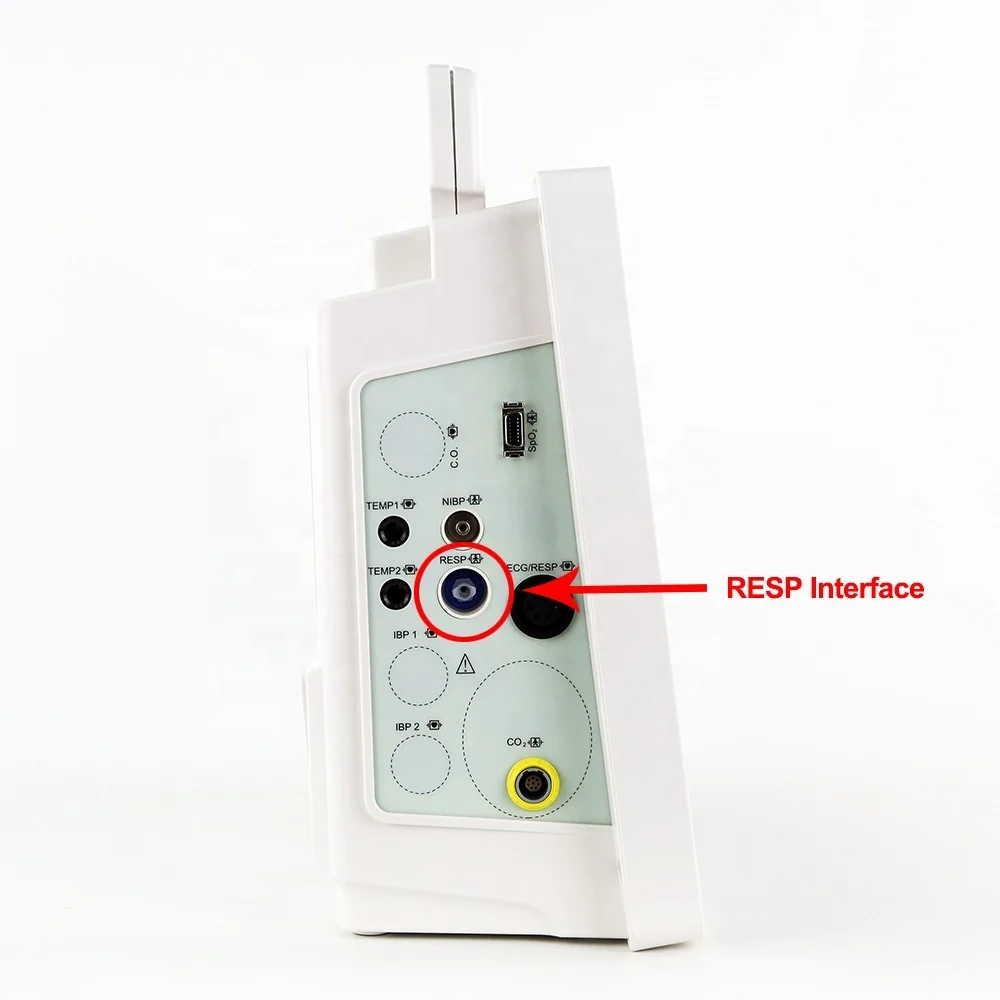

2) Unique thoracic impedance & nasal tube double model respiration test method
    (when patient can not lie quietly, only nasal tube respiration can detect the right respiration waveform and volume are adjustable rate ).
3) 12.1'' Medical Class color TFT LCD screen, lightness and volume are adjustable independently.
4) Streamlined outline design with sense of the times & foldable handle.
5) Multi-language interface selection : English, Spanish, Portuguese, Polish, French, Chinese, Arabic, Russian, Italian , Turkish, etc
6) User-friendly and man-machine dialogue anterface with pop-up menus, dialogue boxes, rotary mouse and etc.
7) Low-power consumption design with standby mode, rechargeable high-energy built-in battery.
8) Advanced digital technology, accurately measure SpO2 in low perfusion situation.
9) Huge history trend data storage, up to 360 hours.
10) Drug calculation, ST-segment detection, pace maker and arrhythmia analysis.
11) 5 kinds of fixed display format include OxyCRG diagram, 7-lead ECG waveform simultaneously, big-font mode and etc;
      5 kinds of user-defined display format; display multi-channel real time waveform&trend diagram same time.
12) 3 level audiable&visual alarm and apnea alarm available, alarm limits are adjustable.
13) Suitable for adults, pediatrics and neonates.
14) Application in bedside and delivery monitoring; widely used in patient room, emergency room, operation room, PACU, ICU, CCU, etc.
15) WAN communication function to network with central monitoring system and make long-distance monitoring, diagnisis, maintenance and software upgrade possible.
16) Printing of data, waveform, trend tables and trend diagram.
17) Wired, wireless and hybrid central monitoring solution.
18) Complete carting and mounting solution.

Standard Configurations:

ECG, NIBP, SpO2, TEMP, RESP, HR/PR

Optional Configurations:

* 12 Leads ECG
* SunchTech NIBP
* ETCo2(Chinese Brand or USA Respironics Brand)
* Masimo/Nellcor SpO2
* 2-IBP
* Thermal Printer
* Touch Screen
* Cardiac Output
* Anesthesia Gas Analysis
* Wall Mount/Trolley
* 12-Volt Power Supply

ECG	Input: 3/5-lead ECG Cable Lead Section: I, II, III, aVL, aVF, V Gain Selection: x1/4, x1/2, x1, x2, x4 and automatic Sweep Speed: 3.125mm/s, 6.25mm/s, 12.5mm/s, 25mm/s, 50mm/s
Heart Rate	Measure Range: 15 bpm ~ 300 bpm Calibration: ± 1mV Accuracy: ± 1%
Oxygen Saturation(SpO2)	Display Type: Waveform, DataRange: 0% ~ 100% Accuracy: ± 1%
Pulse Rate	Range: 30 bpm ~ 250 bpm Accuracy: ± 1 bpm Resolution: 1 bpm
2-Temperature (Rectal & Surface)	Number of Channel: 2 ChannelMeasure Range: 0 ℃ ~ 50 ℃ Resolution: 0.1 ℃ Display: T1, T2, ΔT Unit: ℃ / ℉ selection
NIBP	Philosophy: Oscillometric method Measurement type: Adult, Pediatric and Neonate Measurement parameter: Systolic, Diastolic, Mean Mode: Automatic, Continuous measurement Unit: mmHg/kPa selection Accuracy: ± 3mmHg or ± 2%
2-Respiration (Impedance & Nasal Tube)	Measure Range: 0 bpm ~ 156 bpm Accuracy: ± 1 bpm Resolution: 1 bpm
Power Requirement	Built-in Rechargeable Li-ion Battery Power Rate: 80 VA AC Power: 100V ~ 240V, 50Hz ~ 60Hz
Cardiac Output(Option)	Measuring Method: Thermodilution Blood Temperature Measurement and Alarm Range:  23 ℃ ~ 43 ℃ Unit: ℃ / ℉ selection Error: ± 0.2 ℃ Resolution: 0.1 ℃ Cardiac Output Measurement Range: 0.1L/min ~ 20.0L/min Error: ± 0.2L/min or ± 5%
Anesthesia Gas Analysis (Optional)	Method: Infrated Absorption Gas Sorts: CO2, N2O, Des, Iso, Enf, Sev, Hal and optional O2 Measurement Range: CO2    0 ~ 30%                                        N2O   0 ~ 105%                                        O2      0 ~ 105%                                        Iso, Enf, Hal    0 ~ 30%                                        Sev     0 ~ 30%                                        Des     0 ~ 30% Data Input: Fi and Et Values Optional agent mixture detection
ETCO2-Plug&Play (Optional)	Measurement Type: Main/Side Stream Measurement Range: 0 % ~ 19.7 %; 0 ~ 150mmHg; 0 ~ 20kPa Accuracy: 0 ~ 40mmHg            ± 2mmHg                   41 ~ 70mmHg          ± 5%                   71 ~ 100mmHg        ± 8%                   101 ~ 150mmHg      ± 10%
2-IBP (Optional)	Measure Range: - 10 ~ 300 mmHg Number of Channel: 2 Channel Accuracy: ± 1 mmHg or ± 2% Pressure Tag: ART, CVP, RVP, LAP, RAP, ICP, LVP
12 Leads ECG (Optional)	Input: 3/5/10 Wires ECG Cable Lead Section: I, II, III, aVR, aVL, aVF, V1-V6 Sweep Speed: 6.25mm/s, 12.5mm/s, 25mm/s, 50mm/s Heart Rate Range: 15 ~ 380 bpm Calibration: ± 1 mv
CBBNIBP(Optional)	Method: PPG TRANS TIME Measurement Range Systolic Pressure: (SYS)(0 ~ 40)kPa, or (0 ~ 300)mmHg Diastolic Pressure: (DIA)(2.7 ~ 29.3)kPa, or(20 ~ 220)mmHg Resolution: 1 mmHg Accuracy: Mean Difference < 5 mmHg                   Standard Difference < 8 mmHg
Defibrillation Synchronization (Optional)	The farthese delay time: 35 ms (R crest to pulse rising) AMP High Level: 3.5 ~ 5V, the max provide 1mA output electricity AMP Low Level: < 0.5V, the max receive 5mA output electricity Pulse Width: 100 ± 10% Output Impedance: Rating 50 Ω Rise and Drop Time: No more than 3 ms

Related Products

Our Company

Suzhou Lexison MediTech Co., Ltd is the subsidiaries of SUZHOU PROWAY GROUP CO., LTD. With years of export experience along with excellent quality, advanced services and competitive prices, Proway has won numerous customers' trust and support in the past 10years.

In order to better control the product's quality and lead time, provide the most cost-effective products, Proway built its own factory Suzhou Lexison MediTech in 2012 which specialized to manufacture various Patient Monitors, Pulse Oximeters, Syringe Pumps and Infusion Pumps, etc Meanwhile, to provide as perfect service as we can, we have established close cooperation with lots of well-known domestic & overseas medical equipment companies all over the world.

Our value Message is "QUALITY IS OUR CULTURE"!
"WITH US, YOUR MONEY IN SAFE, YOUR BUSINESS IN SAFE!"

Certifications

Packing & Delivery

Packing

Carton box packing with foam filled..

Delivery

For the order which less than 20units, more of the customers choose the shipment by Express Courier or by Air Cargo.
Our normal Lead Time is within 5-7working days after payment.

FAQ

1. What is your MOQ?
    ---- 1Unit/1pc

2. What is your Lead Time?
    ---- For the normal order, 7working days after payment.

3. What is your company's Payment Term?
    ---- Alibaba Trade Assurance Order, TT(Wire Transfer), PayPal, Western Union, Credit Card and E-checking are available.

4. What is your Warranty Period?
    ---- 24months warranty period and lifetime technical support.

5. Do you accept Money Refund?
    ---- Yes, we accept Full Money Refund once the customer received the goods with quality problem.
