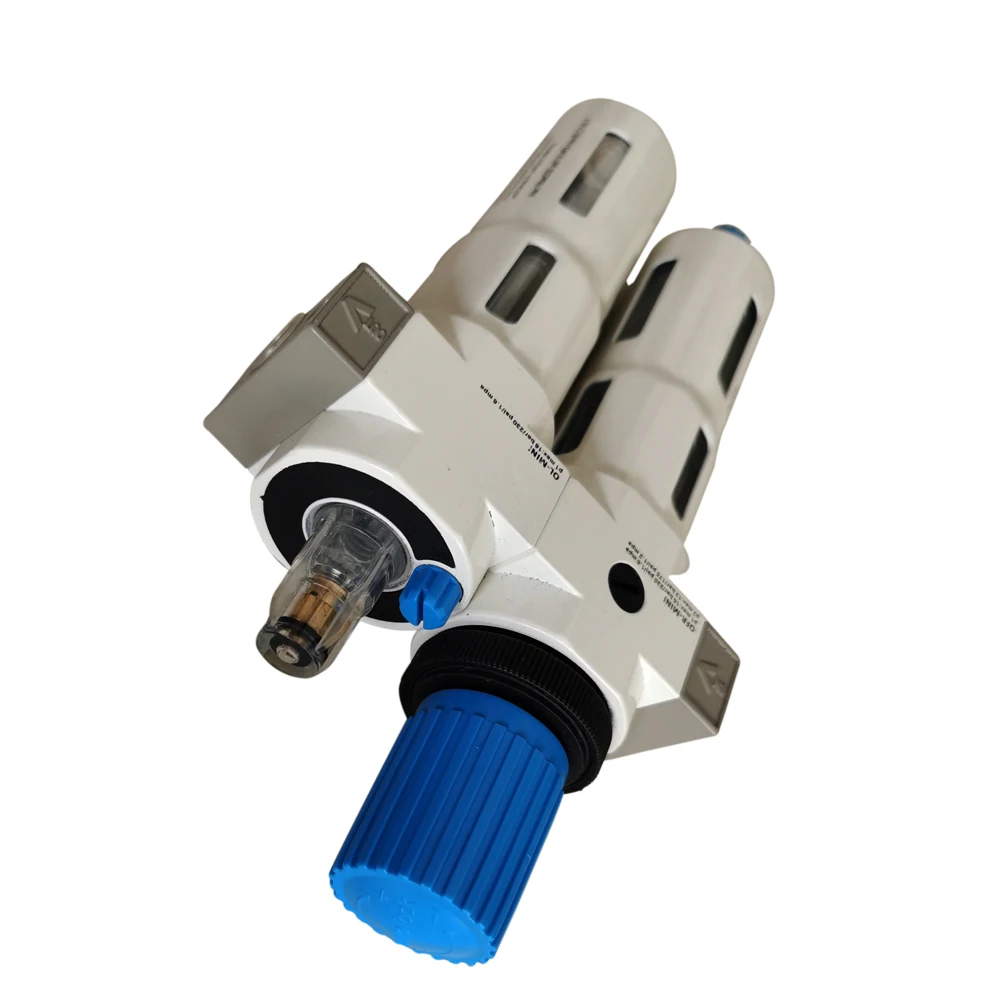

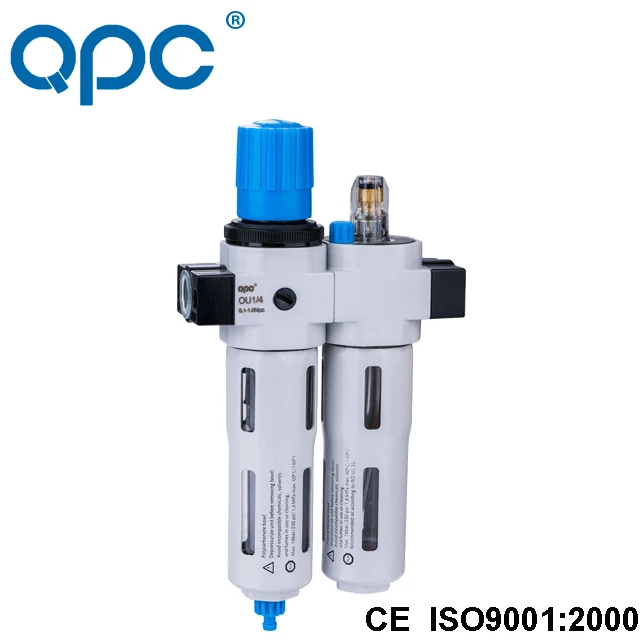

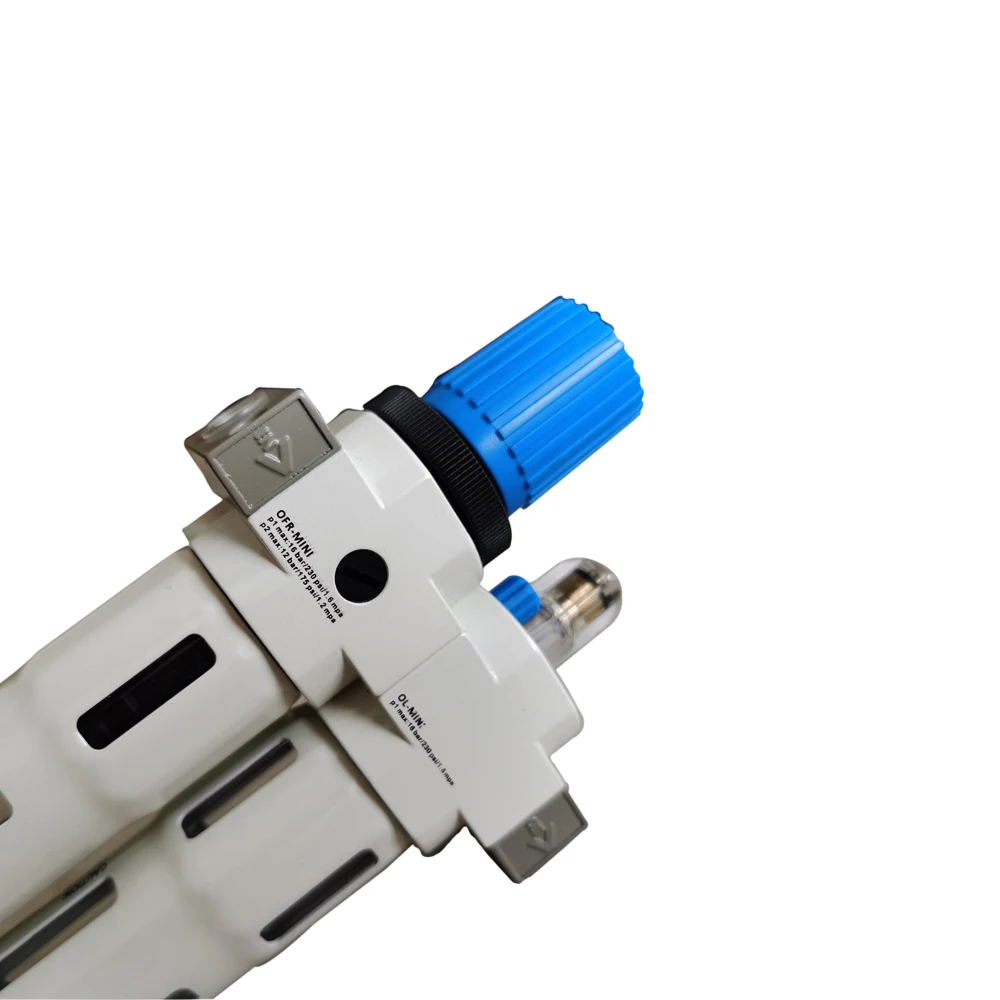

OU Series Pneumatic Air Filter Regulator Lubricator Combination FRL Pneumatic Air Filter Combination
- Category: >>>
- Supplier: Ningbo Quansheng Century Pneumatic Technology Co. Ltd.
Share on (62329130985):
Product Overview
Description
OU Series Pneumatic Filter Regulator Luricator Combination Pnuematic Component Air Filter
Product Description
Specification :
| Filter Regulator | MINI Type | MIDI Type | MAXI Type |
| Working Medium | Compressed air | ||
| Structure Characteristics | Sintered filter with water clutch;MINI/MIDI;Diaphragm type pressure reducing Valve;Maxi;The piston valve | ||
| Installation method | Tube Type mounting or mounting bracket | ||
| Installation positon | Vertical direction ±5° | ||
| Working Pressure | 0.5~12bar/0.5~7bar | ||
| Minimum Spray capacity | 31/min | 61/min | 10/min |
| Filtering Precision | 40um/5um | ||
| Maximum Coagulation Capacity | 22ml | ||
| Temperature range | 0~60℃ | ||
| Material | Shell;Die casting zinc,a filtering cup;PC; metal shield ;aluminum alloy;sealing ;nitrile rubber;pressure regulating handwheel;POM | ||
Size :
| Mini type | MIDI Type | MAXI Type |
| OU-MICRO-M5 | OU-MIDI-1/4 | OU-MAXI-3/4 |
| OU-MINI-1/8 | OU-MIDI-3/8 | OU-MAXI-1 |
| OU-MINI-1/4 | OU-MIDI-1/2 | |
| OU-MINI-3/8 | OU-MIDI-3/4 |
Related Products
Packaging & Shipping
Company Information
Established in 1999 NINGBO QPC Pneumatic Co.,Ltd is located in Fenghua -- China pneumatic industrial Park , more than 20 years forced on the pneumatic manufacture. QPC has earned a trust and commitment from over 1 million customers through the world with annual production output surpassing 200 million units .
QPC facility covers an area of 5000 square meters with production and office , 15 production lines. 2 Technology & Research departments , and our engineer has obtained many national pneumatic patents . Innovation technologies affect all aspects of the production and supply chain, from R&D product testing to automated production .
FAQ
1. Q: What's your main products ?
A: We mainly produce the Pneumatic Components , include Air Soure Unit , Solenoid Valves , and Cylinders etc. More than 20 years in this line .
2.Q: Sample qunatity acceptable ??
A: Yes , samples can be provided for test .
3.Q:What's the Payment Terms ?
A: Both T/T and L/C are acceptable .Also pay by alibaba is ok .
4.Q:What's the delivery time ?
A:Generally it's 5-10 days if the goods are in stock.
5.Q:What's the warranty ?
A:12 months under normally used.
