floor heating Water Heating System temperature thermostats 10A/3A ABS material
- Category: >>>
- Supplier: Taizhou Sade Hvac Technology Co. Ltd.
Share on (62329226955):
Product Overview
Description
Banner

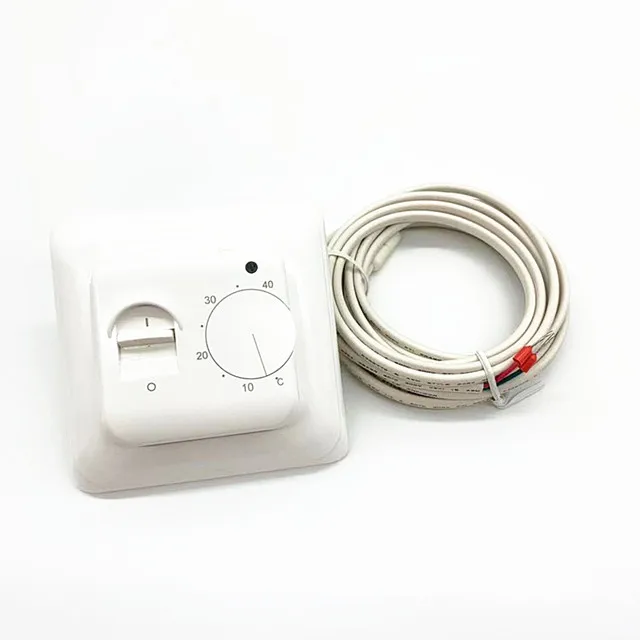

Home Heating System Electrical Thermostat Controller
Products Description
Part NO. | Load Current | Application | Remark | Loading (PCS/Carton) |
| S7104A | 16A | Electrical Heating System | With line | 80 |
| S7104A | 10A/3A | Water Heating System | Wireless | 80 |
Main Technical Parmeter
Set temperature range:10-30℃
Temperature accuracy:±1℃
Rated output power:<200W
Consumale power:<2W
Operaing:AC220±10%, 50/60Hz
Traverse requirements:0.5mm2≤Voltage≤2.5mm2
Figure size:86×86×13mm (Section diameter 86 standard box)
Aperture distance for installation:60mm

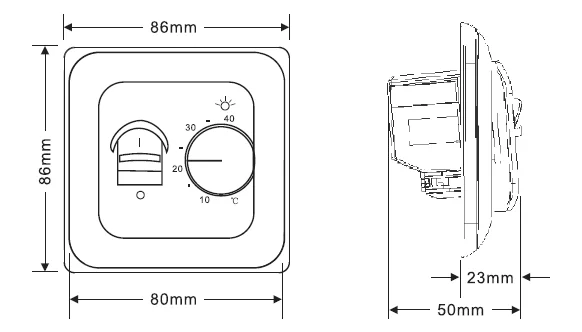

Dimension (Unit: mm)
Application of Electrical Heating Thermostat
For the control of warm-water (floor) heating systems and direct electric heating systems used in Commercial buildings, Residential buildings, Light industrial buildings…
