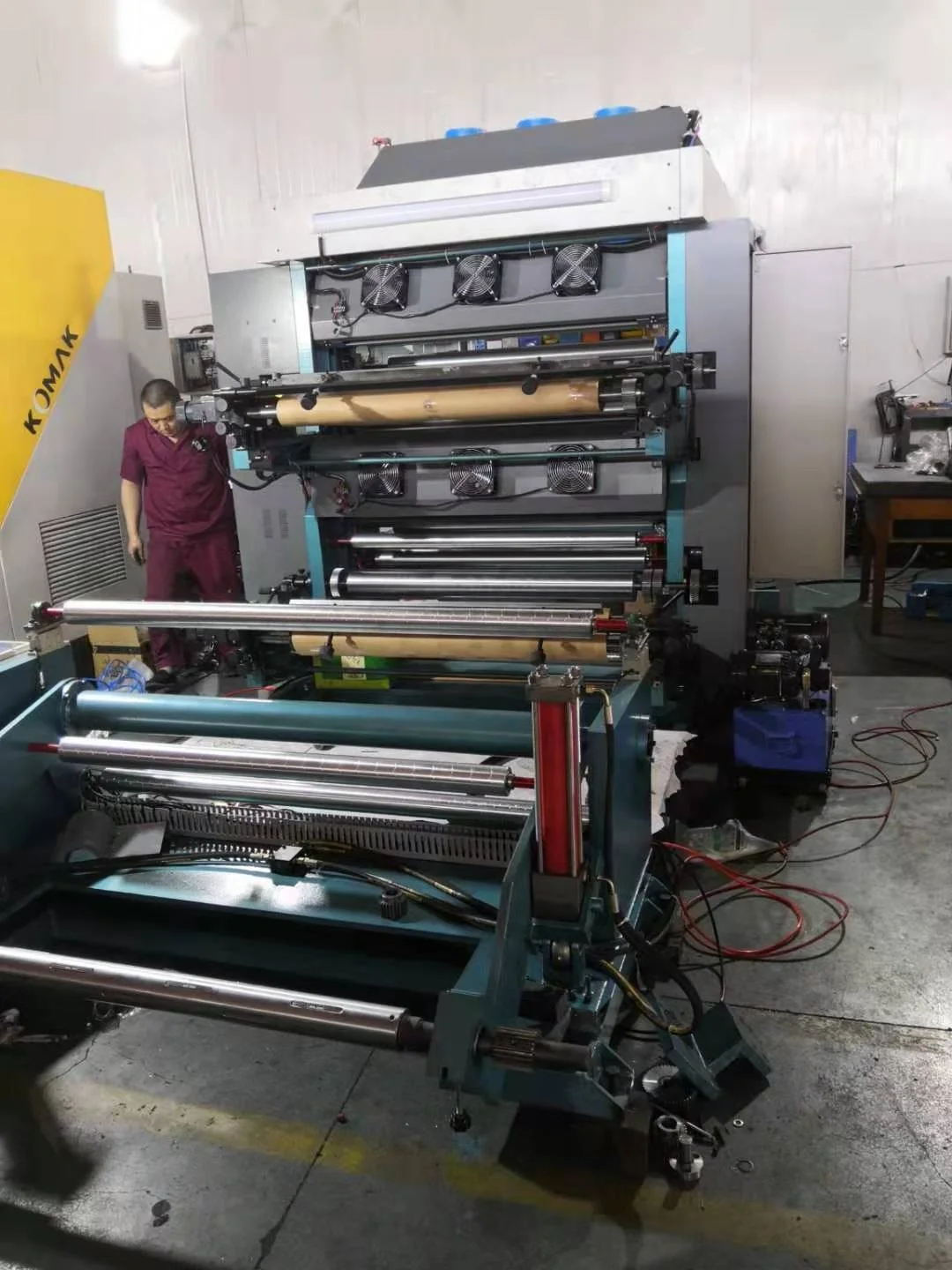

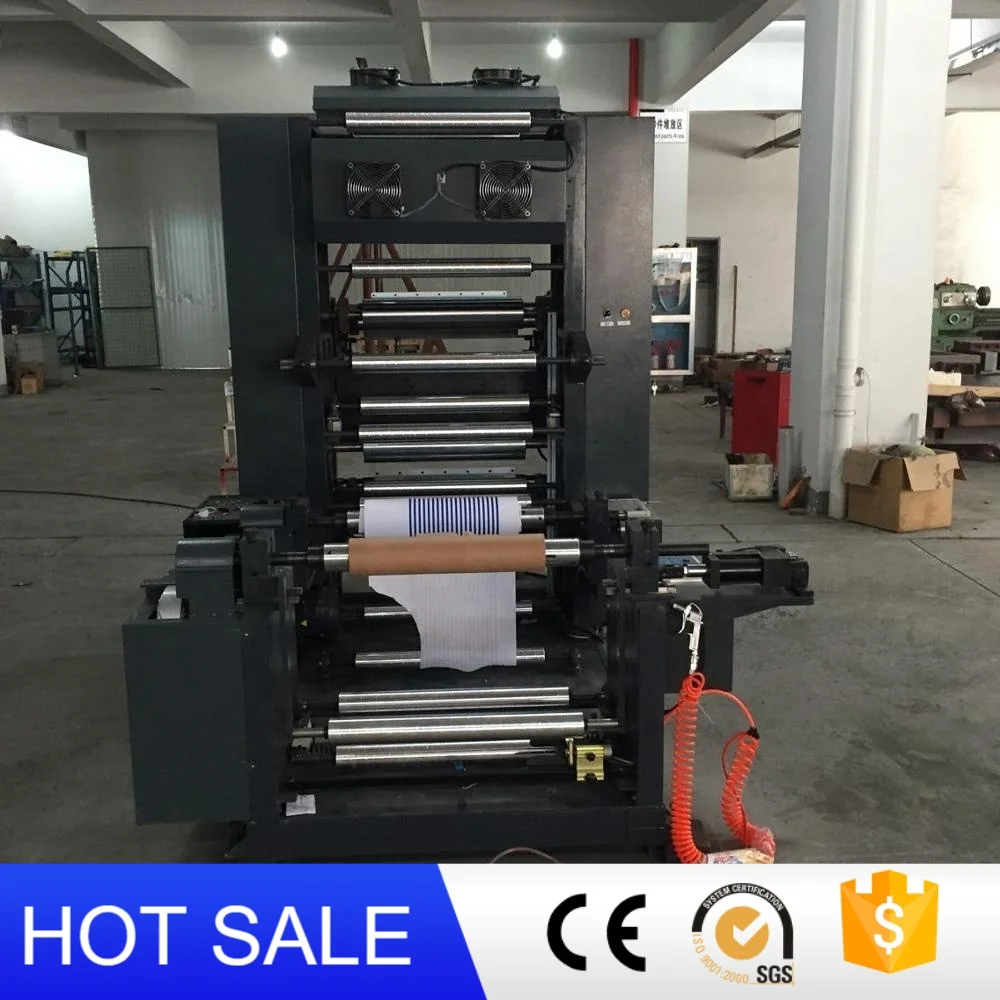

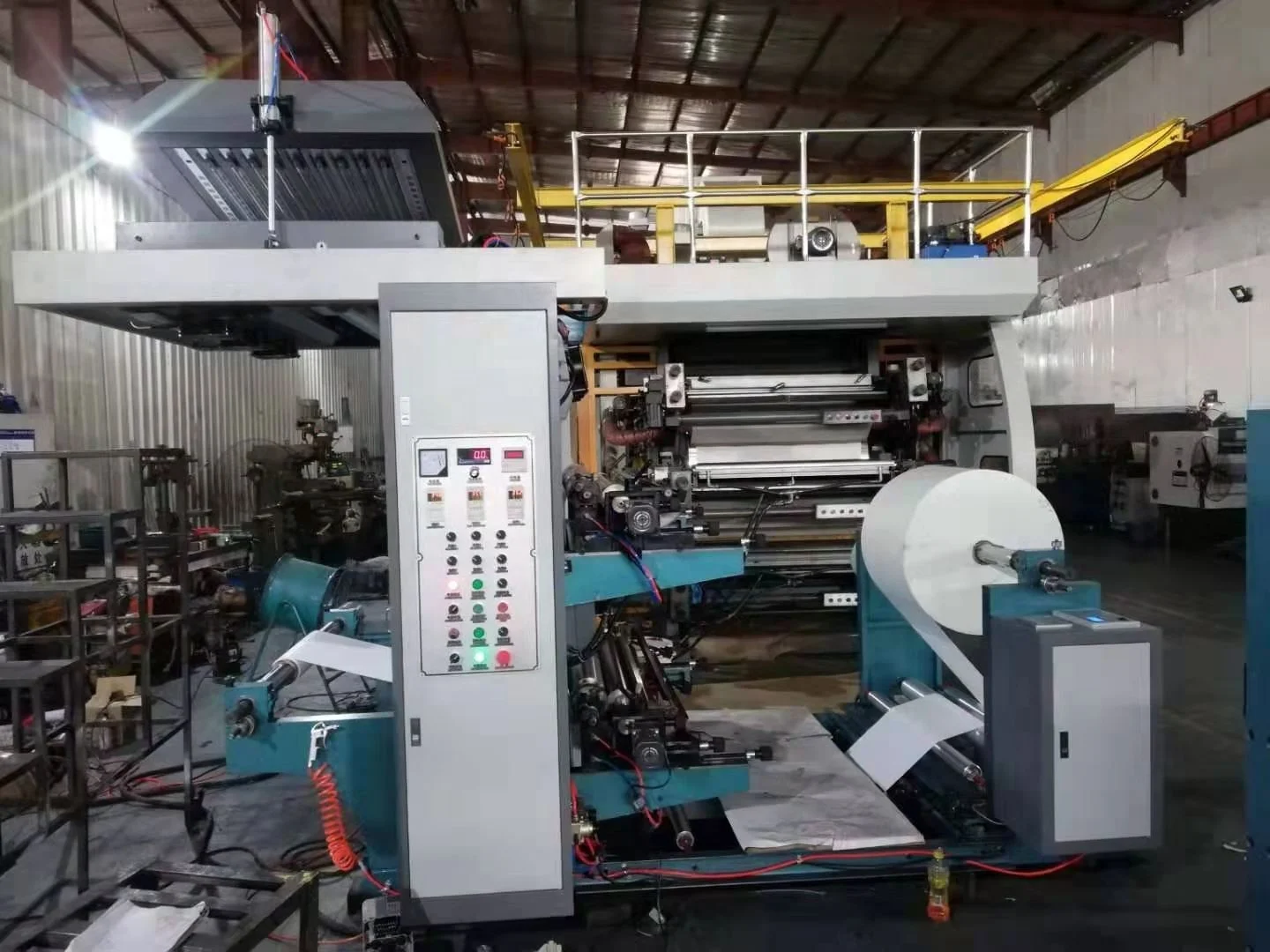

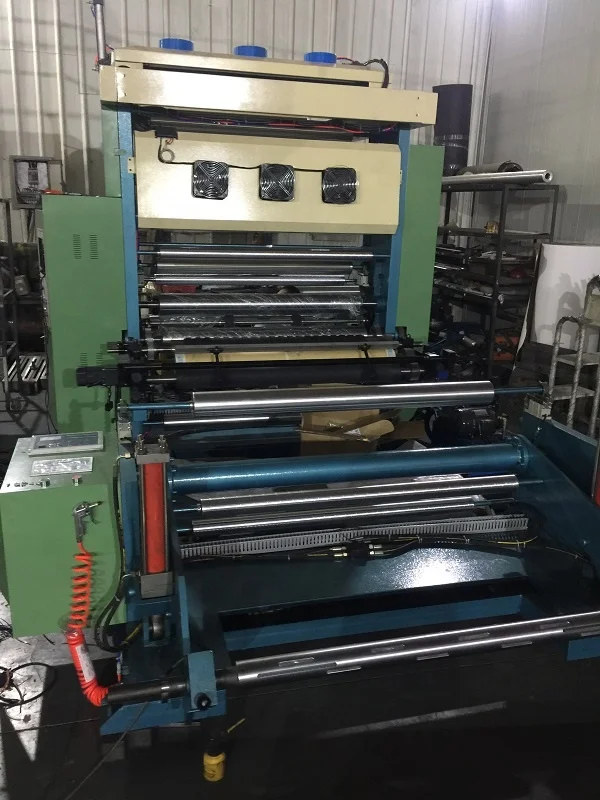

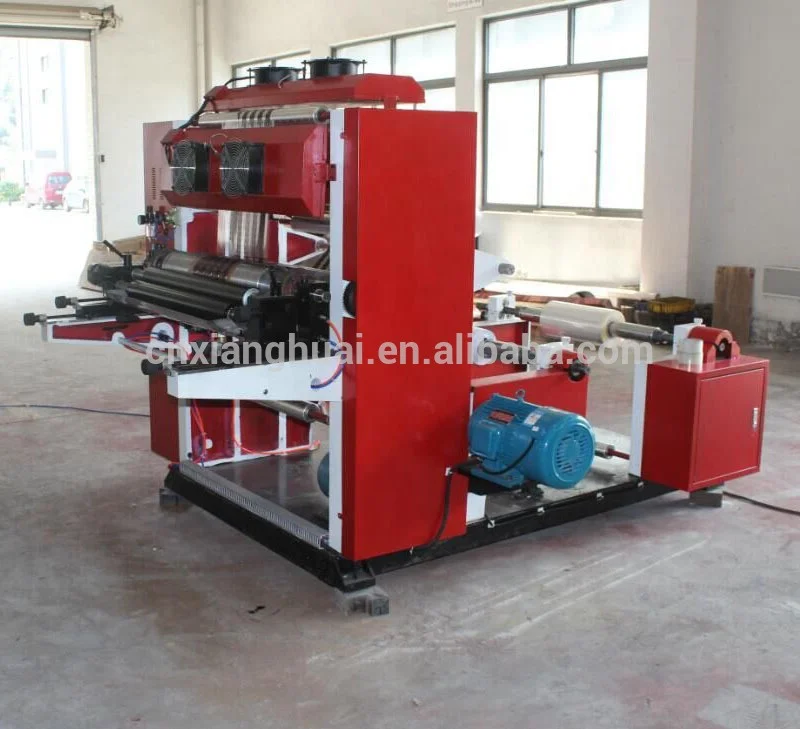

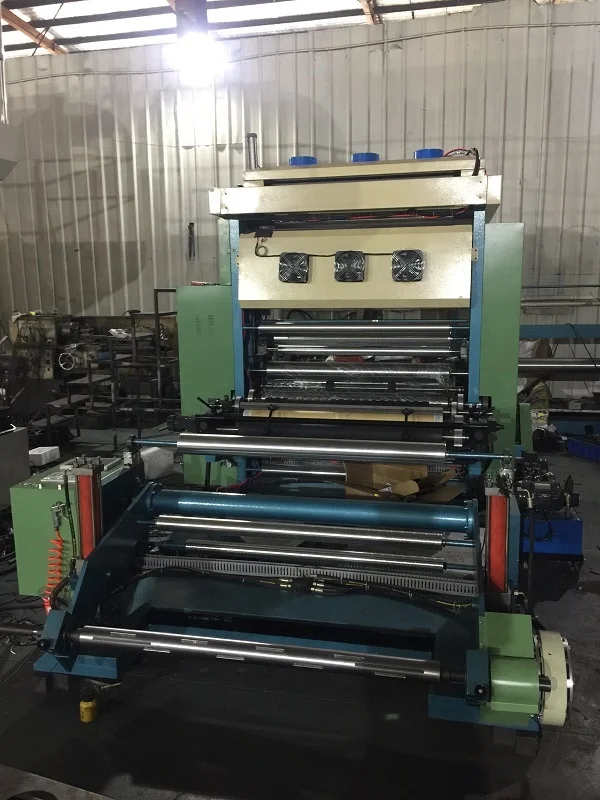

Mini Flexo Printing Machine For 1 Color 2 Color

Product Overview

Description

1 Color Plastic Carry Bag Flexo Printing Machine





Suitable material

Kraft paper: 40 ~ 350g/m², single-sided coated paper: 30 ~ 350g/m², copy paper: 15 ~ 350g/m², firecrackers and paper: 40 ~ 350g/m², paper money and incense: 25 ~ 350g/m2, silicone paper : 50 ~ 350g/m², coated paper: 30 ~ 350g/m², dust-free paper: 25 ~ 350g/m², release paper: 40 ~ 350g/m²composite paper, 30 ~ 350g/m2

Non-woven :15-120 grams, woven :15-500 g, PVC: 10 ~ 120μm, OPP: 10 ~ 100μm, BOPP: 10 ~ 100μm, PE: 15 ~ 150μm, NY: 10 ~ 120μm, PET: 10 ~ 100μm, CPP: 10 ~ 100μm



Main technical specification

Print color	1colors
Web width	600-2000mm
Print width	560-1960mm
Machine speed	90m/min
Print speed	80m/min(depends on different materials)
Print length	260-1100mm
Anilox roller	Ceramic roller:100-1000LPI/cm, ink hold depth:3.5-10.5bcm
Register precision	±0.25-0.2mm( by hand)
Unwind diameter	1000 mm
Rewind diameter	1000 mm
Tension range	3~30kg
Tension precision	±0.2Kg
Rewind/unwind paper core dia	76mm(inner diameter)
Wind roller	air shaft
Air resource	0.6Mp
Graining roller	φ133mm
Doctor blade	1. General type; 2. Enclosed type
Ink	1. Water ink; 2. Water base ink; 3.alcohol ink; 4. UV ink.
Ink transport	Automatic ink recycle system
Dryer pattern	1. Electrical heating; 2. UV dryer.
Large fan	1.5-1.75KW: 2pcs
Small fan	0.3KW: 6 pcs
Main motor power	3.7-5.5KW
Total power	26-40KW
Error correct system	1. Photocell corrector system; 2.hydraulic corrector system.
General bearing	NSK, Japan
Unilateral bearing	ASNU, Germany
can add	Computer graphics detection system The bright and beautiful image detection system

• It's just one standard product parameter, Individual machine is available upon your requirment




Features:

1. Ink anilox roller: ceramic anilox ink roller, lines 100PLI ~ 1000PLI, high speed dot reproduction rate, screen printing, structured, three-dimensional sense of strong, registering accurately



2. Ink: adopt automated circulation system, transport ink adopt single small motor;



3. Speed control: adopt Japan frequency speed control, small fluctuations running;



4. Unwinding correcting: adopt high-grade automated sensitive-photocell correcting system;



5. Unwinding and winding ways: adopt magnetic automatic tension control;



6. Ink input pattern : adopt unique doctor blade, and equipped with automatic ink pump unit;



7. Up and down version: adopt hydraulic automatic landing version;



8. Smooth roller: adopt special steel processing, and after special treatment, with10um plating hard chromium protective layer thick, beat within 0.02mm;



9. Led guid roller: adopt a small semi-sealed bearings produced in Japan, with static balance and dynamic balance treatment, hard oxidation treatment, small resistance, small beating;

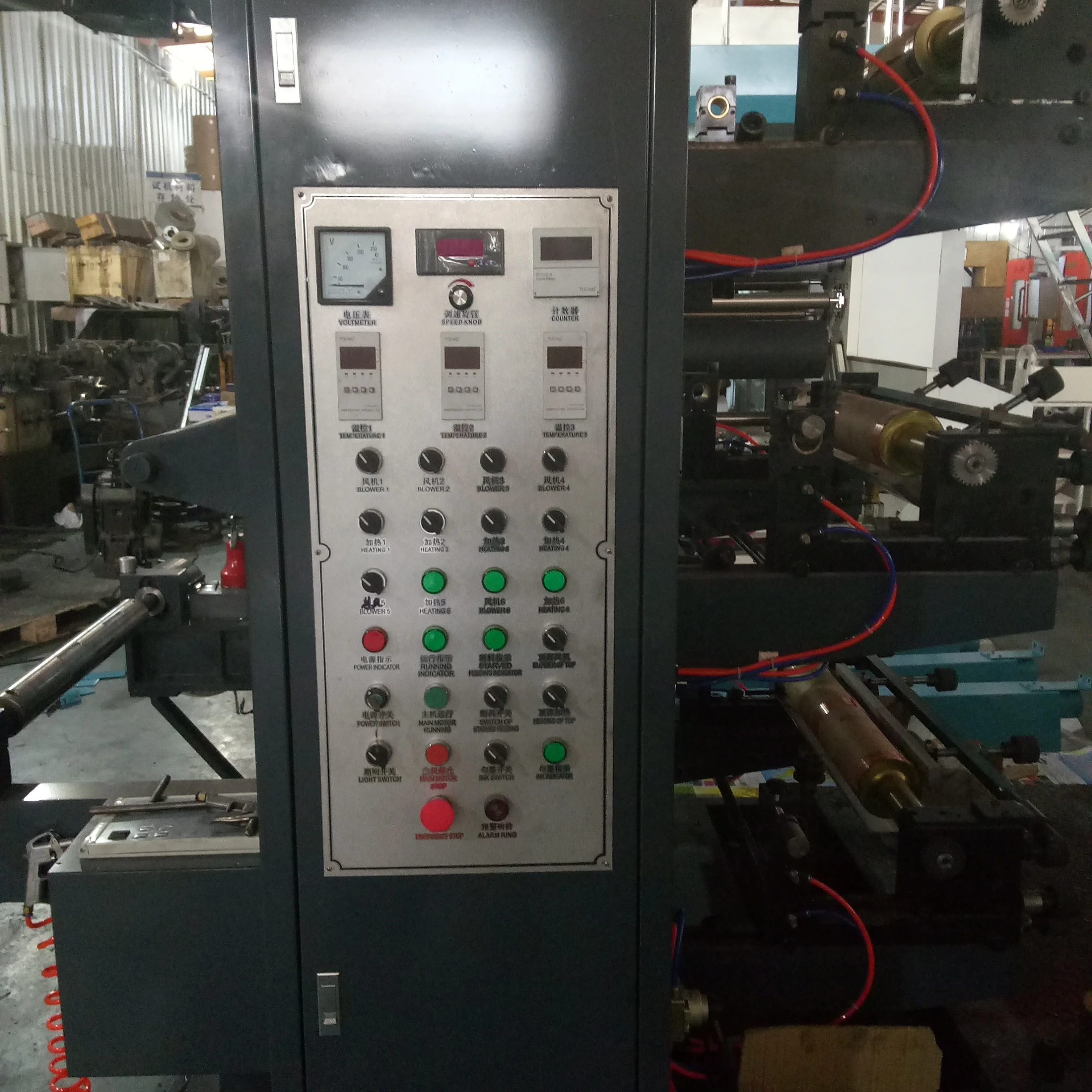

10.Machine control system: PLC devices, starting, stopping, running, line adopts PLC control, automation and better equipment and more humane. (can add voice prompts system)

• Good quality machines with one year warrantee, life-long maintenance   service;


• Undertake various of non-standard machinery, solve the customer's requirements

•  We deeply know that we cannot succeed without every client ;                                             Welcome to visit us & You will obtain the unexpected gains
