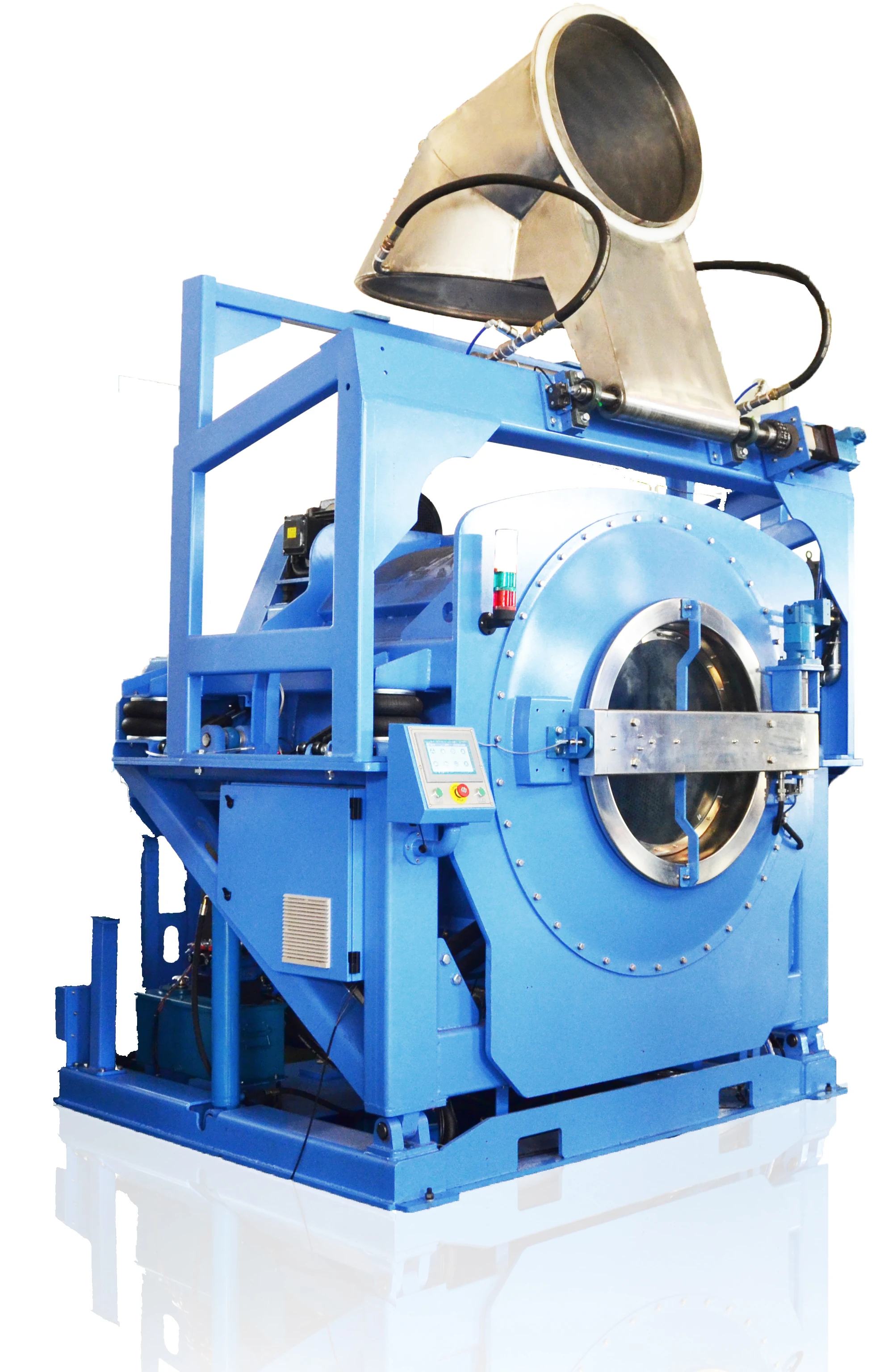

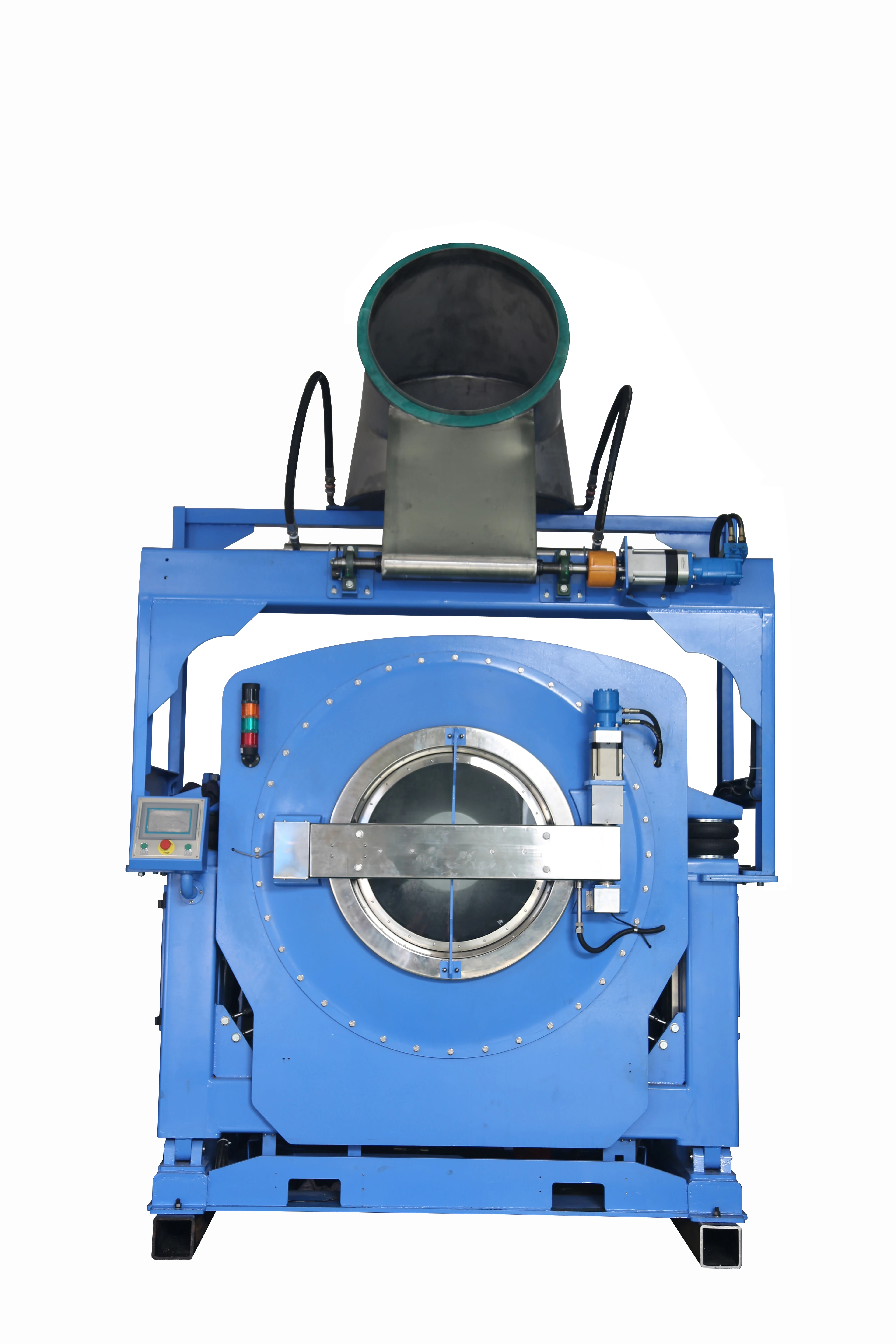

130kg Front & Back Tilt Washer Extractor

Product Overview

Description

Model	SXT-1300FQB
(V/P/HZ) Voltage	380/3/50
(kg) Capacity	110~130
(L) Volume	1300
(rpm) Washing  speed	32
(rpm) Cloth rotary speed	78
(rpm) Medium spin speed	325
(rpm) High spin speed	650
(kw) Motor power	15
(kw) Top of the motor power	2.2
(°) Front tilting degree	18
(°) Back tilting degree	19
(MPa) Steam pressure	0.4~0.6

(MPa) Water inlet pressure	0.2~0.3
(MPa) Compressed air pressure	0.5-0.7
(kg)  Overall weight	5150
(mm)   Exterior dimension	2552×2277×3950





SXT-1300FQB mainly technical performance



l adopt "quick washing" design concept, reduce the inefficient operation time, shorten the washing period;

l Design optimization, greatly reducing the resource consumption; the standard configuration is double water inlet and large diameter drainage system. If combined with the external water circulation system, it can save 40% more water.

l In order to reduce the moisture content of fabrics (about 8%), the G forces are up to 320G

l Equipped with airbag and hydraulic damping suspension structure, the aseismic ratio reaches to 97%; verified with the limited elements and the highest standard in Germany, structural parts of the our products are capable for 8-year-above reliably usage.

l Man-machine engineering design, beautiful shape, compact structure, less covers an area of 15%

l High anticorrosion performance, the parts that contacted with water are using stainless steel material;

l Pneumatic sealing door and double water seal sealing design put an end to the fabric damage and leakage;  large Windows and hydraulic automatic switch door make it easy to operate.



   7 inches color touch-screen computer controller, convenient to operate and manage (visual display, access control, U disk and network connection, Microsoft CE operating system, upgrade interface).
