Good Quality Cheap Price Blister Sachet Soft Tube Bottle Vertical Semi Automatic Cartoning Machine
- Category: >>>
- Supplier: Shanghai Royal Pharmaceutical Machinery Co. Ltd.
Share on (62329262690):
Product Overview
Description
Product Details
Product Details

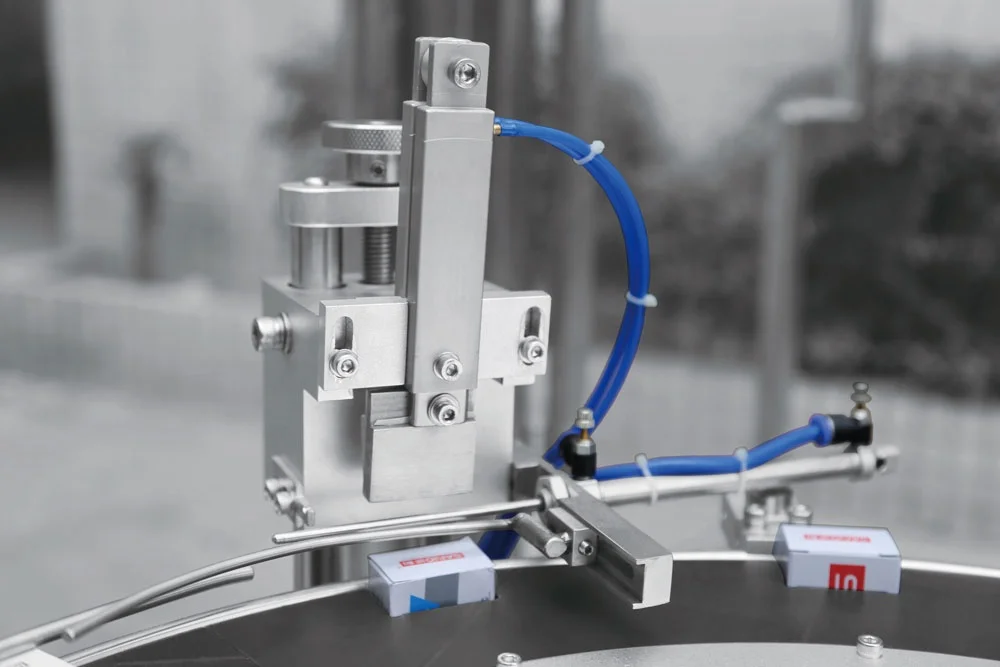

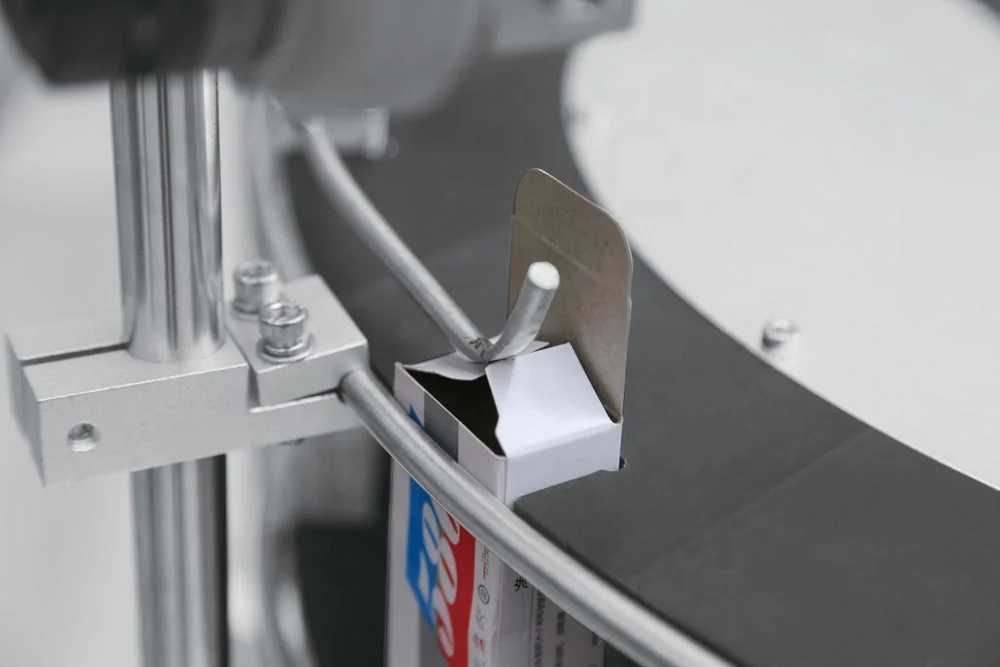

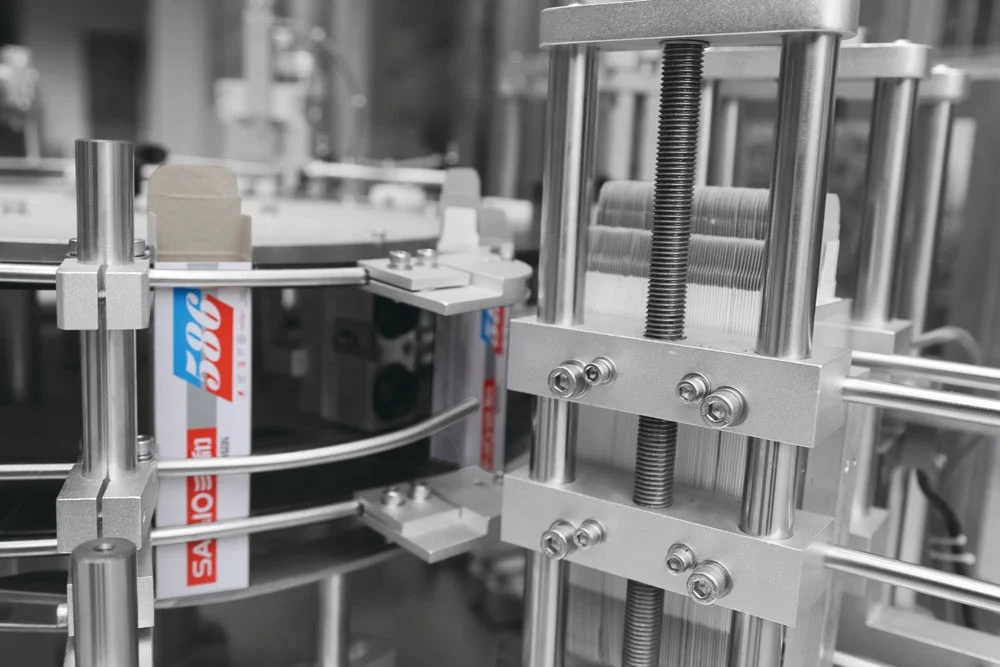

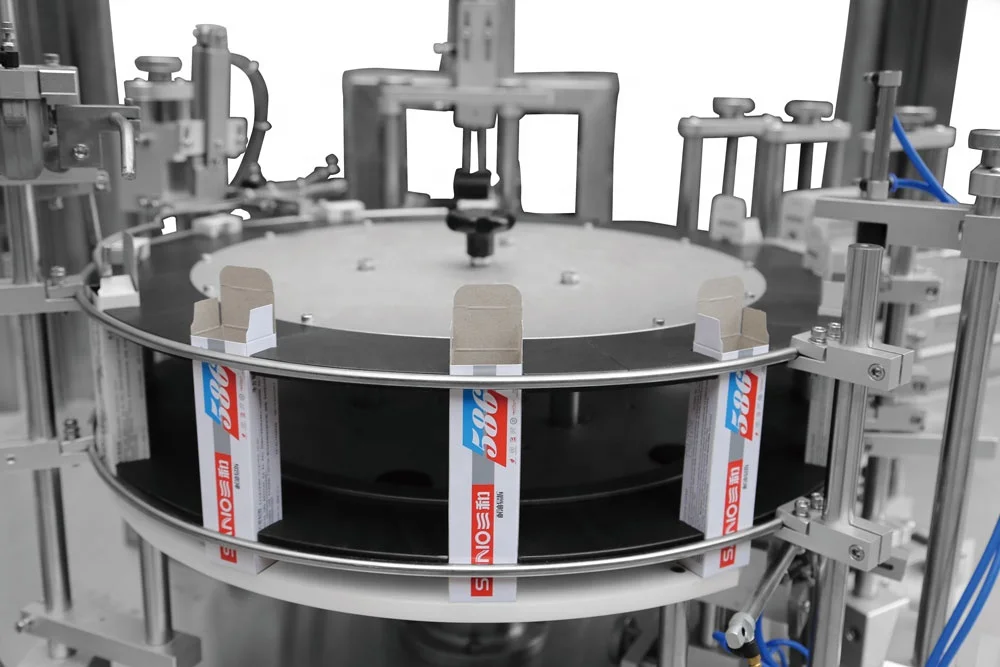

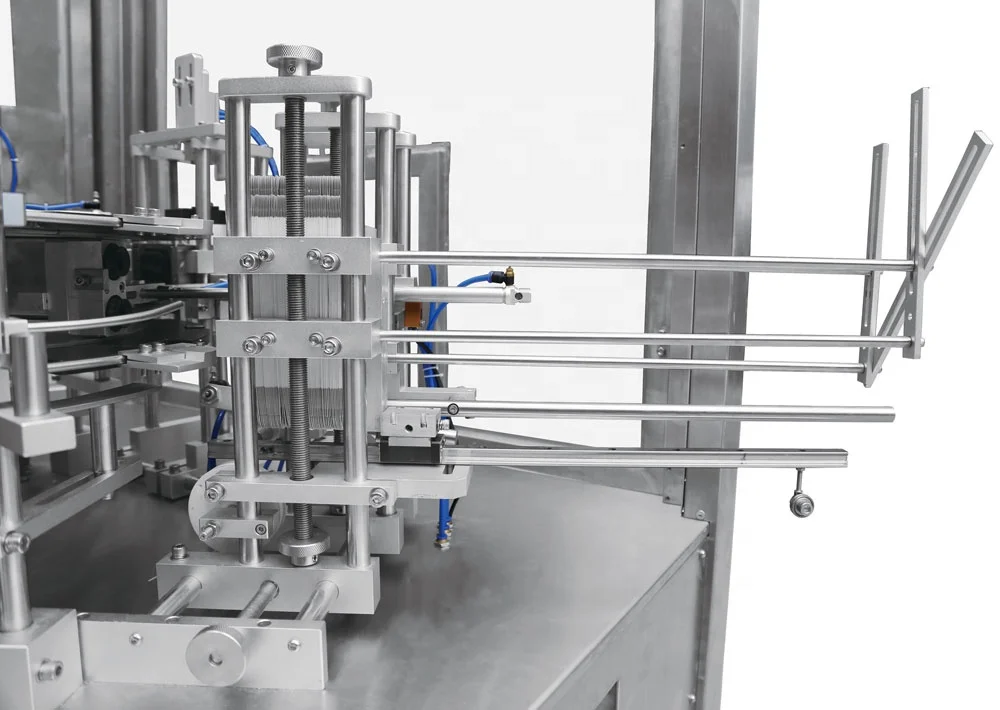

Good Quality Cheap Price Blister Sachet Soft Tube Bottle Vertical
Semi Automatic Cartoning Machine
Application:
ZH-50 model rotary cartoning machine Its specially design to pack small quantities multi size box. With low cost and only require small area. It is suitable for various sizes of box. Machine is vertical type, multiple functionand require a short time to change mould. It is widely used in pharmaceutical, food and cosmetic industries. Like the medicine bottles, blister board, tubes, tea bag sachets, biscuits, soap, perfume, puff cake, lamp bulb, etc. S.S304 framework, advanced PLC Control System Combined with 5.7” Colorful Touch Screen Control Panel, can easily set and change the technical parameters.
Working process:
1. Push box into star wheel
2. Fold box lower small flap.
3. Press both lower big flaps.
4. Flatten both big flaps.
5. Product falls into box.
6. Fold box upper small flap.
7. Press both upper big flaps.
8. Flatten both big flaps.
9. Product be pushed out.
Applicable Industry:
1.Tea coffee bag automatic carton box packing machine
2. Condom plaster sachet cartoning machine
3. E-cigarette/Pod cartoning packaging machine
4. Cosmetic facial eye Mask cartoning box packing machine
5. Food Milk fruit vegetable biscuits automatic cartoner cartoning machine
6. Cosmetic Perfume Bottles automatic cartoning machine
7. Ointment eye drop plastic bottle carton box package machine
8. toothpaste tube automatic carton machine
9. Pharmacutical tablet capsule blister cartoning box packing machine
Sample carton picture:
Product Parameters:
| Model No. | ZH-50 |
| Packing speed: | 20-50box per min |
| Paper box's largest size | 200*80*80mm |
| Paper box's smallest size | 60*20*20 mm |
| Paper quality of carton | 250-350g/m3 |
| Motor horsepower | 1/4HP 15:1 |
| Power supply | 220V 50/60HZ single phase |
| Machine noise | ≤80dB |
| Gas source | 0.5-0.8 Mpa |
| Compress air consumption | 150L/min |
| Machine measurement: | 1100*1500*1900 mm |
| Machine weight | 250Kg |
Company Introduction
Company Introduction
Shanghai Royal Pharmaceutical Machinery Co.,Ltd is a professional manufacturer and supplier for pharmaceutical machinery, packing machinery and also production lines.
Our company possesses 25 senior staffs with over 10 years working experience in different fields, such as design, manufacture, Import & Export, quality control and after-sale service. Strong technical support, advanced production equipment, perfect testing and quality management system to make us have the ability to supply excellence products at reasonable price.
Quality Testing
Quality Testing
Certificate Show
Certificate Show
Cooperative Client
Cooperative Client
Our Service
Our Service
Package And Shipping
Package Transportation
FAQ
1.Q: What price terms you offer?
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
2.Q: What payment terms you take?
A: We prefer T/T, but other terms also workable for us.
3.Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if needed, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD50/day.
4.Q: How can I visit and check your company?
A:Our factory is located in Shanghai and Zhejiang Province. Headoffice lay in shanghai, Minhang District. From Pudong International Airport to our office need only 45 minutes. U can take the metro line 5 come to our office directly!
Any other doubts about our machine, please feel easy to contact with us.
