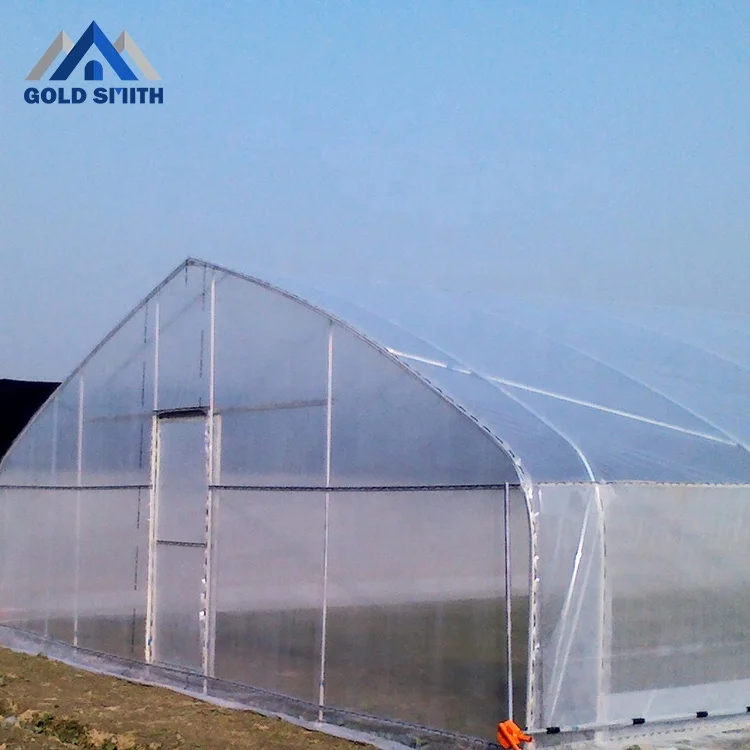

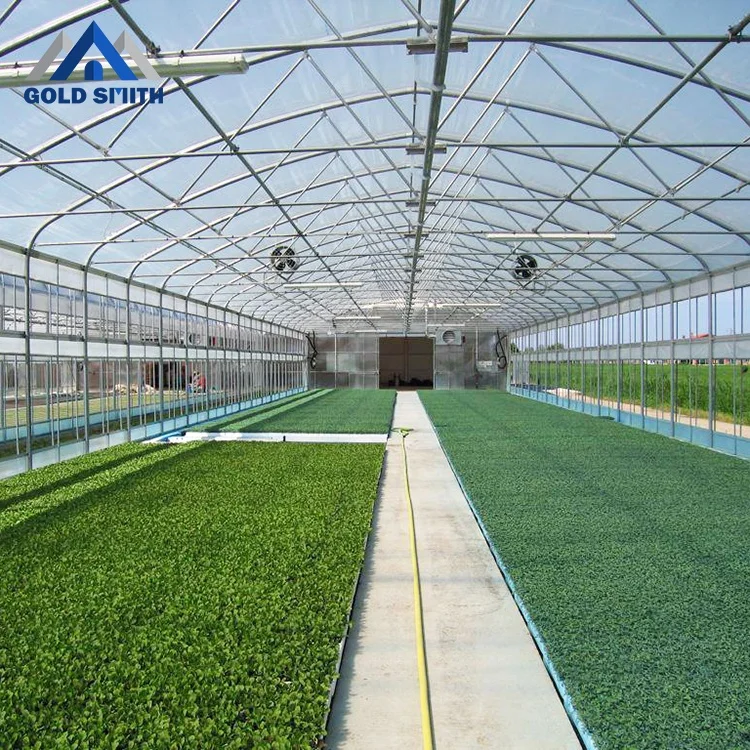

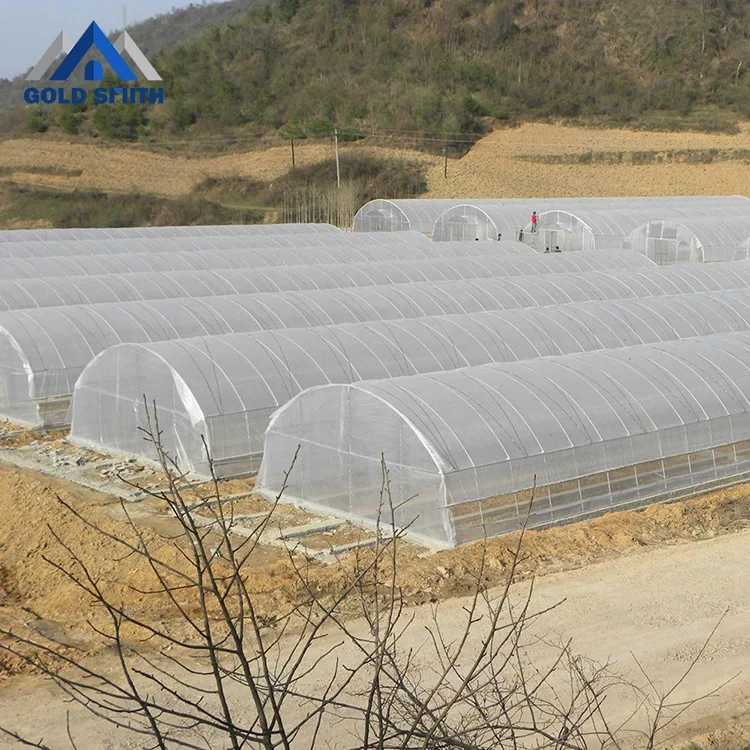

The skeleton of greenhouse adopts hot-dip galvanized steel structure, which is strong and durable. The hot-dip galvanized steel structure has strong corrosion resistance and it can be used for more than 30 years. The cover film is made of PO film, which has anti-ultraviolet and anti-drip function, and it is very economical. The greenhouse is equipped with temperature control system. The system sets the temperature according to individual needs. When the indoor temperature is high or low, the greenhouse system will automatically start work, saving time and effort, and controlling freely..
2. Size of Greenhouse
Greenhouse Style | Singgle span Arch Type |
Span | 8m |
Column space | 4m |
Eave height | 5m |
Top height | 6.8m |
Structure of greenhouse | Hot-dip galvanized steel pipe |
Covering material | 0.15 mm PO film |
Layer | single |
Snow load | 0.35 KN/m2 |
Wind load | 0.45 KN/m2 |
3. Greenhouse Structure
High quality hot-dip galvanized steel; The Galvanized layer is above 240 g/m2; Compared to electrical galvanized pipe, hot-dip galvanizing pipe is covered of zinc layer in inside and outside of the pipe, so it is not easy to get rusty ;The guarantee period is more than 20 years.



Item | Main Frame Structure | Detail Materials |
1 | Main column | rectangular tube 100mm*100mm*2.75mm |
2 | Vice column | rectangular tube 50mm*100mm*2.0mm |
3 | Tunnel tube | Ф32*2.0mm Hot-dip galvanizing steel tube |
4 | Side purlin | 50*50*2.0mm Hot-dip galvanizing square tube |
5 | Wall purlin | 50*50*2.0mm Hot-dip galvanizing square tube |
6 | Standard parts | Hot-dip galvanizing |
The covering material is PO film, which has anti-ultraviolet and anti-drip function.
Thickness of film: 0.12mm,0.15mm,0.18mm,0.22mm;
Film color: white,blue, transparent;
Transmittance rate: >70%;
Service time: >5 years.

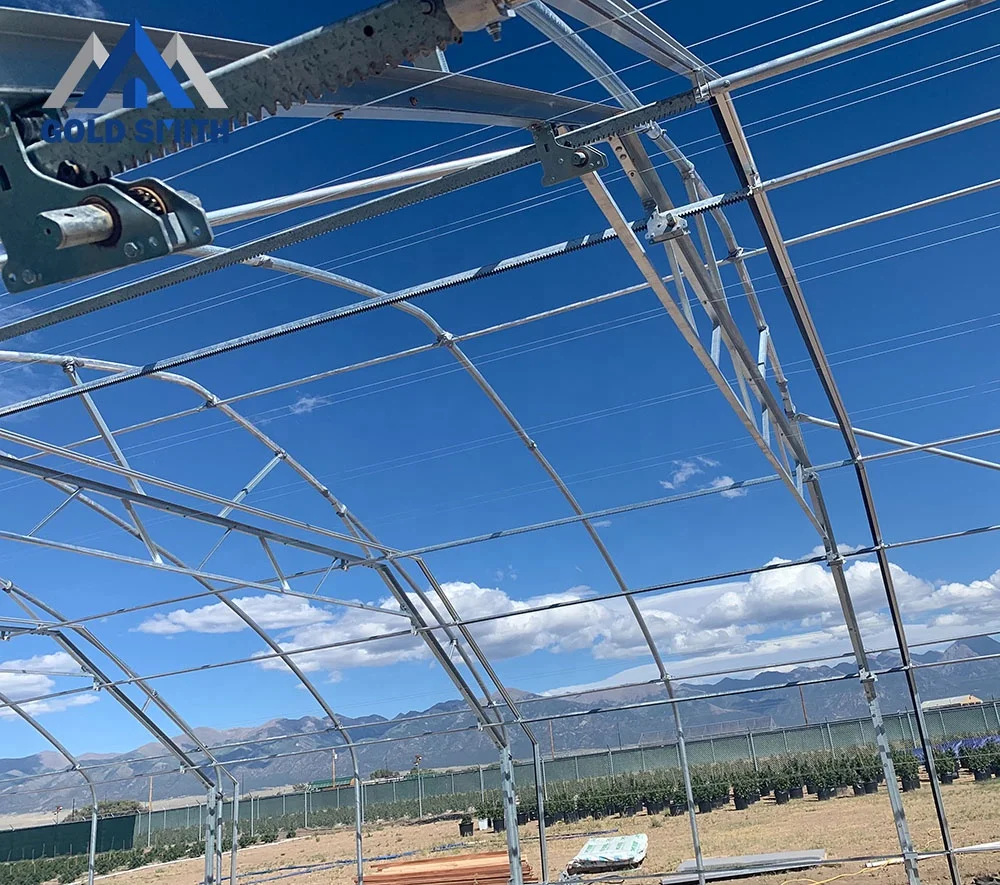

Top automatic ventilation system, side automatic ventilation system


Gold Smith company--one of the most professional company in designing,manufacturing and constructing greenhouse.We own professional and outstanding technology group who have been engaged in greenhouse construction more than 11 years,so we can recommend and provide you the most suitable greenhouse according to your local climate and your crop. With 11 years experience we can help our customer select, construct, manage and maintain the optimal greenhouse structure and necessary environment control system.To create great value for our customer is the motivation that we persist all the time.








1. 24 hourse onlines, fast response Making Machine
2. Inquiries and consulting support
3. View our factory
4.OEM/ODM available
1. Installation of GreenhouseMaking Machine
2. Warranty Period 5-10 years
3. Supply parts of greenhouse and planting plastic
4. Supply agriculture planting technology
Q1. Are you trade company or manufacturer?
A: We are manufacturer,and we have our own processional design group,so we could customized production according to your requires.
Q2. How long does it take to produce?
A: Production time depends on the size of order.Usually it is about 30-60 days.
Q3. How long is the warranty period?
A: Different parts of greenhouse have different warranty, we will guarantee the whole greenhouse 1 year.
Q4. Can you supply sample?
A: Yes ,we could supply the small part of material for you,but you should pay the express.
Q5. How to install greenhouse?
A: We will send you the drawing and the video of installation,these will help you build the greenhouse. Also if you want, we could send engineer or all workers to guide the installation,but you need pay for the workers.
