China hydraulic stone coated metal roof tile making stamping press machine

Product Overview

Description

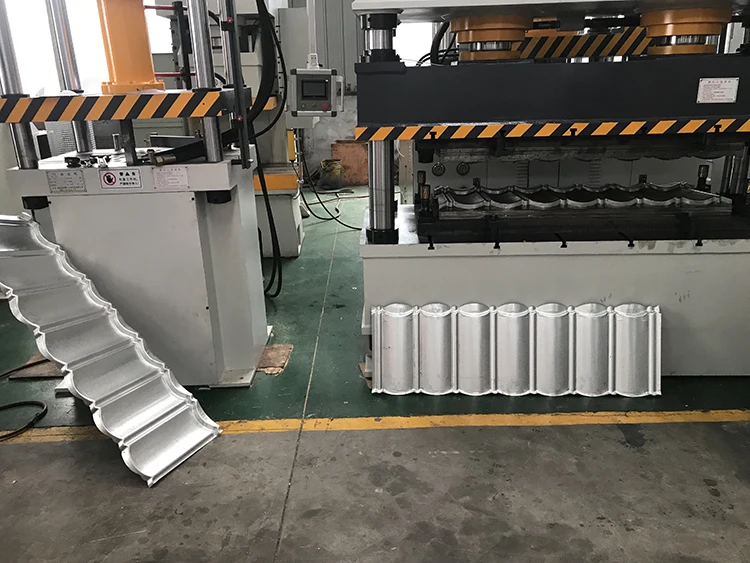

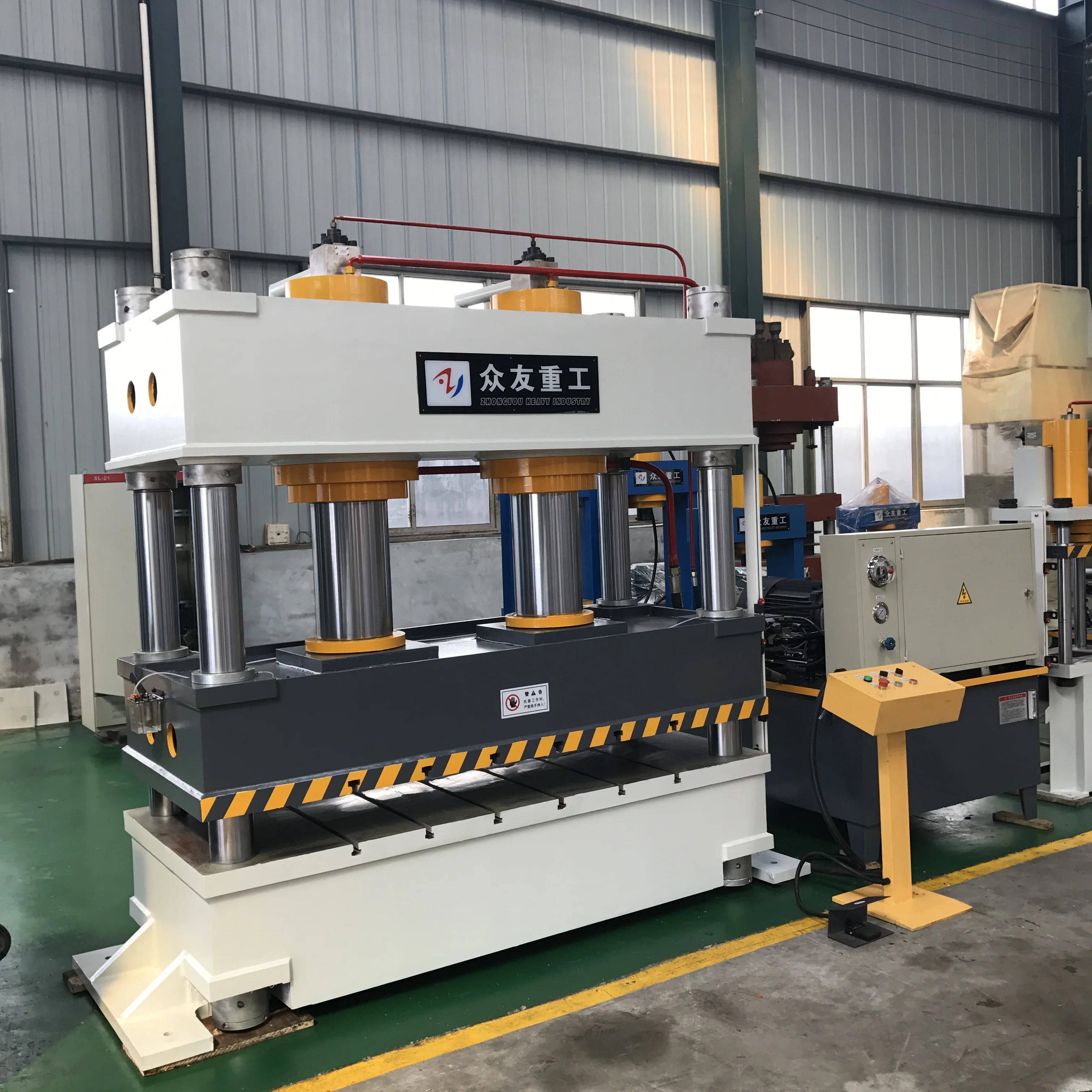

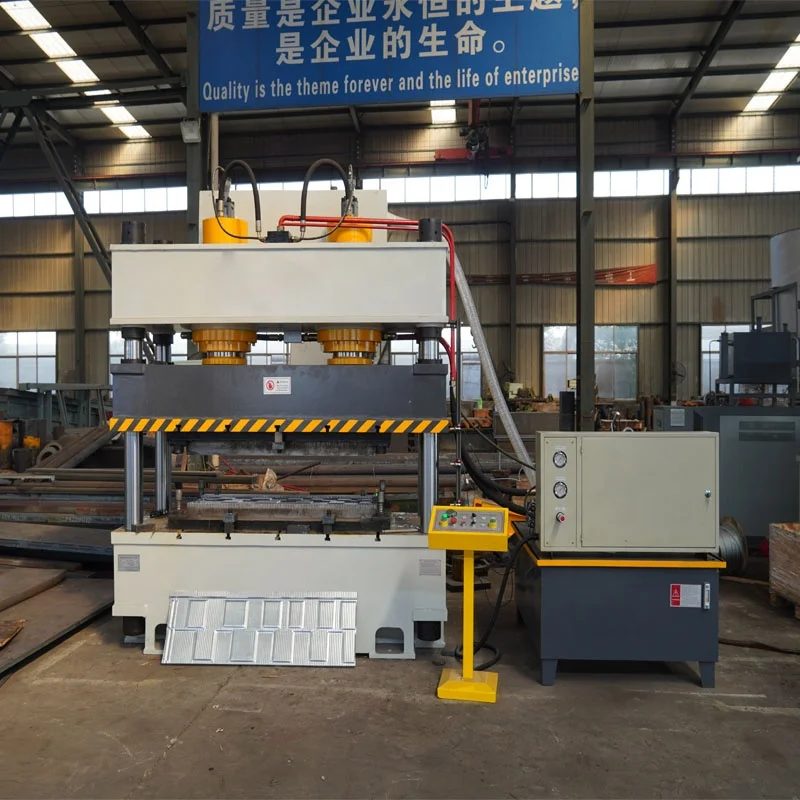

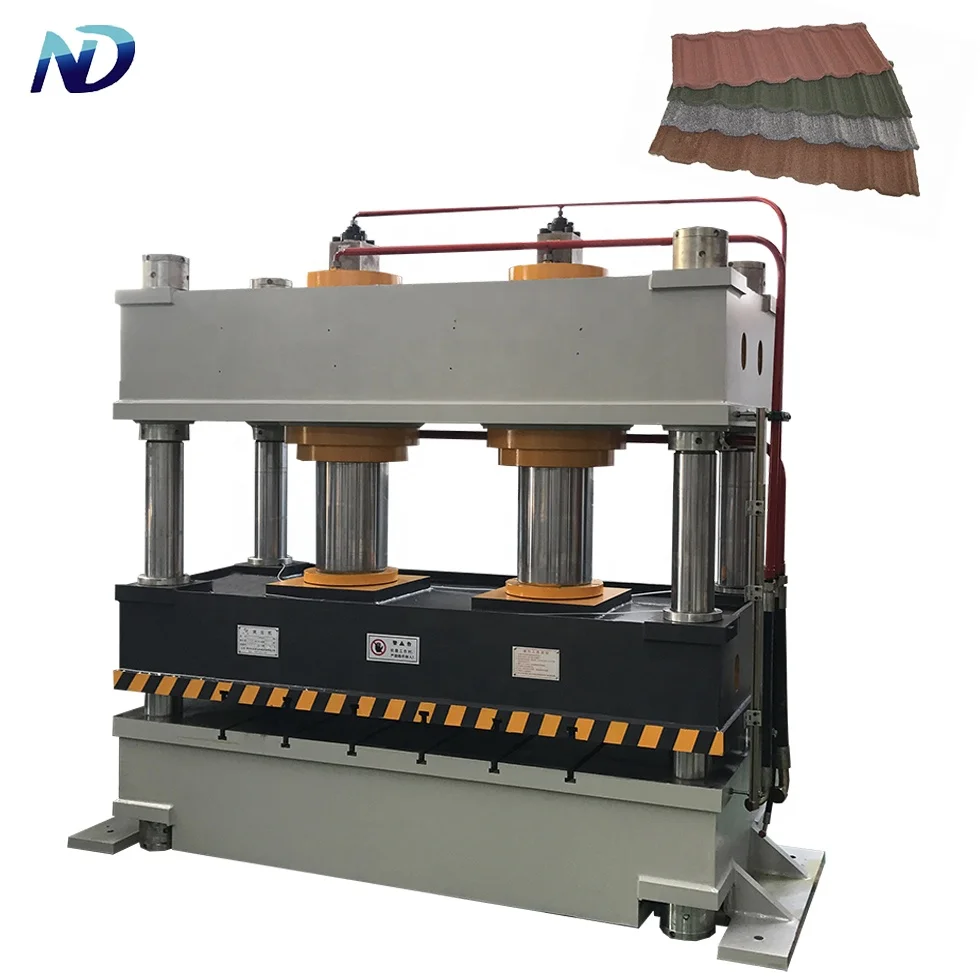

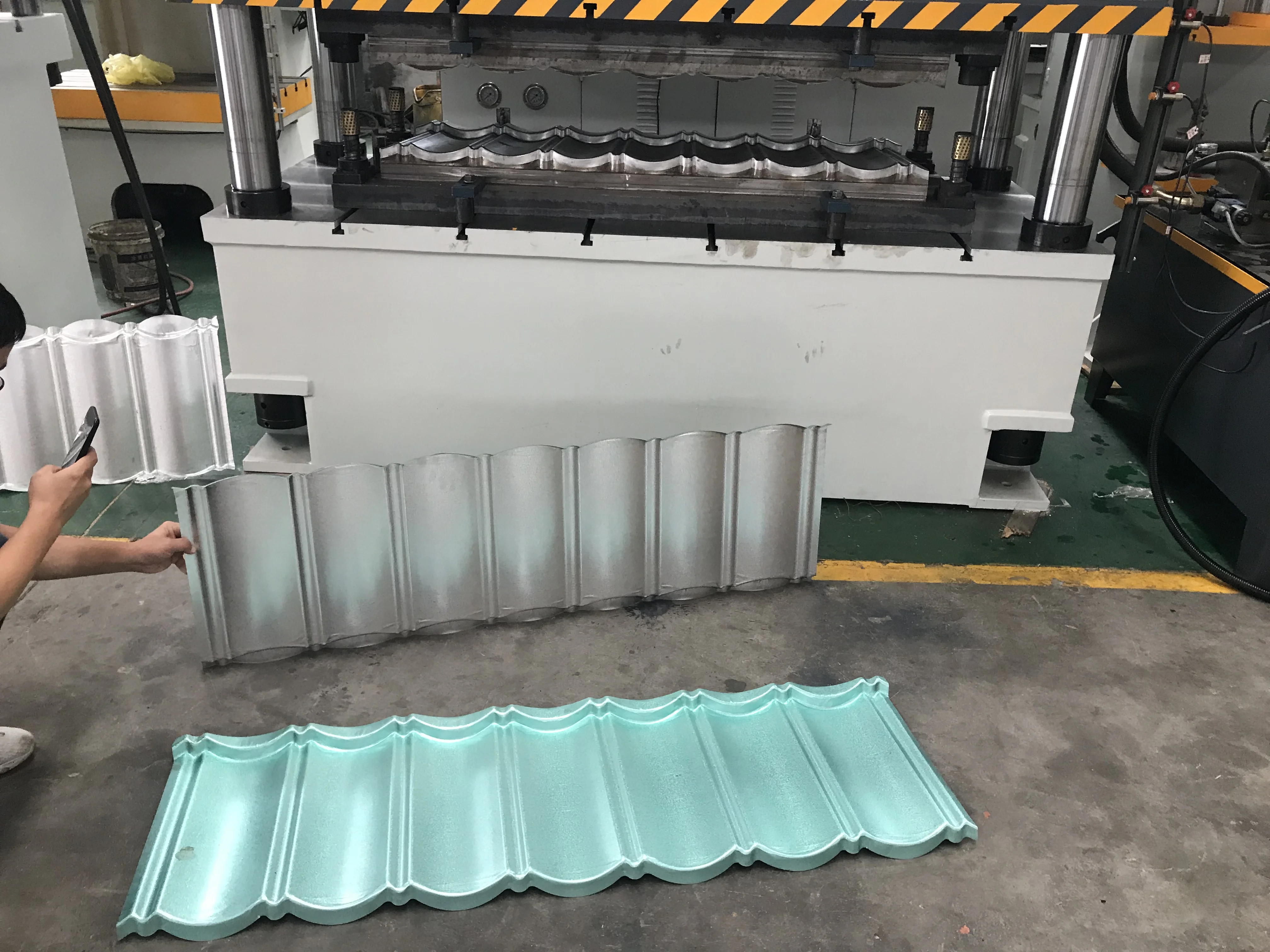

China hydraulic stone coated metal roof tile making stamping press machine

Introduction of metal tile making machine

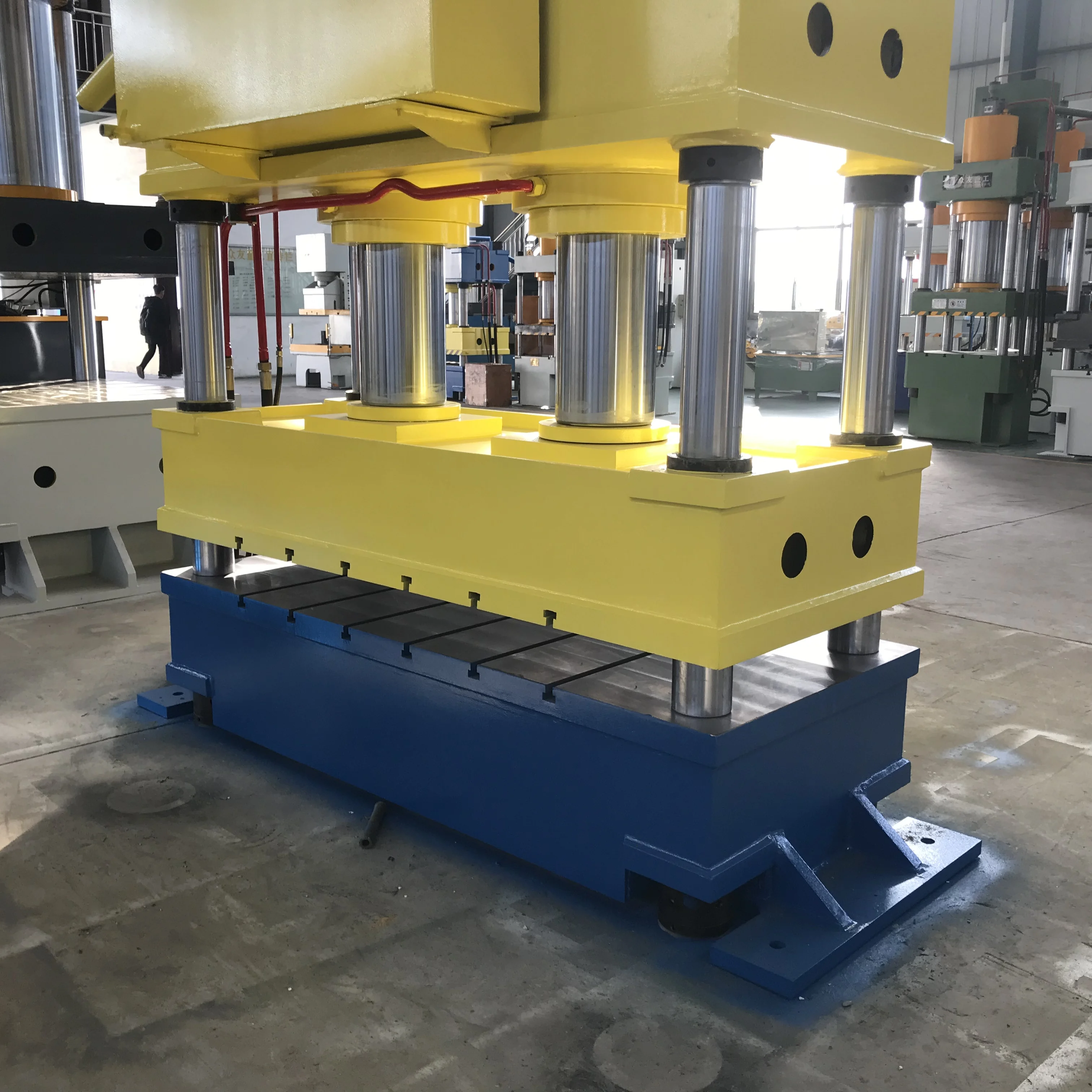

1. Structure: it consists of an upper beam, a slide block, a workbench, an upright post, a main cylinder, hydraulic system and electrical system components. The main oil cylinder seals use imported materials to ensure reliable sealing.
2. Hydraulic System: The hydraulic system device is arranged on the right side of the press, with cartridge integrated system, flexible action, reliable work, good sealing performance. The hydraulic pump comprises an oil tank, a high-pressure pump, motor, cartridge valves and other components.

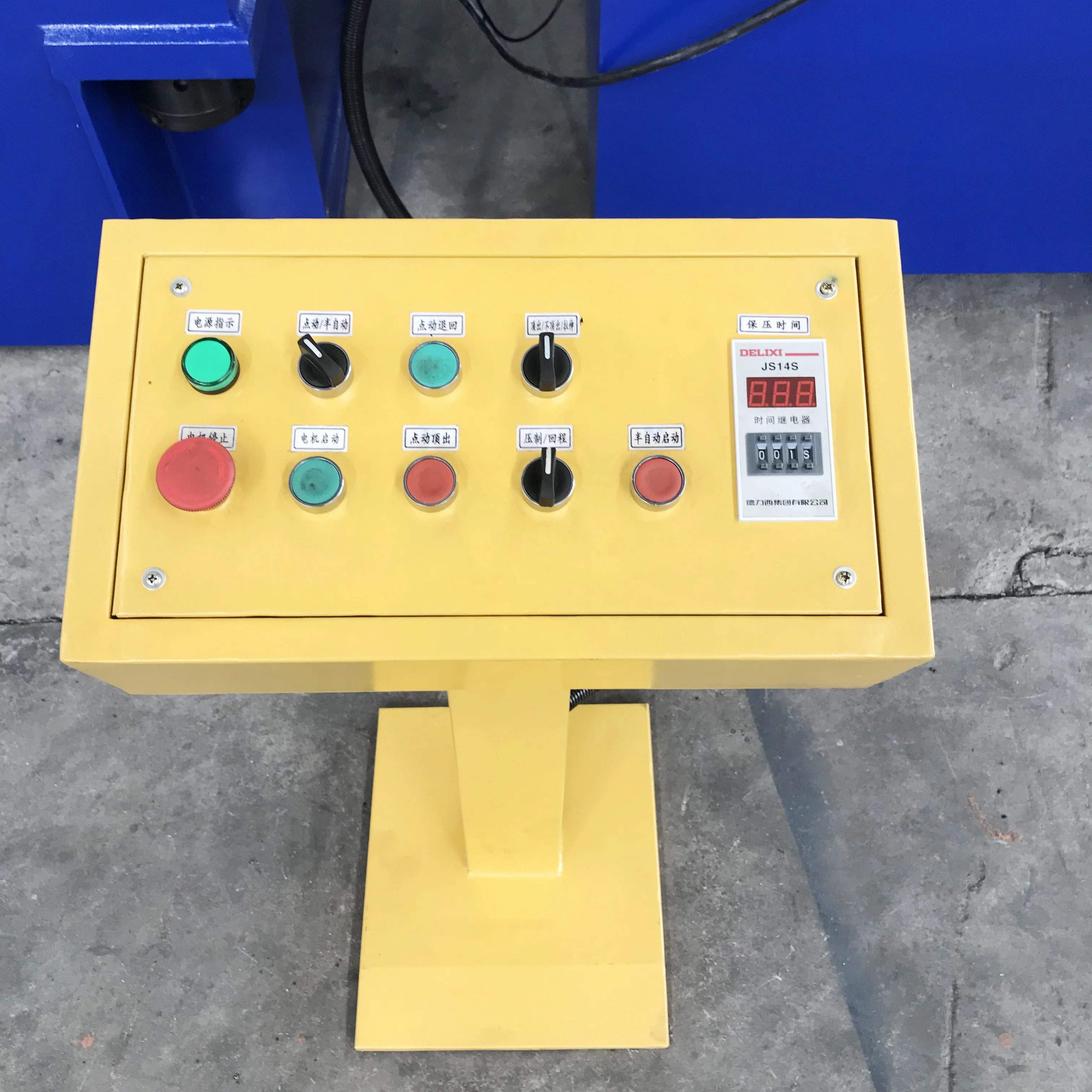

3. Electrical Control System: an independent electric cabinet and a centralized control panel.
4. Operation: Two working modes as inches and semi-automatic strokes.

The edge-pressing and drawing cylinders are composited together in the master cylinder, allows independent operation and characterized by high precision and effectiveness;



A hydraulic cylinder (ancillary cylinder) is assembled under the workbench, cooperate with the master cylinder to implement dynamic change of edge-press force in different forming stage;



The cooperation of master cylinder and ancillary cylinder also allow using liquid as mould cavity to
achieve hydrodynamic deep drawing process and using liquid as backpressure to prevent wrinkle and fracture during the production process;







We can provide the whole prodction line and complete technical solution





Details Introduction





Application

1. Auto parts: automobile body covering parts, braking, fuel tanks, chassis, axle case, bumper;
2. Household appliance: washing machine, TV, refrigerator, air conditioning, rice cooker and other parts;
3. Kitchenware: sink, tea set and Other kinds of containers.



Machine are exported to the Americas, Africa, Europe, the Middle East and Southeast Asia and other countries and regions.



Our company mainly produces

straightening machines,

hydraulic presses,

powder forming machines,

deep embossing machines,

iron filing machines,

mechanical punching machines,

hydraulic brake machines,

shearing machine,

bending machine etc.

The products are widely used in various industries of light and heavy industry.

1. What's the price and specification of hydraulic press machine?

The price will be based on parameter you requested. all the specification can be customized.



2. How about your machine quality?

Our machine has passed CE, ISO, SGS certificated. Or you could directly come to visit our factory. We warmly welcome you.



3. May I send samples to test?
Yes, if you could send us samples, it would be better.
