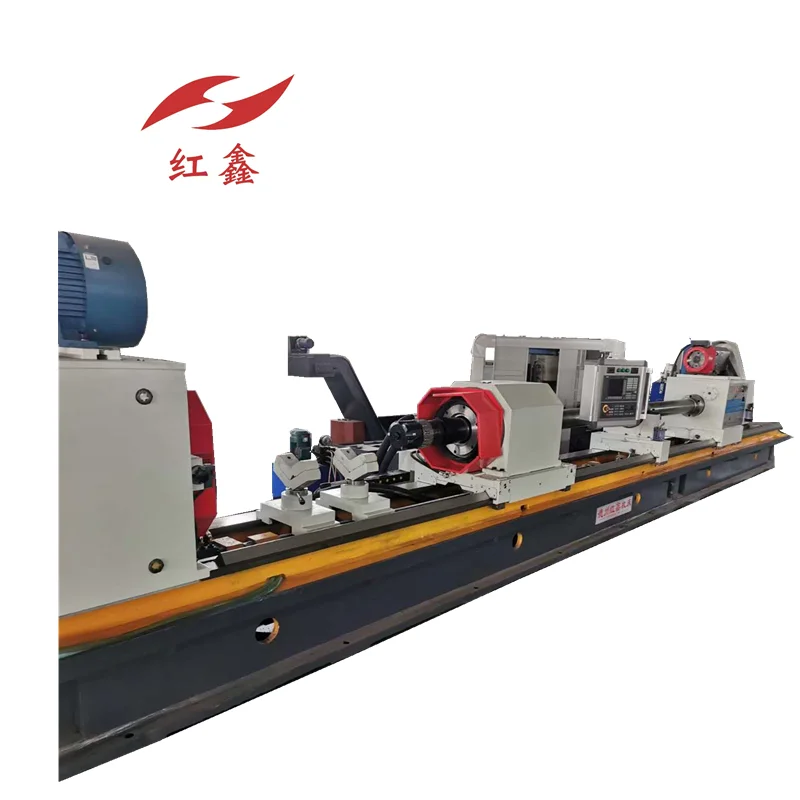

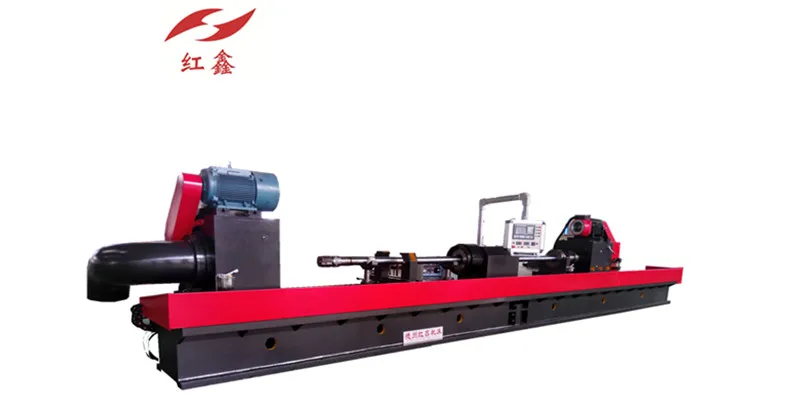

China supplier CNC deep hole skiving and burnishing machine

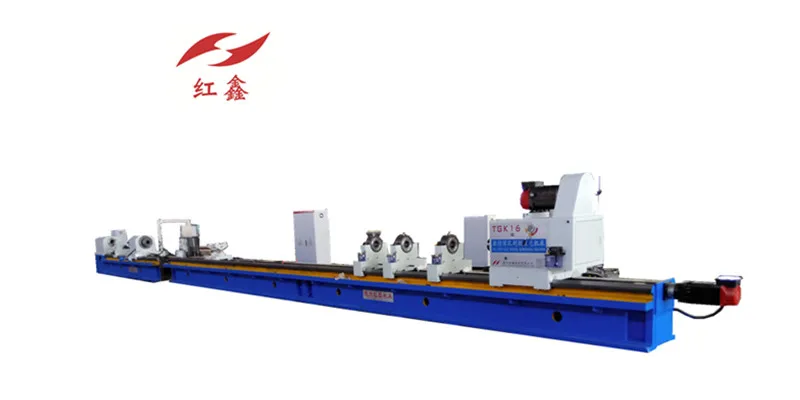

Product Description

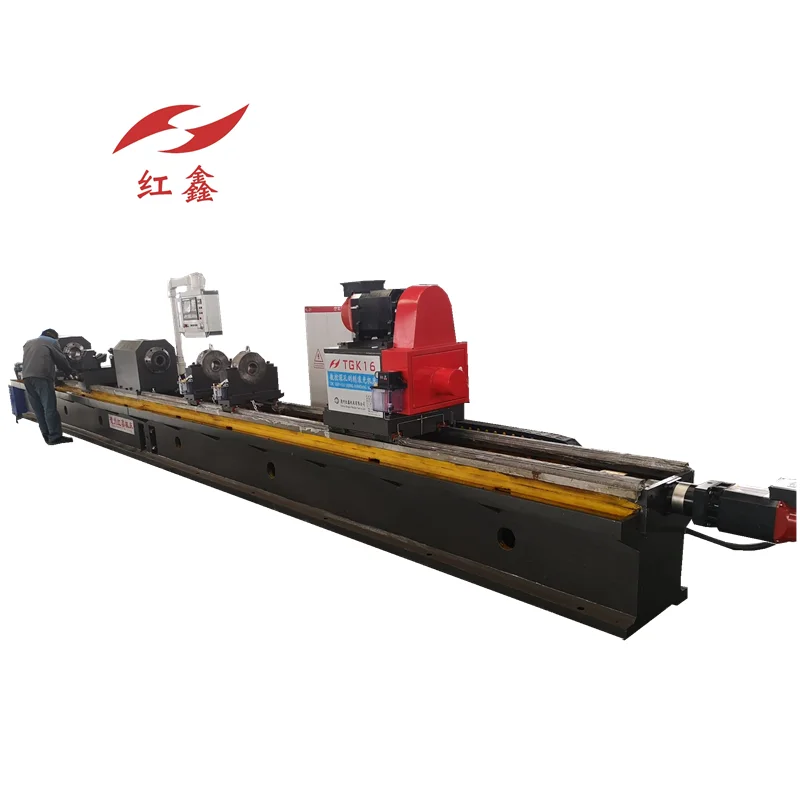

The machine structure and practical performance, long life, high efficiency, strong stiffness, reliable operation and pleasant.

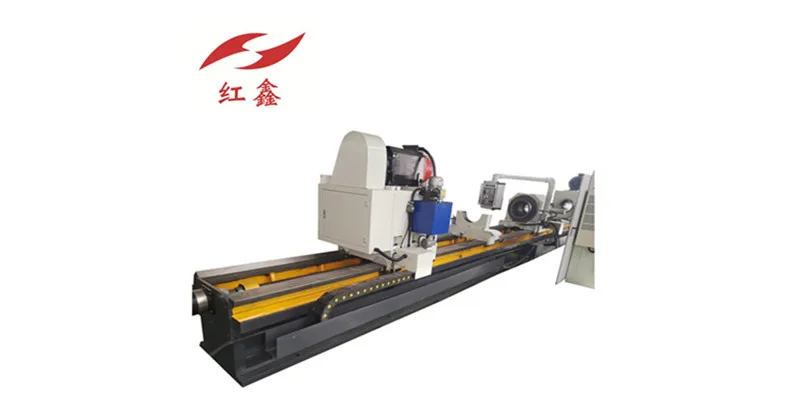

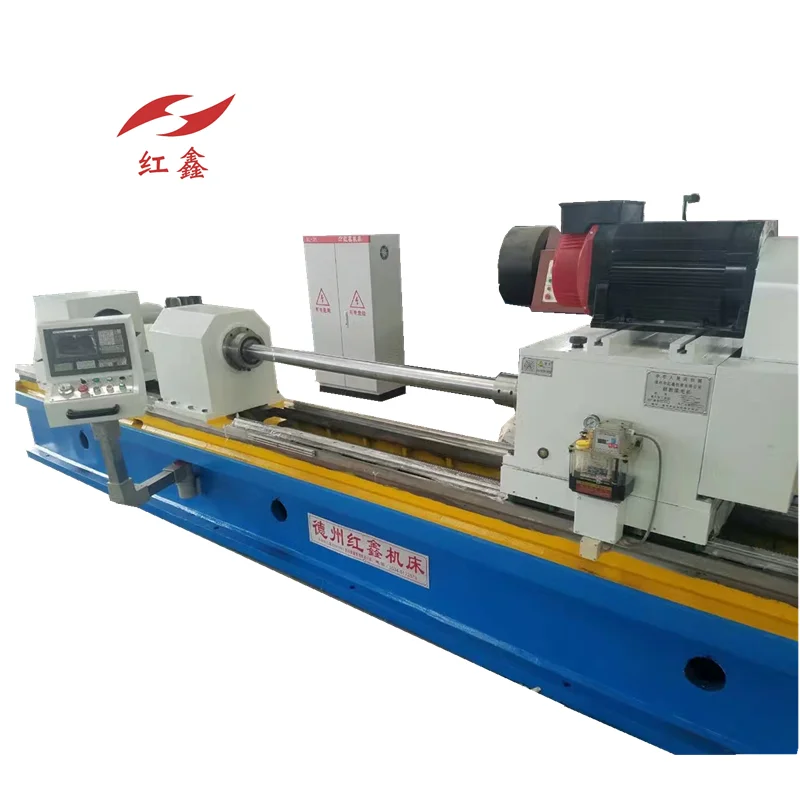

When machining the workpiece is fixed, the tool rotates and feeds.when skiving chips and coolant are discharged from front end.

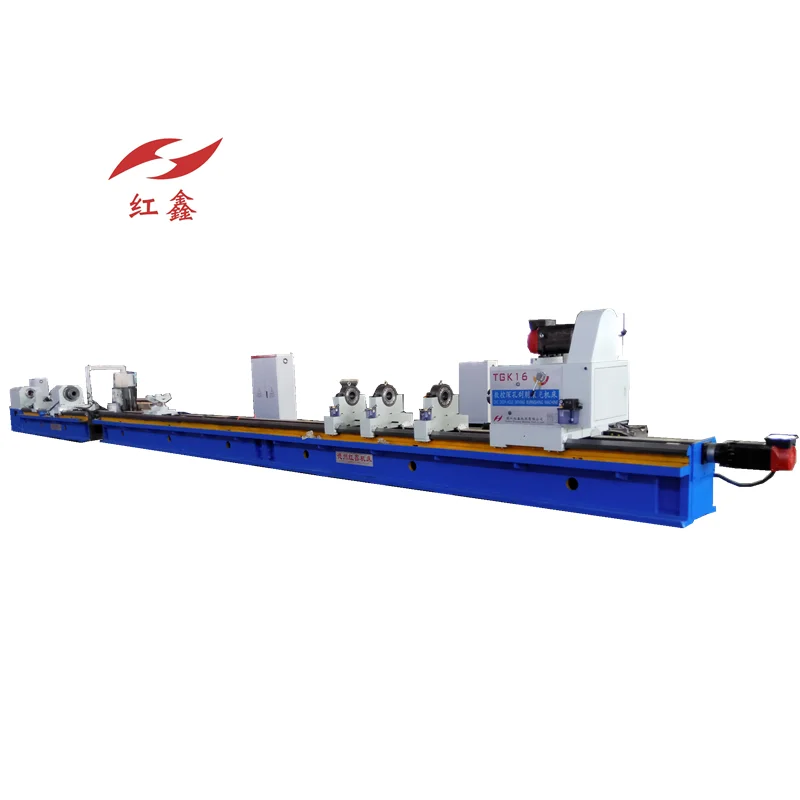

The machine is a deep hole machine, suitable for maximum skiving &burnishing diameter 160mm, the maximum length of 9000 mm workpiece .It is Widely used in the cylinder industry, coal industry, steel industry, chemical industry, military and other industries deep hole parts processing.
The Machine tools is equipped with high efficiency automatic combination tools. The two combination tool adopt fine boring & burnishing processing, diameter processing margin is 1mm. To machine 150 hole as an example: diameter margin 1mm (after rough boring or precision cold draw steel tube), feed rate can reach 300 ~ 1000mm / min (depending on the material); processing roughness can reach Ra0. 1 ~ 0.4μm, dimensional accuracy up to IT7 ~ IT9, the processing efficiency is 3 to 5 times of the traditional deep hole machine.

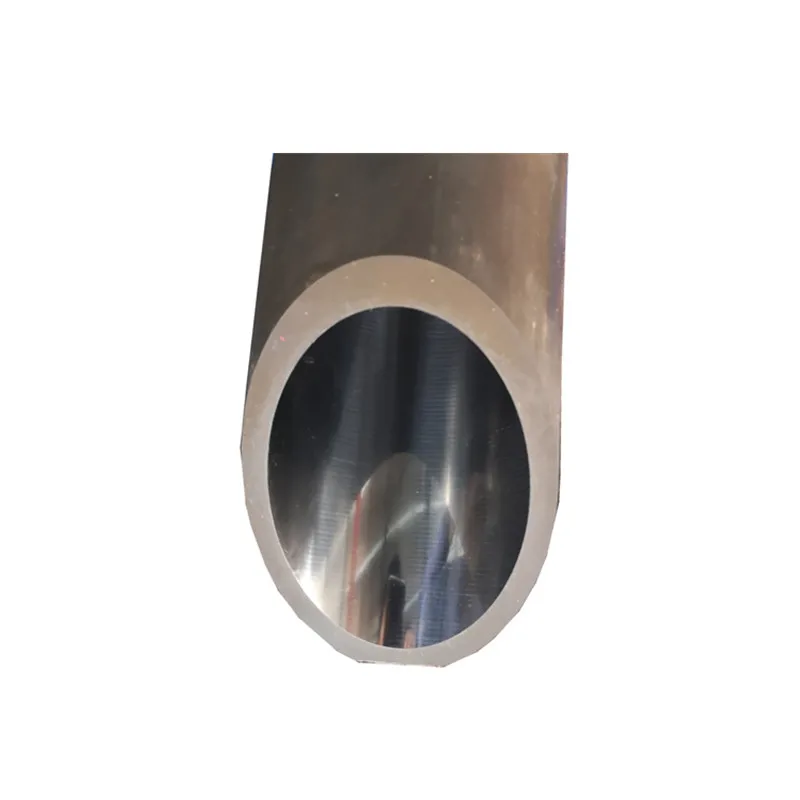

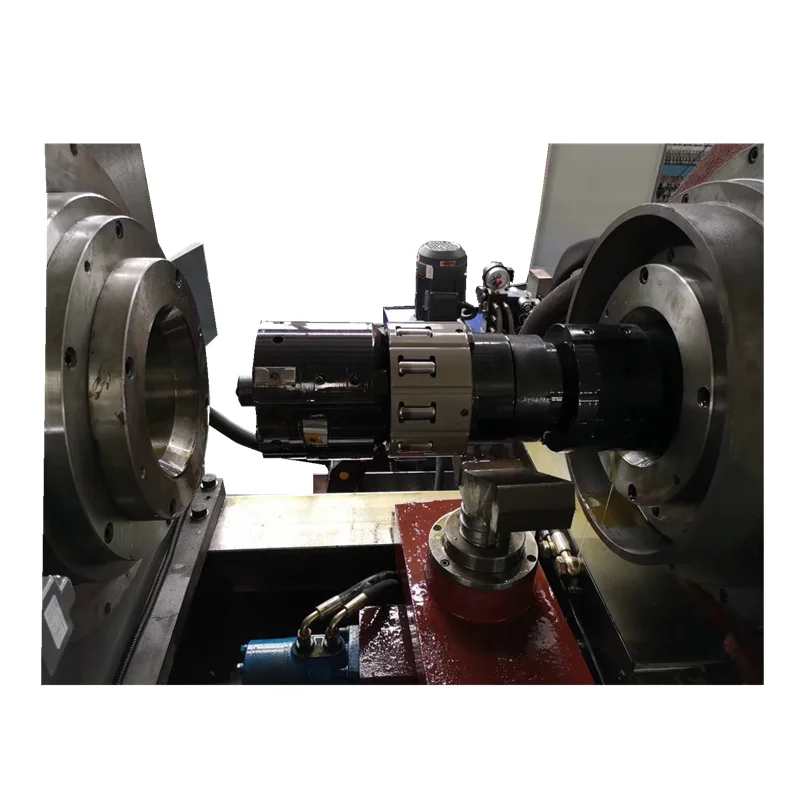

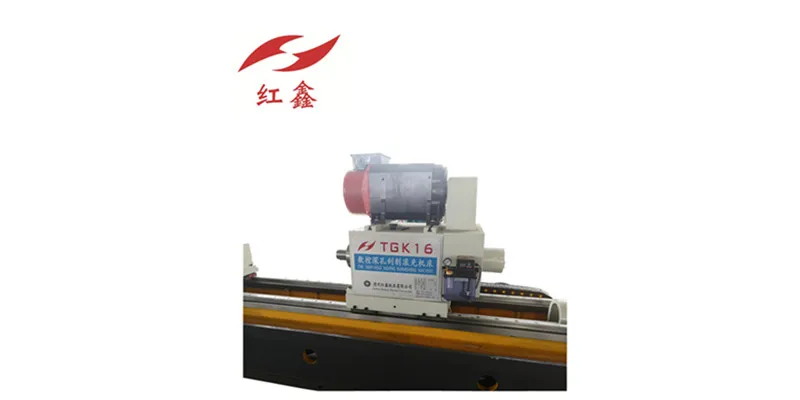

The machine is equipped with a hydraulic tool draw back system. After machining is completed, the hydraulic system drives the core rod to reduce the size of the skiving& roller burnishing tool diameter. The tool returns to the pressure head. The hydraulic system pulls the core rod to have the tool return to its original size. The processing method is particularly applicable to a variety of hydraulic cylinders, cylinders and other precision pipe boring and rolling batch processing
Item
Data
Work scope
Boring ID
40-160mm
Length of Job
9000mm
Boring box
Center height
> 260mm
Spindle nose
80mm 1:20
Spindle speed
30-1500r/min
Spindle torque
≥1000N.m
Feed data
Feed speed
5-1500mm/min( infinite)
Rapid speed
3m/min
Accuracy
Length
1-9m
Roughness of boring
Roughness of burnishing
≤Ra3.2μm
≤Ra0.8μm
Straightness
≤0.05/500 mm
Roundness
≤0.036/200mm
Motors
Boring motor power
30KW AC servo
Feed motor
5.5KW AC servo
Hydraulic motor
3KW AC
Cooling motor
11KW X1+ 7.5KW X 1
Chip conveyor motor
1.5KW, 1
Magnetic separator motor
0.75KW,1
Lub
0.75KW,1
Other
Pushing force of pressure head on job
10KN
Coolant volume
200L/min
Rated pressure of coolant
0.36Mpa
Volume of Magnetic separator
200L/min
filer accuracy
5um
