AHB Series Compressed air cooled Hysteresis Brakes 3kg torque (62329318010)

Share on:


Price:$550.00 - $600.00
Price in USD:Details

Quantity:


Product Overview

Description

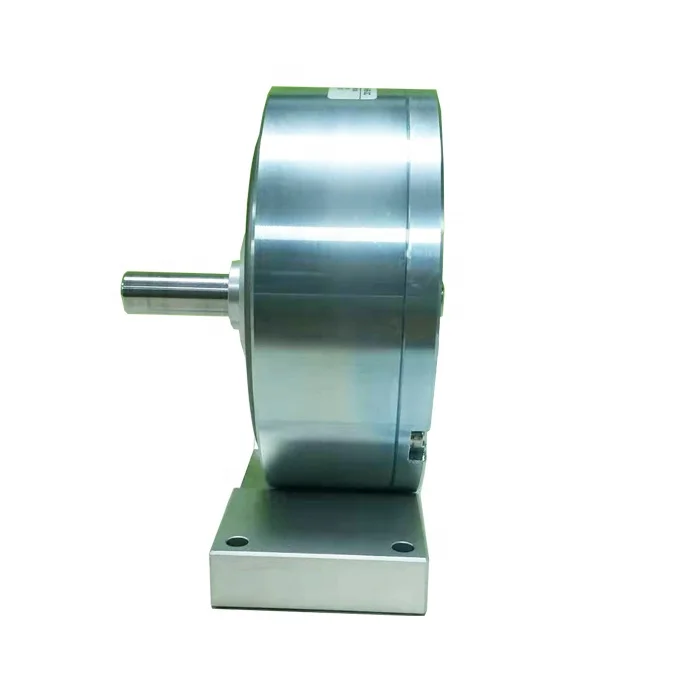

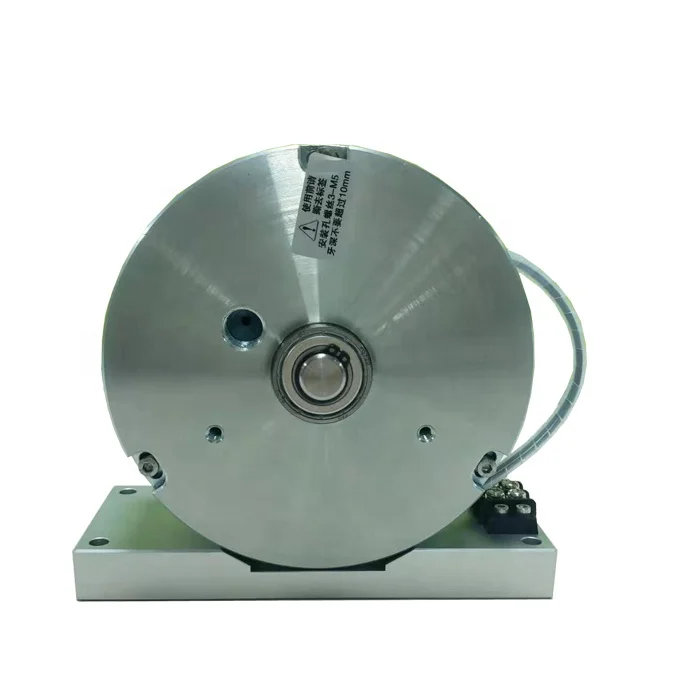

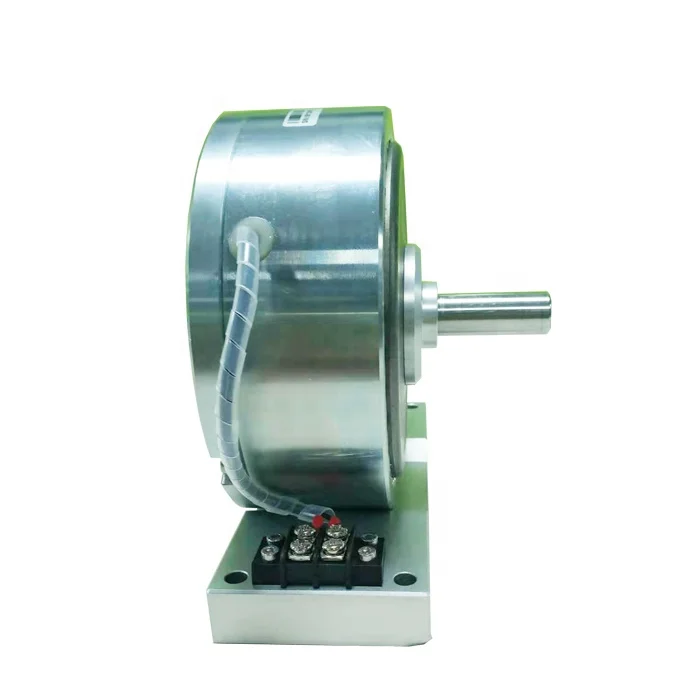

 AHB Series Compressed-air-cooled Hysteresis Brakes 3kg torque

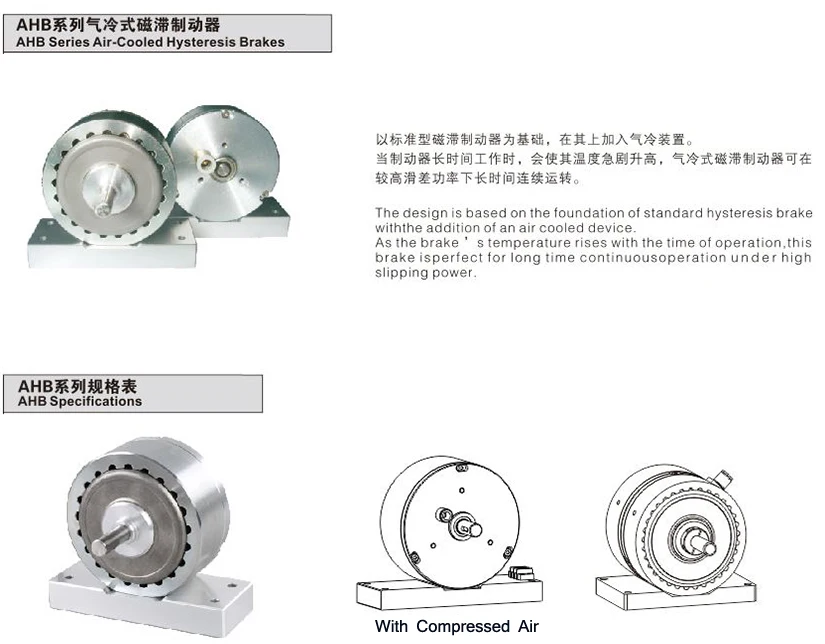

When torque control/torque measurement must be performed at the highest possible power, KIM CHEN AHB Series Hysteresis Brakes are ideal. Passages running through the brakes enables compressed air cooling, providing
excellent heat dissipation. AHB Series Hysteresis Brakes allows operation at speeds of up to 25,000 rpm for extended durations.

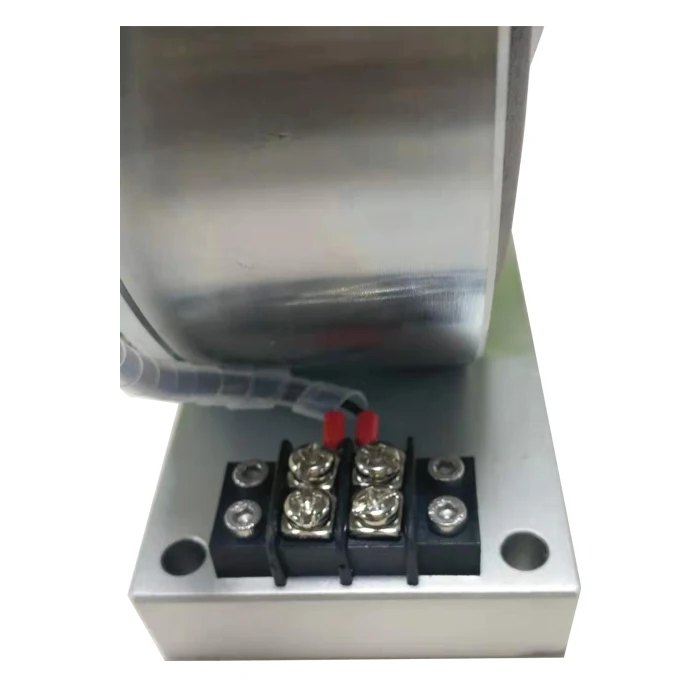

AHB Brakes are conveniently base mounted. Base mounting, with integral

barrier type terminal strip, provides easy mounting and wiring

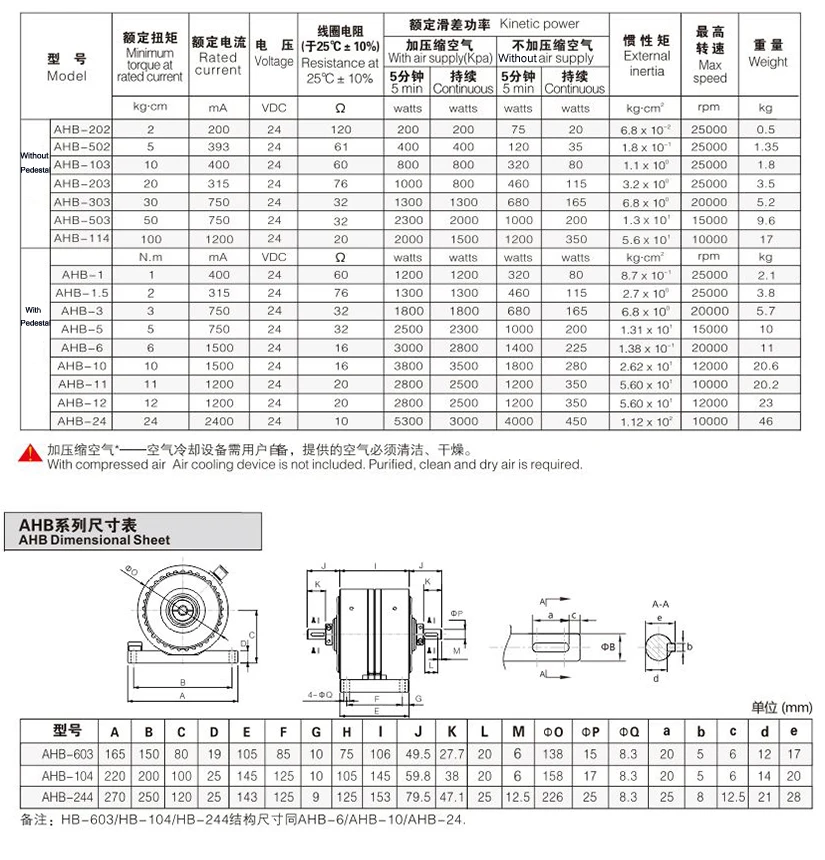

ModelAHB-3
Minimum torque at rated current3kg.cm
Rated Current750mA
Voltage24 V DC
Resistance at 25°C±10%32 Ω(Ohm)
Weight6kg
Kinetic Power-With air supply (5min)1800watt
 Kinetic Power -With air supply(Continuous)1800watt
 External inertia1.1x1.0°kg.cm
Kinetic Power-Without air supply (5min)680watt
 Kinetic Power -Without air supply(Continuous)165watt
 Max speed 20000 rpm

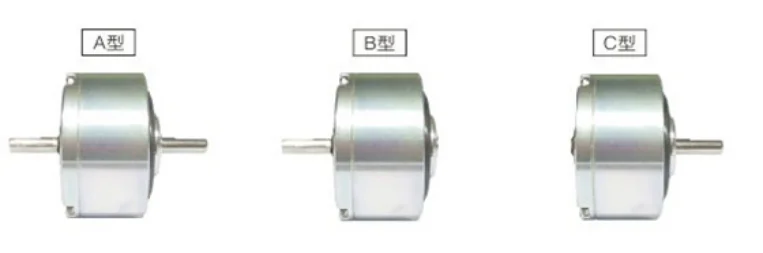

Axis direction selection




Company Information



Kimchen Factory Certification.

_10

KIM CHEN INDUSTRY INTL LIMITED was founded in 2001, the factory is located in Dongguan city. Guangdong province.

We specialized in the manufacture and RD of the component which is used in coil of wire and tension systems. textile machinery and electrical industry precision ceramics. Such as: coil winding nozzle, coil winding tensioner, tension meter, ceramic eyelets, ceramic coating pulley. etc.

We produce high quality coil winding nozzle which include tungsten carbide nozzle, ruby nozzle and ceramic nozzle. We adopt the excellent raw material and technology to ensure best quality which exceed our customer's expection. Our main customer Mitsubishi, ABB, SVM, YKK. etc, We expect long term relationship with you!

1-101-11



Our Factory Advantages:

1. Competitive prices

2. Good after-sale services

3. Fast delivery

4. High quality control

5. Customized size, design


Other Products



We also provide other relative precision parts

For more product, pls see the photos as follow, if you need, pls contact us.

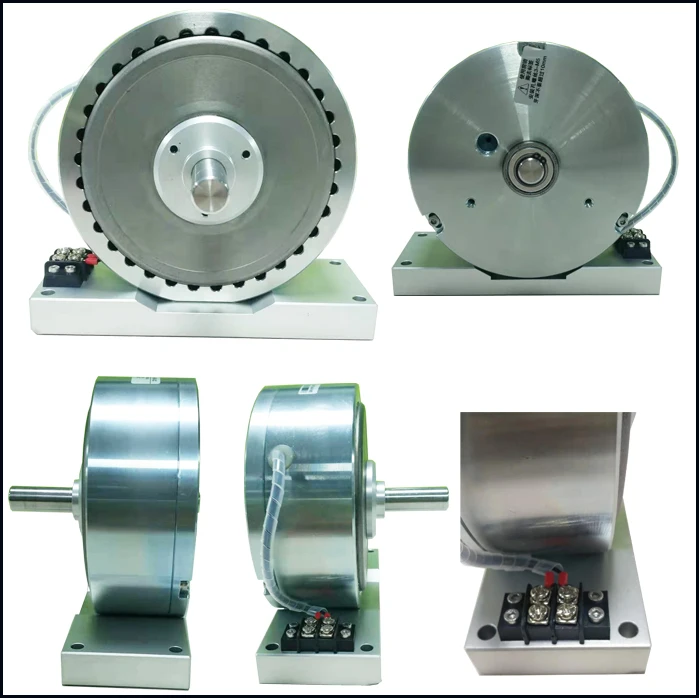

 1-8

Different Tensioner for customers reference .

Pls kindly send your request to us so that we are able to recommend the suitable models to you.



1-9

 Magnetic Damper(MTB-03) Wire Tensioner Magnetic Tensioner
