Remote Control Outdoor Lighting Meanwell Driver IP66 Ik10 with Ledil Lens 60W LED Street Light

Product Overview

Description

Remote Control Outdoor Lighting Meanwell Driver IP66 Ik10 with Ledil Lens 60W LED Street Light

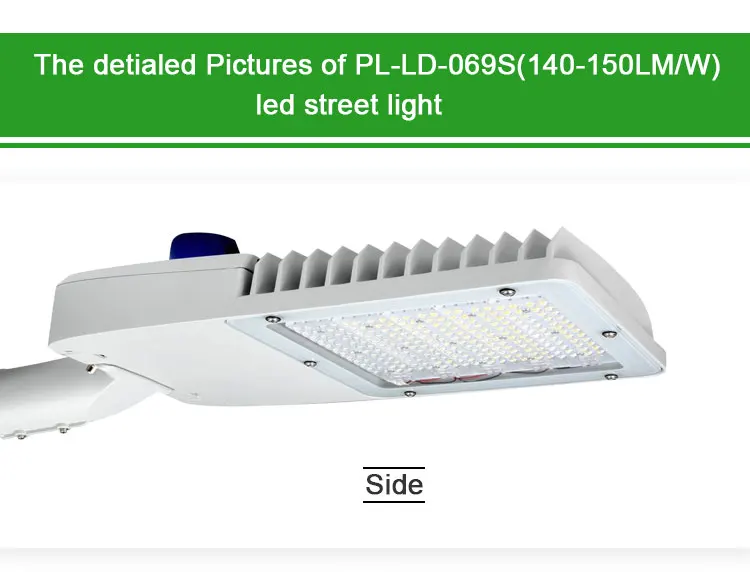

PL-LD-069/069S series led street light



Philips lumileds 3030smd/ 5050smd available ,meanwell /inventronics drivers

Die-cast aluminum for better heating sink

* IP66 IK10

150lm/w,from 30w to 300W

* Certificates:TUV CE EMC LVD CB ENEC IRAM TISI SAA

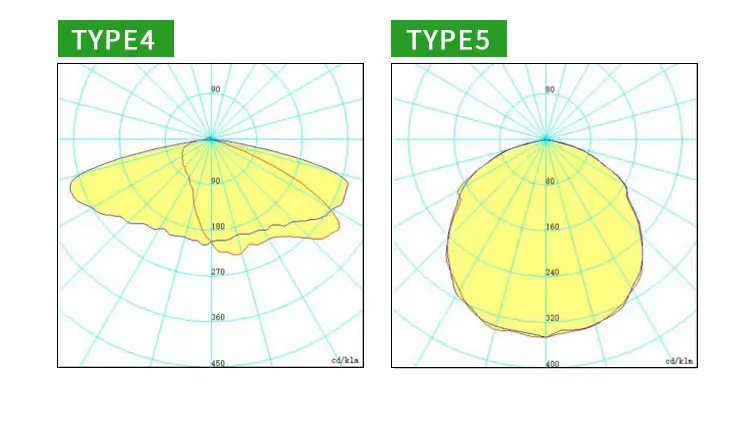

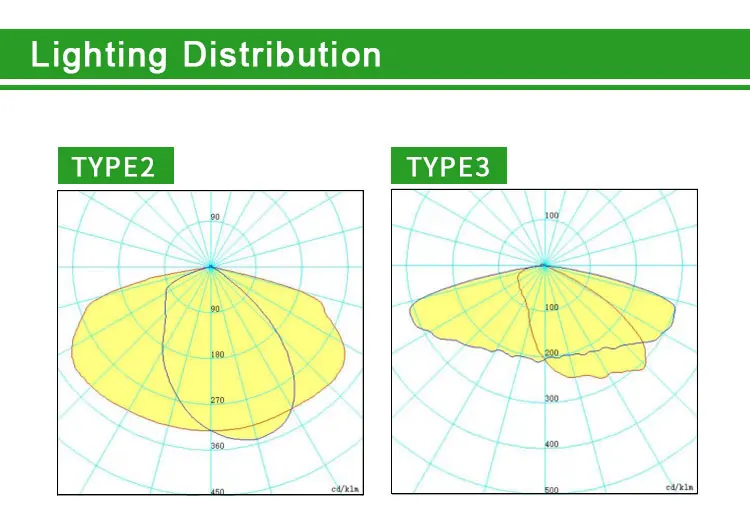

*Light distribution: Beam angle with LEDil lens : TYPEI ,II,III,IV,V

Warranty :5-8 years

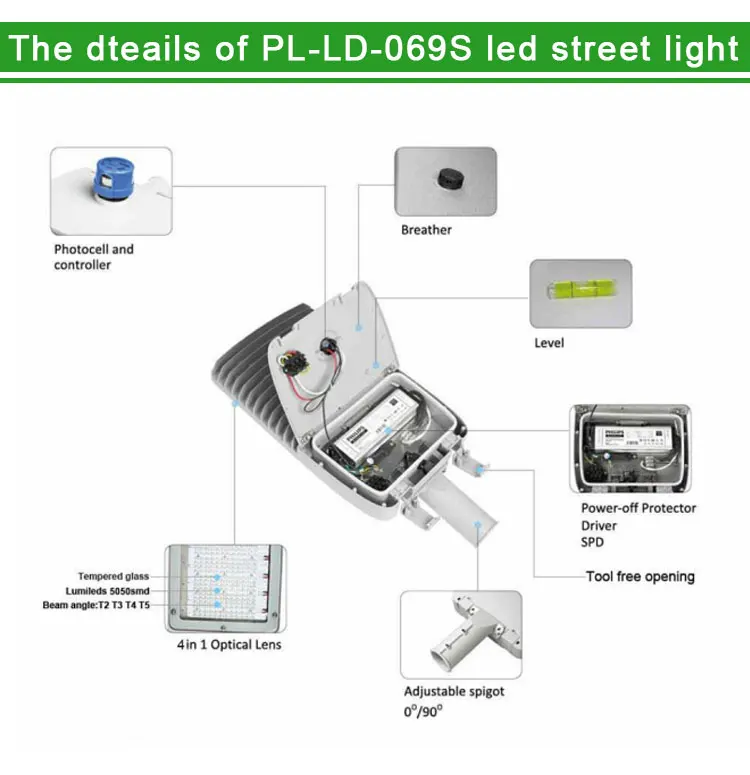

1, Smart Structure, Easy to Maintain

-Tool-free Open and Maintenance.

-Easy Replacement for LED Driver.

-Power-off Protection 10-20kv

-Surge Protection.

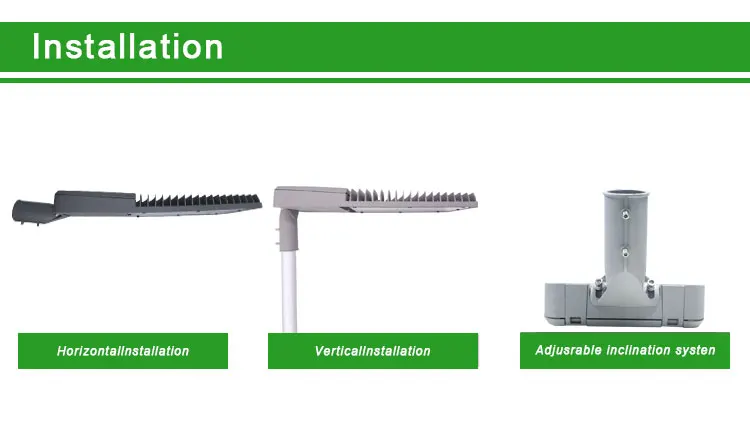

-Wide choice of optics and installation spigots.

LED Street light  Specifications
Model	PL-LD-069S	PL-LD-069S	PL-LD-069S
Input Voltage	100-305 V AC
Power	30W 40W 50W 60W 70W 80W 90W 100w  120W	150W  180W 200W	240W 300W

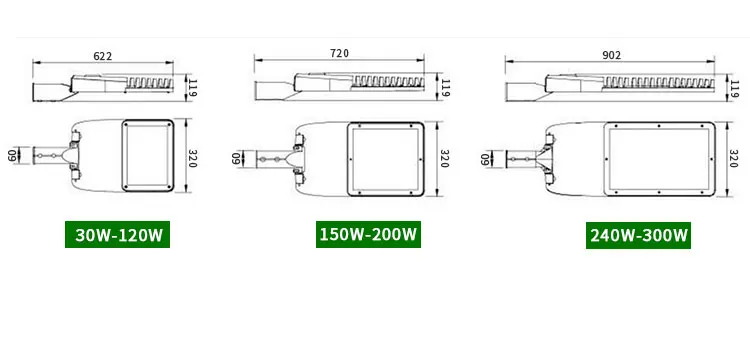

Size(mm)	622*320*119mm	720*320*119mm	902*320*119mm
LED chip	Lumileds  5050SMD
CRI	Ra>70/80
Power Factor	>0.95
Light efficiency	150LM/W±5%
Beam angle	T2 T3 T4 T5
LED driver brand	Inventronics, Meanwell driver ELG/HLG series
Surge protection	6KV/10KV/20KV as customers' rerquirement

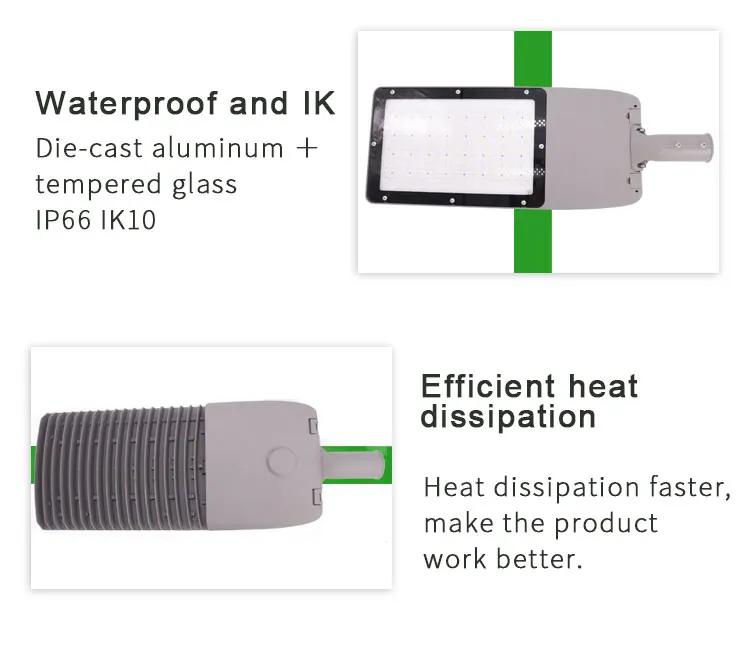

Waterproof and IK	IP66 IK10
Housing material	Die-cast  Aluminum +Steel glass
Storage temperature	-40℃~85℃ 10%~90% H.R
Work temperature	-40℃~50℃  20%~90% H.R
Lifespan	100000 hours
Options	Photocell ,PWM /DALI/1-10V/Timing/Daylight sensor/Nema 7  Pin socket
Certificates	CE ROHS SAA CB  ENEC IK10 IP66  LM80 LM79 TM21
warranty	5 -8years





FAQ


Q: Whether the  LED lights really have 50,000 hours lifespan?

A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from in lab,actual lifespan is only  <=30,000hours. Meanwhile it can also be 50,000 hours lifespan if it adopt very good material.

Q: For same power,why different suppliers with different brightness?

A: Different chips,or same chip but different brightness version. The brightness will be different.But for same chip and same brightness version,the brightness will be slight difference.But please make clear the brightness difference between LEDs and lamp fixture.

Q:What is colour temperature?

A: Kelvin is a way to measure "temperature", the light from LED lights emit a certaincolor, which we have catagorized in CTT(kelvin). For example, a warmer (lower color temperature) light is often used in public areas to promoterelaxation, while a cooler (higher color temperature) light is used to enhance concentration in offices.

Q: What is CRI?

A: CRI is a figure which feedback the real objects colors. Higher CRI with higher cost.

Q: What is PF and efficiency?

A: PF and efficiency is to feedback the driver electrical performance. Higher PF and efficiency with higher coste other questions,please feel free to contact us,you will get reply at the first time.
