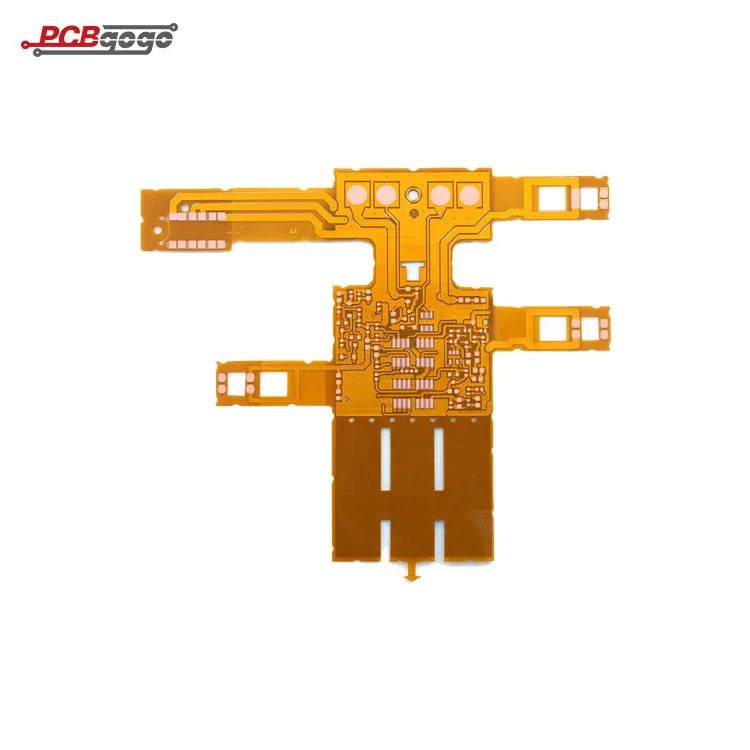

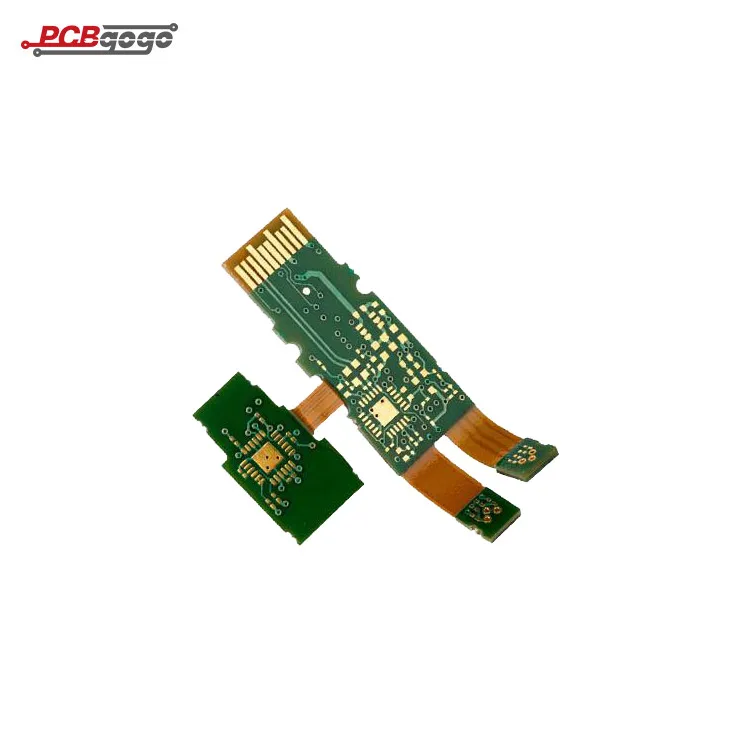

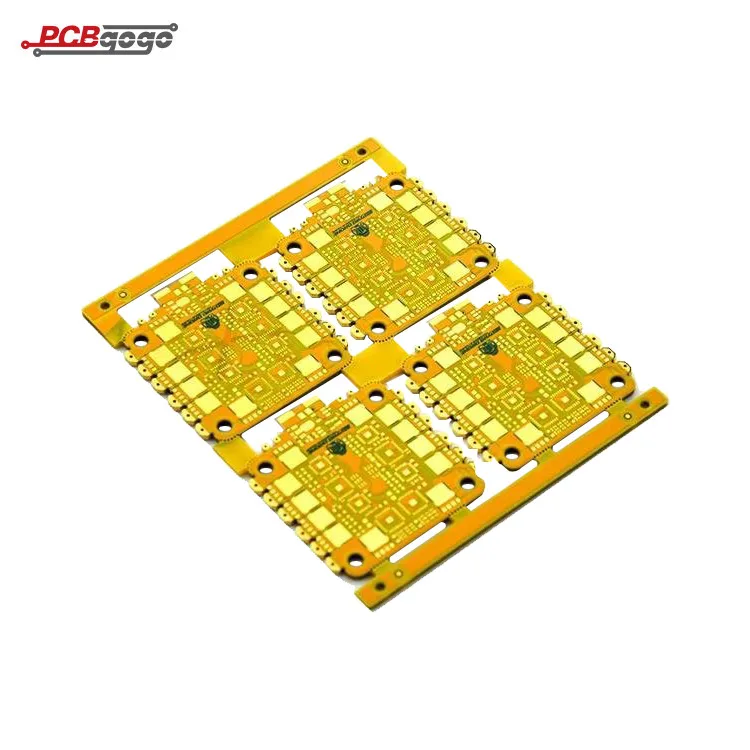

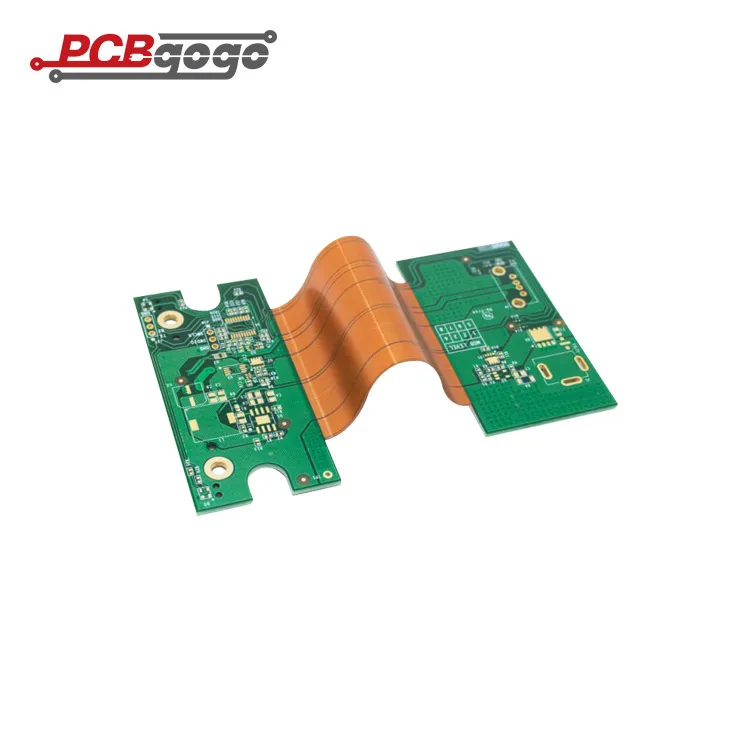

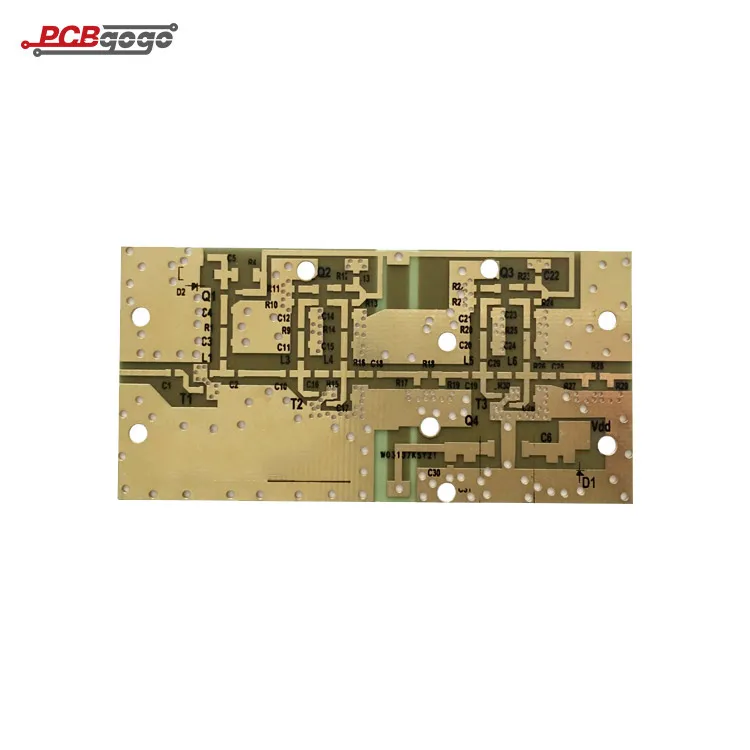

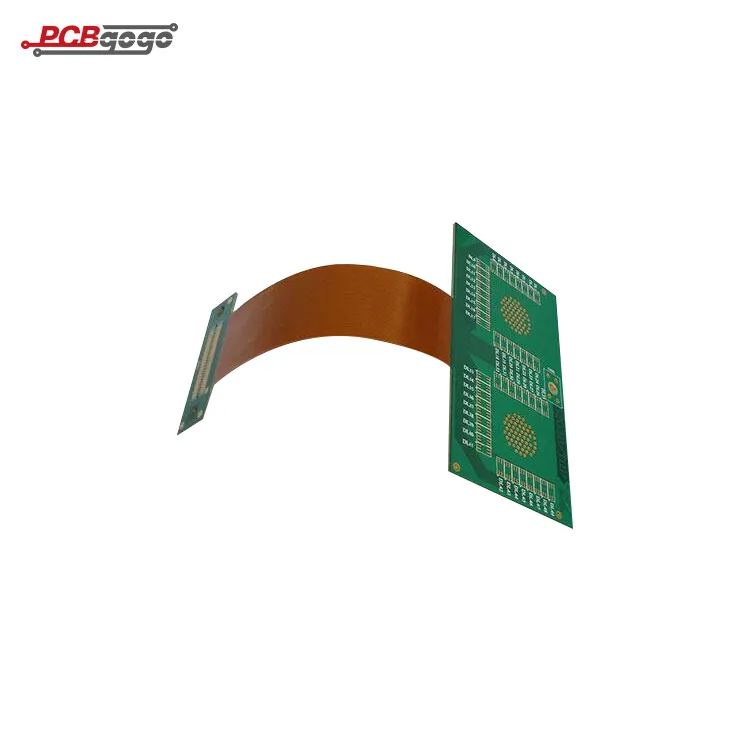

PCBGOGO Turnkey rigid flex PCB printed circuit board Assembly from China Shenzhen
PCB CAPABILITIES
Items
Fabrication Capabilities
Remarks
Layer Count
1-10 layers
if your PCB order is over 10 layers, please contact your customer service for quotation.
Material
FR-4 94V0/ Aluminum
For FPC, HDI, ROGERS, HALOGEN-FREE, HIGH TG ETC., contact your customer service.
Maximum Size
500x1100mm
The max. size of PCBGOGO PCB is 50*40cm. and we accept longer PCB board which max. length is 1100MM
Minimum Size
3mm*3mm
Maximum Panel Size
50cm*45cm
Minimum Panel Size
7.5*7.5cm
If you need v-cut, this is minimum panel size in PCBGOGO
Tolerance Size of Board (Outline)
±0.2mm
CNC tolerance is ±0.2mm, v-cut tolerance is ±0.5mm
Board Thickness
0.4-2.4mm
Tolerance Thickness of Board ( t≥1.0mm)
±10%
Pay attention: as the capability (PTH, solder mask and others) will add the board thickness, we usually use Plus Tolerance.
Tolerance Thickness of Board ( t≥1.0mm)
±0.1mm
Pay attention: as the capability (PTH, solder mask and others) will add the board thickness, we usually use Plus Tolerance.
Min. Line Width
4mil(0.1mm)
Min. Line Width is 0.1mm;In terms of multi-layer PCBs, Min. Line Width for inner-layer is 0.175mm
0.1mm/4mil for outer layer. If the minimum line width is less than 6 mil, there will be an extra charge / fee.
Min. Line Space
4mil(0.1mm)
Min. Line Spacing is 0.15mm/6mil. If Min. Line Spacing is less than 6mil, it will charge extra fee.
Outer Layer Copper Thickness
35um/70um/105um (1OZ/2OZ/3OZ)
It means the thickness of copper in outer layer. 1 OZ=35um, 2OZ=70um, 3OZ=105um.
Inner Layer Copper Thickness
35um/50um (1OZ/1.5OZ)
Default is 1 OZ, but if you have special requirement, 1.5 OZ is acceptable.
Drill Diameter Range
0.2-6.3mm
Min. Size of drill via CNC is 0.2mm. 6.3mm is maximum size.
Annular Ring
≥0.1mm(4mil)
If Annular Ring is smaller but there is enough space, there is no limit for the Annular Ring size. But if there is not enough space coupled with dense lines, the Annular Ring size should be over 0.1mm
Finished Hole Size
0.2--6.20mm
Because the copper will cover the surface of hole, the Finished hole size is smaller than it is in Gerber file
The Size Tolerance of Finished Hole (CNC
±0.08mm
Tolerance of Finished Hole Size is ±0.08mm. For example, if the drill in the Gerber file is 0.6mm, the finished drill will be 0.52-0.68mm on standard.
Solder Mask Type
LPI
LPI is common use in the PCB fabrication.
Min. Width of Legend
≥0.15mm
Min. width of legend is 0.15mm, if it is smaller, the legend in the finished board will be not clear.
Minimum Height of Legend
≥0.8mm
Min. height of Legend is 0.8mm, if it is smaller, the legend in the finished board will be not clear
Legend Width/ Height
1:5
The suitable proportion of width and height is good for PCB fabrication.
Space between Trace and Board Edge
≥0.3mm(12mil)
Routing: the space between line and frame should be over 0.3mm. V-cut panel: the space between line and v-cut line should be over 0.4mm.
Panelization
V-scoring, Tab-routing, Tab-routing with Perforation (Stamp Holes)
Leave min clearance of 1.6mm between boards for break-routing. For V-score panelization, set the space between boards to be zero.
Min. aperture in half-hole technology
0.6mm
Half-hole is a special technology and the min. aperture must be over 0.6 mm
PCBA CAPABILITIES
Item
CAPABILITIES
MQQ
5pcs
Lead Time
24 hours expedited service can be offered. 3- 4 days normally for PCBA prototype orders. We will give you accurate lead time when we quote for you.
PCB Spec. Requirements
Max. board size: 500mm X 400mm
Board Type: Rigid PCBs, Flexible PCB, metal core PCBs
We supply custom cables, cable assemblies, wiring looms/harnesses and power leads for various industries including automotive, security, mining, medical and entertainment.
Stencils
Stencil with or without frame (offered free by PCBGOGO)
