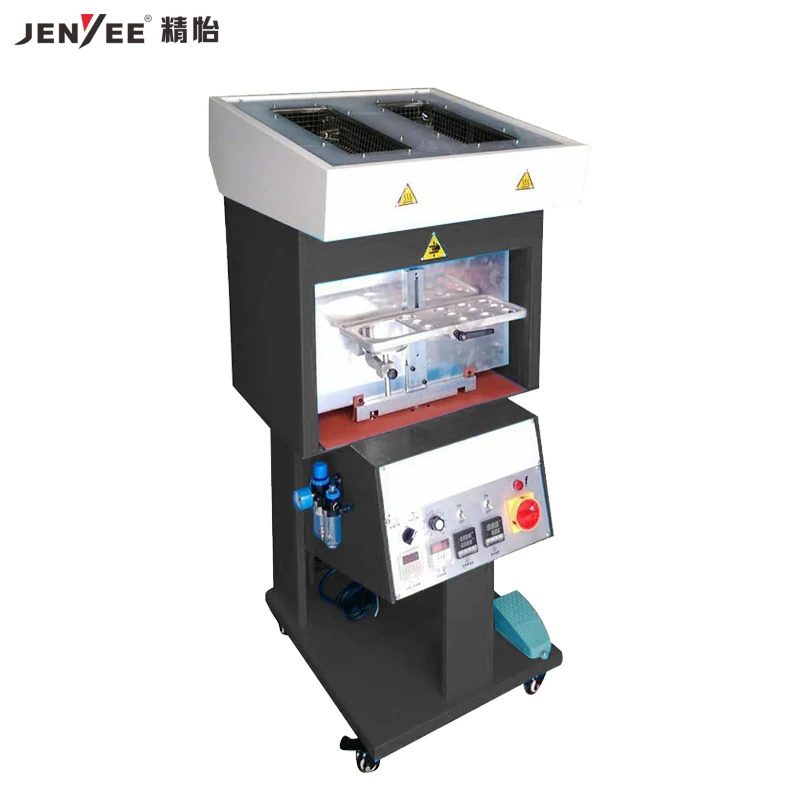

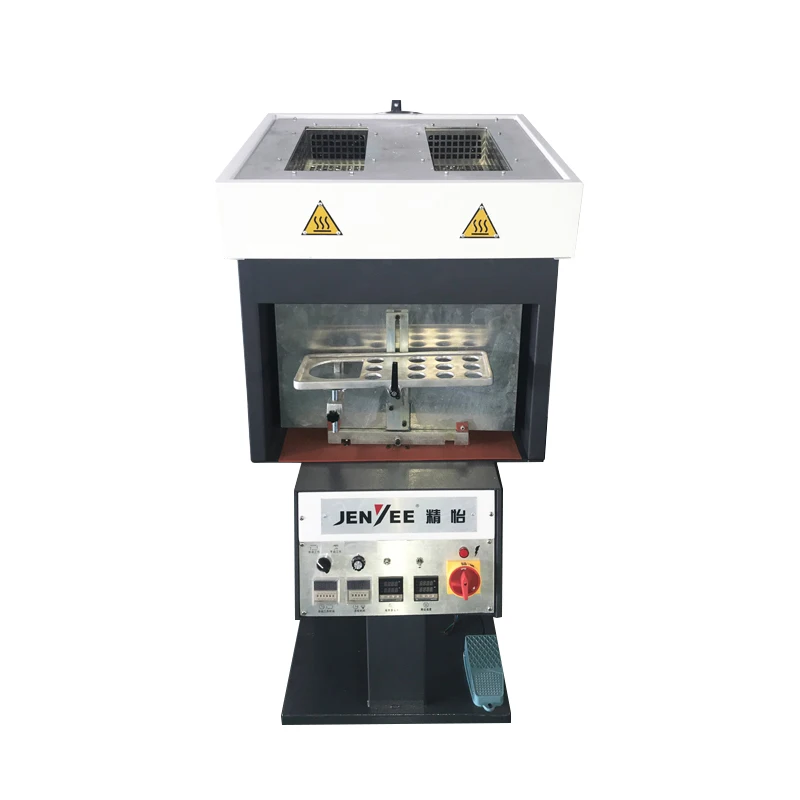

JY-567 shoe upper sole activator glue dry machine glue activator shoes upper and sole glue infrared activating machine
Product Show
Quick Details
Brand Name:
JENYEE
Dimension(L*W*H):
600*670*1460mm
Power(W):
8KW
Voltage:
380V
Weight:
120KG
Type:
Electric heating tube
Application:
shoe upper and sole glue activator active glue
Applicable:
all kinds of shoes
Operating temperature:
0-150℃
Warranty:
1 Year
Product Application
Product Application &Features
This machine is suitable for all kinds of men's and women's leather shoes, tourist shoes adhesion, sole before sole pressing, vamp glue drying, activation.
1. This system has the advantage of preventing excessive softening of the sole, especially for PVC material.
2. Special ceramic electrothermal system is adopted for vamp activation, continuously acting on the bottom and edge of the vamp.
3. Sole activation uses halogen lamp tube.
4. This machine uses two special heating functions to activate the upper and sole.
5. It can be operated manually or automatically at the operator's option
Product Description

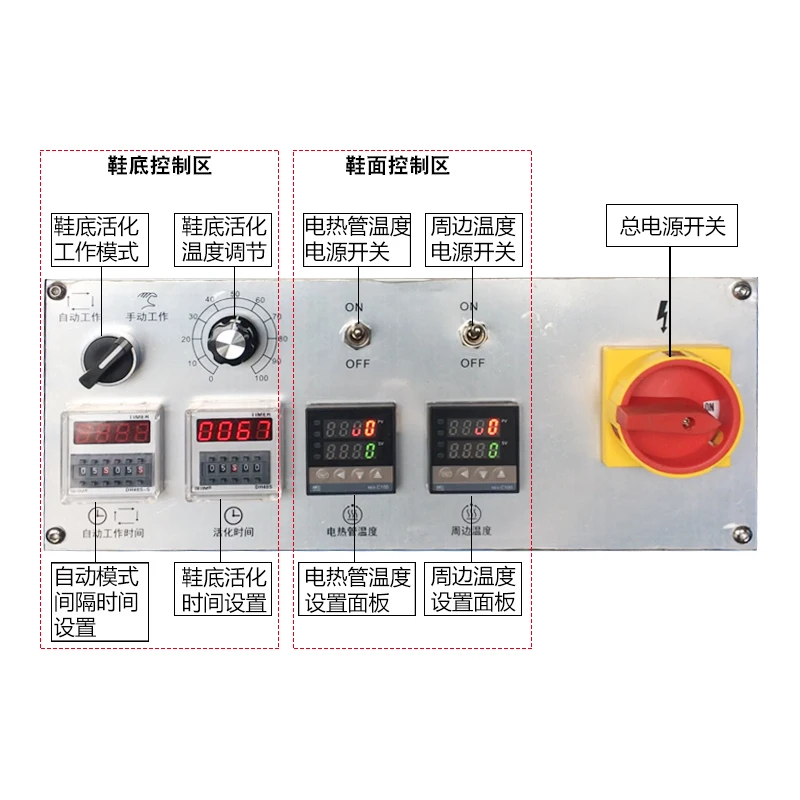

Control panel
The control panel can control the heating time and temperature and Steam switch.
1.Mains switch
A:Upper control area
2.Peripheral temperature power switch;
3.Electric heat pipe temperature power supply switch;
4.Peripheral temperature setting panel;
5.Electric heat pipe temperature setting panel.
B:Sole control area
6.Sole activation temperature adjustment;
7.Sole activation mode;
8.Sole activation time Settings;
9.Automatic mode interval setting.

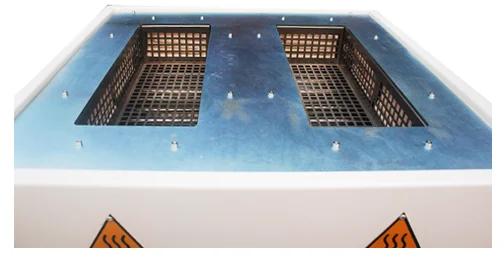

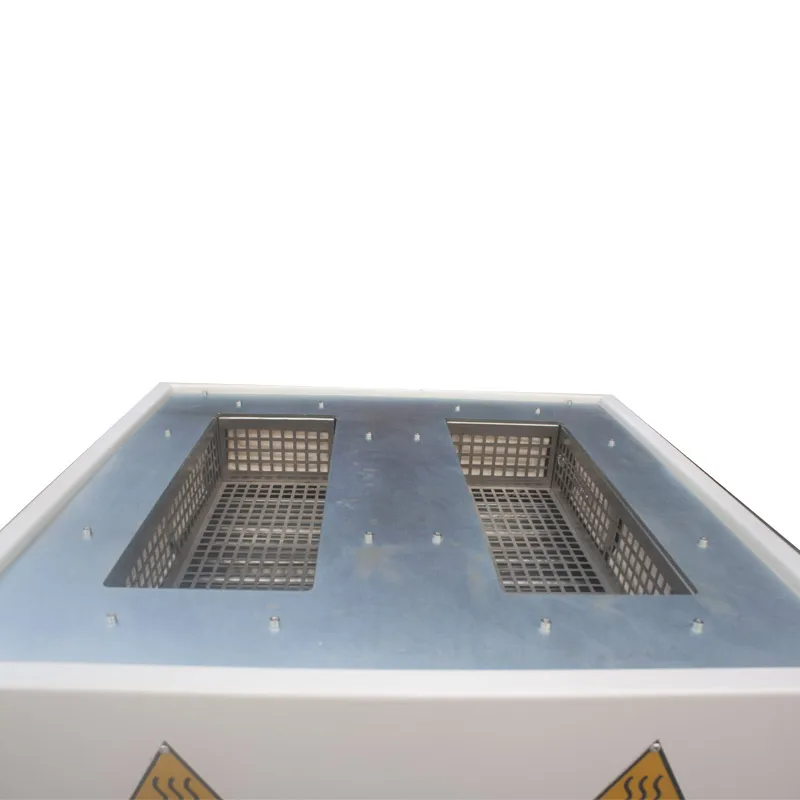

Upper activation area
When the temperature reaches the set value, the glue- coated vamp can be put into the groove to keep the glue active.

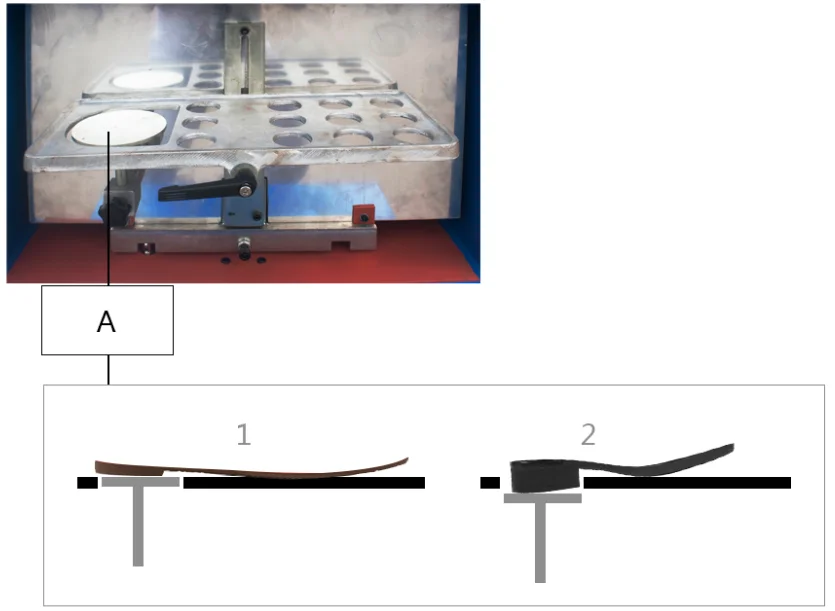

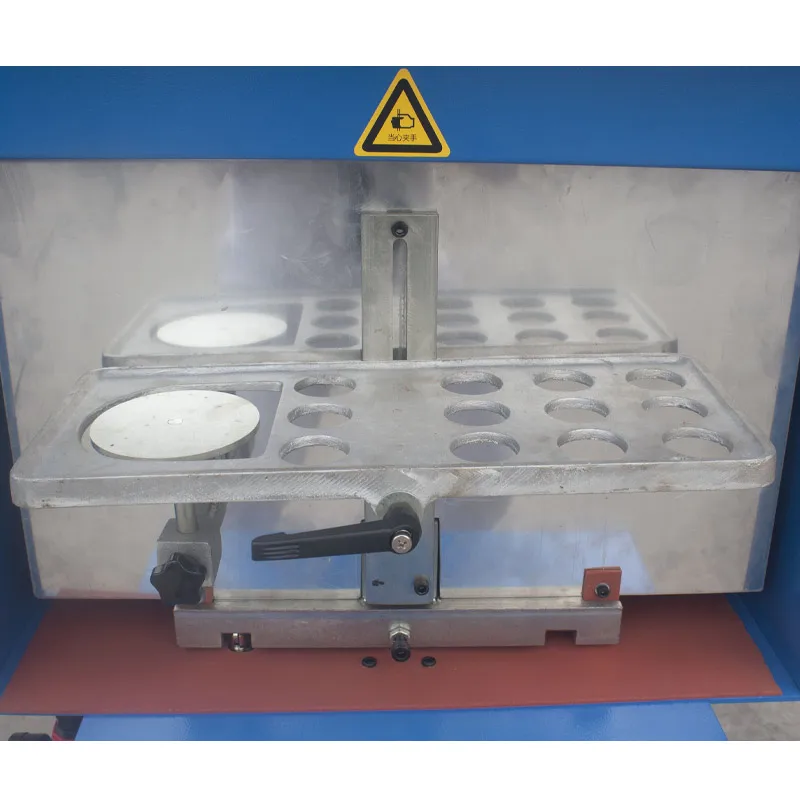

Sole activation area
Place the sole of the shoe on the tray. After starting, it will rotate into the oven. After heating in the oven to the set time, it will rotate out automatically or manually.
A:Adjust the height of the heel sole
1.Flat shoes
2.With shoes
Brief operating
Brief operating procedures
1. Turn on the power switch
2. Set the temperature of the upper and lower layers,
3. Set the lower layer automatic rotation time
